TEINTOP Carnival 8783G Automatic Mechanical Wrist Watch User Manual

1. Introduction

This manual provides detailed instructions for the proper use and care of your TEINTOP Carnival 8783G Automatic Mechanical Wrist Watch. Please read this manual thoroughly to ensure optimal performance and longevity of your timepiece.

2. Product Overview

The TEINTOP Carnival 8783G is an automatic mechanical wrist watch featuring a sophisticated design and practical complications.

Key Features:

• Automatic Movement: High-quality self-winding mechanical movement with analog display.
• Sapphire Glass: Durable synthetic sapphire crystal for enhanced scratch resistance.
• Stainless Steel Band: Robust and stylish stainless steel strap with a push-button deployment clasp.
• Complications: Includes Day and Week functions.
• Luminous Elements: Hands and hour markers feature luminous material for visibility in low light conditions.
• Helium Release Valve: Professional helium valve located at the 2 o'clock position, designed to release accumulating helium during external pressure reduction (e.g., during decompression after saturation diving).

Figure 1: Front view of the TEINTOP Carnival 8783G watch.

3. Setup and Initial Operation

3.1. Initial Winding

As an automatic mechanical watch, it requires an initial power reserve to start functioning. If the watch has stopped, follow these steps:

1. Ensure the crown is in its fully pushed-in position (position 0).
2. Turn the crown clockwise 40-50 times. This manually winds the mainspring and provides an initial power reserve.
3. The second hand should begin to move.

Note: The watch is designed to self-wind with the motion of your wrist during daily wear. Manual winding is primarily for initial startup or if the watch has been unworn for an extended period.

3.2. Setting Time and Date/Day

The crown controls the time and date/day settings.

• Position 0 (Pushed In): Normal operating position. Manual winding (clockwise rotation) is possible in this position.
• Position 1 (Pulled Out One Click): Used for quick-setting the date and day. Rotate the crown to adjust. Avoid setting the date/day between 9 PM and 3 AM, as this can damage the movement.
• Position 2 (Pulled Out Two Clicks): Used for setting the time. Rotate the crown to move the hour and minute hands. Push the crown back to Position 0 to start the watch and ensure water resistance.

Figure 2: Dial view highlighting time, day, and date indicators.

4. Operating Your Watch

4.1. Automatic Winding Mechanism

Your TEINTOP Carnival 8783G watch is equipped with an automatic self-winding movement. This means the watch is wound by the natural motion of your arm and wrist. A rotating weight (rotor) inside the watch moves with your wrist, automatically winding the mainspring.

• For optimal performance, wear the watch for approximately 8 to 12 hours daily.
• If the watch is not worn for a day or two, or if your wrist movements are minimal, it may wind down and stop. In such cases, perform the initial manual winding procedure (Section 3.1) to restart it.

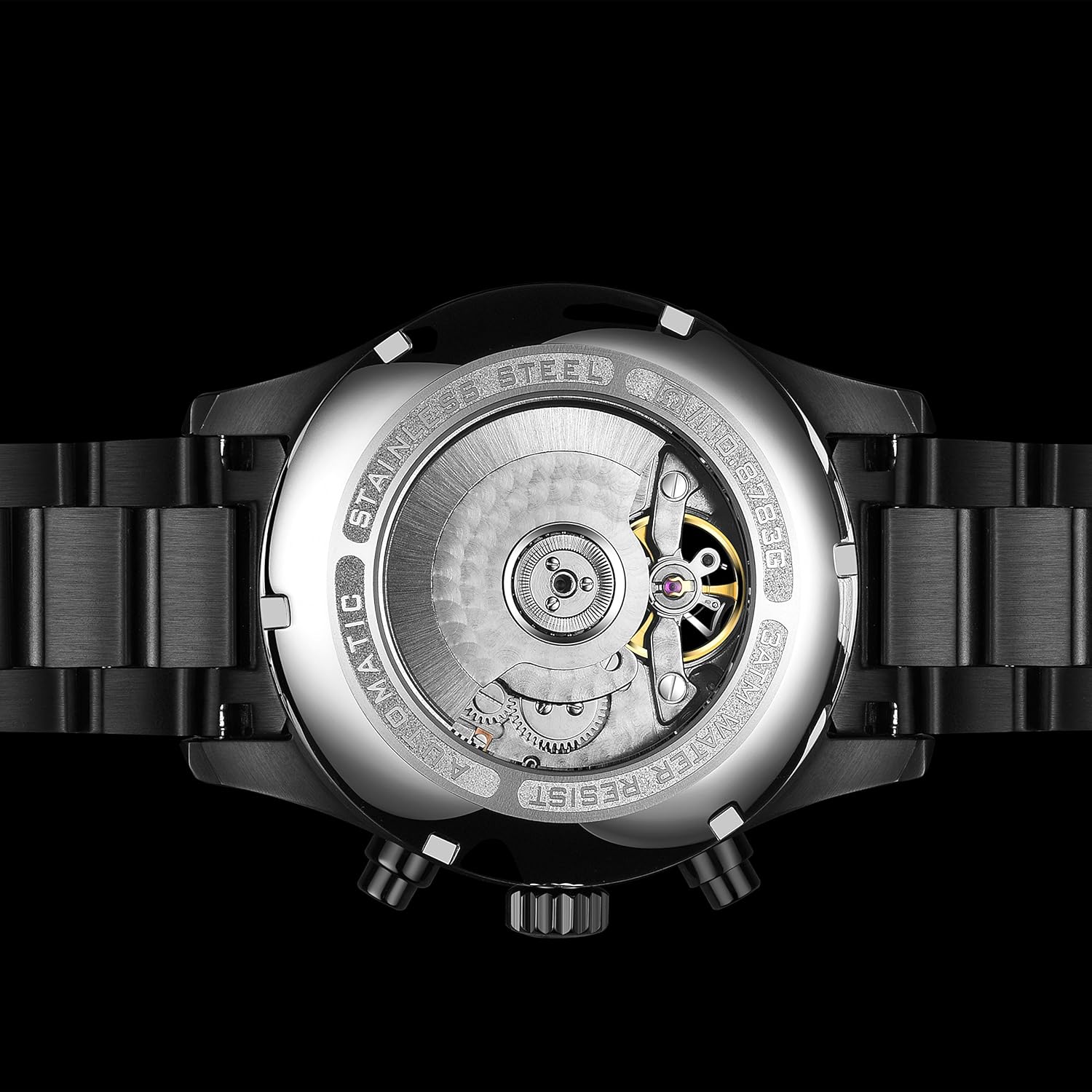

Figure 3: Transparent case back revealing the automatic movement.

4.2. Luminous Display

The hands and hour markers on your watch contain luminous material. This material absorbs light energy (from natural or artificial light) and then emits it in the dark, allowing for readability in low-light conditions. The duration and intensity of the glow depend on the amount and duration of light exposure.

Figure 4: Luminous hands and markers in low light.

4.3. Helium Release Valve

The professional helium valve at the 2 o'clock position is a feature designed for saturation divers. During prolonged periods in a hyperbaric environment (e.g., a diving bell), helium atoms can penetrate the watch case. During decompression, if the internal pressure is not released, the accumulated helium can cause damage to the watch. This valve automatically releases the helium, preventing damage. This feature is primarily for professional diving applications.

5. Maintenance and Care

5.1. General Care

• Cleaning: Wipe the watch regularly with a soft, dry cloth to remove dust and smudges. For the stainless steel band, a slightly damp cloth can be used, followed by drying.
• Avoid Extreme Conditions: Protect your watch from extreme temperatures, direct sunlight for prolonged periods, and strong magnetic fields, as these can affect the movement's accuracy.
• Impact: While durable, avoid dropping or subjecting the watch to severe impacts.

5.2. Water Resistance

The watch is designed with water resistance features, including a helium release valve. However, always ensure the crown is fully pushed in to maintain water resistance. Avoid operating the crown or pushers while the watch is submerged in water. Refer to the watch's specific water resistance rating (usually indicated on the case back) for detailed information on suitable activities.

6. Troubleshooting

Watch Stops or Loses Time

• Insufficient Power Reserve: As an automatic watch, it relies on wrist movement. If the watch stops, it likely needs to be wound. Perform the initial manual winding procedure described in Section 3.1.
• Lack of Wear: If you do not wear the watch daily for sufficient periods (8-12 hours), it may not build up enough power reserve. Consider wearing it more frequently or manually winding it every few days.
• Impact or Damage: If the watch stops unexpectedly after an impact, or if manual winding does not resolve the issue, the internal mechanism may be damaged. In such cases, professional inspection and repair are recommended.

7. Specifications

8. Warranty and Support

Specific warranty details are typically provided with your purchase documentation. For any service, repair, or support inquiries, please contact the retailer or the manufacturer, Shenzhen City Days Tourbillon Watch Co.,Ltd.
