HANGKAI 10 HP Electric Outboard Motor User Manual

1. Product Overview

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your HANGKAI 10 HP Electric Outboard Motor, Model 60V 10HP. This electric outboard motor is designed for use with fishing boats and inflatable boats, offering 2200W of power with a brushless motor and electric start system.

Image 1.1: Full view of the HANGKAI 10 HP Electric Outboard Motor, showcasing its design and components.

2. Safety Information

Read and understand all safety instructions before operating the motor. Failure to follow these instructions may result in serious injury or property damage.

• Always wear a personal flotation device (PFD) when operating or riding in a boat.
• Ensure all electrical connections, especially battery terminals, are secure and free from corrosion before each use.
• Keep hands, feet, and clothing clear of the propeller at all times, especially when the motor is in operation.
• Do not operate the motor if the propeller is damaged.
• Keep children and pets away from the propeller and moving parts.
• Always disconnect the battery when the motor is not in use or during maintenance.
• Operate the motor only in well-ventilated areas if charging batteries nearby.
• Be aware of your surroundings and other watercraft.

3. Setup and Installation

3.1 Mounting the Motor

1. Position the motor on the boat's transom. The motor is designed for transom mounting.
2. Secure the motor firmly using the transom clamps. Ensure the clamps are tightened evenly to prevent movement during operation.
3. Adjust the motor's depth so the propeller is adequately submerged and the anti-cavitation plate is just below the water surface. The transom plate height can be adjusted between 381-508 mm.

Image 3.1: Close-up view of the motor's mounting bracket and transom clamps, illustrating how it attaches to a boat.

Image 3.2: The HANGKAI electric outboard motor securely mounted on the transom of an inflatable boat, ready for operation.

3.2 Battery Connection

The motor operates on a 60V electrical system. It is recommended to use batteries with a capacity of over 120AH.

1. Ensure the motor's power switch is in the "OFF" position.
2. Connect the positive (+) cable from the motor to the positive (+) terminal of the battery.
3. Connect the negative (-) cable from the motor to the negative (-) terminal of the battery.
4. Verify all connections are tight and insulated to prevent short circuits.

4. Operating Instructions

The HANGKAI 10 HP Electric Outboard Motor features tiller control and an electric start system via a switch knob.

4.1 Starting the Motor

1. Ensure the motor is properly submerged and all connections are secure.
2. Turn the switch knob to the "ON" position to activate the motor.

Image 4.1: Close-up of the motor head, showing the tiller handle for steering and the switch knob for electric start and speed control.

4.2 Speed and Direction Control

• Tiller Control: Use the tiller handle to steer the boat by rotating the motor left or right.
• Speed Adjustment: The switch knob or integrated throttle on the tiller allows for adjustment of forward and reverse speeds. Rotate the knob or handle to increase or decrease speed.
• Forward/Reverse: The motor supports both forward and reverse operation. Select the desired direction using the control mechanism on the tiller.

4.3 Stopping the Motor

To stop the motor, turn the switch knob to the "OFF" position. For emergency stops, immediately turn the switch knob to "OFF" and disconnect the battery if necessary.

5. Maintenance

Regular maintenance ensures the longevity and optimal performance of your HANGKAI electric outboard motor.

• Cleaning: After each use, especially in saltwater, rinse the motor thoroughly with fresh water to remove salt, dirt, and debris. Wipe dry with a soft cloth.
• Propeller Inspection: Regularly inspect the propeller for damage, such as nicks, bends, or entanglement with fishing lines or weeds. Remove any debris. Replace damaged propellers immediately.
• Battery Care: Keep battery terminals clean and free of corrosion. Charge batteries according to the manufacturer's instructions. Store batteries in a cool, dry place when not in use.
• Electrical Connections: Periodically check all electrical connections for tightness and signs of wear or corrosion.
• Storage: When storing the motor for extended periods, ensure it is clean, dry, and disconnected from the battery. Store in a vertical position in a dry, protected area.

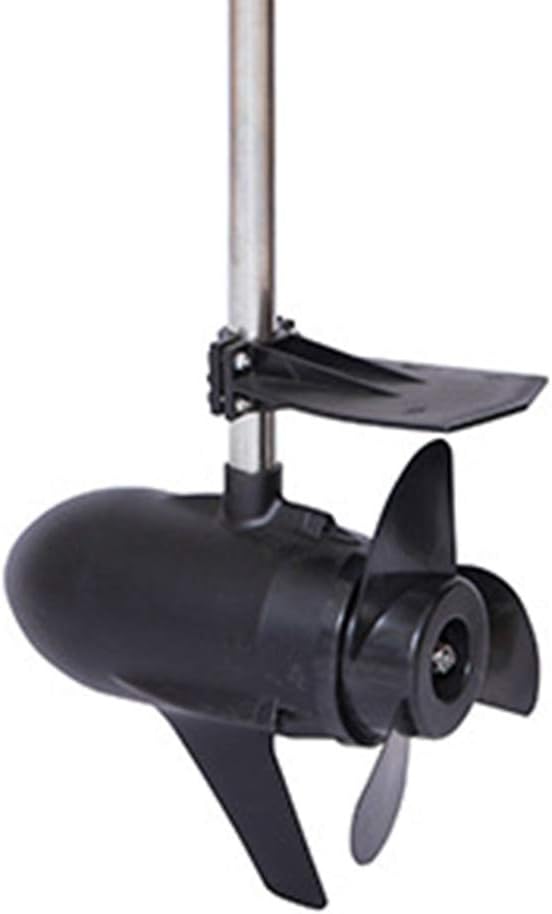

Image 5.1: Close-up view of the motor's propeller, highlighting its design for efficient propulsion. Regular inspection of the propeller is crucial for maintenance.

6. Troubleshooting

This section addresses common issues you might encounter with your HANGKAI electric outboard motor.

• Motor Not Starting:
  • Check battery connections for tightness and corrosion.
  • Ensure the battery is fully charged.
  • Verify the power switch knob is in the "ON" position.
• Reduced Power or Speed:
  • Check battery charge level.
  • Inspect the propeller for damage or entanglement with debris.
  • Ensure the motor is properly submerged and not cavitating.
• Unusual Noise or Vibration:
  • Immediately stop the motor.
  • Inspect the propeller for damage or foreign objects.
  • Check for loose mounting hardware.

If problems persist after performing these checks, contact customer support.

7. Specifications

Detailed technical specifications for the HANGKAI 10 HP Electric Outboard Motor, Model 60V 10HP.

Image 7.1: Visual representation of the HANGKAI 10 HP Electric Outboard Motor with its key specifications listed in a table format.

8. Warranty and Support

This HANGKAI electric outboard motor comes with a 1-year warranty from the date of purchase, covering manufacturing defects.

For technical support, warranty claims, or service inquiries, please refer to your purchase documentation or contact the retailer where the product was purchased. Please have your model number (60V 10HP) and proof of purchase available when contacting support.
