Adrian Steel UH25
Adrian Steel UH25, 2.5" Utility Hook - Instruction Manual
Model: UH25
Introduction
This manual provides comprehensive instructions for the proper installation, operation, and maintenance of your Adrian Steel UH25 2.5-inch Utility Hook. Please read this manual thoroughly before installation and use to ensure safe and efficient operation.
Product Overview
The Adrian Steel UH25 is a durable 2.5-inch utility hook designed for various storage and organizational applications. Constructed from steel with a gray painted finish, it offers reliable support for items up to 2.5 pounds when properly installed.
Figure 1: Front view of the Adrian Steel UH25 Utility Hook.

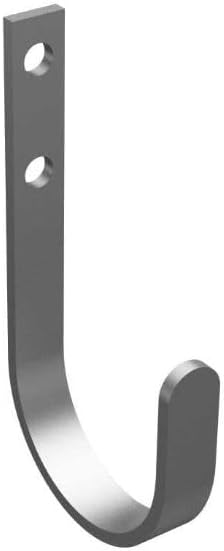

Figure 2: Angled view of the Adrian Steel UH25 Utility Hook, showing its curved design.
Key Features:
- Utility Hook: Designed for versatile hanging and storage.
- Size: 2.5 inches.
- Color: Gray finish.
- Material: Durable Steel construction.
- Mounting Type: Wall Mount.
- Adjustable Style: Features an adjustable design for flexible use.
Setup and Installation
Proper installation is essential for the stability and load-bearing capacity of the UH25 Utility Hook. Ensure you have the necessary tools and hardware before beginning.
Required Hardware (Not Included):
- (2) 1/4-20 Hex Flange Nuts
- (2) 1/4-20 x 1/2 THP Screws
- (2) #14 x 3/4 "A" THP Screws
- (2) 1/4 External Tooth Lock Washers
Installation Steps:
- Identify Mounting Location: Choose a sturdy surface such as concrete, brick, or metal. Ensure the location can support the hook and the intended weight.
- Mark Drill Points: Using the hook as a template, mark the two mounting hole locations on your chosen surface. Refer to the technical drawing for precise dimensions (Figure 3).
- Drill Pilot Holes: Drill pilot holes appropriate for your chosen fasteners.
- Secure the Hook: Align the hook with the drilled holes and secure it firmly using the recommended fasteners (nuts, screws, and washers). Ensure all fasteners are tightened to prevent movement.
Figure 3: Technical drawing of the UH25 Utility Hook, showing dimensions and recommended installation fasteners.
Figure 4: Example of the UH25 Utility Hook properly installed on a metal surface using screws.
Operating Instructions
Once installed, the Adrian Steel UH25 Utility Hook is ready for use. It is designed to hold various items in locations such as walls, garages, bathrooms, kitchens, closets, shelves, pantries, and laundry areas.
- Load Capacity: Do not exceed the maximum weight recommendation of 2.5 pounds. Overloading can lead to damage to the hook or the mounting surface.
- Item Placement: Hang items securely on the hook, ensuring they are balanced and do not protrude excessively, which could cause them to fall.
Maintenance
The Adrian Steel UH25 Utility Hook requires minimal maintenance to ensure its longevity and performance.
- Cleaning: Wipe the hook periodically with a damp cloth to remove dust and grime. Avoid abrasive cleaners that could damage the painted finish.
- Fastener Check: Periodically inspect the mounting fasteners to ensure they remain tight. Re-tighten if necessary to maintain stability.
- Damage Inspection: Check the hook for any signs of bending, cracking, or corrosion. If damage is observed, replace the hook immediately.
Troubleshooting
Most issues with the UH25 Utility Hook are related to improper installation or exceeding its weight capacity.
| Problem | Possible Cause | Solution |
|---|---|---|
| Hook is loose or wobbly. | Loose mounting fasteners; improper installation on an unstable surface. | Tighten all mounting fasteners. If the surface is unstable, relocate the hook to a more secure mounting point. |
| Hook bends or breaks. | Exceeded maximum weight recommendation (2.5 lbs). | Remove excess weight. Replace the hook if damaged. Always adhere to the specified weight limit. |
| Items slide off the hook. | Items are not properly balanced or are too wide for the hook. | Ensure items are balanced. Consider using a different storage solution for items that do not fit securely. |
Specifications
| Attribute | Detail |
|---|---|
| Brand | Adrian Steel |
| Model Number | UH25 |
| Product Dimensions (L x W x H) | 6 x 6 x 4 inches |
| Item Weight | 2.72 ounces |
| Color | Gray |
| Material | Steel |
| Finish Type | Painted |
| Mounting Type | Wall Mount |
| Number of Hooks | 1 |
| Maximum Weight Recommendation | 2.5 Pounds |
| Recommended Uses | Wall, Garage, Bathroom, Kitchen, Closet, Shelf, Cup And Mug, Pantries, Drawers, Laundry |
| Surface Recommendation | Concrete, Brick, Metal |
| Country of Origin | USA |
| UPC | 643934590041 |
Warranty and Support
Specific warranty information for the Adrian Steel UH25 Utility Hook is not provided in the product data. For details regarding warranty coverage or technical support, please contact Adrian Steel directly through their official website or customer service channels.
For general inquiries or assistance, please refer to the manufacturer's contact information typically found on their official website or product packaging.
