1. Product Overview
The Fosi Audio 5654W vacuum tubes are high-quality, tested, and matched replacements designed to enhance the audio performance of compatible preamplifiers and amplifiers. These 7-pin tubes serve as direct substitutes for various common tube types, offering improved sound clarity, a larger soundstage, and enhanced bass response.
Figure 1: A pair of Fosi Audio 5654W vacuum tubes.
2. Key Features
- Each package contains a pair of fully tested and matched military version vintage US-manufactured JAN 5654W vacuum tubes.
- Direct substitute for 7-pin 6AK5/6AK5W/6Zh1P/6J1/6J1P tubes.
- Can directly replace WE-403A/403B/EF95 and ordinary 5654 tubes.
- Can be used as a replacement for devices that come with 6J2/6J3/6J4/6J5/6K5 tubes.
- Designed to provide natural voice reproduction and improved musicality.
- Offers clearer sound with an emphasis on clarity, a larger soundstage, and more noticeable bass response.
3. Specifications
| Specification | Value |
|---|---|
| Item Dimensions (L x W x H) | 2 x 1 x 1 inches |
| Voltage | 220 Volts (typical operating voltage for compatible devices) |
| Manufacturer | Fosi Audio |
| Mounting Type | Surface Mount (for compatible devices) |
| Number of Channels | 2 (for stereo applications) |
| Item Weight | 1.44 ounces |
| Model Number | 5654W |
| Country of Origin | China |
4. Installation and Setup
These 5654W vacuum tubes are designed for easy replacement in compatible audio equipment, such as Fosi Audio preamplifiers and tube amplifiers. Always ensure your device is powered off and unplugged before attempting to replace tubes.
4.1 Unboxing and Inspection
Upon receiving your Fosi Audio 5654W tubes, carefully unbox them and inspect for any visible damage. Each tube is individually packaged to ensure protection during transit.
Figure 2: Fosi Audio 5654W tubes in packaging.
4.2 Tube Replacement Procedure
- Power Off: Ensure your amplifier or preamplifier is completely powered off and unplugged from the wall outlet.
- Allow Cooling: If the device has been in use, allow sufficient time for the existing tubes to cool down completely to avoid burns.
- Remove Old Tubes: Gently grasp the existing tube at its base and pull straight up with a slight rocking motion. Avoid twisting or bending the pins.
- Insert New Tubes: Align the pins of the new 5654W tube with the corresponding holes in the tube socket. The pins are keyed, so they will only fit in one orientation. Apply gentle, even pressure to push the tube straight down into the socket until it is fully seated. Do not force the tube.
- Verify Seating: Ensure both tubes are firmly and correctly seated in their sockets.
- Power On: Plug in and power on your device. Allow a brief warm-up period for the tubes to stabilize.
Important Note: Replacing the wrong type of tube may damage your amplifier. If you are unsure if these 5654W tubes can be used as a replacement for your audio device, please check with your amplifier manufacturer or consult the device's manual.

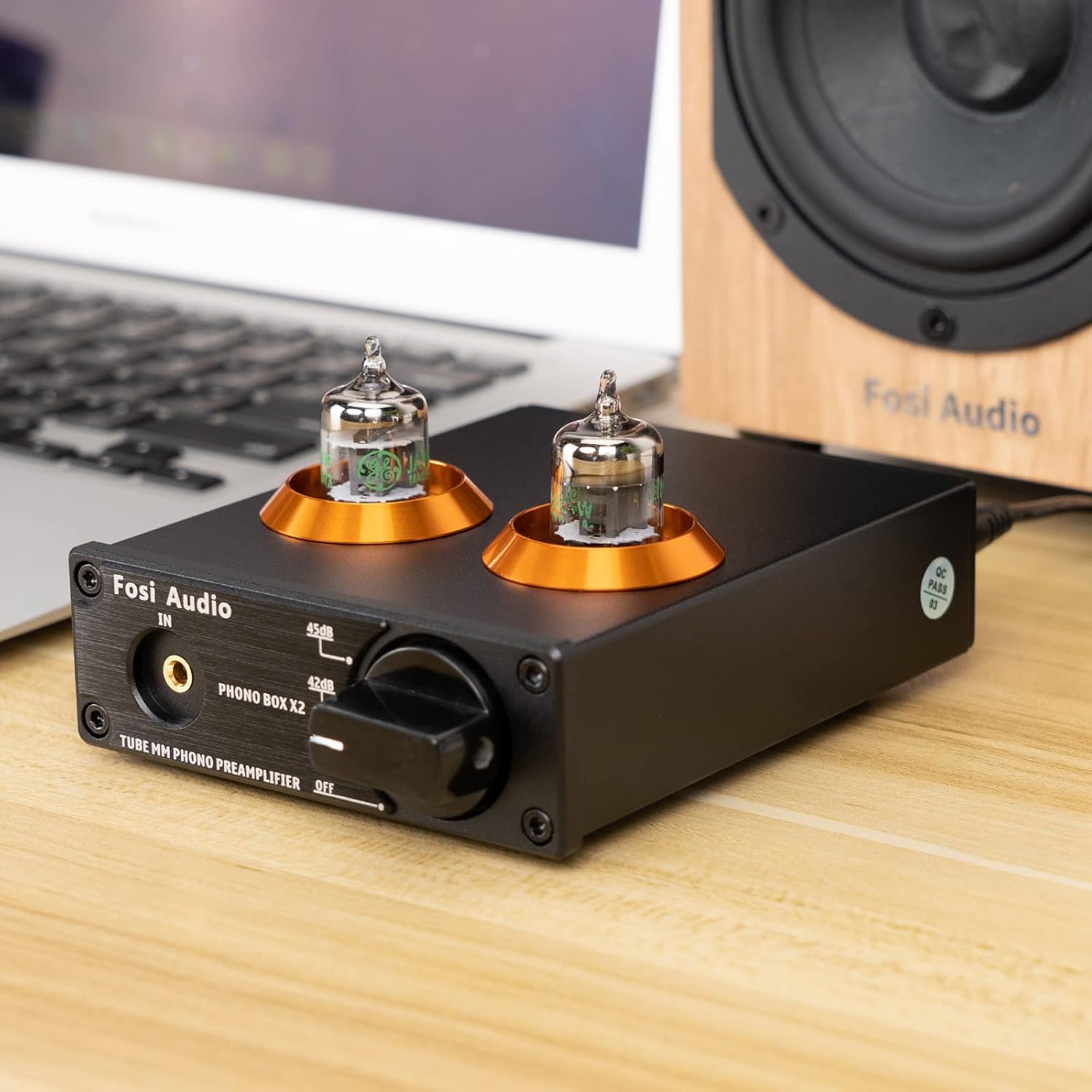

Figure 3: Fosi Audio BOX X2 preamplifier with 5654W tubes installed.
Figure 4: Proper insertion of a 5654W vacuum tube.
4.3 Installation Video Guide
For a visual guide on installing the 5654W vacuum tubes, please refer to the video below. This video demonstrates the replacement process for Fosi Audio BOX X2 and T20 amplifiers.
Video 1: Installation guide for 7-Pin 5654W Vacuum Tubes in Fosi Audio BOX X2 and T20.
5. Operating Considerations
After installation, allow the tubes a brief warm-up period (typically a few minutes) for optimal performance. Vacuum tubes often require a "burn-in" period, which can range from a few hours to several days of use, to reach their full sonic potential. During this period, the sound quality may gradually improve, becoming more refined and detailed.
The 5654W tubes are known for their ability to deliver a clear, natural, and dynamic sound. You may notice an expanded soundstage and improved bass response compared to stock tubes.
Video 2: Overview of 7-Pin 5654W Tested/Matched Vacuum Tubes, highlighting sound benefits.
6. Maintenance
Vacuum tubes generally require minimal maintenance. Keep them clean and free from dust. If cleaning is necessary, gently wipe the glass envelope with a soft, dry, lint-free cloth. Avoid using liquid cleaners directly on the tubes or near the pins.
When handling tubes, always hold them by the glass envelope, not by the pins, to prevent damage or contamination. Ensure your hands are clean and dry.
7. Troubleshooting
7.1 No Sound or Distorted Sound
- Check Tube Seating: Ensure both 5654W tubes are fully and correctly seated in their sockets. Loose connections can cause intermittent sound or distortion.
- Verify Compatibility: Double-check that the 5654W tubes are indeed compatible with your specific audio device. Refer to your device's manual or manufacturer's guidelines.
- Inspect Pins: Carefully examine the tube pins for any bends or damage. If a pin is bent, gently straighten it with small pliers before re-inserting.
- Test Original Tubes: If possible, re-install your original tubes to determine if the issue is with the new 5654W tubes or another component of your audio system.
7.2 Hum or Noise
- Grounding Issues: Ensure all audio components are properly grounded.
- Cable Interference: Check audio cables for damage or proximity to power cables, which can induce hum.
- Tube Microphonics: Gently tap the tube with a non-conductive object (like a pencil eraser) while the system is on (at low volume). If you hear a ringing or pinging sound through the speakers, the tube might be microphonic and could be a source of noise.
8. Warranty and Support
Fosi Audio stands behind the quality of its products. For specific warranty information regarding your 5654W vacuum tubes, please refer to the warranty card included with your purchase or visit the official Fosi Audio website. If you encounter any issues or have questions not covered in this manual, please contact Fosi Audio customer support for assistance.
