Shark Antennas S-F15 User Manual

1. Product Overview

The Shark Antennas S-F15 is a mono-band mobile vertical antenna designed for the 15-meter HF band. It is constructed with a fiberglass mast, an integral coil, and an adjustable stainless steel whip. This antenna is rated for a maximum power of 250 Watts and features a standard 3/8" x 24 thread base for versatile mounting options.

Key Features:

• Single band operation for 15 meters.
• Fiberglass mast measuring 44 inches with an integral coil.
• Adjustable and removable 48-inch stainless steel whip.
• Maximum power handling of 250 Watts.
• Standard 3/8" x 24 thread base for mounting.

2. Components

The S-F15 antenna consists of the following primary components:

• Fiberglass Mast: The main body of the antenna, approximately 44 inches long, containing the integral coil.
• Adjustable Stainless Steel Whip: A removable whip, approximately 48 inches long, used for fine-tuning the antenna.
• 3/8" x 24 Thread Base: The mounting point at the bottom of the fiberglass mast.

Figure 2.1: The Shark Antennas S-F15 mobile vertical antenna, showing the full length of the fiberglass mast and the stainless steel whip.

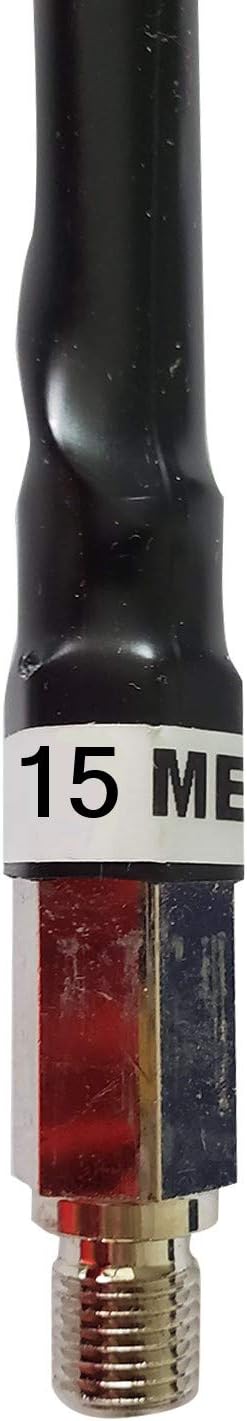

Figure 2.2: Close-up view of the S-F15 antenna's base, highlighting the 3/8" x 24 thread and the 15-meter band identification label.

3. Setup and Installation

The S-F15 antenna is designed for mobile and portable applications. Proper installation is crucial for optimal performance and safety.

3.1. Mounting Considerations

• The antenna does not include a mount. A suitable mount with a 3/8" x 24 thread is required.
• Ensure the mounting location provides a good ground plane, especially for mobile installations (e.g., vehicle body).
• For fixed installations, consider a robust mounting solution that can withstand environmental conditions.
• Ensure the antenna is clear of obstructions and away from power lines or other electrical hazards.

3.2. Antenna Assembly

1. Carefully unpackage the antenna components.
2. Thread the 3/8" x 24 base of the fiberglass mast onto your chosen antenna mount. Ensure it is securely tightened.
3. Insert the adjustable stainless steel whip into the top of the fiberglass mast. The whip is removable and can be adjusted for tuning.

3.3. Tuning the Antenna

The S-F15 is designed for the 15-meter band. Fine-tuning is necessary to achieve the lowest Standing Wave Ratio (SWR) for optimal performance and to protect your radio equipment.

1. Connect a suitable SWR meter or antenna analyzer between your radio and the antenna.
2. Start with the stainless steel whip extended to its full length.
3. Transmit a low-power signal (e.g., 5-10 Watts) on the desired frequency within the 15-meter band.
4. Observe the SWR reading.
5. Adjust the length of the stainless steel whip by sliding it in or out of the fiberglass mast. Shortening the whip will raise the resonant frequency, and lengthening it will lower the resonant frequency.
6. Make small adjustments and re-check the SWR until the lowest possible SWR (ideally 1.5:1 or lower) is achieved on your primary operating frequency.
7. Once tuned, ensure the whip is secured in place.

Note: Environmental factors, mounting location, and surrounding objects can affect antenna tuning. Re-check SWR if the antenna's position or environment changes significantly.

4. Operating Guidelines

Adhere to the following guidelines for safe and effective operation of your S-F15 antenna:

• Power Limit: Do not exceed the maximum power rating of 250 Watts. Exceeding this limit can damage the antenna and your radio equipment.
• SWR Monitoring: Always monitor your SWR. High SWR indicates a mismatch and can lead to reduced performance and potential damage to your radio's final amplifier stage.
• Band Usage: This antenna is specifically designed for the 15-meter HF band. Operating outside this band will result in very high SWR and poor performance.
• Mobile Operation: When operating mobile, ensure the antenna is securely mounted and clear of any vehicle parts or cargo that could interfere with its performance or cause damage.
• Fixed Operation: For fixed installations, consider using multiple S-F15 antennas to create a horizontally-opposed dipole or other multi-antenna configurations for enhanced performance.

5. Maintenance

The S-F15 antenna is designed for durability, but regular maintenance can extend its lifespan and ensure consistent performance.

• Regular Inspection: Periodically inspect the antenna for any signs of physical damage, such as cracks in the fiberglass, bent whip, or corrosion on the base threads.
• Connection Check: Ensure all connections, especially the 3/8" x 24 thread base, remain tight and free of corrosion. Use a dielectric grease on threads if operating in corrosive environments.
• Cleaning: Clean the antenna periodically with a mild soap and water solution to remove dirt, grime, and salt residue, especially after exposure to harsh weather conditions. Rinse thoroughly with fresh water.
• Whip Adjustment: If the whip becomes difficult to adjust, clean the contact points and apply a small amount of silicone grease or similar lubricant.

6. Troubleshooting

If you experience issues with your S-F15 antenna, consider the following common troubleshooting steps:

7. Specifications

8. Warranty and Support

Information regarding specific warranty terms or direct support contacts for the Shark Antennas S-F15 is not provided in the available product data. For warranty claims or technical assistance, please refer to the documentation included with your purchase or contact the retailer or manufacturer directly.

Manufacturer: Shark Antennas

Brand (Distributor): GigaParts
