TG117 Portable Wireless Bluetooth Speaker User Manual

1. Introduction

Thank you for purchasing the TG117 Portable Wireless Bluetooth Speaker. This manual provides essential information for setting up, operating, and maintaining your speaker. Please read it carefully to ensure optimal performance and longevity of your device.

2. Product Overview

The TG117 is a versatile and durable portable speaker designed for various environments. It features Bluetooth 5.0 for stable wireless connections, supports playback from TF cards and USB drives, and includes an FM radio function. Its IPX5 waterproof rating makes it suitable for outdoor use, and the integrated microphone allows for hands-free calling.

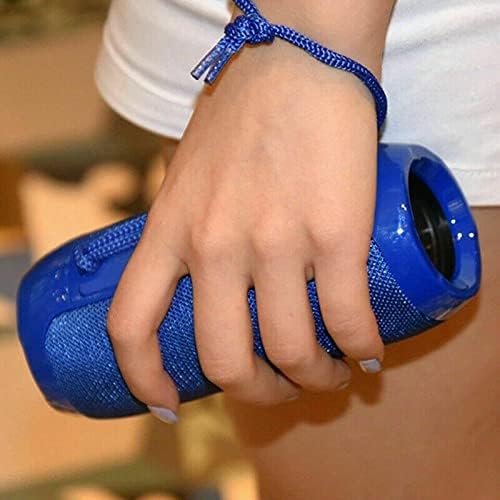

TG117 Portable Bluetooth Speaker held in hand

Image: The TG117 speaker, compact and easy to hold, demonstrating its portability.

TG117 Portable Bluetooth Speaker stored in a backpack side pocket

Image: The TG117 speaker conveniently stored in the side pocket of a backpack, highlighting its travel-friendly design.

TG117 Portable Bluetooth Speaker partially submerged in water, demonstrating IPX5 waterproof rating

Image: The TG117 speaker in water, illustrating its IPX5 waterproof capability, making it suitable for various environments.

Internal components diagram of TG117 speaker showing full-range speaker design

Image: An internal view diagram illustrating the full-range speaker design and components of the TG117, highlighting its audio capabilities.

3. Specifications

Feature	Detail
Model Number	TG117
Connectivity Technology	Bluetooth 5.0
Wireless Range	Up to 30 feet (approx. 9 meters)
Water Resistance	IPX5 (Waterproof)
Speaker Diameter	52 mm
Max Output Power	10 Watts
Audio Output Mode	Stereo
Power Source	Battery Powered
Compatible Devices	iPhone, Android devices
Dimensions (DxWxH)	6.9 cm x 6.9 cm x 16 cm
Item Weight	14.6 ounces (approx. 414 grams)
Included Components	USB charging cable
Special Features	Portable, Waterproof, Hands-free calling, USB/Micro SD playback, FM Radio

4. Setup

4.1 Charging the Speaker

Connect the provided Micro USB charging cable to the charging port on the speaker.
Connect the other end of the USB cable to a USB power adapter (not included) or a computer's USB port.
The LED indicator will illuminate to show charging status. It will turn off or change color when fully charged.
A full charge typically takes 2-3 hours.

4.2 Powering On/Off

To power on: Press and hold the power button for approximately 3 seconds until you hear an audible prompt and the LED indicator lights up.
To power off: Press and hold the power button for approximately 3 seconds until you hear an audible prompt and the LED indicator turns off.

5. Operating Instructions

5.1 Bluetooth Pairing

Ensure the speaker is powered on and in Bluetooth pairing mode (the LED indicator will flash rapidly).
On your mobile device (smartphone, tablet, etc.), enable Bluetooth and search for available devices.
Select "TG117" from the list of found devices.
Once paired, the speaker will emit an audible confirmation, and the LED indicator will stop flashing and remain solid.
The speaker will automatically reconnect to the last paired device when powered on, if the device's Bluetooth is active and within range.

Diagram illustrating Bluetooth 5.0 chip for stable connection and lower power consumption

Image: A visual representation of the Bluetooth 5.0 chip, emphasizing stable signal, auto-pairing, and lower power consumption for efficient wireless connectivity.

5.2 TF Card / USB Playback

Insert a TF (Micro SD) card or a USB flash drive into the corresponding slot on the speaker.
The speaker will automatically detect the storage device and begin playing audio files.
Use the speaker's control buttons (e.g., Play/Pause, Next/Previous Track) to manage playback.

5.3 FM Radio Mode

Press the "Mode" button to switch to FM Radio mode.
To auto-scan for stations, press and hold the Play/Pause button. The speaker will scan and save available FM stations.
Use the Next/Previous Track buttons to navigate between saved stations.

5.4 Hands-Free Calling

When connected via Bluetooth to your smartphone, the speaker's built-in microphone allows for hands-free calls.
To answer an incoming call: Press the Play/Pause button once.
To end a call: Press the Play/Pause button once during a call.
To reject an incoming call: Press and hold the Play/Pause button for 2 seconds.

6. Maintenance

Cleaning: Wipe the speaker with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners.
Storage: Store the speaker in a cool, dry place away from direct sunlight and extreme temperatures.
Battery Care: To prolong battery life, fully charge the speaker before first use and recharge it at least once every three months if not used regularly. Avoid completely draining the battery frequently.
Water Resistance: While the speaker is IPX5 waterproof, avoid prolonged submersion in water. Ensure the charging port cover is securely closed before exposure to water.

7. Troubleshooting

Problem	Possible Solution
Speaker does not power on.	Ensure the battery is charged. Connect the speaker to a power source using the USB cable and try again.
Cannot pair via Bluetooth.	Ensure the speaker is in pairing mode (flashing LED). Make sure Bluetooth is enabled on your device. Move the speaker closer to your device. Forget "TG117" from your device's Bluetooth list and try pairing again. Restart both the speaker and your device.
No sound or low volume.	Increase the volume on both the speaker and your connected device. Ensure the speaker is properly connected via Bluetooth or the correct input mode (TF/USB/FM) is selected. Check if the audio source is playing.
FM radio reception is poor.	Move the speaker to an open area, away from obstructions or interference. Try auto-scanning for stations again.
Speaker is unresponsive.	Try performing a soft reset by pressing and holding the power button for 10-15 seconds. If the issue persists, allow the battery to fully drain and then recharge it.

8. Warranty and Support

The TG117 Portable Wireless Bluetooth Speaker comes with a limited warranty. For detailed warranty information, please refer to the warranty card included with your purchase or contact the retailer. For technical support or further assistance, please reach out to the customer service department of your point of purchase.

Manufacturer: Shenzhen Topsway Technology Co.,Ltd.
