OUBO VGT-800 600ml Ultrasonic Cleaner Instruction Manual

1. Introduction

This manual provides detailed instructions for the safe and effective operation and maintenance of your OUBO VGT-800 Ultrasonic Cleaner. Please read this manual thoroughly before using the device and retain it for future reference.

The OUBO VGT-800 is designed for cleaning various items such as jewelry, eyeglasses, watches, and other small articles using ultrasonic technology.

2. Safety Precautions

• Do not operate the unit without liquid in the tank.
• Ensure the unit is unplugged before filling or emptying the tank.
• Keep the unit away from water and moisture. Do not immerse the main unit in water.
• Do not touch the power plug with wet hands.
• Keep out of reach of children.
• Use only appropriate cleaning solutions. Avoid flammable or corrosive liquids.
• Do not disassemble the unit. Contact qualified personnel for repairs.

3. Package Contents

Verify that all items are present in the package:

• 1 x OUBO VGT-800 Ultrasonic Cleaner
• 1 x Cleaning Basket
• 1 x Watch Shelf
• 1 x English Manual (This document)

Image: The OUBO VGT-800 Ultrasonic Cleaner shown with its included cleaning basket and watch shelf.

4. Product Overview

The OUBO VGT-800 features a durable SUS304 stainless steel tank and a user-friendly control panel.

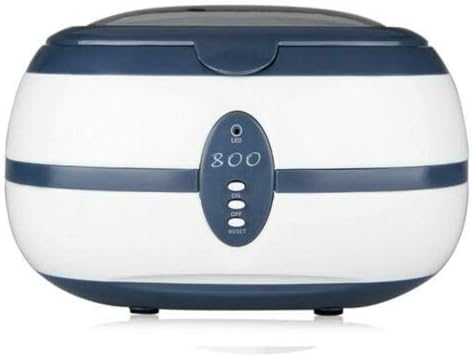

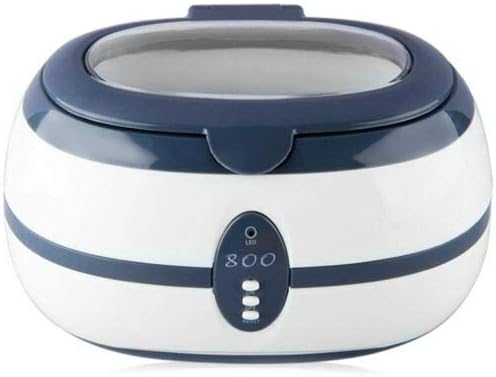

Image: Front view of the OUBO VGT-800 Ultrasonic Cleaner, showing the control panel with LED indicator, '800' model number, ON, OFF, and RESET buttons.

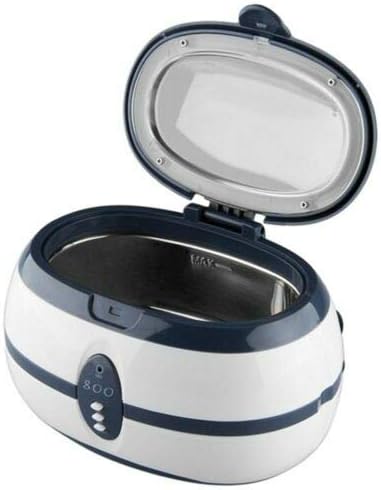

Image: The OUBO VGT-800 Ultrasonic Cleaner with its transparent lid open, revealing the stainless steel tank and the 'MAX' fill line.

Key Components:

• Lid: Transparent lid to observe the cleaning process and prevent splashing.
• SUS304 Stainless Steel Tank: Holds the cleaning solution and items.
• Control Panel: Includes LED indicator, ON/OFF buttons, and a RESET button for timer adjustment.
• Power Cord: For connecting to an electrical outlet.
• Cleaning Basket: Used to hold items during cleaning, preventing them from resting directly on the tank bottom.
• Watch Shelf: Specifically designed to hold watches, keeping the watch head out of the solution while cleaning the band.

5. Setup

1. Placement: Place the ultrasonic cleaner on a stable, flat, and dry surface. Ensure it is near a power outlet and away from heat sources or direct sunlight.
2. Fill Tank: Open the lid and fill the stainless steel tank with water or an appropriate cleaning solution. Do not exceed the 'MAX' fill line. Ensure the liquid covers the items to be cleaned.
3. Insert Basket/Shelf: Place the cleaning basket or watch shelf into the tank.
4. Place Items: Carefully place the items to be cleaned into the basket or onto the watch shelf. Ensure items do not touch each other or the tank walls directly.
5. Close Lid: Close the lid securely.
6. Connect Power: Plug the power cord into a grounded electrical outlet. The LED indicator should illuminate.

6. Operating Instructions

The OUBO VGT-800 features an automatic shut-off function after 3 minutes of operation.

Image: A close-up view of the control panel on the OUBO VGT-800, highlighting the LED, '800' model text, and the ON, OFF, and RESET buttons.

1. Start Cleaning: Press the ON button to begin the ultrasonic cleaning cycle. The unit will operate for 3 minutes and then automatically shut off.
2. Stop Cleaning: To stop the cleaning cycle before the 3-minute timer expires, press the OFF button.
3. Restart/Reset Timer: If you wish to restart a cycle or reset the timer, press the RESET button.
4. After Cleaning: Once the cycle is complete or stopped, unplug the unit. Open the lid and carefully remove the cleaning basket or watch shelf with the cleaned items.
5. Rinse Items: Rinse the cleaned items under clean running water to remove any residual solution or loosened debris.
6. Dry Items: Dry the items thoroughly with a soft, clean cloth.

Cleaning Cycle

The unit is designed with a 3-minute automatic shut-off for standard cleaning cycles. For heavily soiled items, multiple cycles may be required.

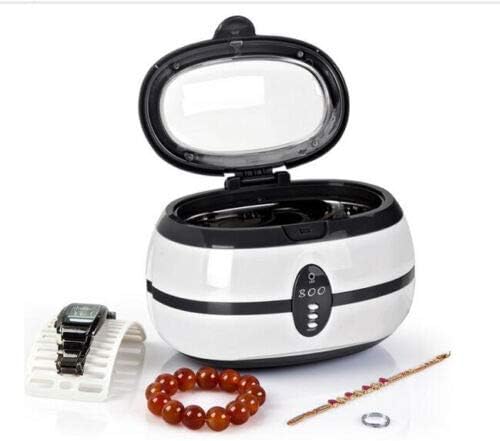

Image: Various items such as a watch, bracelet, and ring displayed next to the OUBO VGT-800 Ultrasonic Cleaner, illustrating the types of items that can be cleaned.

7. Maintenance

1. Empty Tank: After each use, unplug the unit and carefully empty the cleaning solution from the tank.
2. Clean Tank: Wipe the inside of the tank with a soft cloth. Do not use abrasive cleaners or scrubbers.
3. Exterior Cleaning: Wipe the exterior of the unit with a damp cloth. Do not spray water directly onto the unit.
4. Storage: Store the unit in a cool, dry place with the lid slightly ajar to allow for air circulation.

8. Troubleshooting

9. Specifications

10. Warranty and Support

For warranty information or technical support, please refer to the contact details provided at the point of purchase or visit the official OUBO website. Keep your purchase receipt as proof of purchase.
