Jardibric Vertical Garden Planter Instruction Manual

1. Product Overview

The Jardibric Vertical Garden Planter is an innovative and elegant solution designed to transform any living space into a lush garden. Ideal for both indoor and outdoor use, this compact system allows you to cultivate a variety of plants efficiently, even in limited spaces. It features a sophisticated automated drip irrigation system and a programmable pump to ensure optimal watering for healthy plant growth.

Key Features:

• Space-Saving Design: Five tiers with 20 cultivation compartments (10x10x13 cm each) maximize planting area in small spaces.
• Automated Drip Irrigation: Ensures precise watering for each plant, promoting healthy growth and conserving water.
• Programmable Pump: Allows customization of watering schedules for consistent and optimal plant care.
• Versatile Use: Suitable for growing flowers, aromatic herbs, shrubs, and vegetables indoors or outdoors.
• Easy Assembly: Designed for straightforward setup with no special tools required.

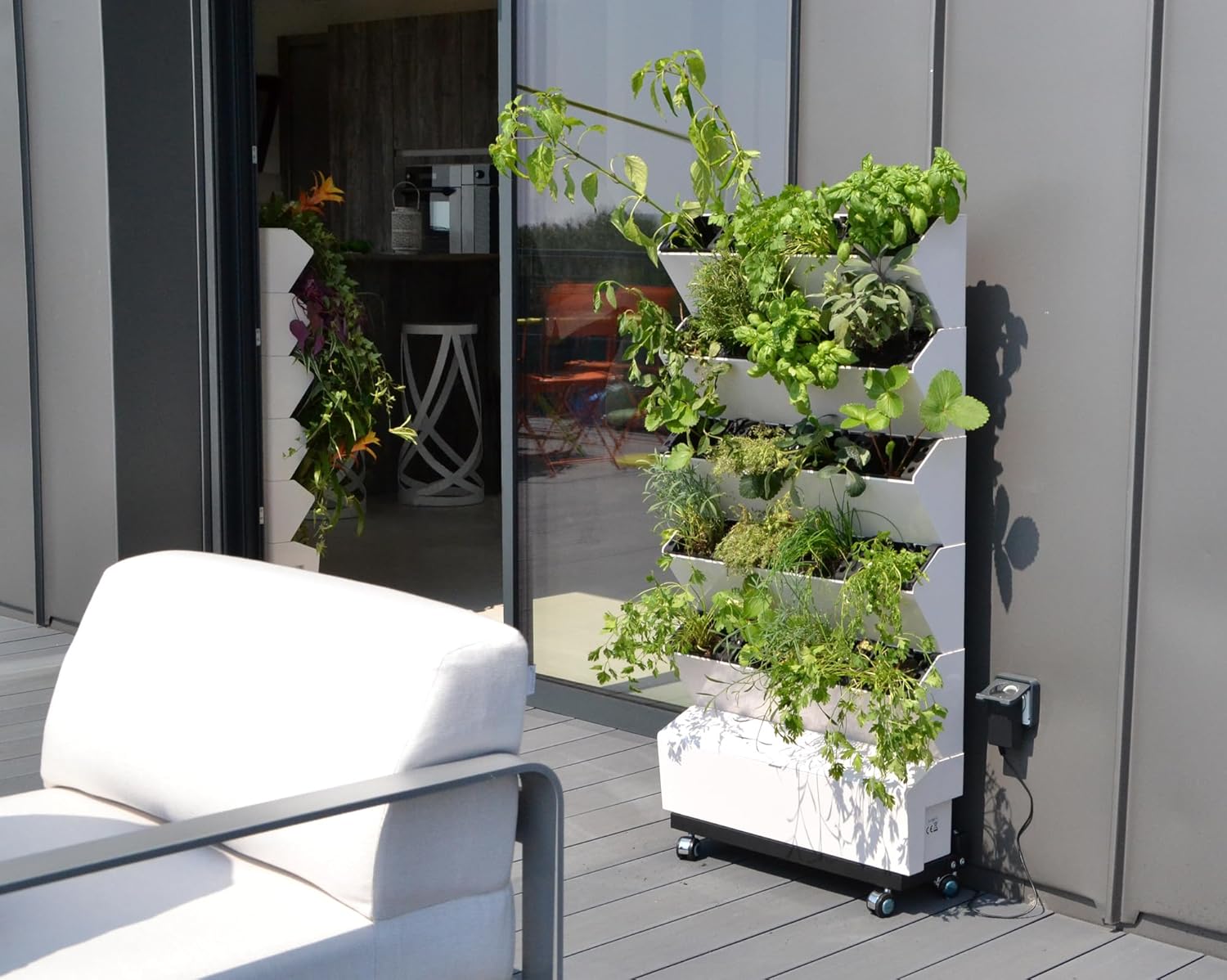

Image 1.1: The Jardibric Vertical Garden Planter in an outdoor setting, showcasing its compact design and multiple plant compartments.

2. Package Contents

Before beginning assembly, please ensure all components are present and undamaged. If any parts are missing or damaged, contact Jardibric customer support.

• Vertical planter frame (main structure)
• 5 cultivation tiers
• 20 individual cultivation compartments (10x10x13 cm)
• Water reservoir base with wheels
• Programmable water pump
• Drip irrigation tubing and drippers
• Power adapter for pump
• Assembly instructions (this manual)

Image 2.1: An exploded view or components view of the vertical garden system, illustrating the main parts included in the package.

3. Setup and Assembly

Follow these steps to assemble your Jardibric Vertical Garden Planter. No special tools are required.

1. Unpack Components: Carefully remove all parts from the packaging and lay them out on a clean, flat surface.
2. Assemble the Base: Attach the wheels to the water reservoir base. Ensure they are securely fastened for easy mobility.
3. Install Vertical Frame: Secure the vertical support frame to the base. The frame provides the structure for the cultivation tiers.
4. Attach Cultivation Tiers: Slide or clip the five cultivation tiers onto the vertical frame, starting from the bottom. Ensure each tier is level and stable.
5. Insert Compartments: Place the 20 individual cultivation compartments into their respective slots within the tiers. These are where your plants will be housed.
6. Set Up Drip System: Connect the drip irrigation tubing to the programmable pump. Route the tubing through the designated channels in the tiers, ensuring each compartment receives a dripper.
7. Position the Pump: Place the programmable pump inside the water reservoir base. Ensure the pump's intake is fully submerged when the reservoir is filled with water.
8. Fill Water Reservoir: Fill the water reservoir with clean water. Do not overfill.
9. Connect Power: Plug the power adapter into the pump and then into a suitable electrical outlet.

Image 3.1: A technical diagram illustrating the dimensions (114 cm height, 58 cm width, 25 cm depth) and the internal water circulation system of the vertical garden.

Image 3.2: A detailed view of the individual plant compartments, showing the integrated drip irrigation system designed for precise water delivery.

4. Operating Instructions

4.1 Planting

Once the planter is assembled, you can begin planting your desired herbs, vegetables, or flowers.

• Fill each compartment with appropriate potting mix or growing medium.
• Carefully plant your seeds or seedlings into the compartments.
• Ensure the plants are positioned so they do not obstruct the drip irrigation outlets.

Image 4.1: The vertical garden planter fully populated with a variety of plants, including tomatoes, strawberries, and different herbs, demonstrating its versatility.

4.2 Programming the Pump

The integrated programmable pump allows you to automate the watering schedule.

1. Refer to the pump's specific instructions for detailed programming steps.
2. Typically, you will set the frequency (e.g., daily, every other day) and duration of watering cycles.
3. Adjust the watering schedule based on the type of plants, their growth stage, and environmental conditions (temperature, humidity).

Tip: Start with shorter watering durations and increase if plants show signs of dryness. Overwatering can be detrimental.

Image 4.2: A close-up view of a healthy plant thriving within one of the individual compartments, highlighting the effective growth environment.

5. Maintenance

Regular maintenance ensures the longevity and optimal performance of your Jardibric Vertical Garden Planter.

• Water Level: Regularly check the water level in the reservoir and refill as needed. Do not let the pump run dry.
• Nutrient Solution: If using liquid fertilizer, add it to the water reservoir according to the fertilizer's instructions.
• Cleaning: Periodically clean the water reservoir and tubing to prevent algae buildup and ensure proper water flow. This can be done every 1-2 months.
• Plant Health: Monitor your plants for signs of pests or diseases and address them promptly. Remove any dead or decaying plant material.
• Dripper Check: Ensure all drippers are functioning correctly and not clogged. Clean or replace if necessary.

Image 5.1: A close-up of a plant's base within a compartment, showing the soil and the healthy integration with the planter's design.

6. Troubleshooting

7. Specifications

• Brand: Jardibric
• Model Number: SFC Jardibric
• Color: White
• Product Dimensions (L x W x H): 25 x 58 x 114 cm (9.8 x 22.8 x 44.9 inches)
• Weight: 19 Kilograms (41.9 lbs)
• Water Reservoir Capacity: Approximately 2 Liters
• Material: Acrylonitrile Butadiene Styrene (ABS)
• Special Feature: Self-watering (Drip Irrigation)
• Planting Compartments: 20 (10x10x13 cm each)
• Usage: Indoor/Outdoor

Image 7.1: The Jardibric Vertical Garden Planter integrated into an indoor living space, demonstrating its aesthetic appeal and suitability for home environments.

8. Warranty and Support

For warranty information and customer support, please refer to the documentation provided with your purchase or visit the official Jardibric website. Keep your proof of purchase for any warranty claims.

Manufacturer: SFC Jardibric

ASIN: B086T1K2WM

Availability of Spare Parts: Information unavailable on spare parts.
