Genuine TECHNIKA Oven Door Hinges (Pair) Model T948SS User Manual

1. Introduction

Thank you for choosing Genuine TECHNIKA Oven Door Hinges. This manual provides essential information for the safe and effective installation, operation, and maintenance of your new oven door hinges. These hinges are specifically designed as a direct replacement for the TECHNIKA Oven Model T948SS, ensuring optimal performance and restoring the proper functionality of your oven door.

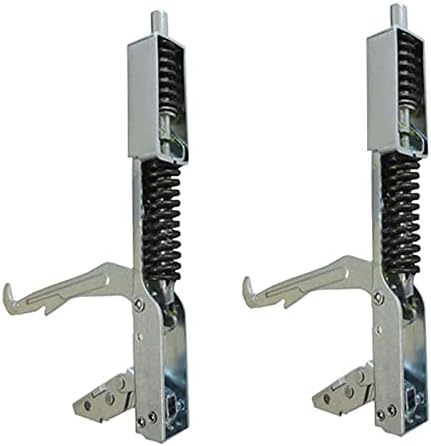

Image 1: A clear view of the two Genuine TECHNIKA Oven Door Hinges, showcasing their design and construction.

2. Important Safety Information

Please read and understand all safety instructions before attempting installation. Failure to follow these instructions may result in personal injury or damage to the appliance.

• Disconnect Power: Always ensure the oven's power supply is disconnected at the circuit breaker before beginning any installation or maintenance.
• Professional Installation Recommended: While this guide provides instructions, installation by a qualified technician is highly recommended.
• Wear Protective Gear: Use appropriate personal protective equipment, such as work gloves, to prevent cuts or pinches from sharp edges or moving parts.
• Pinch Points: Be aware of potential pinch points when handling and installing the hinges, especially when the springs are under tension.
• Handle with Care: Hinges can be heavy and have strong springs. Handle them carefully to avoid sudden movements.

3. Installation Guide

This section outlines the general procedure for replacing oven door hinges. Specific steps may vary slightly depending on your oven's exact design. Refer to your oven's original manual for detailed instructions if available.

3.1. Tools Required

• Screwdriver (Phillips or Flathead, as required)
• Work Gloves
• Flashlight (optional, for better visibility)

3.2. Preparation

1. Disconnect Power: Turn off the power to the oven at the main circuit breaker. Verify that the oven is completely off.
2. Open Oven Door: Fully open the oven door to its horizontal position.
3. Identify Hinges: Locate the existing hinges at the bottom corners of the oven door.

3.3. Hinge Replacement Procedure

1. Secure the Door: Depending on your oven model, you may need to remove the oven door entirely. If the door is removable, carefully lift it off its hinges and place it on a protected, flat surface. If not, ensure it is securely supported.
2. Release Hinge Locking Mechanism: Most oven hinges have a small locking lever or clip that must be flipped or moved to release the hinge tension. Carefully locate and engage this mechanism on both hinges.
3. Remove Old Hinges: Unscrew any retaining screws holding the hinges in place. Carefully slide the old hinges out of their slots. Note their orientation for correct installation of the new hinges.


Image 2: An angled view of one hinge, illustrating the spring and lever mechanism that may need to be engaged during removal or installation.

4. Insert New Hinges: Carefully slide the new Genuine TECHNIKA hinges into the hinge slots, ensuring they are correctly oriented. The hinges are typically marked for left and right, or their design dictates the correct side.
5. Secure New Hinges: Reinstall any retaining screws to secure the new hinges firmly in place.

Image 3: Another perspective of the hinge, useful for identifying specific attachment points or features during installation.
6. Release Locking Mechanism: Once the hinges are securely in place, carefully disengage the hinge locking levers/clips. This will allow the hinges to function normally.
7. Reattach Door (if removed): If the door was removed, carefully reattach it to the oven frame, ensuring the hinge pins align correctly with the slots.
8. Test Door Operation: Gently open and close the oven door several times to ensure smooth operation and proper alignment. The door should close securely without gaps.
9. Reconnect Power: Once satisfied with the installation, reconnect the power to the oven at the circuit breaker.

4. Functionality

Upon successful installation, your new Genuine TECHNIKA Oven Door Hinges will restore the intended functionality of your oven door. This includes:

• Smooth Opening and Closing: The door should open and close with minimal effort and without sticking or grinding.
• Secure Closure: The door should close tightly against the oven frame, preventing heat loss during operation.
• Proper Alignment: The door should sit flush with the oven cavity when closed.

5. Maintenance

Proper maintenance can extend the lifespan of your oven door hinges.

• Regular Inspection: Periodically inspect the hinges for any signs of wear, damage, or loose screws.
• Cleaning: Keep the hinge area clean from food debris and grease. Use a damp cloth and mild detergent. Avoid abrasive cleaners or harsh chemicals that could damage the electroplated finish.
• Avoid Lubrication: Do not apply oil or grease to the hinge mechanism unless specifically recommended by the manufacturer. This can attract dirt and lead to premature wear.

6. Troubleshooting

If you encounter issues after hinge replacement, refer to the table below for common problems and solutions.

7. Product Specifications

8. Warranty and Support

Specific warranty information for these Genuine TECHNIKA Oven Door Hinges is typically provided by the seller or manufacturer at the time of purchase. Please refer to your purchase documentation or contact Australia Appliance Parts directly for details regarding warranty coverage, terms, and conditions.

For technical support or further assistance with installation or troubleshooting, please contact the retailer from whom you purchased the product or the manufacturer, Australia Appliance Parts.
