1. Introduction
Thank you for choosing the Velamp UBLO2 Round LED Ceiling Light. This product is designed to provide efficient and reliable illumination for both indoor and outdoor environments. Featuring a 10W LED, 700 lumens output, and a natural white 4000K color temperature, this fixture is built for durability with an IP54 rating and a long lifespan of 25,000 hours. This manual provides essential information for safe installation, operation, and maintenance.
2. Safety Instructions
- Disconnect Power: Always ensure the main power supply is disconnected before attempting any installation, maintenance, or cleaning of the fixture.
- Professional Installation: If you are unsure about electrical wiring, consult a qualified electrician for installation.
- Mounting Surface: Ensure the mounting surface is structurally sound and capable of supporting the weight of the fixture.
- Product Integrity: Do not modify or disassemble the product. Doing so will void the warranty and may pose a safety risk.
- IP54 Rating: This fixture is rated IP54, meaning it is protected against dust ingress and splashing water from any direction. It is suitable for damp locations but must not be immersed in water.
- Ventilation: Ensure adequate ventilation around the fixture to prevent overheating.
- Cleaning: Use a soft, dry cloth for cleaning. Do not use abrasive cleaners or solvents.
3. Package Contents
Verify that all components are present before beginning installation:
- 1x Velamp UBLO2 Round LED Ceiling Light fixture
- 1x Black interchangeable frame
- 1x White interchangeable frame
- Mounting hardware (screws, wall plugs)
4. Product Features
- Elegant Design: Contemporary round design suitable for various decors.
- Dual Frame Option: Includes both black and white frames for customizable aesthetics.
- Energy Efficient: 10W LED provides 700 lumens, equivalent to a 60W traditional bulb, saving up to 90% electricity.
- Natural Light: 4000K natural white light, offering functional illumination that is neither too warm nor too cool.
- Durable & Weatherproof: IP54 rated for protection against dust and splashing water, making it ideal for both indoor and outdoor use (e.g., bathrooms, balconies, garages, gardens).
- Long Lifespan: Designed for a 25,000-hour operational life.
- Easy Installation: Simple mounting process for ceilings or walls.
5. Setup and Installation
Follow these steps for safe and proper installation:
- Prepare for Installation:
- Turn off the main power supply at the circuit breaker before starting.
- Unpack the fixture and inspect for any damage.
- Choose your preferred frame color (black or white) and attach it to the light fixture if not already pre-installed.
- Mark Mounting Points:
- Hold the light fixture against the desired mounting surface (ceiling or wall).
- Use a pencil to mark the positions for the mounting screws. Refer to the back of the fixture for screw hole locations.
- Drill Holes:
- Drill holes at the marked positions using an appropriate drill bit for your wall/ceiling material.
- Insert the provided wall plugs into the drilled holes.
- Connect Wiring:
- Carefully connect the household electrical wires to the terminals on the light fixture. Ensure correct polarity (Live, Neutral, Earth).
- Secure all connections tightly.
- Mount the Fixture:
- Align the fixture's mounting holes with the wall plugs.
- Secure the fixture to the surface using the provided screws. Do not overtighten.
- Restore Power:
- Once installation is complete and all connections are secure, restore power at the circuit breaker.
- Test the light fixture.
Figure 1: Back of the Velamp UBLO2 LED light, illustrating mounting points and electrical details.
Figure 2: Velamp UBLO2 LED light with the black frame installed, highlighting the included interchangeable white frame.
6. Operating Instructions
The Velamp UBLO2 LED Ceiling Light operates via a standard electrical wall switch. Simply toggle the switch to turn the light ON or OFF.
- Non-Dimmable: This fixture is not dimmable. Do not connect it to a dimmer switch, as this may damage the unit.
- Instant On: The LED light provides instant full brightness upon activation.
Figure 3: Examples of the Velamp UBLO2 LED light installed in different environments, including a balcony, an outdoor wall, and an indoor kitchen.
7. Maintenance
The Velamp UBLO2 LED Ceiling Light requires minimal maintenance.
- Cleaning: Periodically clean the fixture with a soft, dry, or slightly damp cloth to remove dust and dirt. Ensure power is off before cleaning. Do not use harsh chemicals, abrasive cleaners, or solvents, as these can damage the finish or electrical components.
- No User-Serviceable Parts: The LED module is integrated and not user-replaceable. Do not attempt to open the sealed unit.
- Inspection: Occasionally inspect the fixture for any signs of damage or loose connections. If any issues are found, disconnect power and consult a qualified electrician.
8. Troubleshooting
If you encounter issues with your Velamp UBLO2 LED Ceiling Light, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on | No power supply Loose wiring connection Faulty switch | Check circuit breaker and ensure power is on. Verify all wire connections are secure (with power off). Test the wall switch or replace if faulty. |
| Light flickers | Loose wiring connection Incompatible dimmer switch Unstable power supply | Check and secure all wiring connections (with power off). Ensure the light is not connected to a dimmer switch, as it is non-dimmable. Consult an electrician to check power stability. |
| Reduced brightness | Normal aging of LED Dust accumulation | LEDs gradually lose brightness over their lifespan. This is normal. Clean the diffuser with a soft cloth. |
If these solutions do not resolve the issue, please contact Velamp customer support.
9. Specifications
| Feature | Specification |
|---|---|
| Model Number | UBLO2 |
| Power Consumption | 10 Watts |
| Luminous Flux | 700 lumens |
| Color Temperature | 4000K (Natural White) |
| Input Voltage | 220-240V ~ 50Hz |
| IP Rating | IP54 (Dust protected, splash-proof) |
| Lifespan | 25,000 hours |
| Dimensions (Diameter x Height) | 16 cm x 7 cm |
| Material | Plastic |
| Dimmable | No |
| Mounting Type | Surface Mount (Ceiling/Wall) |

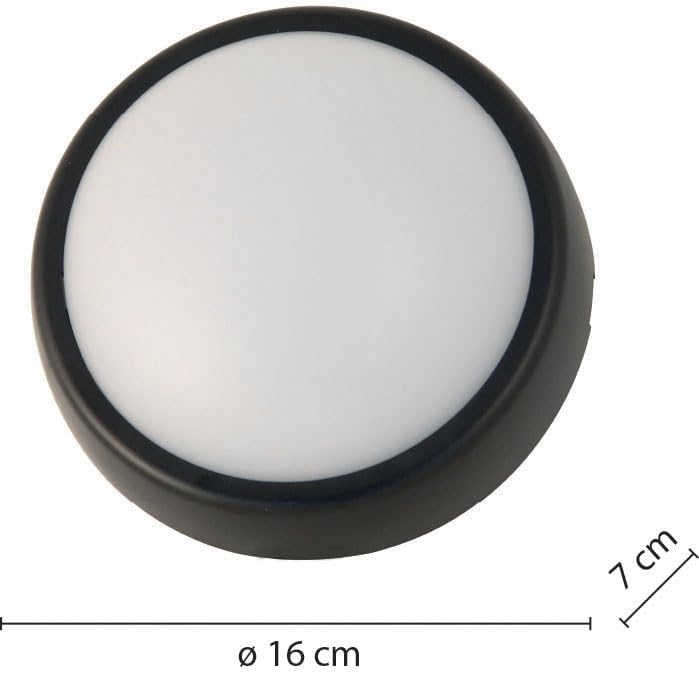

Figure 4: Dimensions of the Velamp UBLO2 LED light.
10. Warranty and Support
Velamp products are manufactured to high-quality standards and are covered by a manufacturer's warranty. Please refer to your purchase documentation for specific warranty terms and conditions.
For technical support, warranty claims, or any questions regarding your Velamp UBLO2 LED Ceiling Light, please contact Velamp customer service through their official website or the retailer from whom you purchased the product.
