Introduction
This manual provides instructions for the proper installation, operation, and maintenance of The Waterbox by IRRIGATION-MART. The Waterbox is designed to provide a convenient and discreet outdoor water dispensing solution, integrating seamlessly into your landscape.
Safety Information
- Ensure all connections are secure to prevent leaks.
- Do not apply excessive force when opening or closing the lid.
- Keep the area around The Waterbox clear to avoid tripping hazards.
- In freezing conditions, ensure proper drainage or winterization to prevent damage.
Package Contents
Verify that all components are present:
- The Waterbox unit with attached lid
- Faucet (3/4" Garden Hose thread)
- Internal piping
Specifications
| Feature | Detail |
|---|---|
| Model Name | The Waterbox |
| Brand | IRRIGATION-MART |
| Material | Durable High Strength Plastic |
| Inlet Connection | 3/4" Female Pipe Thread |
| Outlet Connection | 3/4" Garden Hose Thread Faucet |
| Closed Dimensions (L x W x H) | 21 1/2" x 6 1/2" x 6" |
| Faucet Height (in Waterbox) | 15" |
| Weight | Approximately 10 pounds |
| Installation Type | Flush, Single Hole |
| Origin | Made in USA |
Setup and Installation
Site Preparation: Select a location where The Waterbox can be installed flush with the surrounding landscape. Ensure adequate drainage and access to a water supply line.

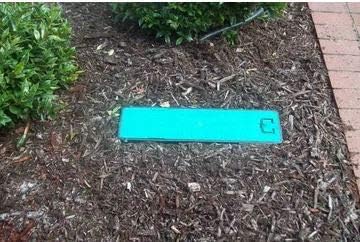

Image: The Waterbox installed with its lid closed, blending seamlessly into the mulch of a garden bed next to a brick pathway.
Excavation: Dig a hole sufficient to accommodate The Waterbox, allowing it to sit level with the grade. The dimensions of the closed Waterbox are approximately 21 1/2" L x 6 1/2" W x 6" H.
Water Connection: Connect your water supply line to the 3/4" Female Pipe Thread inlet located on the outside edge of The Waterbox. Use appropriate plumbing fittings and sealants to ensure a watertight connection.
Positioning: Place The Waterbox into the excavated hole, ensuring it is level and the lid can open and close freely.
Image: A side view of The Waterbox, showing the black base and the green lid propped open. A blue pipe leads to a brass faucet inside the box.
Backfill: Carefully backfill around The Waterbox, compacting the soil to secure it in place. Ensure the lid remains flush with the surrounding landscape.
Operation
Opening The Waterbox: To access the faucet, simply raise the lid. The lid is designed to lock in an open position for convenient use.
Image: The green lid of The Waterbox is shown partially open, rising from the ground, with the internal components becoming visible.
Using the Faucet: Attach a standard 3/4" garden hose to the faucet. Turn the faucet handle to dispense water.

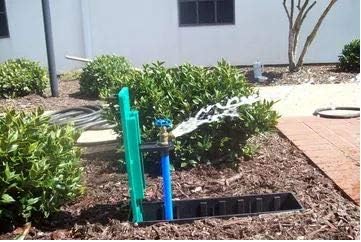

Image: The Waterbox is fully open and installed in a garden bed. Water is actively spraying from the brass faucet, demonstrating its function.
Closing The Waterbox: When finished, turn off the faucet. Lift the lid slightly out of its locked position and gently lower it until it closes flush with the grade of the surrounding landscape.

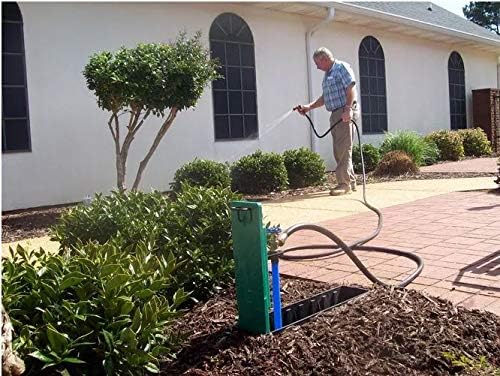

Image: A man is shown standing in a garden, holding a hose and watering plants. The hose is connected to The Waterbox, which is open and visible in the foreground.
Lid Closed Operation: The Waterbox can be adapted for use with the lid closed, if desired, by routing the hose appropriately.
Maintenance
- Cleaning: Periodically clean the interior and exterior of The Waterbox to prevent debris buildup.
- Inspection: Regularly inspect the faucet and connections for any signs of wear, leaks, or damage.
- Part Replacement: Most parts are replaceable with standard components found at local hardware stores. Consult a plumbing professional if you are unsure about replacements.
- Winterization: In regions subject to freezing temperatures, disconnect and drain the water supply to The Waterbox before the first freeze to prevent damage from ice expansion.
Troubleshooting
- No Water Flow:
- Check if the main water supply is turned on.
- Ensure the faucet handle is fully open.
- Inspect for any blockages in the hose or internal piping.
- Leaks:
- Tighten all connections (inlet, faucet, hose).
- Inspect O-rings and washers for damage and replace if necessary.
- If the leak persists, the faucet or internal piping may require replacement.
- Lid Not Closing Flush:
- Check for any obstructions (debris, soil) preventing the lid from seating properly.
- Ensure The Waterbox is installed level.
Warranty and Support
For warranty information or technical support, please contact IRRIGATION-MART directly. Refer to your purchase documentation for specific warranty terms.
Manufacturer: Irrigation-Mart
Model Number: 0091037508287
