Coway XL Filter Kit User Manual

Introduction

This user manual provides essential information for the installation, operation, and maintenance of your Coway XL Filter Kit. This kit is designed to ensure optimal water quality from your compatible Coway water purification system. Regular filter replacement and maintenance are crucial for the longevity and performance of your device.

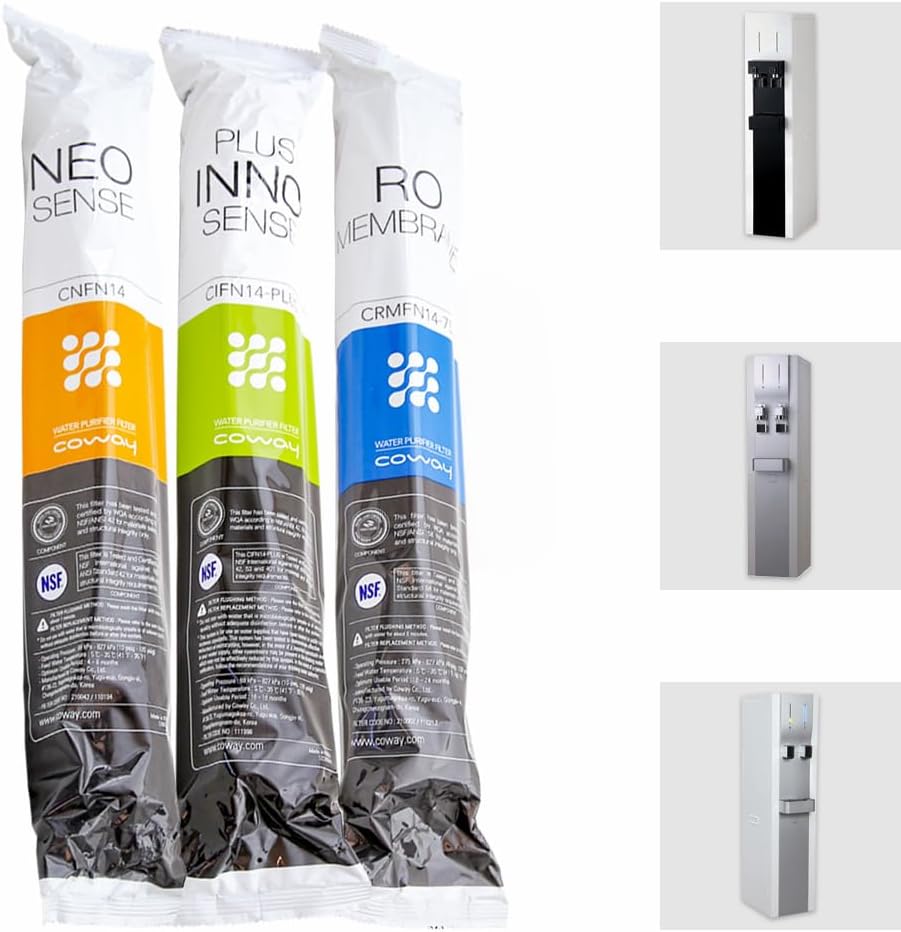

Image: The Coway XL Filter Kit, featuring three distinct filter types: Neo Sense, Plus Inno Sense, and RO Membrane, each in its packaging. This image also shows examples of compatible Coway water purifiers.

Compatible Models

This Coway XL Filter Kit is compatible with the following Coway water purification systems:

• Coway CHP-590 (Harry Pearl)
• Coway CHP-06E
• Coway CP-07H (Sally)

Refer to the main product image at the beginning of this manual for visual examples of compatible Coway water purifiers.

Filter Components and Functions

The Coway XL Filter Kit includes several specialized filters, each designed to purify water through different stages:

1. Ceramic Filter (Antibacterial Filter)

This filter is designed to prevent the growth of bacteria and viruses within the water reservoir, ensuring hygienic water storage.

2. NEO SENSE 14" - CNFN14

This filter is responsible for removing coarse impurities, chlorine, solvents, and undissolved particles from the water, acting as a primary purification stage.

Image: The NEO SENSE filter, shown in its sealed packaging.

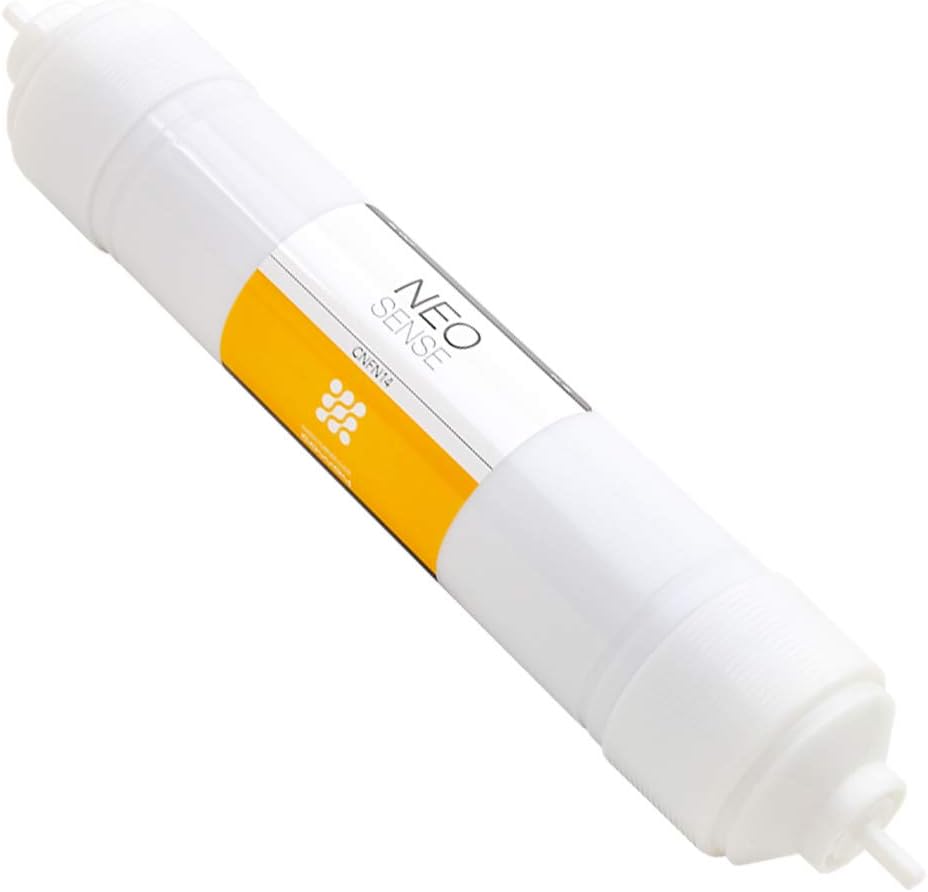

Image: The NEO SENSE filter, removed from its packaging, showing its cylindrical form.

3. PLUS INNO SENSE 14" - CIFN14-PLUS

This filter targets and removes odors, chlorine, and various solvents from the water, improving taste and smell.

Image: The PLUS INNO SENSE filter, shown in its sealed packaging.

Image: The PLUS INNO SENSE filter, removed from its packaging, showing its cylindrical form.

4. RO Membrane 14" - CRMFN14-75

The Reverse Osmosis (RO) Membrane is a critical component that filters out bacteria, viruses, microbes, and heavy metals, providing highly purified water.

Image: The RO Membrane filter, shown in its sealed packaging.

Image: The RO Membrane filter, removed from its packaging, showing its cylindrical form.

Setup and Installation

Installing the filters typically involves a few steps. While specific instructions may vary slightly by model, the general process includes:

1. Preparation: Ensure the water purifier is turned off and unplugged from the power source. Close the water supply valve.
2. Accessing Filter Compartment: Locate and open the filter compartment door on your Coway water purifier.
3. Removing Old Filters: Carefully remove the old filters by twisting or pulling them out according to your specific model's design. Be prepared for some residual water.
4. Installing New Filters: Insert the new filters into their designated slots. Ensure they are securely seated and twisted into place if required. Each filter type (Neo Sense, Plus Inno Sense, RO Membrane) has a specific slot.
5. Flushing (Initial Use): After installation, open the water supply valve and allow water to flow through the system for a few minutes to flush out any air or carbon fines. Refer to your water purifier's main manual for exact flushing procedures.
6. Power On: Close the filter compartment, plug in the purifier, and turn it on.

Note: For detailed, model-specific installation instructions, please refer to the original user manual provided with your Coway water purification system (CHP-590, CHP-06E, or CP-07H).

Operating Considerations

Once the filters are installed, your Coway water purifier will operate as usual. The new filters will immediately begin purifying your water. No special operating procedures are required for the filters themselves, but always ensure your water purifier is used according to its primary operating manual.

• Water Quality: The new filters will restore optimal water quality.
• Initial Taste: A slight change in water taste might be noticed immediately after filter replacement, which should normalize after a few uses.
• Leak Checks: Periodically check for any leaks around the filter housing after installation.

Maintenance and Filter Replacement Schedule

Consistent water quality and system longevity depend on adhering to the recommended maintenance schedule:

• Filters (Ceramic, NEO SENSE, PLUS INNO SENSE): These filters should be changed every 12 months to maintain consistent water quality and filtration efficiency.
• RO Membrane: The RO Membrane has a longer lifespan and should be changed every 36 months.
• Water Tank Cleaning: The water reservoir within your Coway system should be cleaned and disinfected regularly to prevent bacterial growth and ensure overall hygiene. This should ideally be done during filter replacement.

Important: Filter lifespan can vary based on local water quality and usage volume. Adhering to the recommended schedule ensures optimal performance.

Troubleshooting

If you encounter issues after replacing your filters, consider the following common points:

• Reduced Water Flow:
  • Ensure filters are correctly seated and fully inserted.
  • Check if the water supply valve is fully open.
  • New filters might initially restrict flow slightly; this should improve.
• Unusual Taste or Odor:
  • Ensure proper flushing after installation. Run water for several minutes.
  • Verify that all filters are installed in the correct order and orientation.
  • If the issue persists, contact customer support.
• Leaks:
  • Check all connections and O-rings for proper sealing.
  • Ensure filters are twisted/locked into place correctly.

If you have questions concerning filter replacement, water tank cleaning, or membrane inspection, please do not hesitate to contact Coway customer support.

Product Specifications

Warranty and Support

For information regarding product warranty, returns, or technical support, please contact the seller or Coway customer service directly. Keep your purchase receipt as proof of purchase.

If you have any questions regarding filter replacement, water tank cleaning, or membrane inspection, please do not hesitate to contact us. The seller is "aqua.deliciae".
