User Manual for Technical Precision Replacement Battery Pack

Introduction

This manual provides essential information for the safe and effective use of your Technical Precision Replacement Battery Pack, model GTZZ14EJ 48 VOLTS 8 PACK. Please read this manual thoroughly before installation and operation to ensure proper handling and longevity of the product.

Product Overview

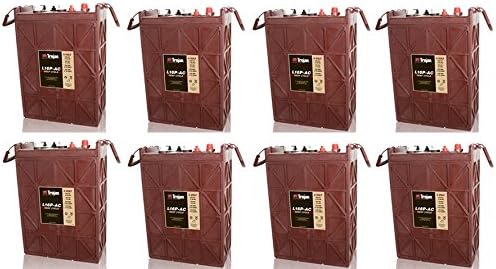

This image displays eight identical brown battery packs, each featuring a label with 'Trojan L16P-AC Deep Cycle' text. The batteries are rectangular with handles on top, and their terminals are visible. They are arranged neatly against a white background.

The Technical Precision Replacement Battery Pack is designed as a direct replacement for SINOBOOM GTZZ14EJ systems. This product consists of eight 48-volt rechargeable battery units, engineered for reliable performance in compatible applications.

What's in the Box:

• Replacement Battery Pack (8 units)

Setup and Installation

Proper installation is crucial for the safety and performance of your battery pack. It is recommended that installation be performed by a qualified professional.

1. Safety First: Before beginning installation, ensure all power to the equipment is disconnected. Wear appropriate personal protective equipment (PPE), including insulated gloves and eye protection.
2. Inspect Batteries: Carefully inspect each battery unit for any signs of damage during shipping. Do not install damaged batteries.
3. Prepare Compartment: Ensure the battery compartment is clean, dry, and free of debris. Verify that ventilation is adequate.
4. Position Batteries: Place each battery unit securely in its designated position within the compartment. Ensure proper orientation as per the equipment's specifications.
5. Connect Terminals: Connect the battery terminals according to the equipment manufacturer's wiring diagram. Ensure all connections are clean, tight, and free of corrosion. Use appropriate torque settings for terminal fasteners.
6. Verify Polarity: Double-check all connections for correct polarity before re-applying power. Incorrect polarity can cause severe damage to the batteries and equipment.
7. Secure Connections: Once all connections are made, ensure they are secure and will not vibrate loose during operation.
8. Initial Charge: After installation, it is recommended to perform an initial full charge cycle before putting the equipment into service. Refer to your equipment's manual for charging procedures.

Operating Instructions

These battery packs are designed for deep cycle applications. Adhere to the following guidelines for optimal performance and lifespan.

• Charging: Always use a charger compatible with 48-volt deep cycle batteries. Follow the charger manufacturer's instructions for proper charging cycles. Avoid overcharging or undercharging.
• Discharge: Do not discharge batteries below their recommended minimum voltage. Deep discharges can significantly reduce battery life.
• Temperature: Operate batteries within their specified temperature range. Extreme temperatures can affect performance and lifespan.
• Ventilation: Ensure adequate ventilation around the batteries during operation and charging to dissipate heat and prevent gas buildup.
• Regular Use: For best results, use and charge the batteries regularly. Avoid prolonged periods of inactivity without proper maintenance charging.

Maintenance

Regular maintenance will extend the life and performance of your battery pack.

• Terminal Inspection: Periodically inspect battery terminals for corrosion. Clean terminals with a wire brush and a baking soda solution if corrosion is present. Ensure connections remain tight.
• Fluid Levels (if applicable): For flooded lead-acid batteries, regularly check electrolyte levels and top up with distilled water as needed, after charging. Do not overfill.
• Cleaning: Keep the battery tops clean and dry. Dirt and moisture can lead to current leakage.
• Storage: If storing the batteries for an extended period, ensure they are fully charged and stored in a cool, dry place. Perform a maintenance charge every 30-60 days to prevent self-discharge.
• Equalization Charge (if applicable): Consult your battery charger or equipment manual for recommendations on equalization charges to balance cell voltages.

Troubleshooting

This section provides basic troubleshooting steps for common issues. For complex problems, contact a qualified technician or the manufacturer.

Specifications

Warranty and Support

For warranty information or technical support regarding your Technical Precision Replacement Battery Pack, please contact the manufacturer directly. Keep your purchase receipt and product model number readily available when contacting support.

Manufacturer: Technical Precision

Note: Specific warranty terms and conditions may vary. Refer to the documentation provided at the time of purchase or contact Technical Precision for details.

Safety Information

Always observe the following safety precautions when handling or working with batteries:

• Batteries contain corrosive acid. Avoid contact with skin, eyes, and clothing. In case of contact, flush immediately with water and seek medical attention.
• Do not short-circuit battery terminals. This can cause severe burns, fire, or explosion.
• Do not expose batteries to open flames, sparks, or excessive heat.
• Ensure adequate ventilation when charging or operating batteries to prevent the buildup of explosive gases.
• Keep batteries out of reach of children and pets.
• Dispose of batteries responsibly according to local regulations. Do not dispose of batteries in household waste.
• Always use insulated tools when working with batteries.
