vidaXL Galvanized Steel Garden Shed Instruction Manual

1. Product Overview

This manual provides comprehensive instructions for the assembly, operation, and maintenance of your vidaXL Galvanized Steel Garden Shed. Designed for outdoor wood storage, this shed offers a durable and practical solution for keeping your firewood organized, ventilated, and protected from the elements.

Key features include a stable structure with steel support bars, additional tubes for enhanced stability, a raised floor to ensure proper ventilation for logs, and a sloped roof designed for efficient rainwater runoff. Its galvanized steel construction ensures minimal maintenance and long-lasting durability.

Figure 1: Assembled vidaXL Galvanized Steel Garden Shed (Anthracite)

2. Safety Information

Warning: This product requires assembly. Please observe the following safety guidelines carefully:

• Always read and understand all instructions before beginning assembly.
• Use appropriate tools for each step as specified in the assembly guide.
• Exercise caution when handling heavy or sharp components to prevent injury.
• Ensure a clear and level workspace to avoid accidents.
• It is highly recommended that two people participate in the assembly process for safety and ease.
• Wear appropriate personal protective equipment (PPE) such as gloves and safety glasses during assembly.

3. Package Contents

Before starting assembly, verify that all components listed below are present and undamaged. If any parts are missing or damaged, please contact vidaXL customer support.

• Galvanized Steel Roof Panels
• Galvanized Steel Side Panels
• Steel Support Bars
• Additional Steel Tubes (for stability)
• Base Frame Components
• Fasteners (screws, nuts, bolts)
• Assembly Hardware Kit

4. Setup and Assembly

Follow these steps carefully to assemble your garden shed. It is advisable to have a second person assist with the assembly.

4.1. Site Preparation

Choose a level, stable surface for the shed. Ensure adequate space around the assembly area for maneuvering components and tools.

4.2. Base Frame Assembly

1. Unpack all base frame components and lay them out.
2. Connect the base frame sections using the provided fasteners. Ensure all connections are secure but do not fully tighten until the entire frame is assembled.

Figure 2: Top view of the shed's base frame and internal supports.

4.3. Side Panel Installation

1. Attach the side panels to the assembled base frame. Pay close attention to the orientation of each panel.
2. Secure the panels using the designated screws and bolts. Some holes may require slight adjustment; ensure proper alignment before tightening.

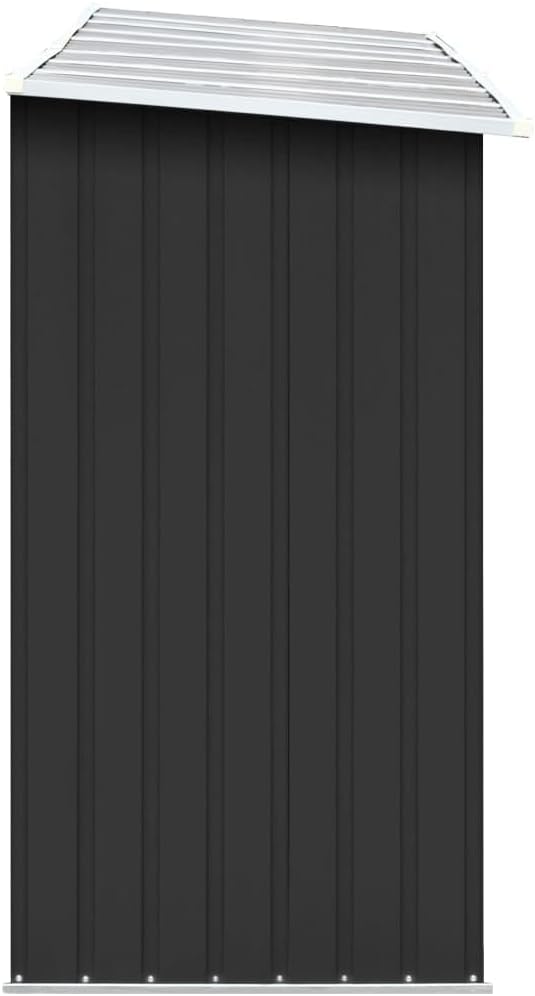

Figure 3: Detail of a side panel.

4.4. Support Bar and Tube Installation

1. Install the internal steel support bars and additional tubes as per the included diagram. These provide crucial structural integrity.
2. Ensure all connections are firm.

4.5. Roof Panel Attachment

1. Carefully place the roof panels onto the top frame. Ensure the sloped design is oriented correctly for water runoff.
2. Secure the roof panels to the frame using the remaining fasteners.

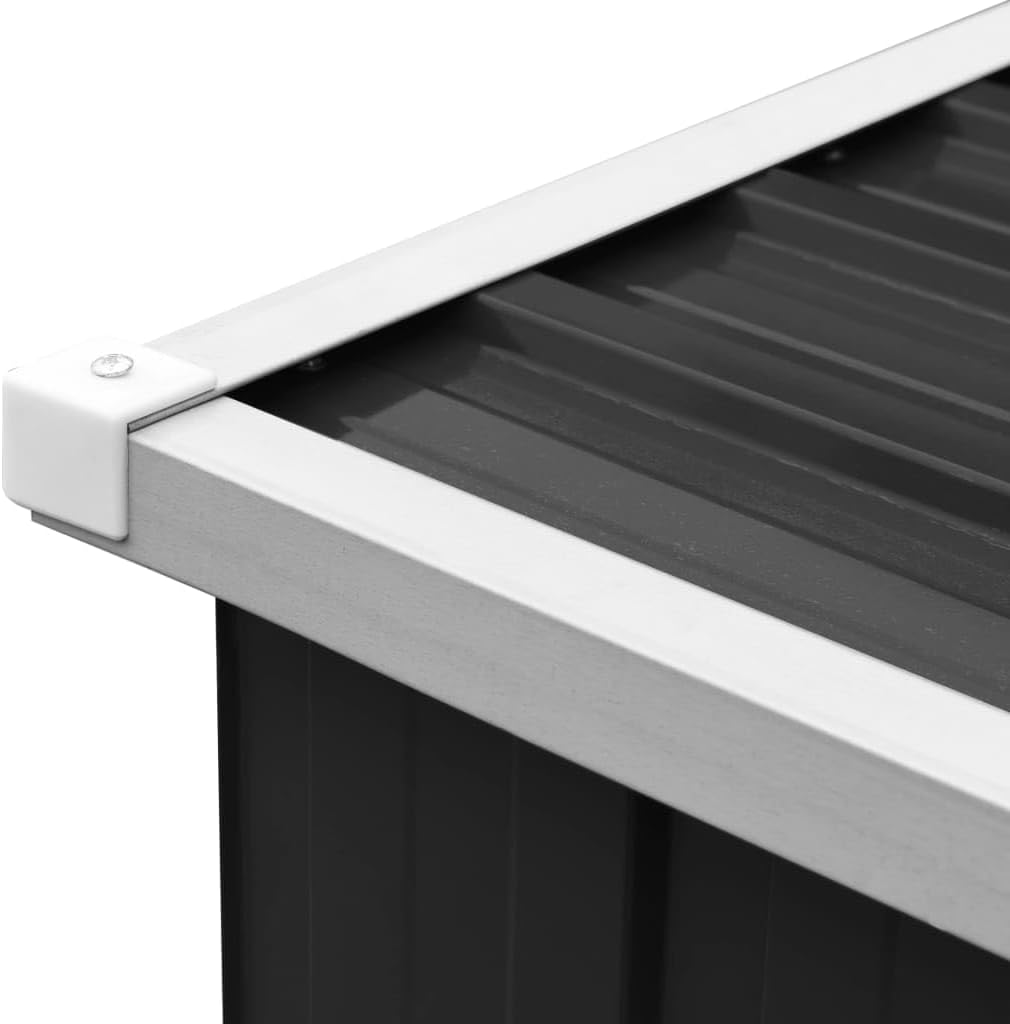

Figure 4: Detail of the roof edge and corner.

4.6. Final Tightening

Once all components are in place and aligned, systematically tighten all fasteners. Do not overtighten, but ensure all connections are secure.

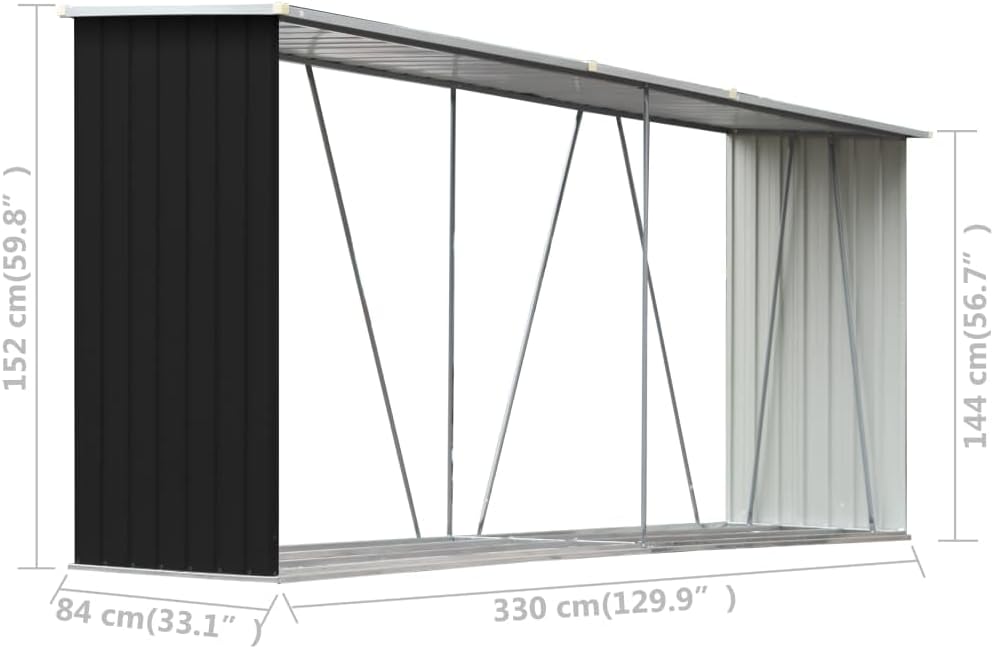

Figure 5: Overall dimensions of the assembled shed (330 cm length, 84 cm width, 152 cm height).

5. Operating Instructions

The vidaXL Garden Shed is designed for efficient and safe storage of firewood. Follow these guidelines for optimal use:

• Loading Firewood: Stack firewood neatly within the shed, ensuring it does not exceed the internal height or width. Distribute weight evenly.
• Ventilation: The raised floor design promotes air circulation, which is crucial for drying wood and preventing mold. Do not block the space beneath the logs.
• Rain Protection: The sloped roof is designed to shed rainwater effectively. Ensure no debris accumulates on the roof that could impede water runoff.
• Capacity: While robust, avoid overloading the shed beyond its intended capacity to maintain structural integrity.

Figure 6: Example of firewood properly stacked within the shed, demonstrating ventilation space.

6. Maintenance

Your galvanized steel shed requires minimal maintenance to ensure its longevity:

• Cleaning: Periodically clean the exterior surfaces with a mild detergent and water to remove dirt, dust, and debris. Avoid abrasive cleaners.
• Fastener Check: Annually inspect all screws, nuts, and bolts to ensure they remain tight. Retighten if necessary.
• Drainage: Ensure the area around the shed's base remains clear to allow for proper drainage and prevent water accumulation.
• Rust Prevention: While galvanized, inspect for any signs of rust, especially in areas where the coating might be scratched. Touch up with appropriate rust-inhibiting paint if needed.

7. Troubleshooting

8. Specifications

9. Warranty and Support

For information regarding warranty coverage, returns, or technical support, please refer to the purchase documentation or visit the official vidaXL website. Keep your proof of purchase for any warranty claims.
