Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your Ove Decors Vanda Smart Toilet Seat. Please read this manual thoroughly before installation and use to ensure proper function and safety.
The Ove Decors Vanda Smart Toilet Seat offers advanced features for enhanced hygiene and comfort, including a heated seat, bidet self-cleaning, adjustable drying fan, and customizable water temperature and pressure settings.
Package Contents
Verify that all components are present before beginning installation:
- 1 x Ove Decors Vanda Elongated Smart Toilet Seat
- 1 x Remote Control
- Installation Hardware (e.g., mounting bolts, washers, nuts)
- Water Supply Hose
- T-Valve Connector
Setup and Installation
Proper installation is crucial for the functionality and safety of your smart toilet seat. If you are unsure about any step, consult a qualified plumber.
Pre-Installation Checklist
- Ensure a standard 120V AC GFCI electrical outlet is available within 3 feet of the toilet.
- Confirm access to the toilet's cold water supply line.
- Verify your toilet bowl is an elongated shape for proper fit. Refer to the dimensions diagram.
Installation Steps
- Remove Existing Toilet Seat: Turn off the water supply to the toilet and flush to empty the tank. Disconnect the existing toilet seat by unscrewing the mounting bolts.
- Install Mounting Plate: Position the mounting plate over the toilet bowl holes. Insert the rubber cones and mounting bolts through the plate and toilet holes. Secure from underneath with washers and nuts. Do not overtighten.
- Connect Water Supply:
- Disconnect the existing water supply hose from the toilet tank.
- Install the provided T-valve connector to the toilet tank's fill valve.
- Connect the toilet's original water supply hose to one end of the T-valve.
- Connect the smart toilet seat's water supply hose to the other end of the T-valve and to the water inlet on the side of the smart toilet seat. Ensure all connections are hand-tight, then use a wrench for a quarter turn.
Image: Detailed view of the water hose connection to the toilet's water supply and the power cord connecting to a GFCI outlet.
- Slide Seat onto Mounting Plate: Align the smart toilet seat with the mounting plate and slide it forward until it clicks into place.
- Connect Power: Plug the power cord into a GFCI (Ground Fault Circuit Interrupter) electrical outlet.
- Restore Water Supply: Slowly turn on the water supply to the toilet. Check for any leaks.
- Initial Function Test: Once powered, the seat will perform an initial self-check.
Dimensions and Fit
Image: Diagram illustrating the difference in length between a standard round toilet seat (16.5 inches / 42 cm) and an elongated toilet seat (20.08 inches / 51 cm).
Image: The smart toilet seat installed on a toilet, showing its width (14.96 inches / 38 cm), height (5.71 inches / 14.5 cm), and length (20.08 inches / 51 cm).
Operation
The Ove Decors Vanda Smart Toilet Seat can be operated using the included remote control or the side control panel.
Remote Control Functions
Image: A hand holding the illuminated remote control, with labels pointing to various buttons and their functions, including bidet wash (men & women), nozzle position, water pressure, LED night light, drying, and temperature settings (water, drying, seat).
- Bidet Wash (Men & Women): Activates the bidet function. Separate buttons for posterior and feminine wash.
- Nozzle Position (5 levels): Adjusts the bidet nozzle's forward/backward position.
- Water Pressure (5 levels): Controls the intensity of the bidet spray.
- Drying: Activates the warm air dryer.
- Temperature Settings (4 levels): Adjusts water temperature, drying air temperature, and seat temperature.
- LED Night Light: Toggles the toilet bowl night light.
- ECO Mode: Activates power-saving mode.
- Stop: Stops all active functions.
Side Control Panel
Image: Close-up view of the built-in keypad located on the side of the smart toilet seat, showing buttons for power, bidet wash, and stop, with an LED panel indicating the selected mode.
The side control panel provides quick access to essential functions:
- Power Button: Turns the unit on/off.
- Bidet Wash: Activates the bidet function.
- Stop Button: Halts all current operations.
- An LED panel indicates the currently active mode or setting.
Key Features
Heated Seat
The built-in seat sensor automatically warms the seat to your desired temperature when you sit down. Multiple temperature settings are available via the remote control.

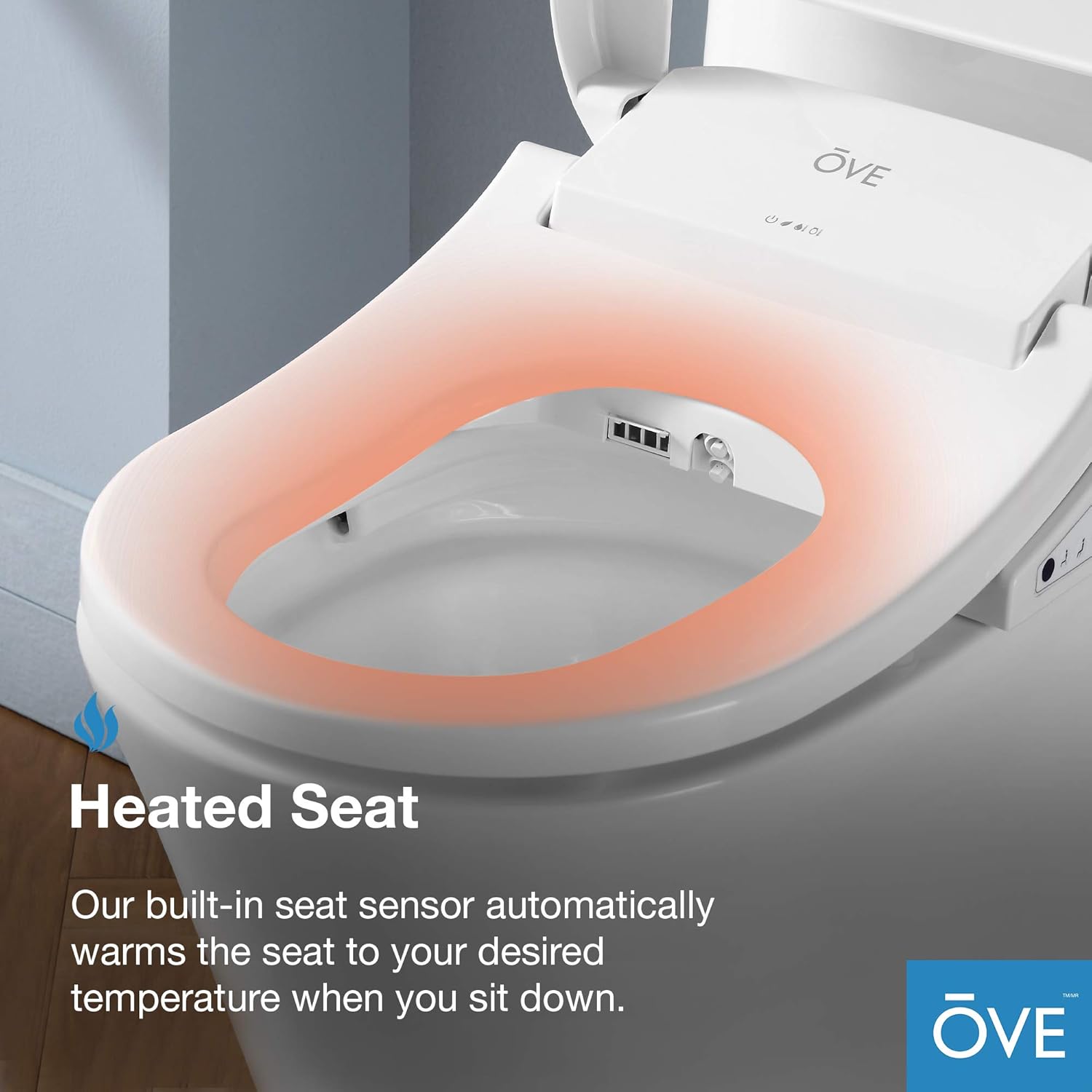

Image: The toilet seat with a visible orange glow indicating the heated seat function is active.
Customizable Cleansing System
Personalize your water temperature and spray pressure by selecting the single jet or spray wash modes on the remote control. The bidet nozzle performs self-cleaning before and after every use.
Image: A stream of water from the bidet nozzle inside the toilet bowl, demonstrating the customizable cleansing system.
Warm Air Drying
Enjoy a hands-free drying experience with the adjustable drying fan. Five temperature settings are available for customization.
Image: A close-up view of the warm air vents inside the toilet seat, with arrows indicating airflow.
Soft-Close Seat and Lid
The soft-close system prevents the seat and cover from slamming, ensuring quiet operation and extending product life.
Image: The toilet seat and lid gently closing, illustrating the soft-close feature.
LED Night Light & ECO Mode
A useful LED night light guides you in the dark. Activate ECO mode to reduce unnecessary power usage.
Image: The toilet bowl illuminated with a blue LED light, demonstrating the night light feature.
Maintenance and Cleaning
Regular cleaning and maintenance will ensure the longevity and optimal performance of your smart toilet seat.
- General Cleaning: Disconnect power before cleaning. Use a soft, damp cloth and a mild, non-abrasive cleaner. Avoid harsh chemicals, abrasive pads, or strong detergents, as these can damage the surface and internal components.
- Nozzle Cleaning: The bidet nozzle performs a self-cleaning cycle before and after each use. For manual cleaning, gently pull out the nozzle and wipe it with a soft cloth. Do not use excessive force.
- Filter Cleaning: Periodically check and clean the water inlet filter to prevent blockages. Turn off the water supply and disconnect the water hose before accessing the filter.
- Remote Control: Wipe the remote control with a dry or slightly damp cloth. Do not immerse in water. Replace batteries as needed.
Troubleshooting
Refer to the following table for common issues and their solutions. If the problem persists, contact customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| No power / Unit not turning on | Power cord unplugged, GFCI tripped, no power at outlet. | Ensure power cord is securely plugged in. Reset GFCI outlet. Check if outlet is functional with another device. |
| No water spray / Weak spray | Water supply valve closed, water filter clogged, low water pressure. | Open the water supply valve fully. Clean the water inlet filter. Check household water pressure. |
| Heated seat not working | Temperature setting too low, seat sensor not detecting user. | Adjust seat temperature setting on remote. Ensure proper contact with the seat sensor. |
| Remote control not responding | Batteries dead or incorrectly inserted, remote out of range. | Replace remote control batteries. Ensure remote is pointed towards the seat. |
| Water leakage | Loose water connections, damaged hose/seal. | Turn off water supply. Check and tighten all water connections. If leakage persists, contact customer support. |
Specifications
| Feature | Detail |
|---|---|
| Brand | Ove Decors |
| Model | Vanda Elongated Round |
| Color | White |
| Material | Glass (Note: Typically smart toilet seats are made of durable plastic. Please verify with manufacturer if this specification is critical.) |
| Shape | Oval (Elongated) |
| Item Weight | 4.81 kg (10.6 lbs) |
| Product Dimensions (LxWxH) | 51 cm x 38 cm x 2.5 cm (20.08 in x 14.96 in x 0.98 in) |
| Power Supply | 120V AC (GFCI outlet recommended) |
| UPC | 828796019446 |
| Included Components | Smart Toilet Seat, Remote Control |
Warranty and Customer Support
For warranty information, technical assistance, or to order replacement parts, please contact Ove Decors customer support. Refer to the product packaging or the official Ove Decors website for the most current contact details and warranty terms.
Online Resources: www.ovedecors.com
