1. Safety Information
Read and understand all safety warnings and instructions before operating this post hole digger. Failure to follow these instructions may result in serious injury or death.
- Always wear appropriate personal protective equipment (PPE), including safety glasses, hearing protection, gloves, and sturdy footwear.
- Ensure the work area is clear of bystanders, children, and pets.
- Handle fuel with extreme care. Mix fuel in a well-ventilated area away from ignition sources.
- Never operate the machine indoors or in poorly ventilated areas due to exhaust fumes.
- Inspect the auger bit and machine for damage before each use. Do not operate if damaged.
- Maintain a firm grip on the handles during operation. Be prepared for sudden jolts if the auger encounters obstacles.
- Do not overreach or stand on unstable surfaces while operating.
- Turn off the engine and allow it to cool before refueling or performing maintenance.
2. Product Overview
The DC HOUSE 63CC Gas Powered Post Hole Digger is designed for efficient and powerful digging in various soil conditions. It comes with multiple auger drill bits for different hole sizes.
The DC HOUSE 63CC Gas Powered Post Hole Digger, shown with an attached auger bit, ready for use.
Key Features:
- 63CC 2-stroke engine for powerful digging.
- Includes 4-inch, 6-inch, and 8-inch earth auger drill bits.
- Ergonomic handles for comfortable operation.
- Suitable for various soil types including gravelly, hard, and clay soils.
A person operating the DC HOUSE 63CC Post Hole Digger, with text overlays indicating its 63CC motor, 2500W power, 8000 RPM max speed, 2.8 N.m maximum torque, and 43.8 pounds weight.
The DC HOUSE 63CC Post Hole Digger in a garden setting, demonstrating its suitability for gravelly soil, hard soil, and clay.
3. Setup and Assembly
Follow these steps to assemble your DC HOUSE Post Hole Digger:
- Attach the Auger Bit: Align the auger bit shaft with the output shaft of the engine unit. Insert the pin to secure the auger bit.
- Secure the Pin: Use the provided R-clip or cotter pin to lock the main pin in place, preventing the auger from detaching during operation.
A four-step visual guide showing how to easily assemble the auger drill bit to the DC HOUSE Post Hole Digger engine unit.
Assembly Video:
Official product video demonstrating the assembly and starting procedure of the DC HOUSE 63CC Gas Powered Post Hole Digger.
4. Operating Instructions
4.1 Fuel Mixing
This post hole digger uses a 2-stroke engine and requires a specific gasoline-oil mixture. Use unleaded gasoline and high-quality 2-stroke engine oil.
- Mixing Ratio: 25 parts gasoline to 1 part 2-stroke oil (25:1).
- Mix fuel in a separate, approved fuel container. Shake well before pouring into the digger's fuel tank.
- Do not use old or stale fuel mixture. Prepare fresh fuel for each use.
Close-up of the DC HOUSE Post Hole Digger's fuel tank being filled, emphasizing the 2-cycle oil/gasoline mixing ratio of 25:1.
4.2 Starting the Engine
Follow these steps to start the engine:

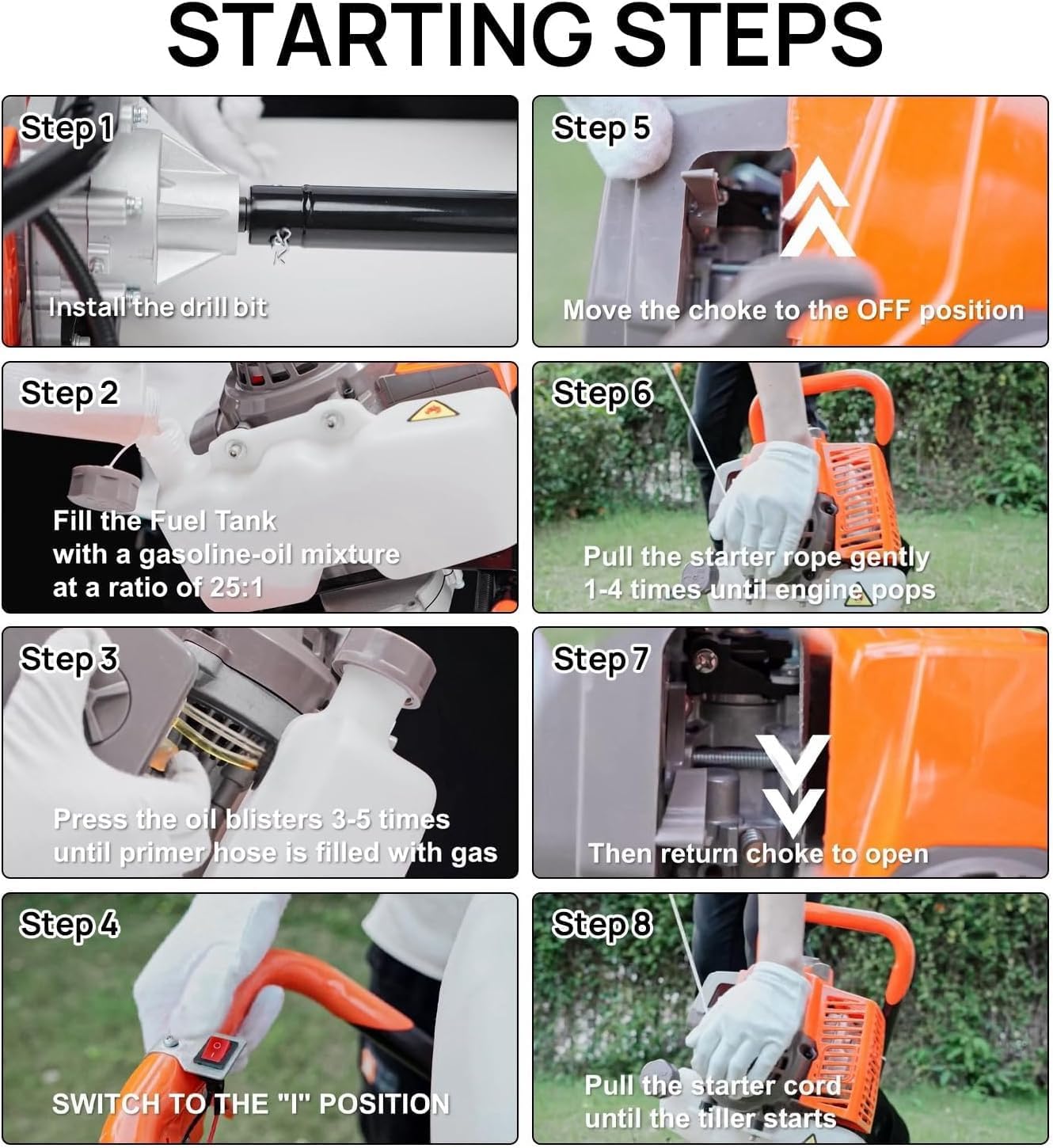

An eight-step visual guide detailing the starting process for the DC HOUSE Post Hole Digger.
Cold Start Procedure:
- Press the fuel primer bulb 3-5 times until the primer hose is filled with gas.
- Switch the engine to the "I" (ON) position.
- Move the choke lever to the OFF position.
- Pull the starter rope gently 1-4 times until the engine pops.
- Return the choke to the OPEN position.
- Pull the starter cord until the engine starts.
- Allow the engine to run at idle speed for 2-3 minutes to warm up.
Warm Start Procedure:
- Switch the engine to the "I" (ON) position.
- Ensure the choke lever is in the OPEN position.
- Pull the starter cord until the engine starts.
4.3 Digging Operation
- Once the engine is running, hold the handles firmly with both hands.
- Position the auger bit over the desired digging location.
- Slowly engage the throttle to begin rotating the auger. Apply gentle downward pressure.
- Allow the auger to bore into the soil. If it binds, release the throttle, lift the auger slightly, and re-engage.
- Periodically lift the auger slightly to clear loose soil from the hole.
- Continue digging until the desired depth is reached.
- To stop, release the throttle and switch the engine to the "O" (OFF) position.
5. Maintenance
Regular maintenance ensures optimal performance and extends the life of your post hole digger.
- After Each Use: Clean the auger bit and engine housing of dirt and debris. Inspect for any loose fasteners or damage.
- Air Filter: Check and clean the air filter regularly (every 5-10 hours of operation, or more frequently in dusty conditions). Replace if damaged.
- Spark Plug: Inspect the spark plug every 20-30 hours of operation. Clean or replace if fouled or worn.
- Fuel System: Drain the fuel tank and carburetor if storing the machine for an extended period (over 30 days) to prevent fuel degradation issues.
- Gearbox Lubrication: Refer to the specific gearbox maintenance schedule in the full manual for lubrication requirements.
An overhead view of the DC HOUSE Post Hole Digger engine, illustrating its design for efficient heat dissipation.
6. Troubleshooting
If you encounter issues, refer to the following common troubleshooting steps:
| Problem | Possible Cause | Solution |
|---|---|---|
| Engine won't start | No fuel, incorrect fuel mix, fouled spark plug, clogged fuel filter, choke setting incorrect. | Check fuel level and mix. Clean/replace spark plug. Check/clean fuel filter. Adjust choke. Follow starting procedure carefully. |
| Loss of power during operation | Clogged air filter, old fuel, engine overheating, dull auger bit. | Clean air filter. Use fresh fuel. Allow engine to cool. Inspect/sharpen auger bit. |
| Auger binds in soil | Hitting an obstruction (rock, root), soil too dense. | Release throttle, lift auger, clear obstruction if possible. Reduce digging pressure. |
For persistent issues, contact customer support.
7. Specifications
Detailed specifications for the DC HOUSE 63CC Gas Powered Post Hole Digger:
- Engine Type: 63CC, 2-stroke
- Power Output: 2500W
- Maximum Engine Speed: 8000 RPM
- Maximum Torque: 2.8 N.m
- Fuel Mix Ratio: 25:1 (Gasoline:2-stroke oil)
- Weight: Approximately 43.8 lbs
- Included Auger Bits: 4-inch, 6-inch, 8-inch diameter (32 inches long)
- Material: Alloy Steel (auger bits)
A visual representation of the 4-inch, 6-inch, and 8-inch auger drill bits, each with a length of 32 inches, compatible with the DC HOUSE Post Hole Digger.
8. Warranty and Support
For warranty information, technical support, or to order replacement parts, please contact DC HOUSE customer service. Refer to your purchase documentation for specific warranty terms and contact details.
You can often find support information on the manufacturer's official website or through the retailer where the product was purchased.
