Introduction
This manual provides detailed instructions for the installation, operation, maintenance, and troubleshooting of your SpiroPure SP-GAC-BB 10x4.5 20 Micron Coconut Shell Granular Activated Carbon (GAC) Water Filter Cartridge. Designed for whole-house or under-sink filtration systems, this filter effectively reduces sediment particles and chlorine taste & odor, ensuring cleaner, better-tasting water.
Image: SpiroPure SP-GAC-BB 10x4.5 GAC Water Filter Cartridges (Case of 6).
Setup and Installation
Proper installation is crucial for the optimal performance of your SpiroPure water filter cartridge. Always refer to your specific filter housing's manual for detailed instructions, as procedures may vary.
- Turn Off Water Supply: Locate the main water shut-off valve for your house or the specific line leading to the filter housing and turn it off.
- Depressurize System: Open a nearby faucet to relieve pressure in the water lines. This will allow water to drain from the filter housing.
- Open Filter Housing: Use the provided wrench (if applicable) to unscrew and remove the filter housing sump. Carefully empty any remaining water.
- Remove Old Filter: Dispose of the old filter cartridge according to local regulations.
- Clean Housing: Clean the inside of the filter housing sump with warm, soapy water and rinse thoroughly. Inspect the O-ring for any damage or wear; replace if necessary. Lubricate the O-ring with a silicone-based lubricant if recommended by your housing manufacturer.
- Insert New Filter: Carefully unwrap the new SpiroPure SP-GAC-BB filter cartridge. Ensure the filter is centered on the standpipe at the bottom of the housing.
- Reassemble Housing: Screw the filter housing sump back onto the cap, hand-tightening it first, then using the wrench for a snug fit. Do not overtighten.
- Restore Water Supply: Slowly turn on the main water supply valve. Listen for the housing to fill with water. Once full, check for leaks.
- Flush Filter: Open a nearby cold water faucet and allow water to run for at least 5-10 minutes to flush out any carbon fines (small black particles) that may be present. The water may appear cloudy or black initially; this is normal and will clear.

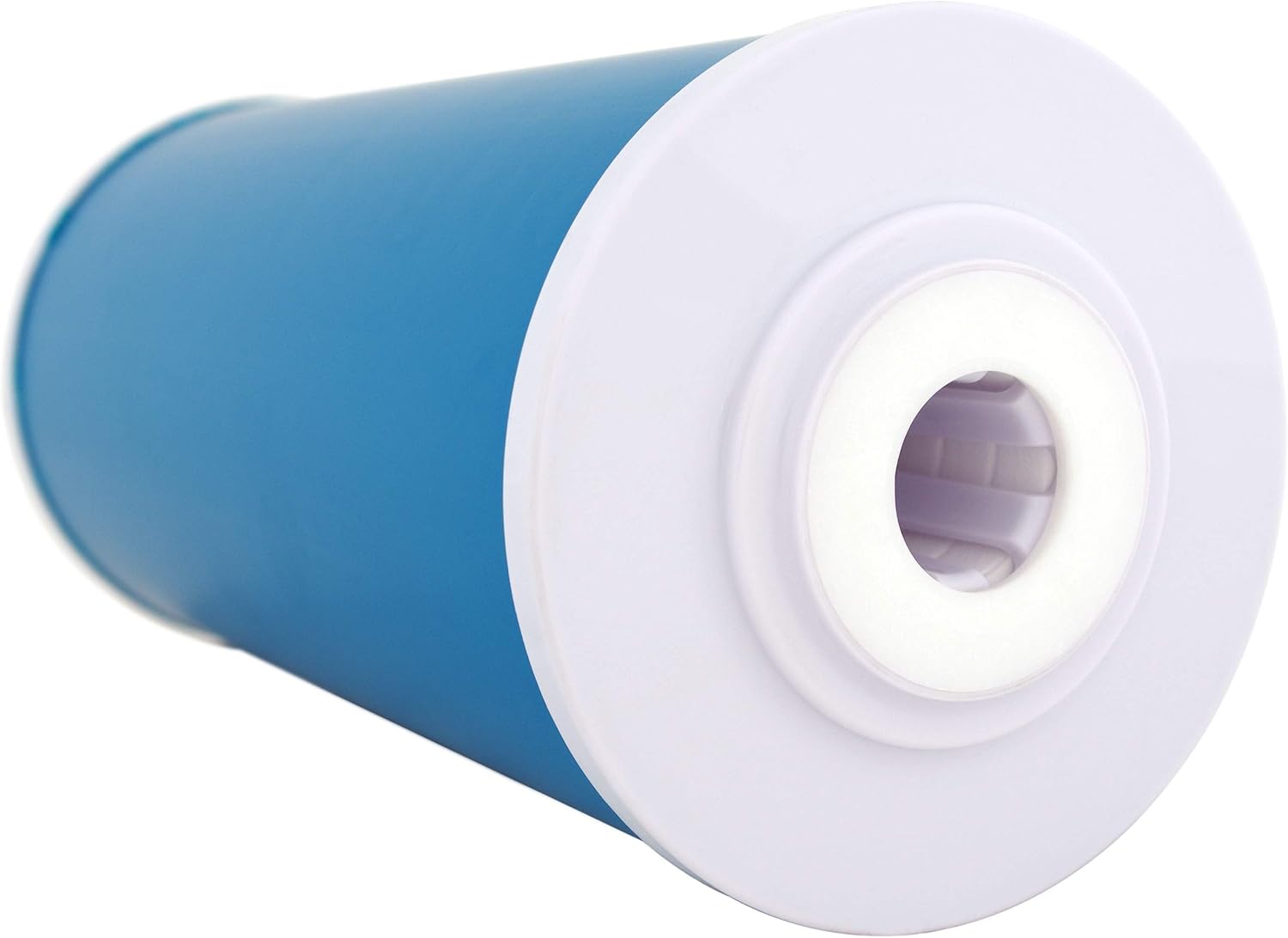

Image: End cap of the SpiroPure SP-GAC-BB filter, showing the design for proper seating.

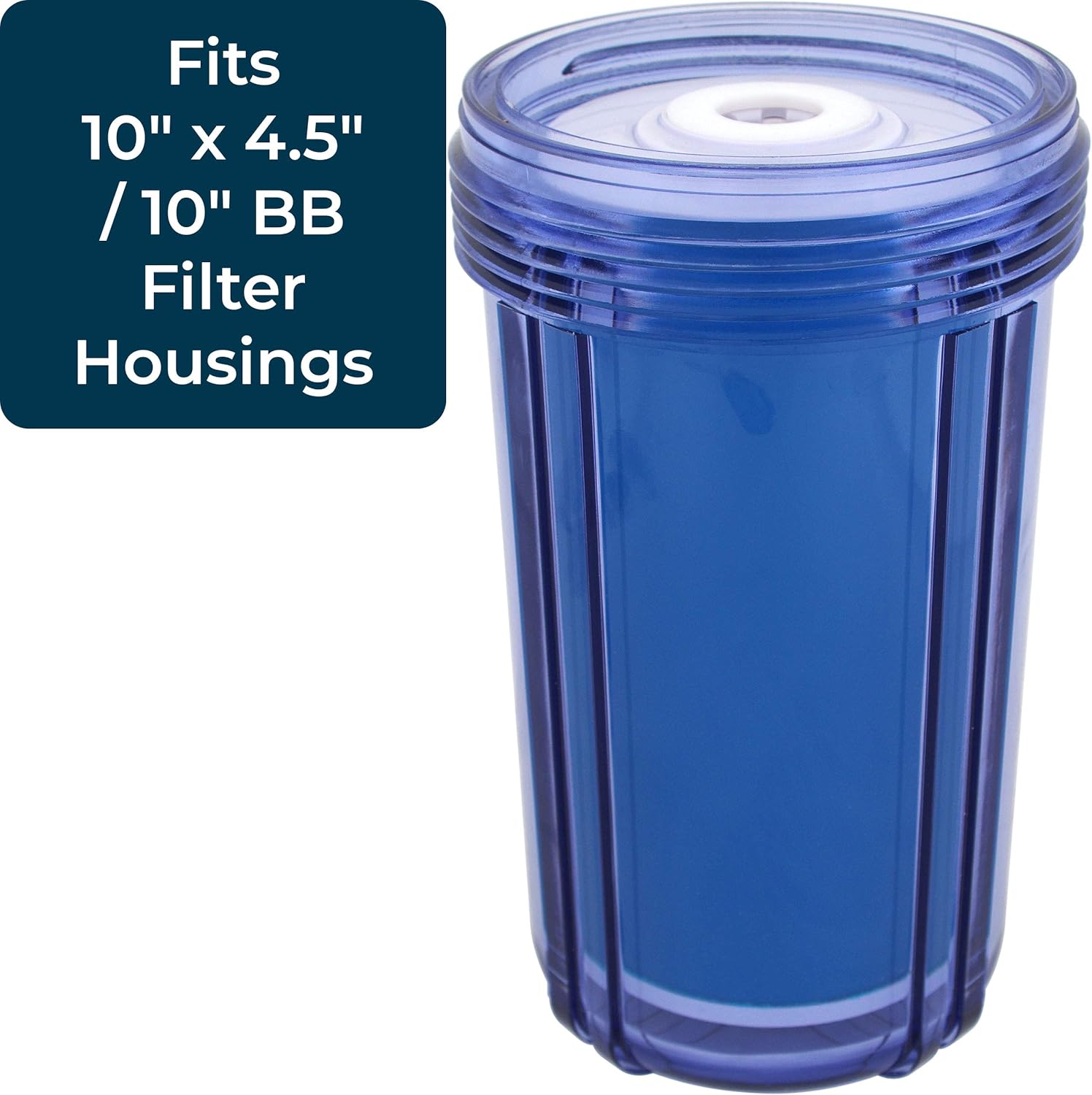

Image: SpiroPure filter shown fitting into a standard 10" x 4.5" BB filter housing.
Operating Principles
The SpiroPure SP-GAC-BB filter utilizes Granular Activated Carbon (GAC) derived from coconut shells. Activated carbon is highly porous and acts like a sponge, adsorbing impurities from water as it passes through the filter media.
- Chlorine Reduction: GAC is highly effective at removing chlorine and its byproducts, which are commonly used as disinfectants in municipal water supplies. This significantly improves the taste and odor of your water.
- Taste and Odor Improvement: Beyond chlorine, the activated carbon also adsorbs other organic compounds that can cause unpleasant tastes and odors in water.
- Sediment Filtration: While primarily a carbon filter, the granular nature and filter design also provide a nominal 20-micron filtration, reducing larger sediment particles.

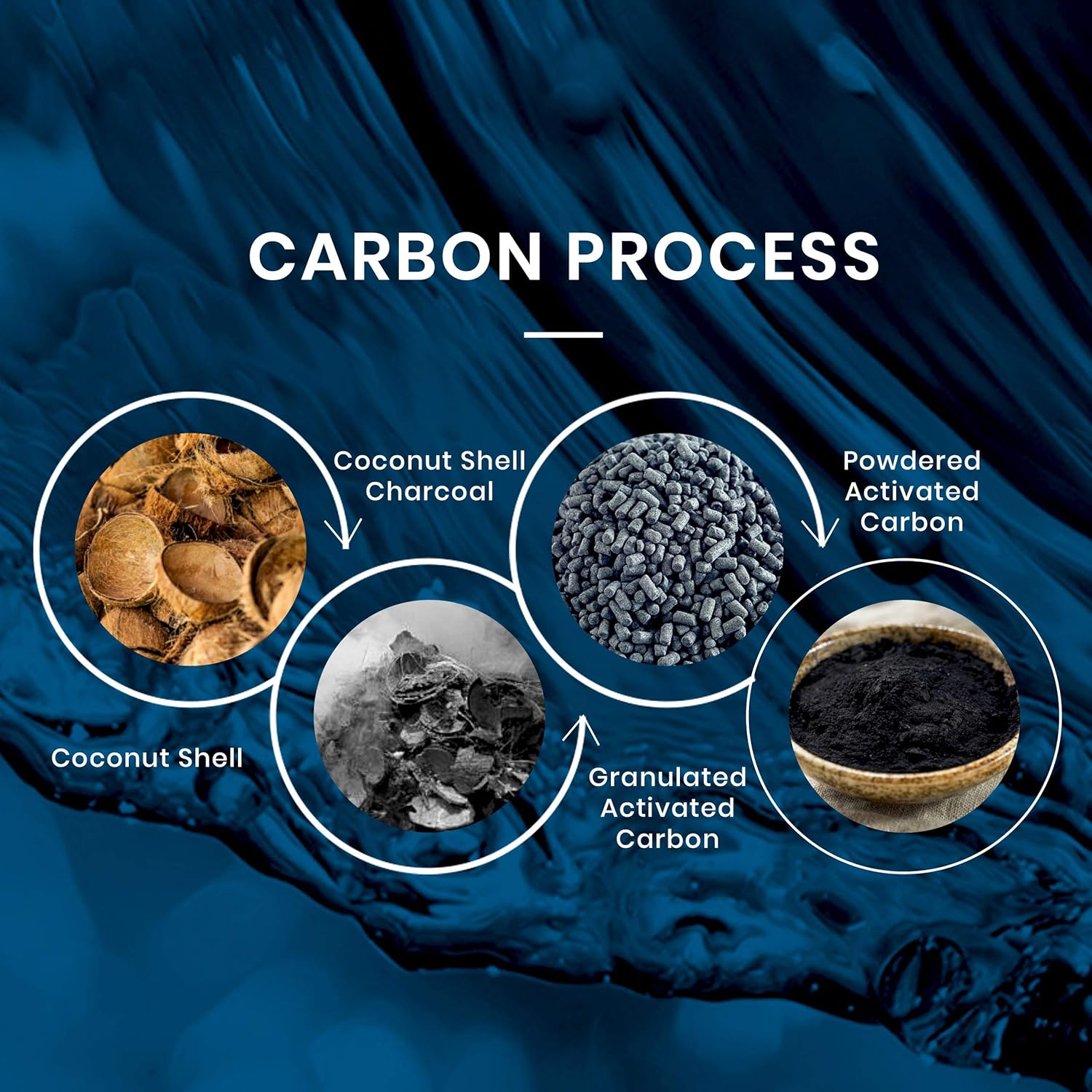

Image: The Carbon Process, detailing the transformation from coconut shell to activated carbon.
Image: SpiroPure filters improve water taste and odor by removing chlorine.
Maintenance
Regular replacement of your SpiroPure SP-GAC-BB filter cartridge is essential to maintain water quality and system performance. The lifespan of the filter depends on your water quality and usage.
- Replacement Frequency: It is generally recommended to replace GAC filters every 3 to 6 months, or sooner if you notice a decrease in water flow or a return of unpleasant tastes or odors. For heavily contaminated water, more frequent changes may be necessary.
- Filter Change Procedure: Follow the "Setup and Installation" steps in reverse to safely remove the old filter and install a new one. Remember to flush the new filter thoroughly after installation.
- Housing Cleaning: Each time you change the filter, clean the filter housing thoroughly to prevent bacterial growth and ensure a proper seal.
Troubleshooting
If you encounter issues with your SpiroPure water filter, consult the following common troubleshooting tips:
| Problem | Possible Cause | Solution |
|---|---|---|
| Reduced Water Flow |
|
|
| Black Water After Installation | Carbon fines (small particles) from the new GAC filter. | Flush the filter thoroughly by running cold water for 5-10 minutes until the water runs clear. This is normal for new carbon filters. |
| Return of Bad Taste/Odor | Filter media is exhausted and can no longer adsorb impurities. | Replace the filter cartridge. |
| Leaks from Housing |
|
|
Specifications
| Attribute | Detail |
|---|---|
| Model Number | SP-GAC-BB |
| Filter Media | Coconut Shell Granular Activated Carbon (GAC) |
| Nominal Micron Rating | 20 Micron |
| Product Dimensions | 4.5"D x 4.5"W x 10"H |
| Product Benefits | Reduces sediment particles and chlorine taste & odor, ensures greater absorption for better-tasting water. |
| UPC | 850466008597 |
| Manufacturer | SpiroPure |
| Unit Count | 6.0 Count (for this specific product listing) |
Image: SpiroPure filter highlighting its granular activated carbon media and 20 micron nominal rating.
Warranty and Support
For specific warranty information regarding your SpiroPure SP-GAC-BB water filter cartridges, please refer to the documentation included with your purchase or contact SpiroPure directly. For general inquiries or support, you may also reach out to the seller, AllFilters.
You can find more information about SpiroPure products by visiting the official SpiroPure Store on Amazon.
