Glacier Bay 36 in. x 1-1/2 in. Exposed Screw ADA Compliant Grab Bar

Introduction

This manual provides comprehensive instructions for the safe and proper installation, operation, and maintenance of your Glacier Bay 36-inch ADA Compliant Grab Bar. Designed for enhanced safety and support in bathrooms and other areas, this grab bar features durable brushed stainless steel construction and meets ADA compliance standards for accessibility. Please read all instructions carefully before beginning installation.

Image: The Glacier Bay 36-inch ADA Compliant Grab Bar, showcasing its brushed stainless steel finish and exposed screw mounting flanges.

Safety Information

• Important: Always ensure the grab bar is securely fastened to structural blocking or studs. Do not rely on drywall anchors alone.
• Consult local building codes and ADA guidelines for specific installation requirements in your area.
• If you are unsure about proper installation, seek assistance from a qualified professional.
• Regularly inspect the grab bar for any signs of looseness, damage, or corrosion. Tighten screws as needed.
• This grab bar is designed to provide support for balance and stability. It is not intended to support full body weight for extended periods or for use as a swing.

Package Contents

Verify that all components are present before beginning installation:

• 1 x Glacier Bay 36 in. ADA Compliant Grab Bar
• Mounting Screws (typically included, verify with packaging)

Note: Wall anchors suitable for your specific wall material (e.g., wood studs, concrete, tile over stud) may need to be purchased separately if not included or if different from the provided hardware.

Setup and Installation

Tools Required (Not Included):

• Pencil
• Measuring Tape
• Level
• Stud Finder
• Drill with appropriate drill bits (for pilot holes)
• Screwdriver (Phillips head recommended)
• Safety Glasses

Installation Steps:

1. 1. Determine Mounting Location:

   Identify the desired location for the grab bar. For ADA compliance, typical heights are between 33 and 36 inches from the floor to the top of the gripping surface. Use a stud finder to locate wall studs or structural blocking. It is crucial that the grab bar is mounted into solid wood blocking or studs to ensure maximum weight capacity and safety.



   Image: An example of the grab bar securely installed horizontally on a tiled bathroom wall, demonstrating typical placement.
2. 2. Mark Pilot Holes:

   Hold the grab bar in the desired position, ensuring it is level using a spirit level. Use a pencil to mark the center of each mounting hole on the wall. Double-check that your marks align with the center of the studs/blocking.

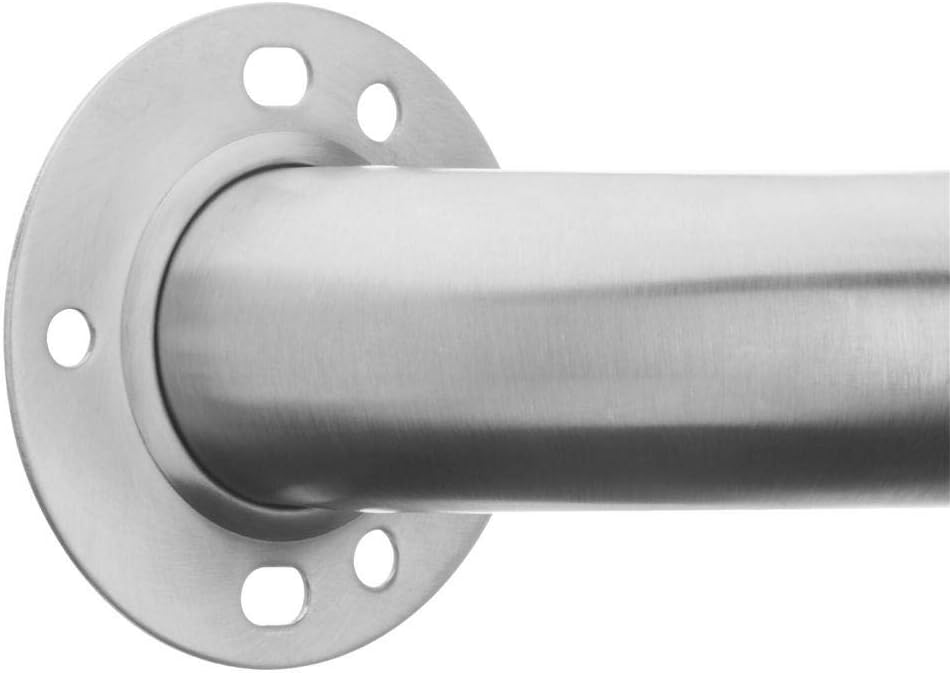

   Image: A close-up view of the grab bar's mounting flange, showing the multiple screw holes for secure attachment.

3. 3. Drill Pilot Holes:

   Using a drill with an appropriate drill bit size (refer to screw manufacturer's recommendations, typically slightly smaller than the screw diameter), drill pilot holes at each marked location. If drilling into tile, use a specialized tile drill bit first, then switch to a wood bit for the stud.
4. 4. Secure the Grab Bar:

   Align the grab bar's mounting flanges with the drilled pilot holes. Insert the provided mounting screws into each hole and tighten them securely with a screwdriver. Do not overtighten, but ensure the bar is firmly against the wall and does not wobble.



   Image: The Glacier Bay 36-inch grab bar viewed from the front, highlighting its straight design and mounting points.

5. 5. Test Stability:

   Once installed, gently apply pressure to the grab bar in various directions to ensure it is stable and securely mounted. It should not move or flex. If there is any movement, re-check the installation and tighten screws or re-mount if necessary.

Operating and Usage

The Glacier Bay Grab Bar is designed to provide a stable and secure handhold for support when standing, sitting, or transferring in areas like bathrooms, showers, or near stairs. Always grasp the bar firmly with your hand. Avoid hanging or swinging from the grab bar, as it is intended for support and balance, not for dynamic loads beyond its rated capacity.

Image: The Glacier Bay grab bar shown in a vertical orientation, demonstrating its versatility for different installation needs.

Maintenance

• Cleaning: Clean the grab bar regularly with a soft cloth and mild soap and water. Avoid abrasive cleaners, scouring pads, or harsh chemicals, as these can damage the brushed stainless steel finish.
• Inspection: Periodically check all mounting screws to ensure they remain tight. If any screws are loose, tighten them immediately. Inspect the bar for any signs of rust, corrosion, or damage.
• Longevity: Proper cleaning and regular inspection will help maintain the appearance and structural integrity of your grab bar for many years.

Troubleshooting

Specifications

• Model: 36-inch ADA Compliant Grab Bar
• Material: Brushed Stainless Steel
• Length: 36 inches
• Diameter: 1-1/2 inches (1.5 inches)
• Finish: Brushed
• ADA Compliant: Yes
• Item Weight: Approximately 2.49 pounds
• Manufacturer: Glacier Bay

Warranty and Support

Glacier Bay products are manufactured to high-quality standards and are backed by a manufacturer's warranty. For specific warranty details, please refer to the warranty card included with your product or visit the official Glacier Bay website. For technical support, replacement parts, or any questions regarding your grab bar, please contact Glacier Bay customer service through their official channels. Keep your purchase receipt for warranty claims.

For more information, you may visit the Glacier Bay website or contact their customer support.
