1. Introduction
This manual provides detailed instructions for assembling, operating, and maintaining your Nifeliz Off-Road Pickup Wrange 1:8 Scale Building Set. This engineering model consists of 2,096 pieces, designed to offer a rewarding and intricate building experience for adults. Please read all instructions carefully before beginning assembly.
2. Product Overview
The Nifeliz Off-Road Pickup Wrange is a highly detailed 1:8 scale model, featuring numerous functional components and realistic design elements. It is part of the Nifeliz Large Car Series, offering an immersive build with a significant number of pieces.
Figure 1: Nifeliz Off-Road Pickup Wrange model showcasing its dimensions (16.5 x 7.5 x 8.3 inches) and total piece count (2,096).
Figure 2: The completed 1:8 scale model of the Nifeliz Off-Road Pickup Wrange, suitable for display.
Figure 3: Hands engaged in the assembly of the Nifeliz Off-Road Pickup Wrange, demonstrating the detailed building project.
3. Specifications
| Attribute | Value |
|---|---|
| Brand | Nifeliz |
| Product Name | Nifeliz Off-Road Pickup Wrange |
| Pieces | 2,096 |
| Product Dimensions | 16.5 x 7.5 x 8.3 inches |
| Item Weight | 5.89 pounds |
| Scale | 1:8 |
| Manufacturer | Nifeliz |

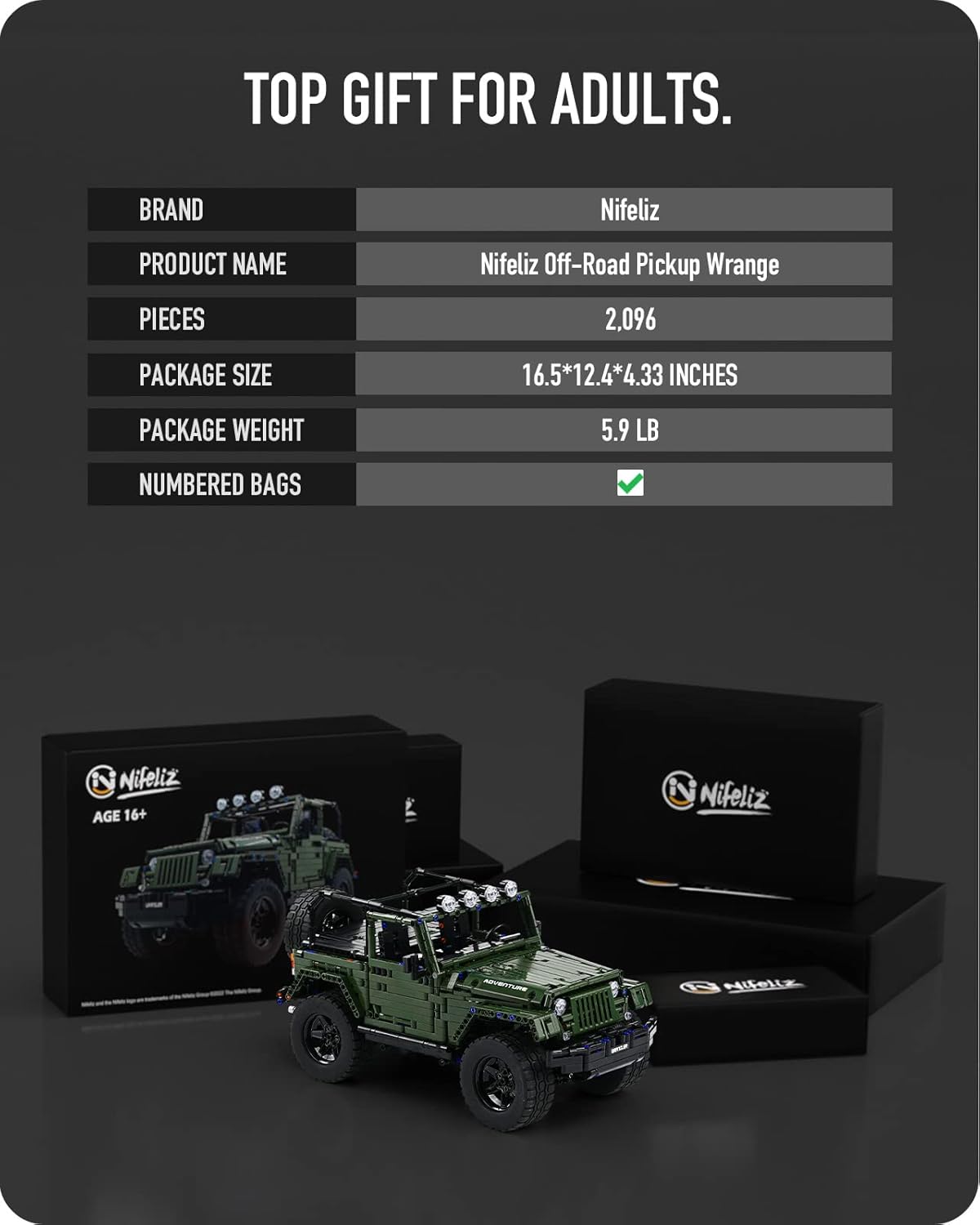

Figure 4: Summary of key product specifications for the Nifeliz Off-Road Pickup Wrange.
4. Setup and Assembly
The assembly process for the Nifeliz Off-Road Pickup Wrange is designed to be challenging and engaging. Follow the included step-by-step instruction booklet carefully. Pieces are typically organized in numbered bags to correspond with assembly stages.
4.1. Preparation
- Unpack all components and verify that all 2,096 pieces are present according to the parts list in the manual.
- Organize pieces by type or color to facilitate easier assembly.
- Ensure a clean, well-lit workspace to prevent loss of small parts.
4.2. Assembly Tips
- Follow the instruction manual's sequence precisely. Do not skip steps.
- Ensure connections are firm. Some pieces may require gentle but firm pressure to click into place.
- Periodically check that moving parts (gears, levers) operate smoothly before proceeding to subsequent steps. This helps identify and correct errors early.
- If a part seems difficult to fit, double-check the instruction diagram and the orientation of the pieces.
5. Operating Features
The Nifeliz Off-Road Pickup Wrange model incorporates several functional features that mimic a real off-road vehicle. These features are designed for interactive display and understanding mechanical principles.
5.1. Functional Components Overview
Video 1: Official Nifeliz video demonstrating the functional features of the Wrange Off-Road Car, including electroplated hubs, opening trunk, opening doors, steering wheel, opening hood with V6 engine, removable structure, suspension, 2-speed range gearbox, 4-wheel/2-wheel drive mode, and lockable differentials.
- Electroplated Hubs: The model features five electroplated hubs, including a spare tire, adding to its realistic appearance.
- Opening Trunk: The rear trunk can be opened, providing access to the cargo area.
- Opening Doors: Both driver and passenger doors are functional and can be opened.
- Steering Wheel: The steering wheel is connected to the front wheels, allowing for manual steering.
- Opening Hood with V6 Engine: The front hood can be opened to reveal a detailed V6 engine model.
- Removable Structure: The body of the vehicle can be separated from the chassis, allowing for a clear view of the internal mechanical components, including the drivetrain and suspension.
- Suspension: The model includes a working suspension system, providing realistic movement and shock absorption.
- 5+R Speeds Manual Gearbox: A functional manual gearbox with 5 forward speeds and reverse. This allows for shifting gears to observe the internal mechanisms.
- 2 Speeds Range Gearbox: The model features a 2-speed range gearbox, simulating high and low range settings found in real off-road vehicles.
- 4-Wheel/2-Wheel Drive Mode: A selector allows switching between 4-wheel drive and 2-wheel drive modes, demonstrating the power distribution to the wheels.
- Lockable Differentials: The differentials can be locked, a feature crucial for off-road performance, allowing both wheels on an axle to rotate at the same speed.
5.2. Gearbox Operation
Figure 5: Detail of the 5+R speeds manual gearbox, showing the shift levers.
To operate the gearbox, gently move the shift levers located within the cabin. Observe the internal gears engaging and disengaging as you change speeds. The 2-speed range gearbox and 4-wheel/2-wheel drive selector also operate via dedicated levers, demonstrating different drive configurations.
6. Maintenance
Proper care will ensure the longevity and functionality of your Nifeliz Off-Road Pickup Wrange model.
6.1. Cleaning
- Use a soft, dry cloth to gently wipe away dust from the model.
- For stubborn dirt, a slightly damp cloth can be used, followed immediately by a dry cloth. Avoid excessive moisture.
- Do not use harsh chemicals, abrasive cleaners, or solvents, as these can damage the plastic components.
6.2. Storage
- Store the model in a cool, dry place away from direct sunlight to prevent discoloration and material degradation.
- Keep the model away from extreme temperatures and humidity.
- If disassembling for storage, keep all pieces organized to prevent loss.
7. Troubleshooting
This section addresses common issues that may arise during assembly or operation.
7.1. Missing Parts
- Carefully re-check all packaging and the assembly area. Small pieces can be easily overlooked.
- Refer to the parts list in your instruction manual to confirm which specific parts are missing.
- If parts are genuinely missing, contact Nifeliz customer support for assistance.
7.2. Stiff Connections or Malfunctioning Mechanisms
- If connections are too stiff, ensure the pieces are correctly aligned and that no foreign objects are obstructing the connection points.
- For gears or other moving mechanisms that do not operate smoothly, retrace the assembly steps for that section. Incorrectly placed or oriented pieces are a common cause.
- Ensure all axles and pins are fully inserted and not binding.
7.3. Instability or Loose Components
- Verify that all connections are securely fastened. Loose connections can lead to structural instability.
- Check for any misaligned pieces that might be preventing a secure fit.
8. Warranty and Support
For specific warranty information, replacement parts, or technical support, please refer to the documentation included with your product or visit the official Nifeliz website. Contact information for customer service is typically provided by the manufacturer.
