Bosch Move Lithium 16Vmax Handheld Vacuum Cleaner (BHN16L) User Manual

1. Introduction

The Bosch Move Lithium 16Vmax Handheld Vacuum Cleaner (BHN16L) is a versatile and lightweight cordless vacuum designed for quick clean-ups and hard-to-reach areas, including car interiors. Its powerful performance and extended battery life make it an efficient tool for daily use.

Key features include:

• High performance and long battery life.
• Up to 16Vmax power for effective cleaning.
• Cyclonic Airflow System for improved air circulation and powerful suction.
• Two power levels for varied cleaning tasks.
• Washable filter and easy-to-empty dust container.

Figure 1: The Bosch Move Lithium 16Vmax Handheld Vacuum Cleaner, showcasing its compact and ergonomic design.

2. Important Safety Instructions

Please read all instructions carefully before using this appliance. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• This appliance is intended for household use only. Do not use it for commercial or industrial purposes.
• Do not use the vacuum cleaner to pick up water or other liquids, hot ashes, burning cigarettes, or sharp objects.
• Keep hair, loose clothing, fingers, and all parts of the body away from openings and moving parts.
• Do not operate the appliance with a damaged cord or plug. If the appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.
• Use only the charger supplied by the manufacturer to recharge the appliance. Using an incorrect charger may damage the battery and cause fire.
• Do not incinerate the appliance even if it is severely damaged. The batteries can explode in a fire.
• This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Always switch off the appliance before connecting or disconnecting the charging adapter.

3. Package Contents

Ensure all items are present upon unpacking:

• Bosch Move Lithium 16Vmax Handheld Vacuum Cleaner (BHN16L)
• Filter (pre-installed)
• Crevice Nozzle
• User Manual
• Charging Adapter

Figure 2: The handheld vacuum cleaner shown with its included crevice nozzle attachment.

4. Setup and Initial Use

4.1 Charging the Battery

Before first use, fully charge the vacuum cleaner's battery. The appliance is equipped with a Lithium-ion battery.

1. Ensure the vacuum cleaner is switched off.
2. Connect the charging adapter to the charging port on the vacuum cleaner.
3. Plug the charging adapter into a suitable wall outlet.
4. The charging indicator light will illuminate, indicating that the battery is charging.
5. Allow the appliance to charge until the indicator light shows a full charge (refer to the indicator light behavior in your specific model's manual for details). A full charge can take several hours.

Note: For optimal battery life, avoid completely discharging the battery before recharging.

4.2 Attaching Accessories

The crevice nozzle can be attached to the suction opening for cleaning narrow gaps and corners.

• Align the crevice nozzle with the vacuum cleaner's suction inlet.
• Push firmly until it clicks into place.
• To remove, pull the nozzle away from the suction inlet.

5. Operating Instructions

5.1 Powering On/Off and Speed Settings

The vacuum cleaner features two power levels for different cleaning needs.

1. To turn on the vacuum cleaner, press the power button once for the standard power level.
2. To switch to the higher power level, press the power button a second time.
3. To turn off the vacuum cleaner, press the power button a third time.

Figure 3: Demonstrating the vacuum cleaner's use for quick clean-ups on surfaces like tables.

Figure 4: The crevice nozzle effectively cleaning tight spaces in a car interior.

5.2 Cyclonic Airflow System

The integrated Cyclonic Airflow System ensures efficient dust separation and consistent suction power throughout your cleaning task.

Figure 5: Visual representation of the cyclonic airflow technology for sustained suction.

6. Maintenance

Regular maintenance ensures optimal performance and extends the life of your vacuum cleaner.

6.1 Emptying the Dust Container

Empty the dust container regularly, especially when the maximum fill line is reached, to maintain strong suction.

1. Ensure the vacuum cleaner is switched off.
2. Locate the dust container release button (usually near the nozzle).
3. Press the release button and carefully detach the dust container from the main unit.
4. Hold the dust container over a waste bin and open its lid to empty the contents.
5. Reattach the dust container to the main unit, ensuring it clicks securely into place.

6.2 Cleaning the Filter

The filter should be cleaned periodically to prevent clogging and maintain suction efficiency. The filter is washable.

1. After emptying the dust container, remove the filter assembly.
2. Tap the filter gently over a waste bin to dislodge loose dust.
3. If heavily soiled, rinse the filter under cold running water. Do not use detergents.
4. Allow the filter to air dry completely for at least 24 hours before reinserting it into the vacuum cleaner. Do not use a hairdryer or other heating devices.
5. Once dry, reassemble the filter into the dust container and attach it back to the vacuum cleaner.

7. Troubleshooting

If you encounter issues with your Bosch Move Lithium 16Vmax Handheld Vacuum Cleaner, refer to the following common problems and solutions:

8. Technical Specifications

• Brand: Bosch Electroménager
• Model Number: BHN16L
• Product Dimensions (L x W x H): 38 x 11 x 13.5 cm
• Weight: 1.1 kg (2.43 lbs)
• Voltage: 14.4 Volts (16Vmax)
• Number of Speeds: 2
• Energy Class: B
• Noise Level: 80 dB
• Battery Type: 1 Lithium-ion (included)
• Runtime: Up to 40 minutes
• Special Feature: Lightweight
• Filter Type: Washable
• Power Source: Corded Electric (for charging)
• Components Included: Vacuum cleaner, Filter, User Manual, Crevice Nozzle
• Country of Origin: China

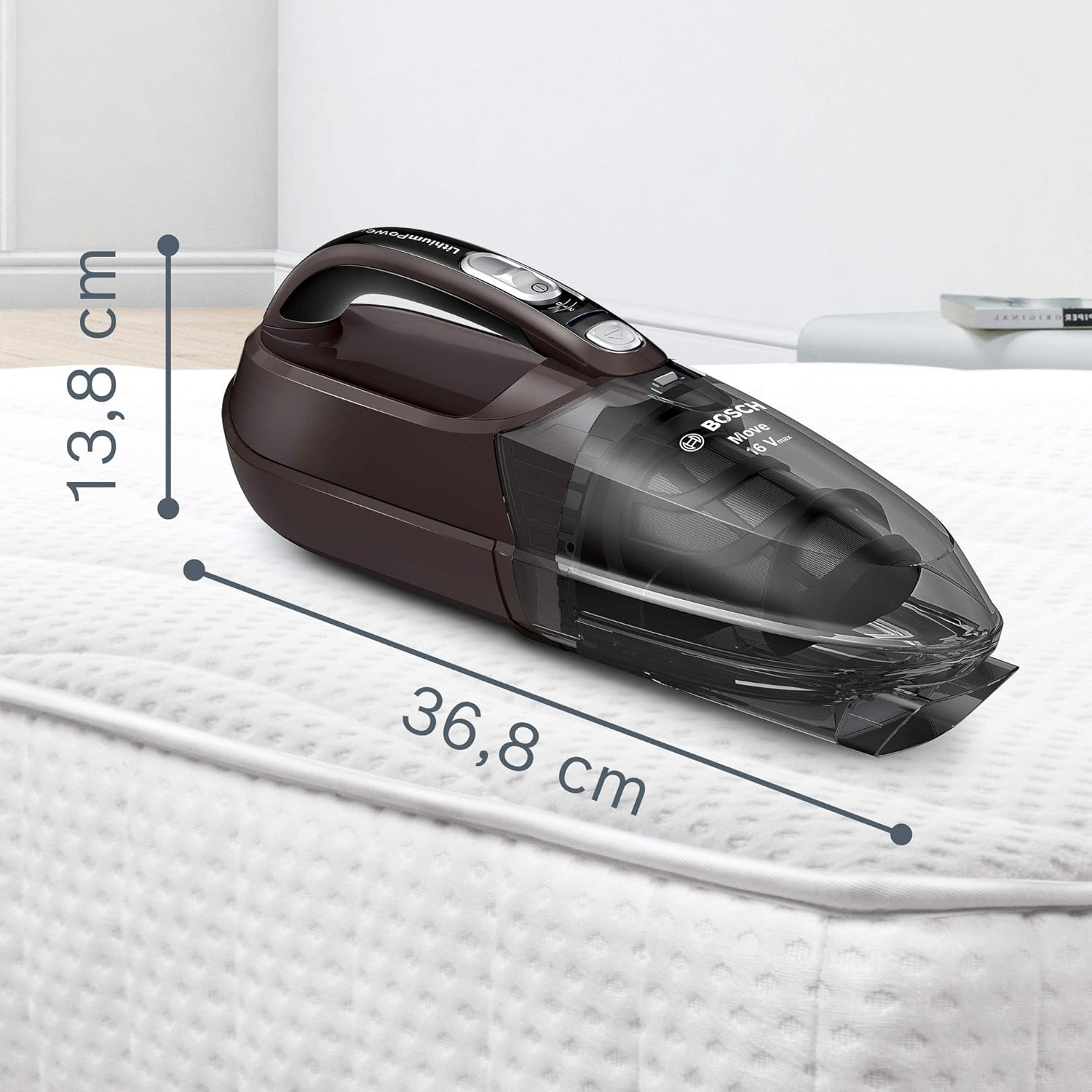

Figure 6: Key dimensions of the Bosch Move Lithium 16Vmax handheld vacuum cleaner.

9. Warranty and Support

Bosch Electroménager products are manufactured to high-quality standards. For information regarding warranty coverage, please refer to the warranty card included with your product or visit the official Bosch Electroménager website.

For technical assistance, spare parts, or service inquiries, please contact Bosch customer support. Contact details can typically be found on the Bosch website or in the documentation provided with your appliance.
