SurTrack TrakMotive CV Axle Shaft VW-8130 Instruction Manual

1. Product Overview

The SurTrack TrakMotive CV Axle Shaft, model VW-8130, is a critical component designed for vehicle drivetrain systems. This axle shaft is engineered to transmit power from the transmission to the wheels, allowing for smooth and efficient vehicle operation. It is built to exceed OEM quality standards in fit, form, and function, ensuring reliability and durability.

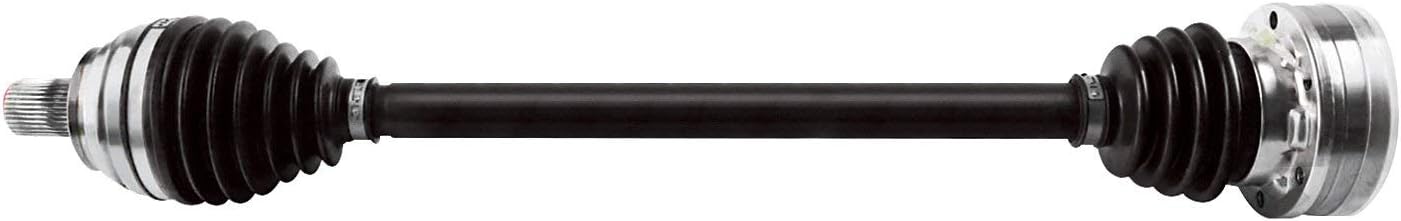

An image showing the complete SurTrack TrakMotive CV Axle Shaft, model VW-8130, from end to end.

2. Key Features and Components

The VW-8130 CV Axle Shaft incorporates several high-quality components for optimal performance and longevity:

• Premium Neoprene Dust Boots: Designed to protect the CV joints from contaminants and retain grease.
• Stainless Steel Clamps: Securely hold the dust boots in place, preventing grease leakage and dirt ingress.
• Precision Machined Solid Steel Heat-Treated Center Shafts: Provides strength and durability for power transmission.
• Precision Rolled Splines & Threads: Ensures accurate fitment and secure connection to mating components.
• Precision Machined & Heat-Treated Cages, Races & Bearings: Contributes to smooth operation and reduced friction within the CV joints.
• All Necessary Attached Hardware & Grease: Included for a complete installation.
• ABS-consolidated and assembled with correct ABS ring: Ensures compatibility with the vehicle's Anti-lock Braking System.
• High Strength Spring Steel Retaining Clips: For secure assembly of components.
• All New Dust Rings and Guards: Additional protection for critical moving parts.

A detailed diagram highlighting key components of the CV Axle Shaft, including premium neoprene dust boots, stainless steel clamps, precision machined solid steel heat-treated center shafts, precision rolled splines & threads, and precision machined & heat-treated cages, races & bearings. It also notes the inclusion of all necessary attached hardware & grease, ABS-consolidated and assembled with correct ABS ring, high strength spring steel retaining clips, and all new dust rings and guards.

3. Specifications and Dimensions

The following specifications apply to the SurTrack TrakMotive CV Axle Shaft VW-8130:

• Item Model Number: VW-8130
• Item Weight: 13.1 pounds
• Product Dimensions: 4 x 27 x 4 inches
• Exterior: Machined
• Overall Compressed Length: 24 13/16 inches
• Spline Count (Wheel Side): 36 Splines
• Transmission Side Connection: 100mm Bolt-On (6 Holes)

An image illustrating the overall compressed length of the CV Axle Shaft as 24 13/16 inches, with 36 splines on one end and a 100mm Bolt-On (6 Holes) flange on the other.

4. Installation Guidelines

Installation of a CV axle shaft requires specialized tools and automotive knowledge. It is highly recommended that this procedure be performed by a qualified automotive technician to ensure proper installation and vehicle safety.

General Steps (Professional Installation Recommended):

1. Vehicle Preparation: Safely lift and support the vehicle. Remove the wheel and tire assembly.
2. Component Disassembly: Disconnect necessary suspension and braking components to allow access to the axle shaft.
3. Old Axle Removal: Carefully remove the old CV axle shaft from the wheel hub and transmission/differential.
4. New Axle Installation: Install the new SurTrack TrakMotive CV Axle Shaft, ensuring proper seating and alignment at both ends.
5. Reassembly: Reconnect all previously removed components, ensuring all fasteners are torqued to manufacturer specifications.
6. Post-Installation Check: Verify proper operation, check for leaks, and ensure all components are secure before driving the vehicle.

Safety Warning: Always consult your vehicle's service manual for specific torque specifications and procedures. Failure to follow proper installation guidelines can result in serious injury or vehicle damage.

5. Maintenance

Regular inspection of your CV axle shafts can help prevent premature failure and ensure safe vehicle operation. While the SurTrack TrakMotive CV Axle Shaft is designed for durability, periodic checks are recommended:

• Boot Inspection: Visually inspect the rubber boots on both ends of the axle shaft for any cracks, tears, or signs of grease leakage. Damaged boots can lead to contamination of the CV joint and eventual failure.
• Noise Check: Listen for unusual noises, such as clicking or popping sounds, especially when turning or accelerating. These can indicate a worn or damaged CV joint.
• Vibration Check: Pay attention to any vibrations felt through the steering wheel or floorboard, which could be a symptom of an unbalanced or failing axle shaft.

If any issues are detected during inspection, it is advisable to have the vehicle serviced by a qualified technician promptly.

6. Troubleshooting Common Issues

Below are some common symptoms associated with CV axle shaft issues and their potential causes:

• Clicking or Popping Noise (especially when turning): Often indicates a worn or damaged outer CV joint. This can be caused by a torn boot allowing dirt and moisture in, or simply wear over time.
• Clunking Noise (when shifting from drive to reverse, or accelerating/decelerating): May suggest excessive play in the inner CV joint or loose axle nuts.
• Vibration (during acceleration): Can be a sign of a worn inner CV joint, an unbalanced axle shaft, or a bent shaft.
• Grease Leaks: Visible grease around the boots indicates a torn or cracked boot, which will eventually lead to CV joint failure if not addressed.

If you experience any of these symptoms, it is recommended to have your vehicle inspected by a professional to diagnose and repair the issue.

7. Warranty and Support

The SurTrack TrakMotive CV Axle Shaft VW-8130 comes with a Limited Lifetime Warranty. This warranty covers defects in materials and workmanship under normal use and service.

For warranty claims, technical support, or any questions regarding your SurTrack product, please contact SurTrack customer service directly. Keep your purchase receipt as proof of purchase for warranty purposes.

Please refer to the official SurTrack website or your product packaging for the most current and detailed warranty information and contact methods.
