ECO-WORTHY 2000W 24V Solar Panel Kit System User Manual

Product Overview

This ECO-WORTHY 2000W 24V Solar Panel Kit System is designed to provide independent clean energy for various off-grid applications such as homes, RVs, and farms. It features high-efficiency monocrystalline solar panels, an MPPT solar charge controller, and a PV combiner box to ensure optimal performance and safety. The system is capable of generating approximately 8KWh daily output, depending on sunlight availability.

Key Features

• Ideal Output: About 8KWh daily output depends on the sunlight availability. This system could meet most of your electric needs, ideal for Shed, Home, farm, etc.
• 99% Efficient MPPT Technology: Maximum Power Point Tracking technology with a high tracking efficiency of up to 99% and peak conversion efficiency of 98%. It has multiple protections to prevent circuit issues. Equipped with OLED screen, Bluetooth module can realize mobile phone APP monitoring charging power.
• App Bluetooth Monitoring Function: Bluetooth 5.0 tech for 82ft long distance monitoring and control for solar charge controller, stable connection even through walls. Remote control of the load, which can be realized through the APP, as well as 4 configurable modes, including manual, light control, time control, and time & light control.
• 6 String PV Combiner Box: ECO-WORTHY 6 string pv combiner box saves you from messy wirings. 10A fuse in each string protects the system from exceed current.
• Package Includes: 10pcs 195W Mono Solar Panel + 1pc 6 String PV Combiner Box + 1pc 60A MPPT Controller + Solar Cables + Z-Bracket.

What's Included

Verify all components are present and undamaged upon arrival:

• 10 pcs 195W Mono Solar Panel
• 1 pc 6-String Combiner Box
• 1 pc 60A MPPT Solar Controller
• 1 pc Bluetooth Module 5.0
• 10 sets Z Mounting Bracket
• 1 pc 16ft Red and Black 12AWG Cables
• 5 pcs of 16ft 11AWG Solar Extension Cable

This image displays the complete solar panel kit, illustrating all included components for a comprehensive understanding of the package contents.

System Setup and Installation

Safety Precautions

• Always disconnect power before making or breaking electrical connections.
• Ensure proper grounding for all components.
• Consult a qualified electrician for complex installations.
• Wear appropriate personal protective equipment (PPE) during installation.
• Avoid touching live wires or terminals.

Solar Panel Installation

The 195W monocrystalline solar panels are designed for efficient energy capture.

This diagram shows how bifacial solar panels generate power from both sides, potentially increasing efficiency compared to traditional monofacial panels.

Detail of the solar panel highlighting its IP68 sealed tempered glass for durability, a robust junction box, and pre-drilled mounting holes for easy installation.

Use the provided Z Mounting Brackets to secure the solar panels in a location with maximum sun exposure. Ensure proper tilt and orientation for optimal performance.

Combiner Box Connection

The 6-String PV Combiner Box simplifies wiring and provides protection.

This image illustrates the internal wiring of the combiner box, including 25A fuses, a 125A circuit breaker, and 11AWG wires, designed for organized and protected connections.

A view of the combiner box emphasizing its spacious interior for wiring, along with MC4 connection plugs and knob-type wire retainers for secure connections.

This diagram demonstrates the recommended on-wall installation method for the combiner box, detailing the suspension bracket and screw specifications.

Connect the solar panel strings to the combiner box inputs. Each string is protected by a 10A fuse.

MPPT Solar Controller and Bluetooth Module

The 60A MPPT Solar Controller efficiently manages power flow from the panels to your battery bank.

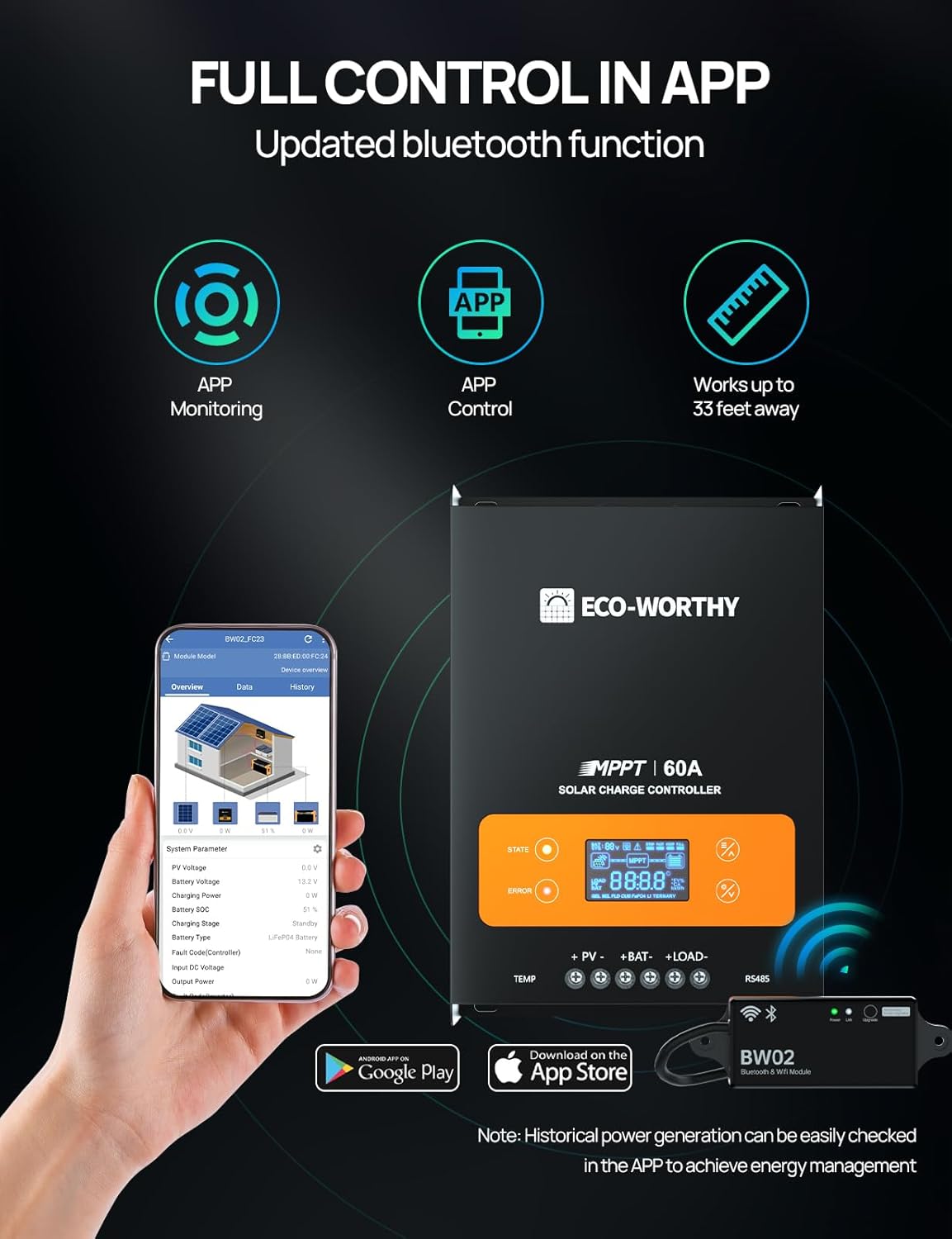

The MPPT 60A solar charge controller is shown with its OLED screen displaying system data and a Bluetooth module for remote monitoring via a mobile app.

This image provides a comprehensive overview of the MPPT controller's parameters, including nominal voltage, charging current, efficiency, and various protection features like low-voltage, over-current, and reverse polarity.

Connect the combiner box output to the MPPT controller's PV input. Then, connect the controller's battery output to your battery bank. The Bluetooth module allows for remote monitoring and control via a mobile application.

This graphic illustrates the mobile application's capabilities for monitoring and controlling the solar charge controller, including real-time data and remote load control.

This image highlights the 8-point safety system integrated into the solar charge controller, providing comprehensive protection against various electrical issues.

Operating Instructions

System Monitoring

The MPPT controller's OLED screen displays real-time system data. For detailed monitoring and control, use the mobile application connected via Bluetooth.

The app allows you to view charging power, set charging parameters, and remotely control the load.

Load Management

The controller offers four configurable modes for load control: manual, light control, time control, and time & light control. Adjust these settings via the mobile app to suit your energy needs.

Maintenance Guidelines

• Solar Panels: Regularly clean the surface of the solar panels to remove dust, dirt, and debris. A clean panel ensures maximum sunlight absorption and efficiency. Inspect for any physical damage or loose connections.
• Wiring and Connections: Periodically check all wiring and connections for corrosion, wear, or loosenness. Ensure all terminals are securely fastened.
• Controller: Keep the MPPT solar controller in a dry, well-ventilated area. Ensure proper airflow around the unit to prevent overheating.
• Fuses: The combiner box contains 10A fuses for each string. If a string is not producing power, check the corresponding fuse and replace if necessary.
• Battery (if applicable): If using a battery bank, follow the manufacturer's maintenance guidelines for your specific battery type.

Troubleshooting Common Issues

For further assistance, please contact ECO-WORTHY customer support.

Technical Specifications

Warranty and Customer Support

ECO-WORTHY products are designed for reliability and performance. For specific warranty details regarding your 2000W 24V Solar Panel Kit System, please refer to the warranty card included in your package or visit the official ECO-WORTHY website.

If you encounter any issues or require technical assistance, please contact ECO-WORTHY customer support through their official channels. Provide your product model number (US-L02M195TM-MCWMZIUS3000L400-10) and purchase details for faster service.
