Martha Stewart MTS-TSW31
Martha Stewart MTS-TSW31 Telescoping Watering Wand Instruction Manual
Model: MTS-TSW31
Introduction
The Martha Stewart MTS-TSW31 Telescoping Watering Wand is designed to simplify watering tasks by providing extended reach and versatile spray patterns. This lightweight, durable aluminum wand allows users to water plants in hard-to-reach areas, such as high hanging baskets, far back garden beds, or low ground cover, without excessive bending or straining. It features an adjustable telescoping pole, a 180-degree ratcheting head, and 10 selectable spray patterns to suit various watering needs.
Safety Information
- Always ensure the watering wand is securely attached to the hose before turning on water pressure.
- Do not aim the water spray at electrical outlets, wiring, or people.
- Avoid leaving the wand under pressure when not in use to prevent potential leaks or damage.
- Store the wand in a cool, dry place away from direct sunlight and freezing temperatures to prolong its lifespan.
- Keep out of reach of children when not in use.
Parts List
The Martha Stewart MTS-TSW31 Telescoping Watering Wand includes the following components:
- Telescoping Wand Body (Aluminum pole with handle and shut-off valve)
- Multi-Pattern Spray Head (with 180-degree ratcheting mechanism)
- Hose Connector (standard garden hose thread)
Setup
- Connect to Hose: Ensure the shut-off valve on the wand handle is in the "off" position. Thread the hose connector end of the watering wand onto a standard garden hose. Hand-tighten until secure. Do not overtighten.
- Check for Leaks: Slowly turn on the water supply to the garden hose. Check for any leaks at the connection point. If leaks occur, tighten slightly more or ensure a hose washer is properly seated.

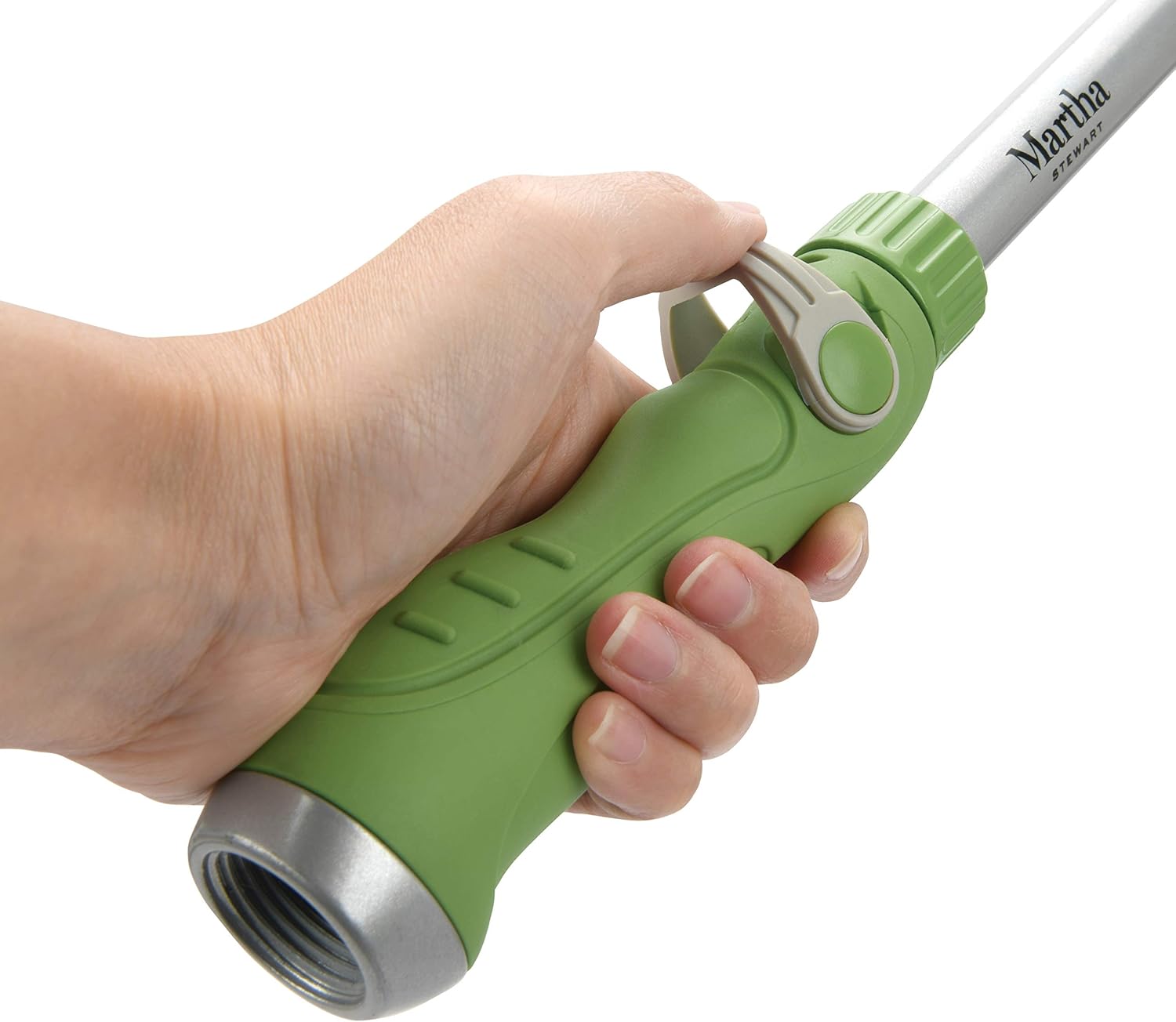

Image: A hand demonstrating how to hold the wand's handle, highlighting the ergonomic grip and the hose connection point at the base.
Operating Instructions
- Adjusting Water Flow: The wand features a built-in shut-off valve on the handle. Move the lever to open or close the water flow. The lever also allows for precise control of the flow rate, from a gentle trickle to a full stream.
- Telescoping Extension: To extend the wand, twist the green locking collar located on the pole counter-clockwise to loosen. Gently pull the inner pole to extend it to the desired length, ranging from approximately 36 inches to 53 inches. Once extended, twist the locking collar clockwise to secure the pole in place. To retract, loosen the collar, push the pole back in, and tighten the collar.
- Adjusting Spray Head Angle: The spray head can be ratcheted 180 degrees. Simply pivot the head to the desired angle to reach plants from various positions without bending or straining.
- Selecting Spray Pattern: The spray head features 10 selectable patterns. Rotate the outer ring of the spray head to cycle through the available patterns:
- Cone
- Flat
- Jet
- Fan
- Soaker
- Center
- Angle
- Mist
- Shower
- Shower + Center

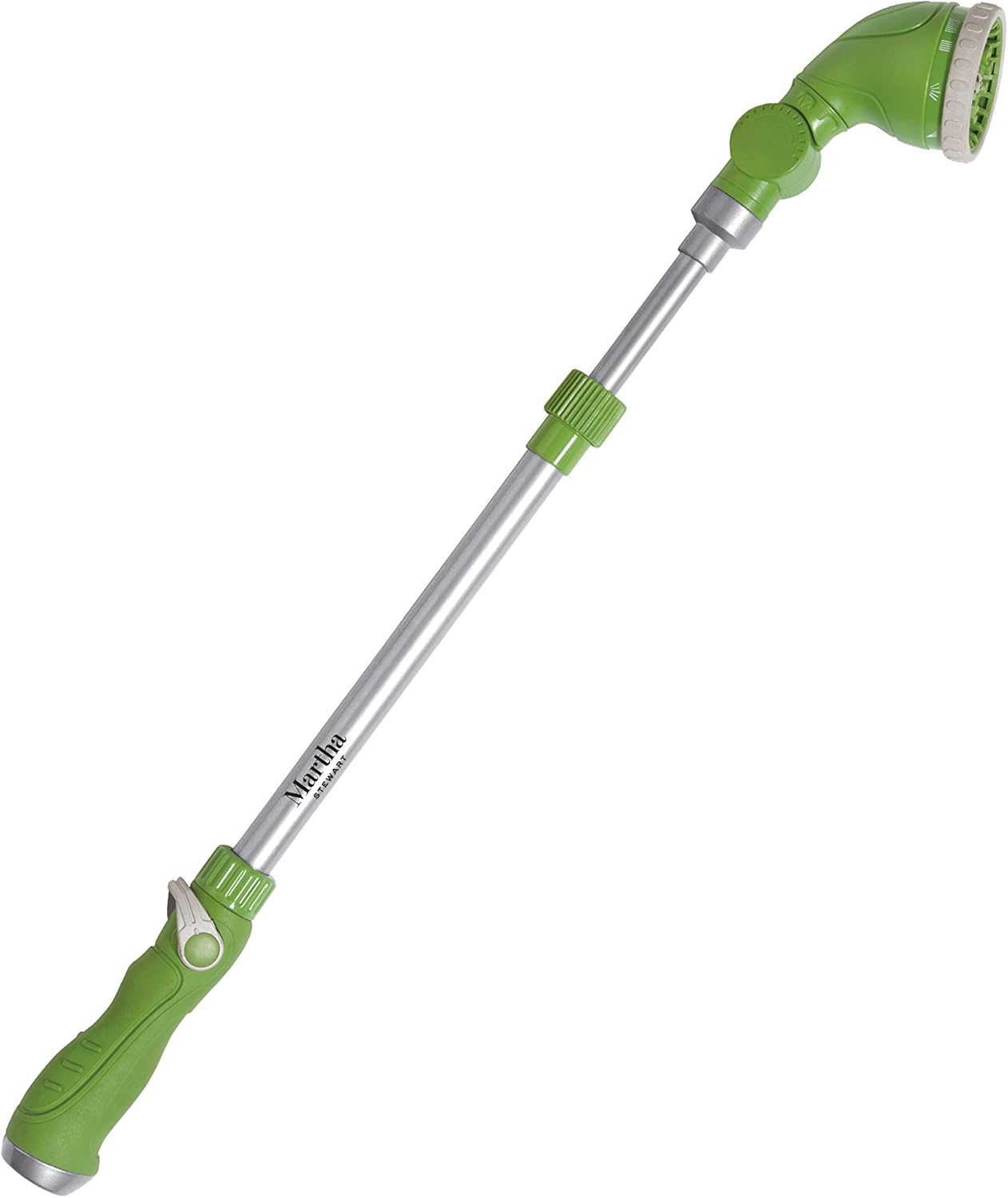

Image: The complete watering wand, illustrating its overall design and components.
Image: A detailed view of the spray head, highlighting the ratcheting mechanism and the different spray pattern icons.
Image: The watering wand in its fully extended position, demonstrating its reach.
Image: The watering wand in its fully retracted position, illustrating its compact form.

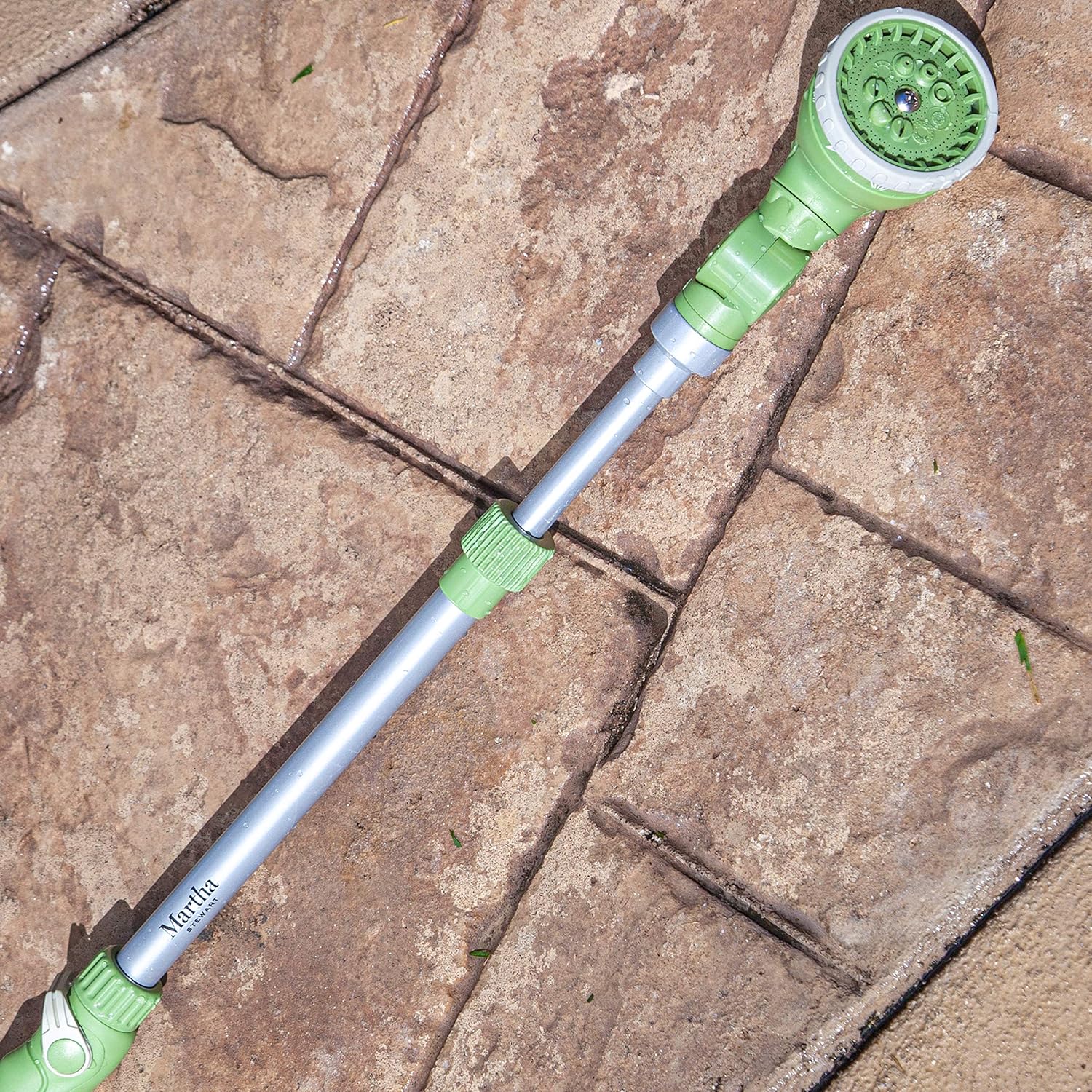

Image: The watering wand resting on a patio, providing a perspective of its size and design in a typical outdoor environment.
Maintenance
- Cleaning: After each use, rinse the wand with clean water to remove any dirt or debris.
- Storage: Before storing, ensure all water is drained from the wand. Store in a dry, protected area, especially during colder months, to prevent damage from freezing water.
- Inspect Connections: Periodically check the hose connection and spray head for wear or damage. Replace hose washers if necessary to prevent leaks.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Water leaks from hose connection. | Loose connection; Worn or missing hose washer. | Tighten connection; Replace hose washer. |
| Water leaks from telescoping joint. | Locking collar not tightened sufficiently; Internal seal issue. | Ensure locking collar is fully tightened. If problem persists, contact customer support. |
| Spray pattern is inconsistent or weak. | Low water pressure; Nozzle clogged with debris. | Check water supply pressure; Clean spray head nozzles by rinsing thoroughly. |
| Wand does not extend or retract smoothly. | Locking collar too tight/loose; Dirt or debris in telescoping mechanism. | Loosen or tighten locking collar as needed; Clean the pole sections to remove any obstructions. |
Specifications
| Feature | Detail |
|---|---|
| Model Number | MTS-TSW31 |
| Brand | Martha Stewart |
| Material | Aluminum |
| Telescoping Length | Approximately 36 inches (retracted) to 53 inches (extended) |
| Spray Patterns | 10 (Cone, Flat, Jet, Fan, Soaker, Center, Angle, Mist, Shower, Shower + Center) |
| Spray Head Rotation | 180 degrees (Ratcheting) |
| Item Weight | 13.6 ounces |
| Manufacturer | Snow Joe |
| UPC | 842470118515 |
Warranty and Support
For warranty information or technical support regarding your Martha Stewart MTS-TSW31 Telescoping Watering Wand, please refer to the product packaging or contact the manufacturer, Snow Joe, directly. Contact details can typically be found on their official website or on the product's retail packaging.
Please retain your proof of purchase for any warranty claims.
