1. Introduction
This manual provides comprehensive instructions for the assembly, operation, and maintenance of your Kid Trax Disney Frozen 2 Electric Quad Ride-On Toy, Model KT1516. Please read this manual thoroughly before initial use to ensure safe operation and to maximize the lifespan of the product. This ride-on toy is designed for children aged 18 to 30 months, with a maximum weight capacity of 44 lbs (20 kg).
Image 1.1: A young child enjoying the Kid Trax Disney Frozen 2 Electric Quad Ride-On Toy. This image illustrates the product in use, highlighting its suitability for toddlers within the recommended age and weight range.
2. Safety Information
WARNING: To prevent serious injury:
- Adult assembly is required.
- Adult supervision is required at all times.
- Never allow children to ride in streets, near motor vehicles, on or near steep inclines or steps, swimming pools, or other bodies of water.
- Always wear a helmet when riding.
- The maximum weight capacity is 44 lbs (20 kg).
- This product is intended for children aged 18 to 30 months.
- Ensure the battery is fully charged before each use.
- Only use the provided 6-volt rechargeable battery and charger.
3. Package Contents
Please verify that all components are present before beginning assembly:
- Kid Trax Disney Frozen 2 Electric Quad Ride-On Toy (Main Body)
- 6-Volt Rechargeable Battery
- Wall Charger
- Assembly Hardware (screws, washers, etc. - specific quantities may vary)
- Instruction Manual (this document)
4. Setup and Assembly
Assembly of the Kid Trax Disney Frozen 2 Electric Quad Ride-On Toy requires adult supervision and basic tools (not included, typically a screwdriver). Follow these steps carefully:
4.1 Unpacking and Component Identification
Carefully remove all parts from the packaging. Lay them out on a clean, flat surface. Refer to the parts diagram (if provided in a physical manual) to identify each component.
4.2 Attaching Wheels and Axles
Securely attach the wheels to the axles as per the instructions. Ensure all fasteners are tightened appropriately to prevent wobbling during operation.
4.3 Handlebar Installation
Install the handlebar onto the main body, ensuring it is aligned correctly and secured with the provided hardware. Test for stability.
4.4 Battery Connection
Connect the 6-volt rechargeable battery according to the instructions in Section 5. Ensure all connections are firm.
Image 4.1: Front view of the Kid Trax Disney Frozen 2 Electric Quad. This image provides a visual reference for the fully assembled product, aiding in component identification during setup.
Image 4.2: Rear view of the Kid Trax Disney Frozen 2 Electric Quad. This image offers another perspective of the assembled toy, useful for verifying correct assembly of rear components.
5. Charging the Battery
The Kid Trax Disney Frozen 2 Electric Quad Ride-On Toy is powered by a 6-volt rechargeable battery. Proper charging is essential for optimal performance and battery longevity.
5.1 Initial Charge
Before first use, charge the battery for a minimum of 18 hours, but no more than 30 hours. This initial charge is crucial for battery health.
5.2 Subsequent Charges
After initial use, recharge the battery for 10-12 hours after each use, or when the toy's speed noticeably decreases. Do not overcharge the battery.
5.3 Charging Procedure
- Locate the charging port on the vehicle.
- Plug the charger into a standard wall outlet.
- Connect the charger plug to the vehicle's charging port.
- Monitor the charging time. Disconnect the charger once charging is complete.
IMPORTANT: Only use the charger provided with your Kid Trax ride-on toy. Using an unauthorized charger may damage the battery and void your warranty.
Image 5.1: Side view of the quad, illustrating the 6V rechargeable battery and the 1.5 MPH maximum speed. This image provides visual context for the battery and its performance specifications.
6. Operating Instructions
The Kid Trax Disney Frozen 2 Electric Quad is designed for simple operation, suitable for young children under adult supervision.
6.1 Starting the Vehicle
Once the battery is charged and connected, the vehicle is ready for operation. Ensure the child is seated properly and securely.
6.2 Forward Movement
To move forward, the child simply presses the easy push-button located on the handlebar. Releasing the button will stop the vehicle.

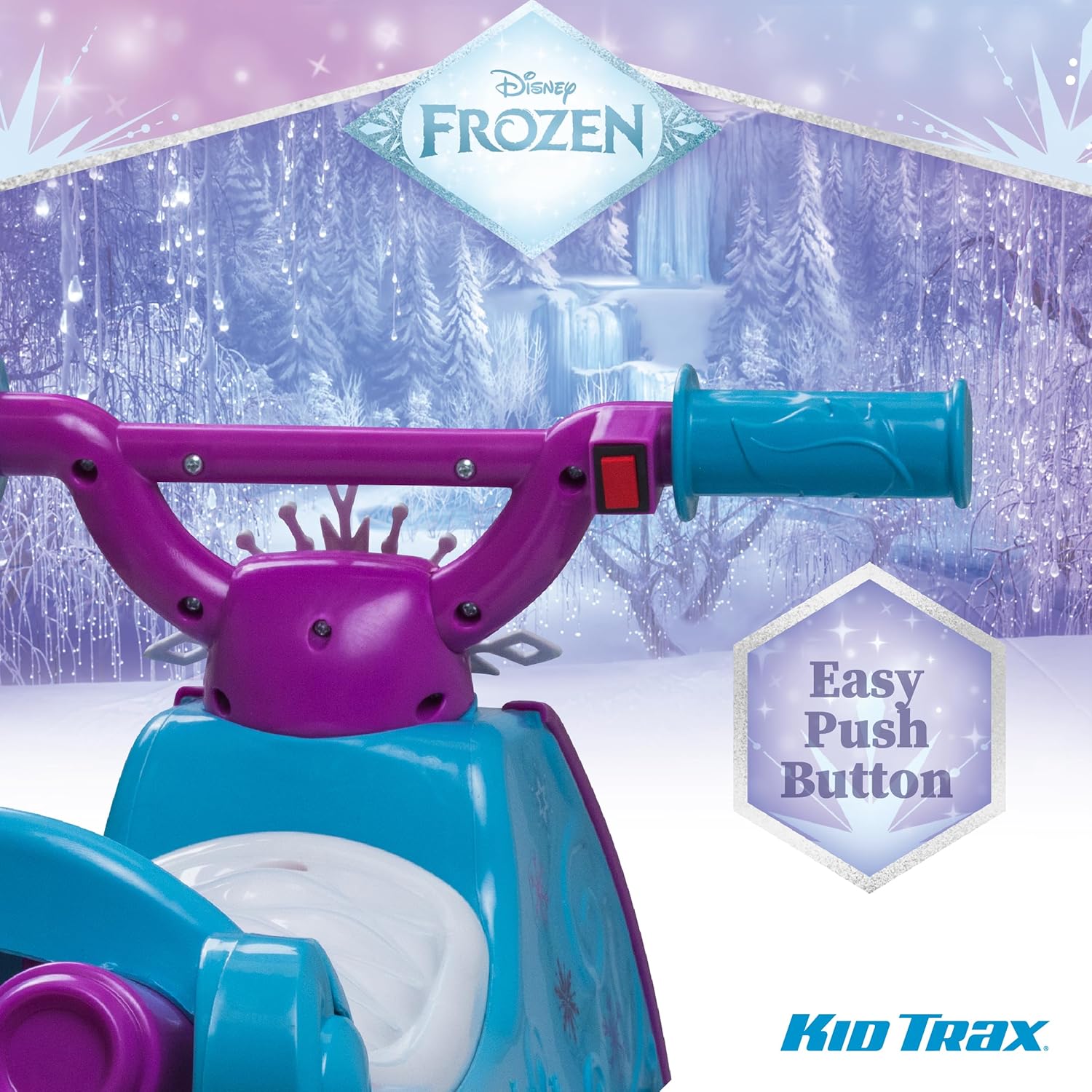

Image 6.1: Close-up of the easy push-button control. This image highlights the simple control mechanism, making it easy for toddlers to operate the ride-on toy.
6.3 Steering
The vehicle is steered by turning the handlebars left or right. Encourage the child to practice steering in an open, safe area.
6.4 Stopping
Releasing the push-button will engage the automatic braking system, bringing the vehicle to a stop.
NOTE: This ride-on toy operates at a maximum speed of 1.5 mph (2.4 km/h) and does not have a reverse gear.
7. Maintenance
Regular maintenance ensures the longevity and safe operation of your ride-on toy.
7.1 Cleaning
Wipe the vehicle with a damp cloth to remove dirt and dust. Do not use abrasive cleaners or solvents. Avoid spraying water directly onto electrical components.
7.2 Battery Care
- Always recharge the battery after each use.
- If storing the vehicle for an extended period, charge the battery once a month to prevent deep discharge.
- Store the battery in a cool, dry place.
7.3 General Inspection
Periodically check all nuts, bolts, and fasteners to ensure they are tight. Inspect the wheels and tires for wear or damage. Ensure all electrical connections are secure.
8. Troubleshooting
If you encounter issues with your ride-on toy, refer to the table below for common problems and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Vehicle does not move | Battery not charged | Charge the battery as per Section 5. |
| Vehicle does not move | Battery connection loose | Check and secure battery connections. |
| Vehicle moves slowly | Low battery charge | Recharge the battery. |
| Vehicle moves slowly | Overloaded vehicle | Ensure rider weight is within the 44 lbs limit. |
| Motor makes noise but vehicle does not move | Gearbox or motor issue | Contact customer support for assistance. |
9. Specifications
| Feature | Detail |
|---|---|
| Model Number | KT1516 |
| Brand | Kid Trax |
| Battery | 6-Volt Rechargeable |
| Max Speed | 1.5 mph (2.4 km/h) |
| Max Weight Capacity | 44 lbs (20 kg) |
| Recommended Age | 18 - 30 months |
| Product Dimensions (L x W x H) | 72.9 x 41.4 x 44.9 cm (28.7 x 16.3 x 17.7 inches) |
| Product Weight | 6.71 kg (14.8 lbs) |
| Material | Rubber (tires) |
| Assembly Required | Yes |
| UPC | 038675196742, 025543021039 |
Image 9.1: Dimensional diagram of the Kid Trax Disney Frozen 2 Electric Quad. This image provides key measurements for height, width, and length of the ride-on toy.
10. Warranty and Support
For warranty information, please refer to the documentation included with your purchase or visit the official Kid Trax website. If you require technical assistance, replacement parts, or have questions not covered in this manual, please contact Kid Trax customer support.
Keep your proof of purchase for warranty claims.
