Important Safety Instructions
When using an electrical appliance, basic precautions should always be followed, including the following:
- Read all instructions before using this vacuum cleaner.
- Always unplug from outlet when not in use and before servicing.
- Do not use outdoors or on wet surfaces.
- Do not allow to be used as a toy. Close attention is necessary when used by or near children.
- Use only as described in this manual. Use only manufacturer's recommended attachments.
- Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.
- Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
- Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
- Do not handle plug or vacuum cleaner with wet hands.
- Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce airflow.
- Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
- Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
- Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
- Do not use without dust bag and/or filters in place.
- Turn off all controls before unplugging.
- Use extra care when cleaning on stairs.
Package Contents
Verify that all items are present in the package:
- 1x ZVac Prima Canister Vacuum Cleaner
- 1x 6 ft Crushproof Vacuum Hose
- 1x 12" Floor Brush
- 1x 10" Combined Brush for Carpet & Floor
- 1x 2-in-1 Tool (Crevice Tool and Dusting Brush)
- 1x Telescopic Wand
- 1x HEPA Cloth Bag (pre-installed or separate)
- 1x Motor Filter (pre-installed or separate)
- 1x Outlet Filter (pre-installed or separate)
- 1x On-Board Hose and Tools Hanger
Product Overview
The ZVac Prima Canister Vacuum Cleaner is designed for efficient cleaning of various surfaces. Below are key components and their functions.

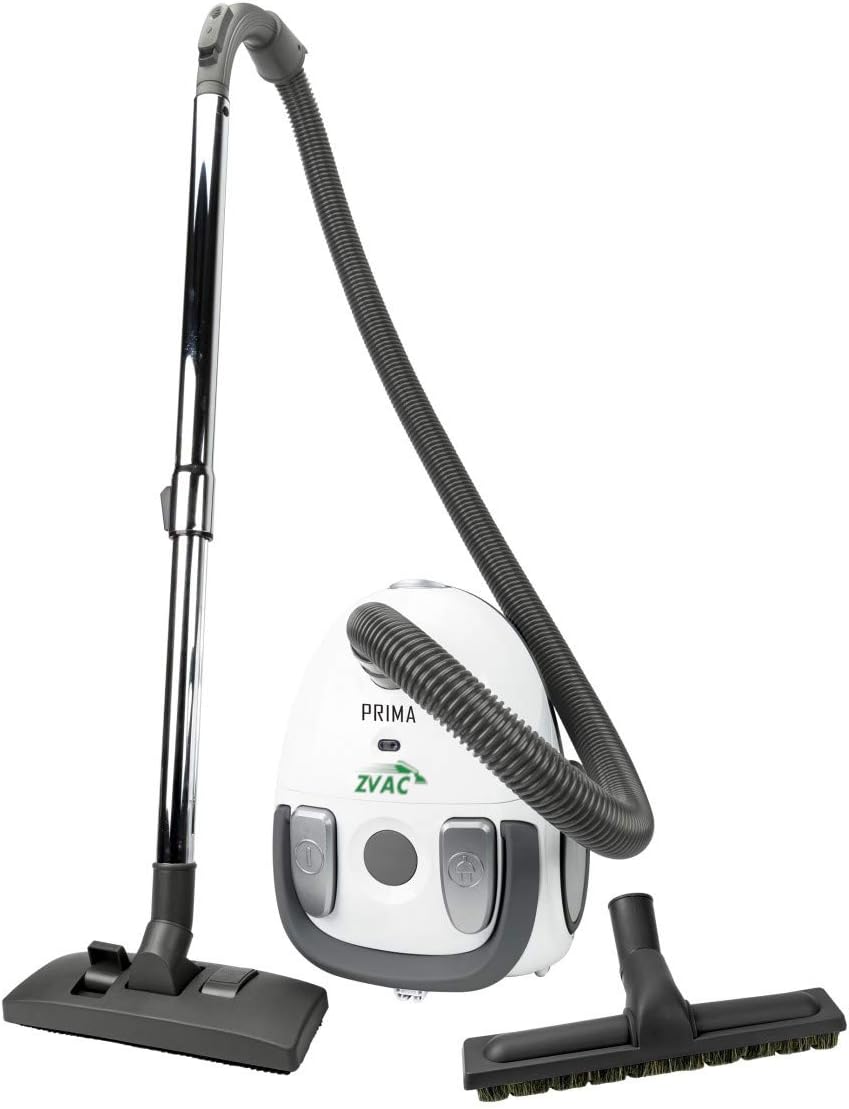

Figure 1: ZVac Prima Canister Vacuum Cleaner with all included accessories assembled. This image shows the main unit, flexible hose, telescopic wand, and two types of floor brushes.
Figure 2: Top view of the ZVac Prima vacuum cleaner. Visible are the power button (left) and the automatic cord rewind button (right), along with the ZVac logo and "PRIMA" model name.

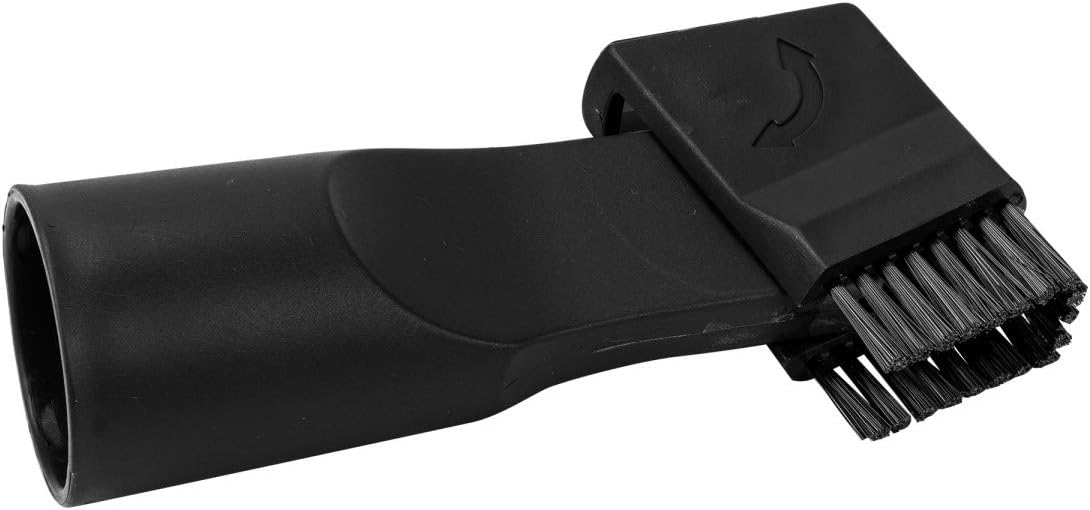

Figure 3: The included 2-in-1 tool, which functions as both a crevice tool for tight spaces and a dusting brush for delicate surfaces.
Main Components:
- Canister Unit: Contains the motor, dust bag compartment, and filters. Features power and cord rewind buttons.
- Flexible Hose: Connects to the canister unit and the telescopic wand.
- Telescopic Wand: Extends for comfortable reach and connects to various cleaning tools.
- Floor Brushes: Includes a 12" floor brush and a 10" combined brush for carpet and hard floors.
- 2-in-1 Tool: Versatile attachment for crevices and dusting.
Setup and Assembly
Attaching the Hose:
Insert the hose end into the suction inlet on the front of the canister unit. Push firmly until it clicks into place, ensuring a secure connection.
Assembling the Wand and Floor Tool:
Connect the telescopic wand to the handle end of the flexible hose. Then, attach your desired floor brush (12" floor brush or 10" combined brush) to the end of the telescopic wand. Ensure all connections are snug.

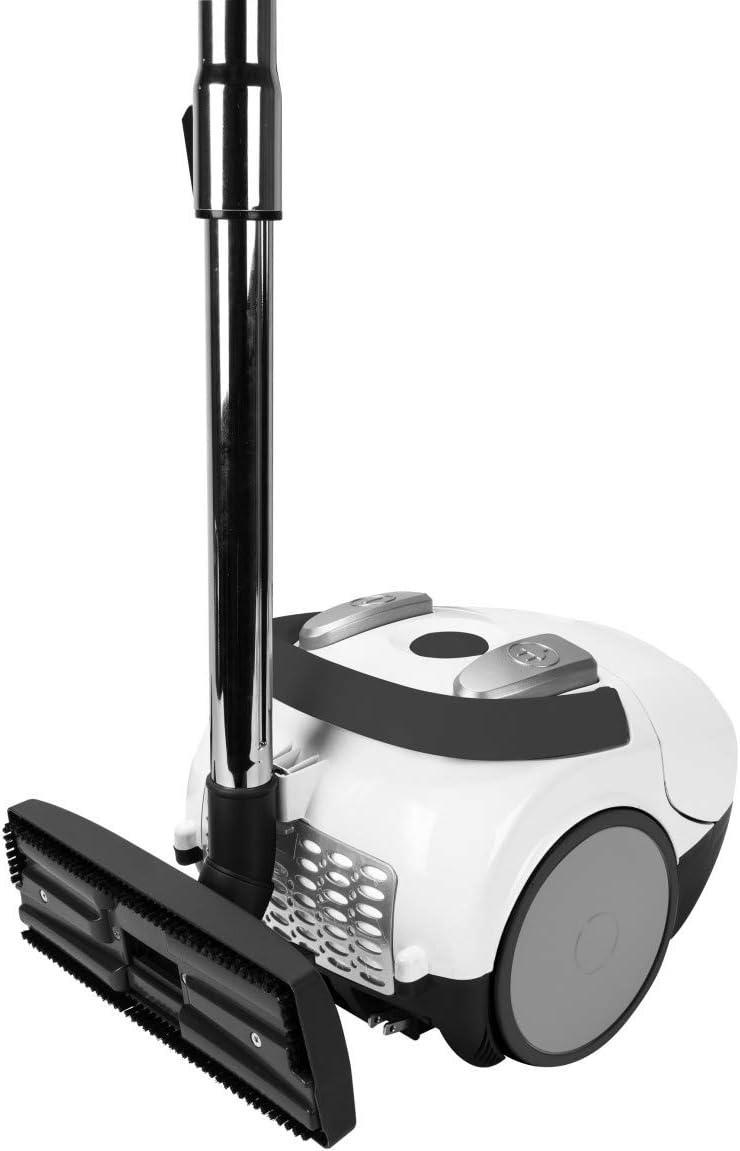

Figure 4: The ZVac Prima vacuum cleaner fully assembled with the hose, telescopic wand, and a floor tool attached, ready for use.
Checking Dust Bag and Filters:
Before first use, ensure the HEPA cloth bag, motor filter, and outlet filter are correctly installed. Refer to the "Maintenance" section for details on accessing these components.
Figure 5: The dust bag compartment of the ZVac Prima vacuum cleaner shown open, revealing the area where the HEPA cloth bag is installed.
Operating Instructions
Power Connection:
Extend the power cord from the back of the unit and plug it into a suitable electrical outlet. The cord has a length of 19 feet.
Powering On/Off:
Press the power button (marked with 'I' symbol) located on the top of the canister unit to turn the vacuum cleaner on. Press it again to turn off.
Using Attachments:
- Floor Brushes: Use the appropriate floor brush for your surface. The combined brush can be switched between carpet and hard floor modes.
- 2-in-1 Tool: Attach the 2-in-1 tool directly to the hose handle or the telescopic wand for cleaning upholstery, crevices, or dusting surfaces.
Automatic Cord Rewind:
After use, unplug the vacuum cleaner from the wall outlet. Press the cord rewind button (marked with a plug symbol) on the top of the canister unit to automatically retract the power cord.
Full Bag Indicator:
The vacuum cleaner is equipped with a digital visual indicator that signals when the dust bag is full and requires replacement. Replace the bag promptly to maintain optimal suction performance.
Maintenance
Regular maintenance ensures optimal performance and extends the life of your ZVac Prima vacuum cleaner.
Dust Bag Replacement:
When the full bag indicator illuminates, it is time to replace the HEPA cloth bag. Open the dust bag compartment (refer to Figure 5 in Product Overview), remove the full bag, and dispose of it. Insert a new HEPA cloth bag, ensuring it is properly seated.
Filter Cleaning/Replacement:
The motor filter and outlet filter should be checked regularly and cleaned or replaced as needed. Gently tap out loose dirt from the filters. If filters are heavily soiled or damaged, replace them with genuine ZVac replacement filters.
General Cleaning:
Wipe the exterior of the vacuum cleaner with a soft, damp cloth. Do not use abrasive cleaners or solvents. Periodically check the brushes for tangled hair or debris and remove them to maintain effective cleaning.
Troubleshooting
If you encounter issues with your ZVac Prima vacuum cleaner, refer to the following table for common problems and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Vacuum does not turn on. | Not plugged in; no power at outlet; thermal cut-off activated. | Check power cord connection; test outlet with another appliance; allow vacuum to cool down for 30 minutes if motor overheated. |
| Loss of suction. | Dust bag full; filters clogged; hose/attachments blocked. | Replace dust bag; clean/replace filters; check hose and attachments for obstructions and clear them. |
| Unusual noise. | Obstruction in fan/motor area; damaged motor. | Turn off and unplug. Check for and remove any obstructions. If noise persists, contact customer support. |
| Cord does not rewind. | Cord mechanism jammed. | Gently pull out a small amount of cord and press the rewind button again. If still stuck, contact customer support. |
Specifications
| Feature | Detail |
|---|---|
| Brand | ZVac |
| Model | Prima |
| Power Source | AC (Corded) |
| Wattage | 1200 watts |
| Maximum Suction | 80 inches water lift |
| Dust Bag Capacity | 2 Liters |
| Filter Type | HEPA Cloth Bag, Motor Filter, Outlet Filter |
| Hose Length | 1.8 meters (approx. 6 feet) |
| Cord Length | 19 feet |
| Noise Level | 79 Decibels |
| Product Dimensions (L x W x H) | 12" x 9" x 8" |
| Item Weight | 7.25 pounds |
| Special Features | Automatic overheating switch, full bag digital visual indicator, durable swivel casters/wheels, power cord reel button. |
| Recommended Use | Carpet and hard floor cleaning for homes, condos, apartments. |
Warranty and Support
ZVac offers a 1-year manufacturing warranty for the Prima Canister Vacuum Cleaner. To register your machine and for more details regarding the warranty, please contact ZVac customer support.
For technical assistance, troubleshooting not covered in this manual, or to inquire about replacement parts and accessories, please visit the official ZVac website or contact their customer service department.
ZVac has over 30 years of experience in the vacuum industry and is dedicated to providing support for their products.
