Lumix GC Gas Fuel Tank Instruction Manual

1. Introduction

This manual provides essential instructions for the safe and proper installation, operation, and maintenance of your Lumix GC Gas Fuel Tank. This fuel tank is designed as a replacement part compatible with Loncin G160F, G160FD, G200F, and G200FD engine models. Please read this manual thoroughly before attempting any installation or operation to ensure safety and optimal performance.

2. Safety Information

WARNING: Gasoline is highly flammable and its vapors are explosive. Improper handling can result in serious injury or death.

• Always work in a well-ventilated area.
• Keep away from sparks, open flames, and other ignition sources. Do not smoke while handling fuel.
• Wear appropriate personal protective equipment, including gloves and eye protection.
• Ensure the engine is cool and turned off before refueling or performing any maintenance on the fuel system.
• Avoid skin contact and inhalation of fuel vapors.
• Clean up any fuel spills immediately and dispose of contaminated materials properly.
• Store fuel in approved containers, away from living areas and ignition sources.

3. Package Contents

Verify that all items are present and undamaged upon opening the package.

• 1 x Lumix GC Gas Fuel Tank
• 1 x Fuel Tank Cap

4. Setup and Installation

Follow these steps carefully to install the new fuel tank.

1. Preparation: Ensure the engine is completely cool and turned off. Disconnect the spark plug wire to prevent accidental starting. Place the engine on a stable, level surface.
2. Drain Old Fuel (if applicable): If replacing an existing tank, carefully drain any remaining fuel into an approved container. Dispose of old fuel responsibly.
3. Remove Old Tank: Disconnect any fuel lines and mounting hardware securing the old fuel tank. Note the routing of fuel lines for proper reinstallation.
4. Position New Tank: Carefully place the Lumix GC Gas Fuel Tank onto the engine's mounting points. Ensure it sits flush and securely.
5. Secure Tank: Attach the fuel tank using the appropriate mounting hardware (not included, typically reused from the original tank or purchased separately). Tighten fasteners securely but do not overtighten.
6. Connect Fuel Lines: Reconnect the fuel lines to the new tank and engine, ensuring all connections are tight and free of leaks. Use new fuel line clamps if the old ones are damaged or worn.
7. Final Check: Double-check all connections and mounting hardware. Ensure no tools or debris are left near the engine.

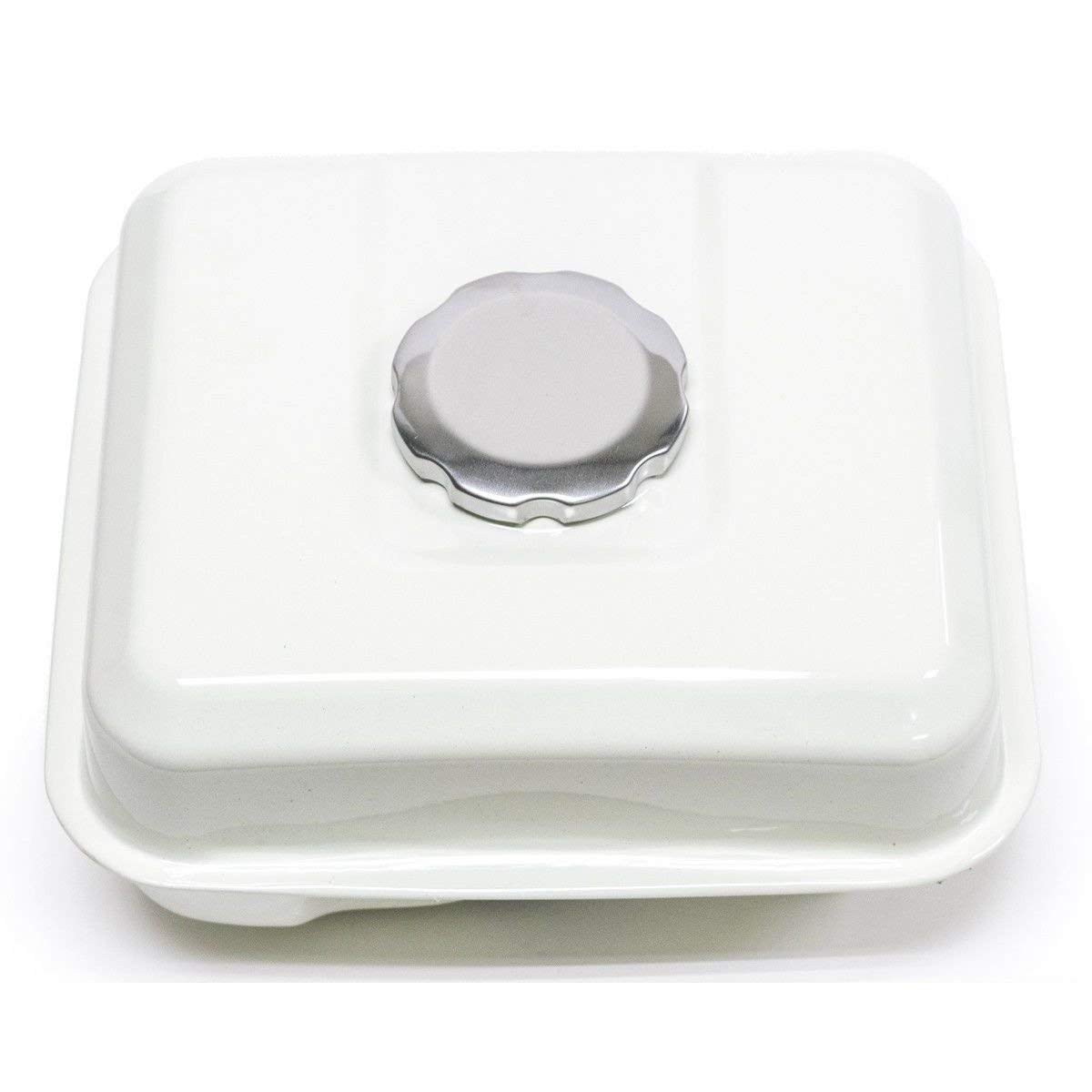

Image 1: Lumix GC Gas Fuel Tank. This image shows the complete fuel tank assembly, including the tank body and fuel cap, ready for installation on compatible Loncin engines.

5. Operating (Fueling)

Proper fueling procedures are critical for safety and engine performance.

1. Fuel Type: This fuel tank is designed for use with Gasoline. Refer to your engine's manual for specific octane requirements. Do not use E85 or other non-approved fuels.
2. Engine Off and Cool: Always ensure the engine is turned off and has had sufficient time to cool down before refueling.
3. Open Fuel Cap: Slowly open the fuel tank cap to release any pressure.
4. Fill Tank: Using a funnel, carefully pour gasoline into the tank. Do not overfill; leave a small air gap to allow for fuel expansion. Avoid spilling fuel.
5. Secure Cap: Replace the fuel cap securely. Ensure it is tightened to prevent leaks and evaporation.
6. Check for Leaks: After fueling, visually inspect the tank and fuel lines for any signs of leaks before starting the engine.

6. Maintenance

Regular maintenance helps prolong the life of your fuel tank and ensures safe operation.

• Regular Inspection: Periodically inspect the fuel tank for cracks, dents, or other damage. Check fuel lines for signs of wear, cracking, or leaks. Replace damaged components immediately.
• Cleaning: Keep the exterior of the fuel tank clean. Use a mild detergent and water. Avoid harsh chemicals that could damage the plastic material.
• Fuel Storage: If the engine will be stored for an extended period, it is recommended to drain the fuel tank or use a fuel stabilizer to prevent fuel degradation and gumming.
• Cap Seal: Ensure the fuel cap seal is intact and free of debris to maintain a proper seal.

7. Troubleshooting

This section addresses common issues related to the fuel tank.

• Fuel Leakage:
  • Cause: Loose fuel cap, damaged fuel lines, improper connection, crack in tank.
  • Solution: Ensure fuel cap is tight. Inspect fuel lines and connections; tighten or replace as needed. If the tank is cracked, it must be replaced.
• Engine Not Receiving Fuel:
  • Cause: Empty fuel tank, clogged fuel filter (if applicable), kinked fuel line.
  • Solution: Check fuel level and refill if necessary. Inspect fuel lines for kinks. Refer to your engine manual for fuel filter maintenance.

8. Specifications

9. Warranty and Support

For warranty information or technical support, please contact your retailer or the manufacturer directly. Keep your purchase receipt as proof of purchase.
