Pohl Schmitt 1.7L Electric Kettle

Introduction

Thank you for choosing the Pohl Schmitt 1.7L Electric Kettle. This manual provides essential information for the safe and efficient use of your new appliance. Please read it thoroughly before first use and keep it for future reference.

Important Safety Information

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

• Read all instructions carefully.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against fire, electric shock, and injury to persons, do not immerse cord, plugs, or the appliance in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock, or injury to persons.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• Extreme caution must be used when moving an appliance containing hot water.
• The kettle is only to be used with the stand provided.
• This appliance is intended for household use only.

Product Components

Familiarize yourself with the parts of your Pohl Schmitt Electric Kettle:

Image: Diagram illustrating the key components of the Pohl Schmitt Electric Kettle, highlighting the stainless steel inner lid, super micro stainless steel filter, premium quality borosilicate glass body, stainless steel inner pot, and the cable storage base.

1. Stainless Steel Inner Lid: Ensures water contact only with stainless steel.
2. Super Micro Stainless Steel Filter: Improves water quality by removing impurities.
3. Premium Quality Borosilicate Glass: Durable and allows clear visibility of water level and boiling process.
4. Stainless Steel Inner Pot: Provides rapid and efficient heating.
5. Cable Storage Base: Cordless design for easy pouring and serving, with integrated cord storage.
6. Power Switch with LED Indicator: Illuminates when boiling and automatically shuts off.
7. Ergonomic Handle: For comfortable and secure grip.

Setup and First Use

Before using your electric kettle for the first time, please follow these steps:

1. Unpack: Carefully remove the kettle and all accessories from the packaging.
2. Clean: Wipe the exterior of the kettle with a damp cloth. Do not immerse the kettle or its power base in water.
3. Rinse Interior: Fill the kettle with clean water up to the MAX fill line.
4. Boil and Discard: Place the kettle on its power base and press the ON switch to boil the water. Once boiled, discard the water. Repeat this process 2-3 times to remove any manufacturing residues.
5. Your kettle is now ready for use.

Operating Instructions

Follow these steps to operate your Pohl Schmitt Electric Kettle:

1. Fill the Kettle: Open the lid and fill the kettle with the desired amount of fresh water. Do not fill below the MIN mark or above the MAX (1.7L) mark.
2. Place on Power Base: Ensure the kettle is securely placed on its cordless power base.
3. Turn On: Plug the power base into a standard electrical outlet. Press the ON/OFF switch located on the handle downwards. The blue LED indicator will illuminate, signaling that the kettle is heating.
4. Boiling Process: The water will begin to heat rapidly. The blue LED light will remain on during the boiling process.
5. Automatic Shut-Off: Once the water reaches a rolling boil, the kettle will automatically shut off within 30 seconds, and the blue LED light will extinguish.
6. Pouring: Carefully lift the kettle from its base and pour the hot water. The cordless design allows for easy handling.

Image: A person pouring hot water from the Pohl Schmitt Electric Kettle into a red mug, demonstrating the ease of use with its cordless design.

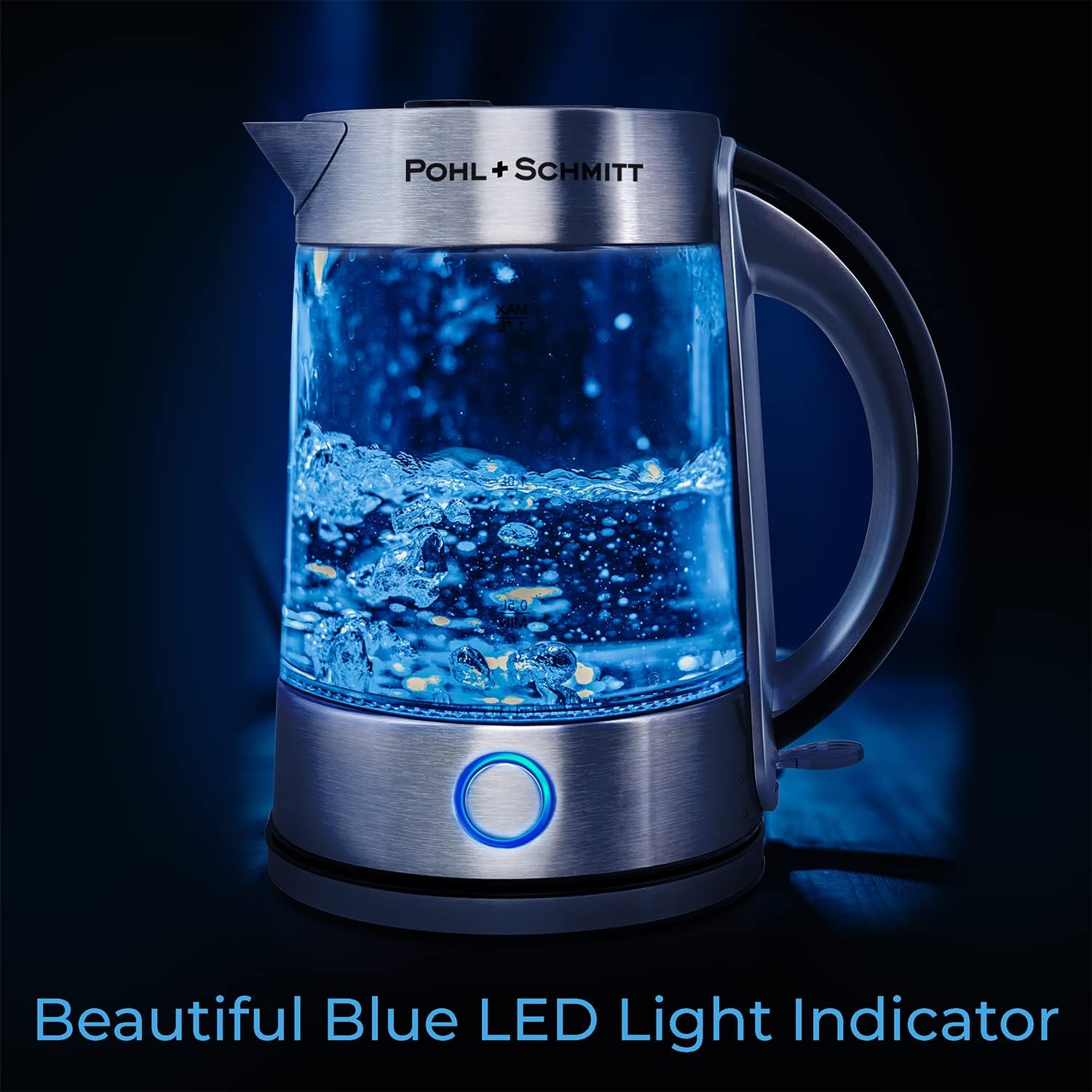

Image: The Pohl Schmitt Electric Kettle with water boiling inside, clearly showing the illuminated blue LED light indicator at the base.

Care and Maintenance

Proper care ensures the longevity and performance of your kettle.

• Cleaning the Exterior: Unplug the kettle and allow it to cool completely. Wipe the exterior with a soft, damp cloth. Do not use abrasive cleaners or scouring pads.
• Cleaning the Interior: For general cleaning, rinse the interior with water. For stubborn stains, use a soft brush or sponge with mild dish soap. Rinse thoroughly.
• Descaling: Mineral deposits (limescale) can build up over time, especially in hard water areas. To descale:
1. Fill the kettle with 1 part white vinegar and 2 parts water.
2. Bring the mixture to a boil and let it stand for 30 minutes.
3. Discard the mixture and rinse the kettle thoroughly with fresh water several times.
4. For heavy buildup, repeat the process or use a commercial descaling solution following its instructions.
• Filter Cleaning: The stainless steel filter can be removed for cleaning. Rinse it under running water and gently brush away any deposits. Reinsert securely.

Troubleshooting

If you encounter issues with your kettle, refer to the following common problems and solutions:

• Kettle does not turn on:
  • Ensure the power base is securely plugged into a working electrical outlet.
  • Check if the kettle is properly seated on the power base.
  • Verify the ON/OFF switch is fully pressed down.
• Water is not boiling:
  • Confirm the kettle is filled above the MIN level.
  • Check for power supply as above.
• Kettle shuts off too quickly or not at all:
  • This may indicate limescale buildup. Perform a descaling procedure as described in the Maintenance section.
  • Ensure the lid is fully closed.
• Water tastes or smells unusual:
  • For first use, ensure you have completed the initial cleaning and boiling cycles.
  • Regular descaling and cleaning of the filter can prevent taste issues.

Specifications

Warranty and Support

For warranty information or product support, please refer to the documentation included with your purchase or contact Pohl Schmitt customer service. Keep your proof of purchase for any warranty claims.
