Neatfi Elite Super LED Magnifying Lamp with Clamp

Introduction

Thank you for choosing the Neatfi Elite Super LED Magnifying Lamp. This manual provides essential information for the safe and efficient operation of your new magnifying lamp. Designed for precision tasks, reading, and various hobbies, this lamp features a 15cm glass lens with dual 5D and 12D magnification, 6500K glare-free LED illumination, and continuous dimming capabilities. Please read these instructions thoroughly before use and retain them for future reference.

Safety Instructions

• Ensure the power supply voltage matches the lamp's requirements before plugging in.
• Do not operate the lamp with a damaged cord or plug. If damaged, contact customer support.
• Avoid direct exposure of eyes to the LED light source for extended periods.
• Keep the lamp away from water or other liquids. Do not use in wet conditions.
• Do not attempt to disassemble or repair the lamp yourself. Refer all servicing to qualified personnel.
• Position the lamp on a stable surface or securely clamp it to prevent tipping.
• Keep the magnifying lens clean to ensure clear vision. Use a soft, dry cloth for cleaning.
• Unplug the lamp from the power outlet before cleaning or when not in use for an extended period.

Package Contents

Verify that all components are present in the package:

• 1 x Neatfi Elite Super LED Magnifying Lamp
• 1 x Power Adapter
• 1 x Desk Clamp

Product Overview

The Neatfi Elite Super LED Magnifying Lamp is designed for versatility and ease of use. It features a robust construction with a flexible arm and a high-quality glass lens.

Figure 1: Neatfi Elite Super LED Magnifying Lamp, showing the lamp head, adjustable arm, and clamp.

Key Features:

• 6-inch (15cm) Glass Lens: Provides clear, distortion-free magnification.
• Dual Magnification (5 Diopter / 12 Diopter): The main lens offers 5 diopter magnification, while a smaller inset lens provides 12 diopter magnification for extremely fine details.
• 6500K LED Illumination: 72 SMD LEDs produce bright, glare-free daylight-like light, ensuring accurate color rendering and reduced eye strain.
• Continuous Dimming: Adjust brightness levels smoothly from 1% to 100% using touch controls.
• Adjustable Arm and Head: A triple-articulated arm and 360° rotatable head allow for precise positioning and hands-free operation.
• Sturdy Clamp: Securely attaches the lamp to desks, tables, or workbenches.

Figure 2: Clear Magnifier with Real Glass lens, ensuring high optical quality.

Figure 3: The lamp's adjustable arm and strong metal clamp for secure mounting.

Figure 4: Product dimensions for installation planning.

Setup Instructions

1. Attach the Clamp: Securely fasten the desk clamp to a stable surface such as a desk, table, or workbench. Ensure the surface thickness is compatible with the clamp's opening. Tighten the clamp screw until it is firm and the clamp does not move.
2. Insert the Lamp Arm: Insert the base of the lamp arm into the hole on the clamp. Ensure it is fully seated and stable.
3. Connect Power: Plug the power adapter into the lamp's power input port, then plug the adapter into a standard electrical outlet.
4. Position the Lamp: Adjust the articulated arm and rotate the lamp head to your desired working position. The lamp is designed for flexible positioning.

Operating Instructions

The Neatfi Elite Super LED Magnifying Lamp features intuitive touch controls located on the lamp head.

Figure 5: Control panel with On/Off and Dimmer buttons.

1. Power On/Off: Press the Power button (circle with a vertical line) once to turn the lamp on or off.
2. Adjust Brightness (Dimming):
   • Press the Plus (+) button to increase the brightness.
   • Press the Minus (-) button to decrease the brightness.
   • The lamp offers continuous dimming, allowing for precise adjustment of light intensity from 1% to 100%.
3. Using Magnification:
   • Lift the protective cover over the lens.
   • Position the lamp head over the object you wish to magnify.
   • For standard magnification, use the main 5 diopter lens.
   • For higher magnification of very small details, use the integrated 12 diopter inset lens.

Figure 6: Non-polar dimming settings from 1% to 100% brightness.

Maintenance

• Cleaning the Lens: Use a soft, lint-free cloth (e.g., microfiber cloth) to gently wipe the glass lens. For stubborn smudges, a small amount of lens cleaning solution can be applied to the cloth, not directly to the lens.
• Cleaning the Lamp Body: Wipe the lamp's exterior with a soft, damp cloth. Avoid abrasive cleaners or solvents that could damage the finish.
• Storage: When not in use, close the protective lens cover to prevent dust accumulation and scratches. Store the lamp in a clean, dry environment.

Troubleshooting

Specifications

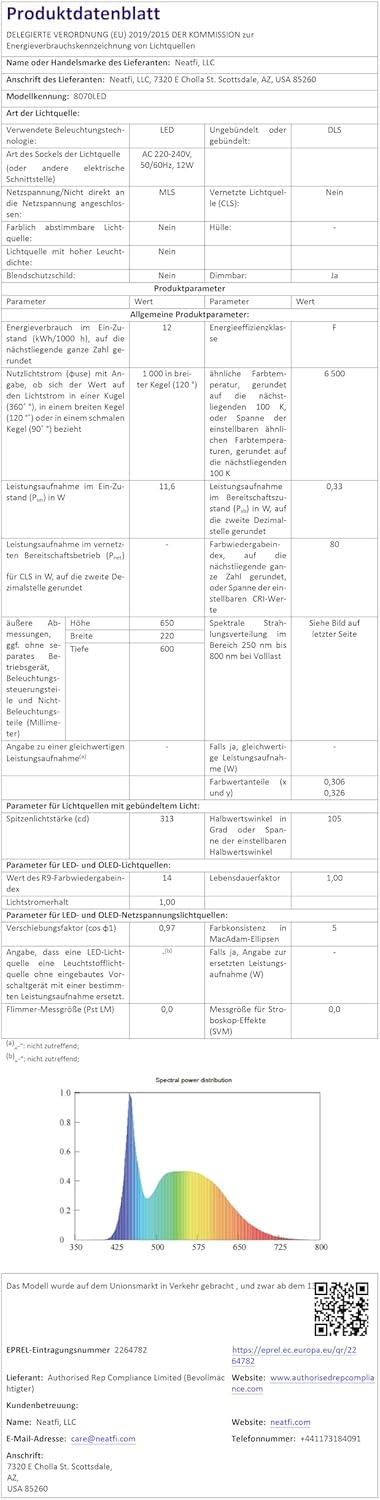

For detailed energy efficiency information, please refer to the EU EPREL database:

• EPREL Registration Number: 1128118
• EPREL Registration Number: 2264782
• EPREL Registration Number: 2264773

Warranty and Support

The Neatfi Elite Super LED Magnifying Lamp comes with a comprehensive 3-year warranty. This warranty covers manufacturing defects and ensures reliable performance for various applications, including nail salons, craft workshops, workbenches, and home offices.

For technical support, warranty claims, or any questions regarding your product, please contact Neatfi customer service through the retailer where you purchased the product or visit the official Neatfi website.

Manufacturer: Neatfi

Website: www.neatfi.com
