ICP 1186526 OEM Control Board Replacement User Manual

1. Introduction

This manual provides essential information for the proper installation, operation, and maintenance of the ICP 1186526 OEM Control Board Replacement. This control board is a critical component in various HVAC (Heating, Ventilation, and Air Conditioning) systems, designed to manage and regulate system functions. Adhering to these instructions will help ensure safe and efficient operation of your HVAC unit.

Important Safety Notice: Installation and servicing of HVAC equipment can be hazardous due to electrical components and moving parts. This control board must be installed by a qualified service technician. Failure to follow these instructions could result in property damage, personal injury, or death. Always disconnect power to the unit before performing any service or installation.

2. Product Overview

The ICP 1186526 is an OEM (Original Equipment Manufacturer) replacement control board designed for specific furnace and HVAC models. It integrates various control functions to ensure the safe and efficient operation of the heating and cooling system.

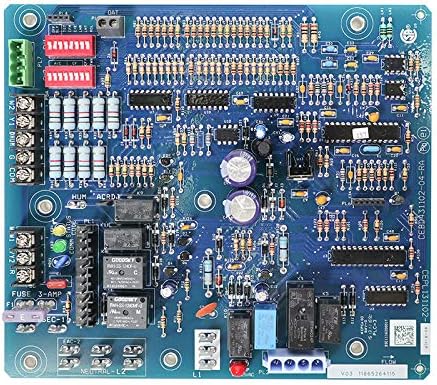

Figure 1: ICP 1186526 OEM Control Board. This image displays the blue circuit board with various electronic components, including resistors, capacitors, integrated circuits, relays, and terminal blocks for wiring connections. Key labels visible include 'HUM', 'ACRD', 'FUSE 3-AMP', 'NEUTRAL-L2', 'L1', 'W2 Y1 DRUM G COM', 'Y2 R', 'PL7', 'CONN STATUS', 'EC-1', 'PLC-3', and '04T'.

Key components and connection points on the board include:

• Terminal Blocks: Labeled 'W2 Y1 DRUM G COM', 'Y2 R', 'NEUTRAL-L2', 'L1' for connecting various system wires.
• Fuse: A 3-amp fuse ('FUSE 3-AMP') for circuit protection.
• DIP Switches: Red switches ('PL7') for configuration settings.
• Relays: Several black rectangular components ('GOODSEY') that control power to different system components.
• Capacitors: Cylindrical components (e.g., purple-top) for energy storage and filtering.
• LED Indicators: 'CONN STATUS' and other small lights for diagnostic feedback.
• Communication Ports: 'PLC-3' and '04T' for potential system communication or sensor connections.

3. Compatibility

The ICP 1186526 Control Board is compatible with a range of International Comfort Products (ICP) HVAC units. Verify your unit's model number against the list below to ensure proper fit and function. Using an incompatible control board can lead to system malfunction or damage.

Compatible Models:

• F8MVL0451412B1, F8MVL0701716B1, F8MVL0902116B1, F8MVL1102122B1, F8MVL1352422B1
• F9MVE0401410A2, F9MVE0401410A3, F9MVE0401712A2, F9MVE0401712A3, F9MVE0601412A2, F9MVE0601412A3, F9MVE0601714A2, F9MVE0601714A3, F9MVE0801716A2, F9MVE0801716A3, F9MVE0802120A2, F9MVE0802120A3, F9MVE0802120A4, F9MVE1002120A2, F9MVE1002120A3, F9MVE1002120A4, F9MVE1202422A2, F9MVE1202422A3, F9MVE1202422A4
• G8MVL0451412B1, G8MVL0701716B1, G8MVL0902116B1, G8MVL1102122B1, G8MVL1352422B1
• G9MVE0401410A2, G9MVE0401410A3, G9MVE0401712A2, G9MVE0401712A3, G9MVE0601412A2, G9MVE0601412A3, G9MVE0601714A2, G9MVE0601714A3, G9MVE0801716A2, G9MVE0801716A3, G9MVE0802120A2, G9MVE0802120A3, G9MVE0802120A4, G9MVE1002120A2, G9MVE1002120A3, G9MVE1002120A4, G9MVE1202422A2, G9MVE1202422A3, G9MVE1202422A4

4. Setup and Installation

Professional Installation Required: Due to the complexity and safety risks associated with HVAC electrical systems, installation of this control board must be performed by a certified HVAC technician.

4.1. Safety Precautions

• Always disconnect all electrical power to the furnace or air handler before installing or servicing the control board.
• Verify that the replacement board is the correct model for your specific HVAC unit.
• Wear appropriate personal protective equipment (PPE).
• Handle the control board by its edges to avoid damaging electronic components or introducing static electricity.

4.2. Installation Steps (General Guidelines)

1. Power Disconnection: Turn off the main power switch to the HVAC unit at the circuit breaker. Confirm power is off using a voltage meter.
2. Access the Existing Board: Open the access panel of the furnace or air handler to locate the existing control board.
3. Document Wiring: Before disconnecting any wires, take clear photos or make detailed diagrams of all wire connections to the old board. Pay close attention to labels such as 'W2 Y1 DRUM G COM', 'Y2 R', 'NEUTRAL-L2', 'L1', 'HUM', 'ACRD', '04T', and 'PLC-3'.
4. Disconnect Wires: Carefully disconnect all wires from the old control board.
5. Remove Old Board: Unmount the old control board from its housing.
6. Install New Board: Mount the new ICP 1186526 control board in the same location.
7. Reconnect Wiring: Using your documented photos/diagrams, carefully reconnect all wires to the corresponding terminals on the new board. Ensure all connections are secure.
8. Configure DIP Switches: If applicable, set the DIP switches ('PL7') on the new board according to the specifications for your HVAC unit model. Refer to your furnace's specific manual for correct settings.
9. Close Access Panel: Securely close the access panel of the HVAC unit.
10. Restore Power: Turn the main power back on at the circuit breaker.

5. Operating Instructions

The ICP 1186526 control board operates automatically once correctly installed and configured within the HVAC system. It manages the sequence of operations for heating, cooling, and fan functions based on thermostat calls and internal safety protocols.

5.1. System Startup

• After installation and power restoration, the control board will perform a self-diagnostic check.
• Observe the 'CONN STATUS' LED indicators on the board for any diagnostic codes. Refer to your furnace's specific manual for interpretation of these codes.
• Set your thermostat to the desired mode (Heat, Cool, Fan) and temperature to initiate system operation.

The control board will then manage the ignition sequence, fan operation, and other system components as required.

6. Maintenance

The ICP 1186526 control board itself requires minimal direct maintenance. However, regular maintenance of the overall HVAC system is crucial for its longevity and proper function.

• Annual Professional Inspection: Have a qualified HVAC technician inspect your entire system annually. They can check electrical connections, clean components, and verify the control board's operation.
• Keep Area Clean: Ensure the area around the furnace/air handler is free from dust, debris, and obstructions.
• Filter Replacement: Regularly replace or clean your HVAC system's air filters as recommended by the manufacturer. A dirty filter can strain the system and potentially affect control board performance.
• Visual Inspection: During routine system checks (with power disconnected), visually inspect the control board for any signs of damage, such as burnt components or loose connections.

7. Troubleshooting

If your HVAC system is not operating correctly after control board installation, or if you experience issues, consider the following general troubleshooting steps. Always prioritize safety and consult a qualified technician for complex problems.

7.1. Common Issues and Solutions

• System Not Starting:
  • Check if the main power to the unit is on.
  • Verify the 3-amp fuse ('FUSE 3-AMP') on the control board. Replace if blown (with power disconnected).
  • Ensure all wiring connections are secure and correctly matched according to your diagrams.
  • Check thermostat settings and battery.
• Incorrect Operation / Error Codes:
  • Observe the 'CONN STATUS' LED on the control board. Flashing patterns often indicate specific error codes.
  • Consult your specific furnace or air handler manual for a list of diagnostic codes and their meanings.
  • Verify DIP switch settings ('PL7') are correct for your unit.
• Intermittent Operation:
  • Loose wiring connections can cause intermittent issues. With power off, gently check all terminal connections.
  • Ensure proper airflow and clean filters to prevent overheating, which can cause safety shutdowns.

When to Call a Technician: If basic troubleshooting does not resolve the issue, or if you are unsure about any step, contact a qualified HVAC service technician. Do not attempt repairs beyond your skill level, as this can lead to further damage or injury.

8. Specifications

9. Warranty Information

Warranty coverage for the ICP 1186526 OEM Control Board Replacement is typically provided by the seller or manufacturer. Please retain your proof of purchase and refer to the warranty documentation provided at the time of purchase for specific terms, conditions, and duration. In most cases, improper installation or damage due to external factors may void the warranty.

10. Support

For technical assistance, troubleshooting beyond the scope of this manual, or warranty claims, please contact the authorized dealer or the manufacturer's customer support. Ensure you have your product model number (1186526) and proof of purchase available when seeking support.

Manufacturer: ICP (International Comfort Products)

For further assistance, please visit the official ICP website or contact your local authorized HVAC service provider.
