1. Introduction
Thank you for purchasing the BLACK+DECKER BXAC40006GB Portable 3-in-1 Air Conditioner. This manual provides important information for the safe and efficient operation of your appliance. Please read this manual thoroughly before use and retain it for future reference.
1.1 Safety Information
- Always ensure the appliance is placed on a flat, stable surface.
- Do not block air inlets or outlets.
- Keep the appliance away from heat sources and direct sunlight.
- Do not operate with a damaged cord or plug.
- Unplug the appliance before cleaning or maintenance.
- This appliance is for indoor use only.
2. Product Overview
The BLACK+DECKER BXAC40006GB is a versatile 3-in-1 unit offering air conditioning, dehumidifying, and fan functions.

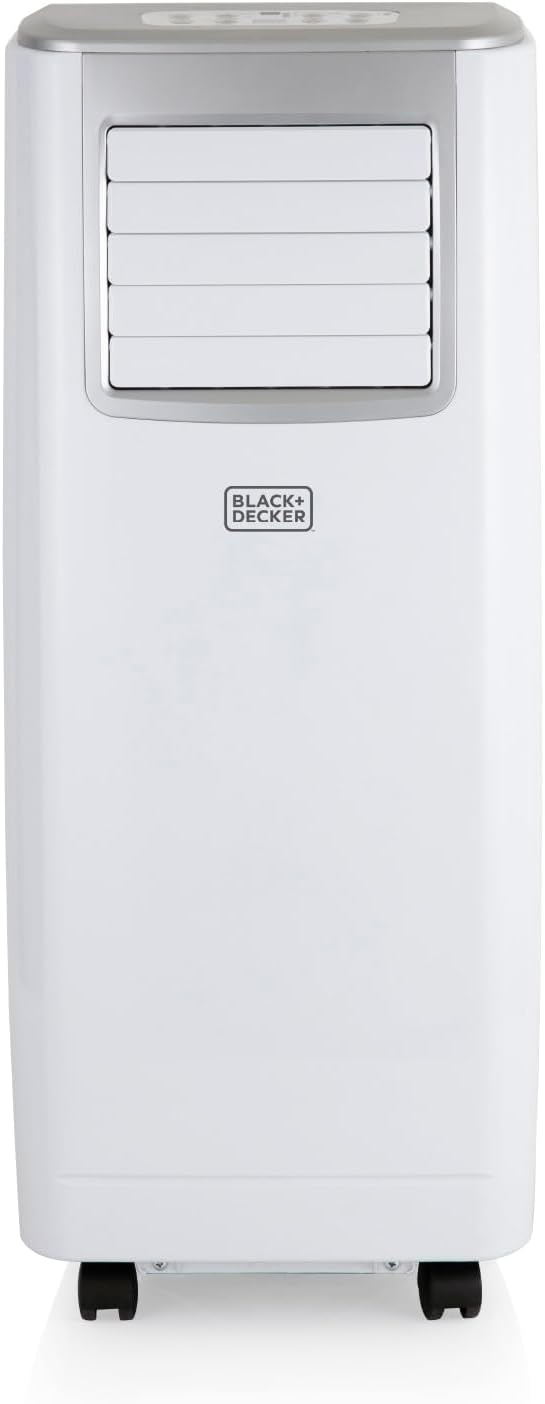

Figure 2.1: Front view of the BLACK+DECKER BXAC40006GB Portable Air Conditioner.
2.1 Components and Controls
Figure 2.2: Detailed diagram of the air conditioner with key components labeled.
Key components include:
- Air Outlet Louvers
- Control Panel
- Handle
- Air Filter (Rear)
- Exhaust Air Outlet
- Drainage Outlet
- Power Cord
- Casters (Wheels)
Figure 2.3: Control panel and remote control for easy operation.
The control panel and remote allow you to adjust settings such as mode, temperature, fan speed, and timer.
3. Setup and Installation
Proper setup is crucial for optimal performance and safety.
3.1 Unpacking
Carefully remove the appliance and all accessories from the packaging. Retain the packaging for future storage or transport.
Figure 3.1: "What's in the Box?" - All included accessories.
3.2 Exhaust Hose Installation
- Attach the hose adaptor to one end of the exhaust hose.
- Attach the window kit adaptor to the other end of the exhaust hose.
- Insert the hose adaptor into the exhaust air outlet on the back of the unit.
3.3 Window Kit Installation
The unit comes with both sash and casement window kits. Choose the appropriate kit for your window type.
- For Sash Windows: Adjust the sash window kit to fit your window opening. Secure it in place.
- For Casement Windows: Use the casement window kit (fabric seal) to create a sealed opening around the window.
Once the window kit is installed, insert the window kit adaptor of the exhaust hose into the opening, ensuring a tight seal to prevent hot air from re-entering the room.
4. Operating Instructions
Familiarize yourself with the various functions and settings of your air conditioner.
4.1 Powering On/Off
- Press the ON/OFF button on the control panel or remote control to turn the unit on or off.
4.2 Mode Selection
Press the MODE button to cycle through the available modes: Cool, Dehumidify, and Fan.
- Cooling Mode: For air conditioning. The unit will blow out cold air to decrease the ambient temperature. Adjust temperature between 18-32°C.
- Dehumidifying Mode: Removes excess moisture from the air. The unit will vibrate briefly as the compressor kicks in.
- Fan Mode: Circulates air without cooling.
Figure 4.1: The 3-in-1 functionality of the unit.
4.3 Temperature Adjustment (Cooling Mode Only)
- In Cooling Mode, use the UP or DOWN buttons to set your desired temperature (18-32°C).
4.4 Fan Speed
- Press the SPEED button to select between low, medium, and high fan speeds.
4.5 Timer Function
- Press the TIMER button to set a desired shut-off or start-up time (up to 24 hours).
4.6 Sleep Mode
- Activate Sleep Mode by pressing the SLEEP button. In this mode, the unit operates at a low speed, and the temperature will increase by 1 degree for the first two hours, then remain constant. The unit will automatically shut off after 12 hours.

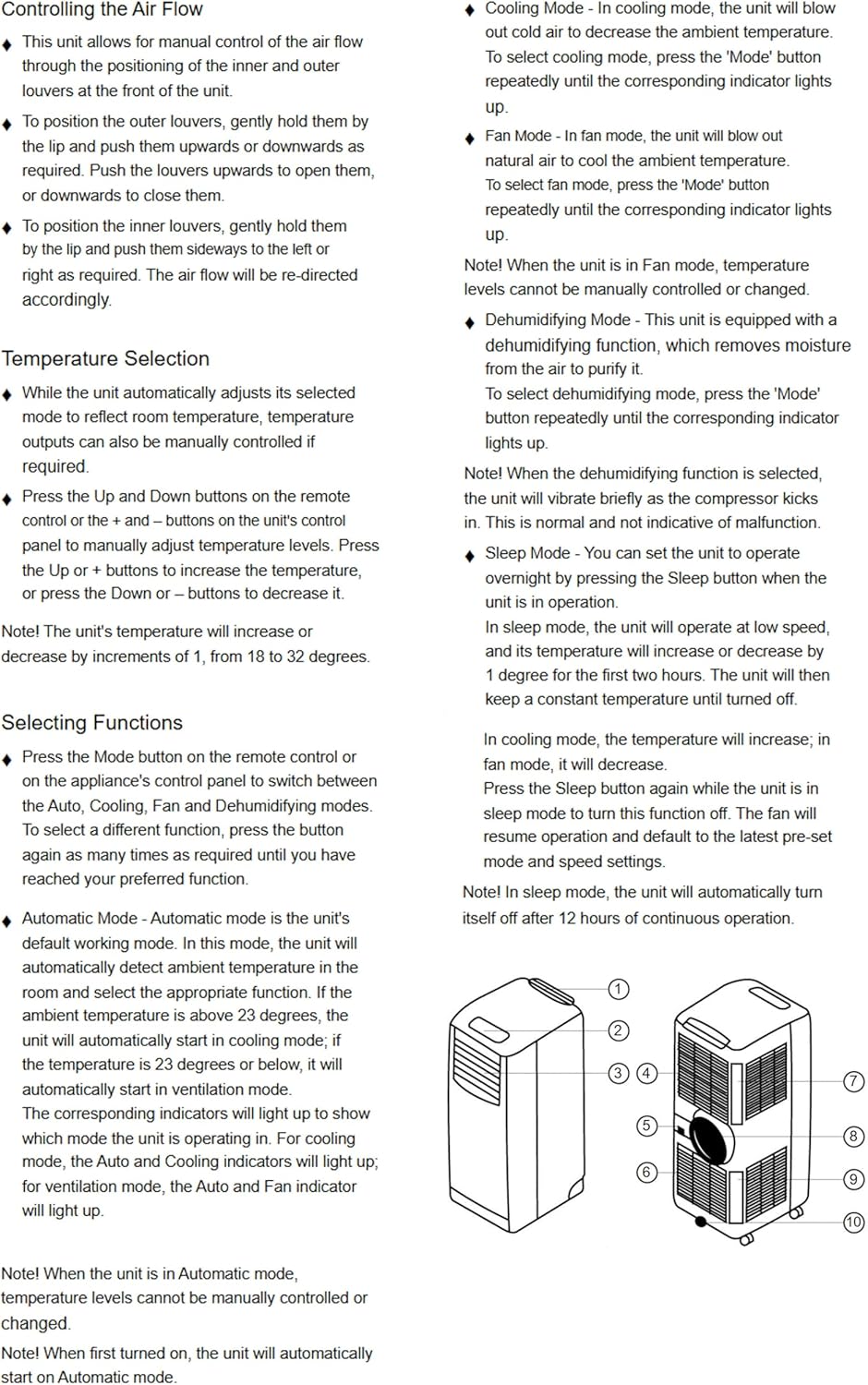

4.7 Controlling the Air Flow
- To position the outer louvers, gently hold them by the tip and push them upwards or downwards as required.
- To position the inner louvers, gently hold them by the lip and push them sideways to the left or right as required.
5. Maintenance
Regular maintenance ensures the longevity and efficiency of your air conditioner.
5.1 Cleaning the Air Filter
The air filter should be cleaned every two weeks or more frequently depending on usage.
- Unplug the unit from the power outlet.
- Remove the air filter from the rear of the unit.
- Clean the filter with a vacuum cleaner or wash it with warm water and a mild detergent.
- Rinse thoroughly and allow it to air dry completely before reinserting.
5.2 Draining Water
The unit has a 0.5L water tank and is designed to extract up to 24.8 litres of unwanted moisture per day. For continuous drainage, connect the provided drainage hose to the drainage outlet.
- For manual drainage, place a shallow pan under the drainage outlet and remove the cap to allow water to drain.
- For continuous drainage, attach the drainage hose to the outlet and direct it to a suitable drain or container.
5.3 Cleaning the Exterior
Wipe the exterior of the unit with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners.
5.4 Storage
If storing the unit for an extended period:
- Ensure all water is drained from the unit.
- Clean the air filter.
- Store the unit in a dry, cool place, preferably in its original packaging.
6. Troubleshooting
Before contacting customer support, please refer to the following common issues and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not turn on. | No power, power cord unplugged, circuit breaker tripped. | Check power connection, reset circuit breaker. |
| Unit is not cooling effectively. | Air filter dirty, exhaust hose not properly installed, room too large, windows/doors open. | Clean air filter, ensure hose is sealed, close windows/doors, check room size suitability (up to 18m²). |
| Unit is noisy. | Compressor operation (normal), unit not on a flat surface, fan obstruction. | Ensure unit is on a flat surface. Some noise is normal during compressor operation. |
| Water leakage. | Drainage hose blocked or disconnected, water tank full (if not using continuous drainage). | Check drainage hose for kinks/blockages, ensure continuous drainage is set up correctly, or manually drain the tank. |
7. Specifications
Technical specifications for the BLACK+DECKER BXAC40006GB Portable Air Conditioner:
| Feature | Detail |
|---|---|
| Model Number | BXAC40006GB |
| Cooling Capacity | 9,000 BTU |
| Functions | Air Conditioner, Dehumidifier, Fan |
| Recommended Room Size | Up to 18m² |
| Dehumidifying Capacity | Up to 24.8 litres/day |
| Water Tank Capacity | 0.5 litres |
| Power Source | Corded Electric |
| Voltage | 240 Volts |
| Wattage | 1000 watts |
| Noise Level | 49 dB |
| Product Dimensions (L x W x H) | 31.5D x 39.2W x 77H cm |
| Item Weight | 23.8 kg |
| Temperature Range | 18 - 32°C |
| Special Features | 24-hour timer, Remote control, Sleep mode, Overheat protection |
8. Warranty and Support
Your BLACK+DECKER BXAC40006GB Portable Air Conditioner comes with a 2-year guarantee.
- Includes a 1-year manufacturer’s guarantee.
- An additional 1-year extension is available upon product registration online.
For warranty claims, technical support, or spare parts, please contact BLACK+DECKER customer service. Refer to the official BLACK+DECKER website or your purchase documentation for contact details specific to your region.
