Instruction Manual

1. Product Overview

This manual provides essential information for the installation, operation, and maintenance of your Speedmaster Serpentine Engine Pulley Kit. Designed for performance and durability, this kit is a complete solution for your engine's accessory drive system.

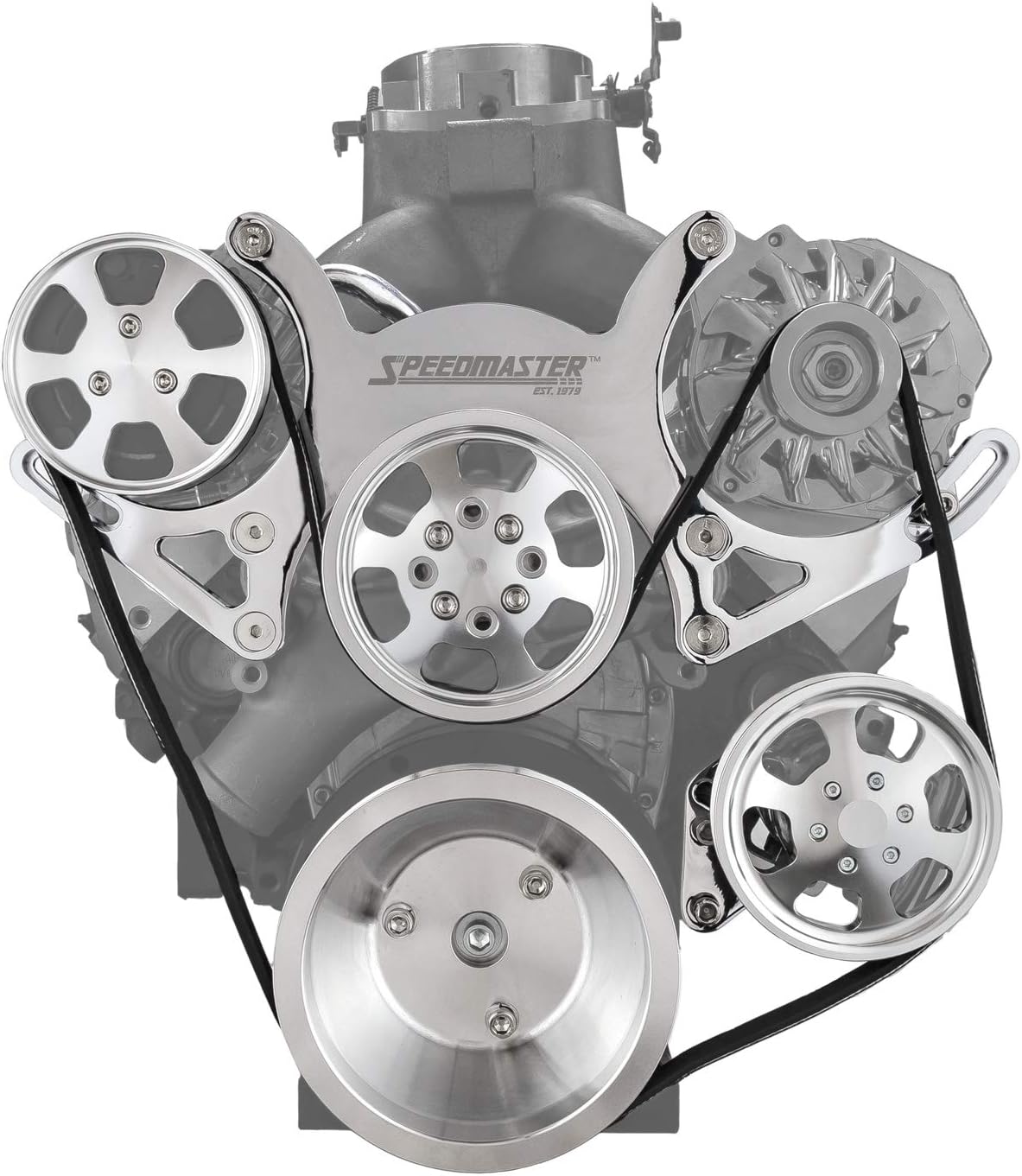

The Speedmaster 1-415-001-01 kit features:

• 415 Pulley Kit
• High-quality billet aluminum construction with a polished finish.
• Includes crankshaft pulley, water pump pulley, power steering pulley, and associated brackets.
• Designed for Chevy SBC 350 engines.
• Track Proven: Engineered to withstand the demands of road, race, and recreational use.

2. Safety Information

WARNING:

This product is intended for racing applications only. It is not designed or approved for street use. Installation and use of this product on public roads may violate local, state, and federal laws and regulations. Always ensure proper safety precautions are taken during installation and operation.

• Always wear appropriate personal protective equipment (PPE) including safety glasses and gloves during installation.
• Ensure the engine is cool and the battery is disconnected before beginning any work.
• Refer to your vehicle's service manual for specific torque specifications and procedures.
• If you are unsure about any installation step, consult a qualified automotive professional.

3. Components Included

The Speedmaster 1-415-001-01 Serpentine Engine Pulley Kit includes the following components:

Note: Alternator Pulley, Alternator Fan, Alternator Nose Cover, Idler/Tensioner, Idler Cover, and Idler Brackets are not included with this specific kit.

4. Setup and Installation

Installation of the Speedmaster Serpentine Engine Pulley Kit requires mechanical knowledge and appropriate tools. It is highly recommended that installation be performed by a qualified professional.

1. Preparation: Ensure the engine is completely cool. Disconnect the negative terminal of the battery. Remove any existing accessory drive components as necessary.
2. Crankshaft Pulley Installation: Install the new crankshaft pulley onto the crankshaft. Ensure it is properly seated and secured according to manufacturer specifications.
3. Water Pump Pulley Installation: Mount the water pump pulley onto the water pump. Verify correct alignment.
4. Power Steering Components: Install the power steering pump and its associated bracket. Attach the power steering pulley using the bolt-on adapter.
5. Alternator and A/C Components: Mount the alternator and A/C compressor (if applicable) with their respective brackets. Attach the A/C pulley and cover.
6. Belt Routing: Carefully route the serpentine belt around all pulleys, ensuring proper tension. Refer to the diagram provided with your specific belt for correct routing.
7. Final Checks: Double-check all fasteners for proper torque. Reconnect the battery. Start the engine and check for proper operation, belt alignment, and any unusual noises.

For detailed diagrams and specific torque values, please consult a professional mechanic or refer to specialized automotive repair resources for your engine type.

5. Operating Considerations

Once installed, the serpentine pulley system operates automatically with the engine. Ensure the belt maintains proper tension and alignment to prevent slippage or premature wear. Monitor engine temperatures and accessory performance during initial operation.

• Listen for any squealing or grinding noises, which may indicate a loose belt or bearing issue.
• Observe the belt for signs of fraying, cracking, or glazing.
• Ensure all accessories (power steering, A/C, alternator) are functioning correctly after installation.

6. Maintenance

Regular inspection and maintenance will ensure the longevity and optimal performance of your Speedmaster pulley kit.

• Belt Inspection: Periodically inspect the serpentine belt for wear, cracks, or damage. Replace the belt if any signs of wear are present.
• Pulley Inspection: Check all pulleys for smooth rotation and absence of wobble. Ensure there is no excessive play in any bearings.
• Fastener Torque: After initial installation and after approximately 500 miles of operation, re-check the torque on all mounting bolts to ensure they remain secure.
• Cleanliness: Keep the pulleys and belt free from dirt, grease, and debris.

7. Troubleshooting

If you encounter issues with your pulley kit, consider the following common problems and solutions:

If troubleshooting steps do not resolve the issue, it is recommended to seek assistance from a certified mechanic.

8. Specifications

9. Warranty and Support

Speedmaster products are manufactured to high standards. For specific warranty information and customer support, please refer to the official Speedmaster website or contact their customer service department directly.

Online Resources:www.speedmaster79.com

Contact Support: Please visit the website for contact details, including phone numbers and email addresses for technical support and warranty claims.
