Introduction
This instruction manual provides essential information for the proper installation, operation, and maintenance of your AllSpares AS-FF140 compatible refrigerator water filter. Please read this manual thoroughly before use and retain it for future reference.
Compatibility
The AllSpares AS-FF140 water filter is designed as a compatible replacement for various refrigerator models. It is suitable for use with refrigerators requiring filters compatible with:
- Whirlpool: SBS200, SBS002, SBS001, SBS003-4
- Bauknecht: SBS103
- Ariston
- Hotpoint
- Kitchenaid
- Smeg
Always verify your refrigerator's specific filter requirements before installation.
Product Overview
The AllSpares AS-FF140 is a high-quality replacement water filter cartridge designed to improve the taste and odor of your refrigerator's water supply. It features:
- Certification: Tested and certified by NSF International against NSF/ANSI Standard 42 for the reduction of chlorine taste and odor. Also certified to NSF/ANSI 372 for lead-free compliance (0.25% lead).
- Quality Assurance: Manufactured under ISO 9001 certified processes.
- Material Safety: Constructed from BPA-free, non-phthalate, non-bisphenol plastic materials.
Image: The AllSpares AS-FF140 water filter shown with its retail packaging.

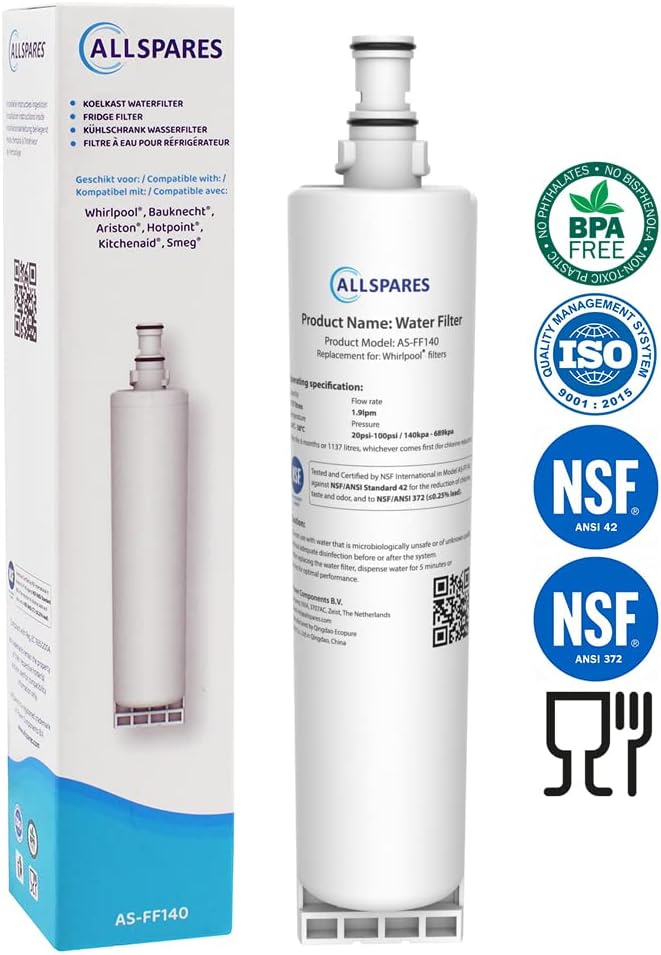

Image: The AllSpares AS-FF140 water filter displaying NSF and ISO certification logos.
Setup and Installation
Follow these steps to install your new AllSpares AS-FF140 water filter:
- Locate Existing Filter: Refer to your refrigerator's instruction manual to locate and identify the current water filter.
- Turn Off Water Supply: It is recommended to turn off the water supply to the refrigerator before removing the old filter.
- Remove Old Filter: Twist or pull the old filter according to your refrigerator's specific instructions. Be prepared for a small amount of water to drip.
- Prepare New Filter: Remove the new AllSpares AS-FF140 filter from its packaging.
- Insert New Filter: Align the new filter with the filter housing in your refrigerator. Push and twist the filter into place until it is securely seated. You may feel resistance, which is normal.
- Restore Water Supply: Turn the water supply back on to the refrigerator.
- Flush the System: After installation, dispense approximately 5 minutes or 8 liters of water through the refrigerator's dispenser. This flushes air from the system and removes any carbon fines from the new filter, ensuring optimal performance.
- Check for Leaks: Inspect the filter area for any signs of water leaks.
- Reset Filter Indicator: If your refrigerator has a filter change indicator light, reset it according to your refrigerator's manual.
Caution:
Do not use this filter with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. This filter is intended to reduce specific contaminants in potable water.
Image: An illustration demonstrating the process of inserting a water filter into its housing.
Operating Instructions
Once installed, the filter operates automatically with your refrigerator's water dispensing system. For best results and to maintain water quality, adhere to the recommended filter replacement schedule.

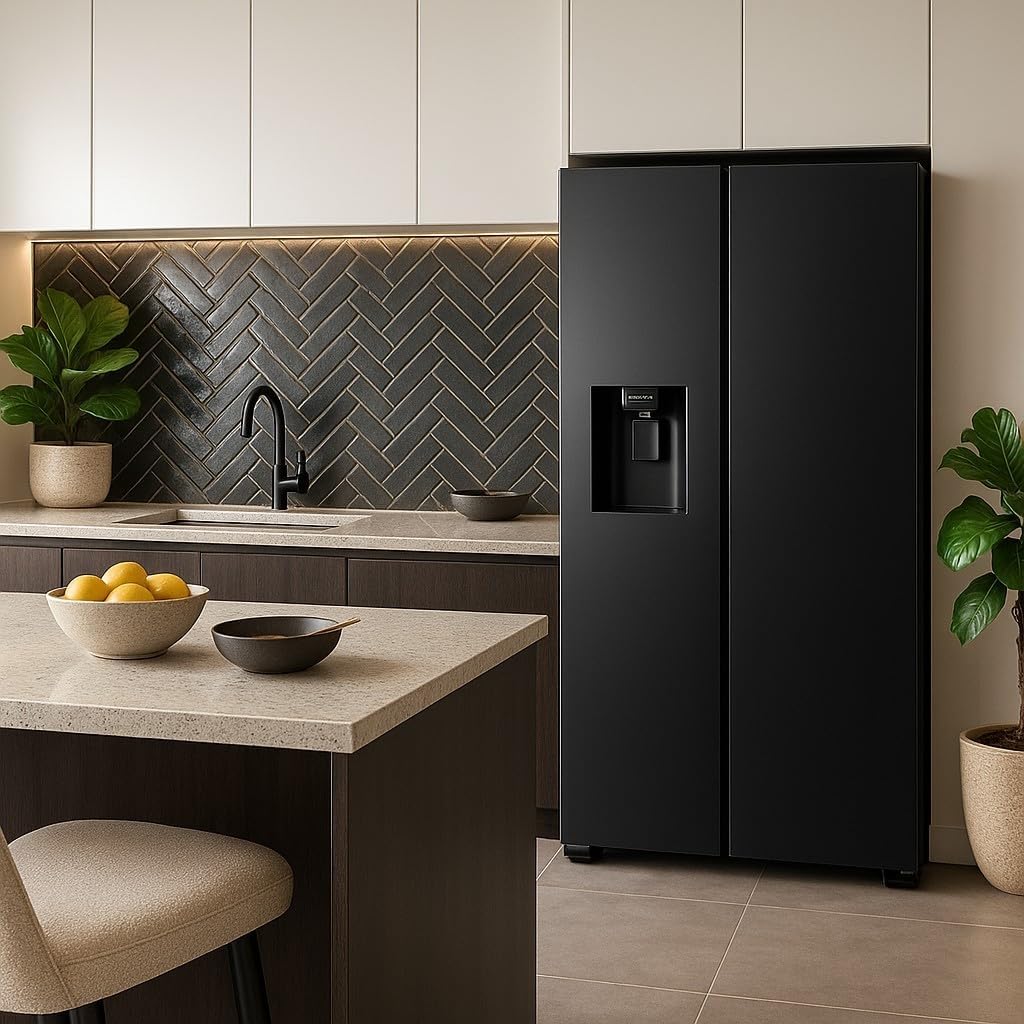

Image: A modern black refrigerator with an integrated water and ice dispenser, illustrating typical usage.
Maintenance
Regular maintenance of your water filter involves timely replacement to ensure continued water quality and optimal performance of your refrigerator's water system.
- Replacement Schedule: The filter should be replaced every 6 months or after filtering 1137 liters (300 gallons) of water, whichever comes first.
- Indicator Lights: Pay attention to your refrigerator's filter change indicator light, if equipped.
- Water Quality: If you notice a decrease in water flow or a return of unpleasant tastes or odors before the recommended replacement interval, it may be time to replace the filter sooner.
Troubleshooting
If you encounter issues with your water filter, consider the following common solutions:
- Reduced Water Flow:
- Ensure the filter is correctly installed and fully seated.
- Check if the filter is clogged. If it's near the end of its life cycle (6 months or 1137 liters), replace it.
- Verify that the refrigerator's water supply valve is fully open.
- Unpleasant Taste or Odor:
- Flush the system by dispensing several liters of water to remove any trapped air or carbon fines.
- If the taste or odor persists, the filter may be exhausted and requires replacement.
- Leaks:
- Ensure the filter is properly seated and twisted into place.
- Check the O-rings on the filter for damage or misalignment.
- Confirm that the water supply connections to the refrigerator are tight.
For persistent issues, consult your refrigerator's user manual or contact AllSpares customer support.
Specifications
| Feature | Specification |
|---|---|
| Model Numbers | AS-FF140, RWF0500A |
| Capacity | 1137 liters (300 gallons) |
| Flow Rate | 1.9 Lpm (0.5 Gpm) |
| Operating Pressure | 20-100 psi (140-689 kPa) |
| Operating Temperature | 1-38°C (34-100°F) |
| Filter Life | 6 months or 1137 liters, whichever comes first |
| Certifications | ISO 9001, NSF/ANSI 42, NSF/ANSI 372 |
Warranty and Support
For information regarding product warranty, please refer to the documentation provided with your purchase or visit the official AllSpares website. Spare parts availability information is currently unavailable.
For technical support or further assistance, please contact AllSpares customer service through their official channels. You can often find contact information on the product packaging or the brand's website.
