VBESTLIFE DC 12V 3-Speed Turntable Motor Instruction Manual

1. Introduction

This manual provides essential information for the installation, operation, and maintenance of your VBESTLIFE DC 12V 3-Speed Turntable Motor. Please read this guide thoroughly before use to ensure proper function and longevity of the product.

Image 1.1: Overview of the VBESTLIFE DC 12V Turntable Motor. This image displays the compact cylindrical motor with its brass spindle and white connector block.

2. Safety Information

• Ensure the power supply matches the motor's rated voltage (DC 12V) to prevent damage.
• Disconnect power before installation or maintenance.
• Avoid exposing the motor to extreme temperatures or high humidity.
• Do not attempt to disassemble the motor beyond what is instructed in this manual.
• Keep out of reach of children.

3. Package Contents

The package includes the following item:

• 1 x VBESTLIFE DC 12V Turntable Motor

4. Product Features

• Equipped with a 25 mm mounting hole for secure installation.
• Operates at a revolving speed of 78 RPM.
• Designed for DC 9-12V power input.
• Compatible with most 3-speed turntable systems.
• Constructed for durability and long service life.

Image 4.1: The turntable motor positioned near a record player, illustrating its intended application.

5. Specifications

6. Installation Guide

Follow these steps for proper installation of the turntable motor:

1. Preparation: Ensure the turntable unit is disconnected from power. Identify the location for the motor installation, typically within the turntable's chassis.
2. Mounting: The motor features a 25 mm mounting hole. Secure the motor using appropriate fasteners (not included) through this hole to the turntable's motor mount. Ensure it is firmly seated to prevent vibration.

Image 6.1: Top view of the motor, highlighting the central 25 mm mounting hole for installation.

3. Wiring: Connect the motor to the turntable's power supply and control circuit according to the wiring diagram provided. Pay close attention to polarity.

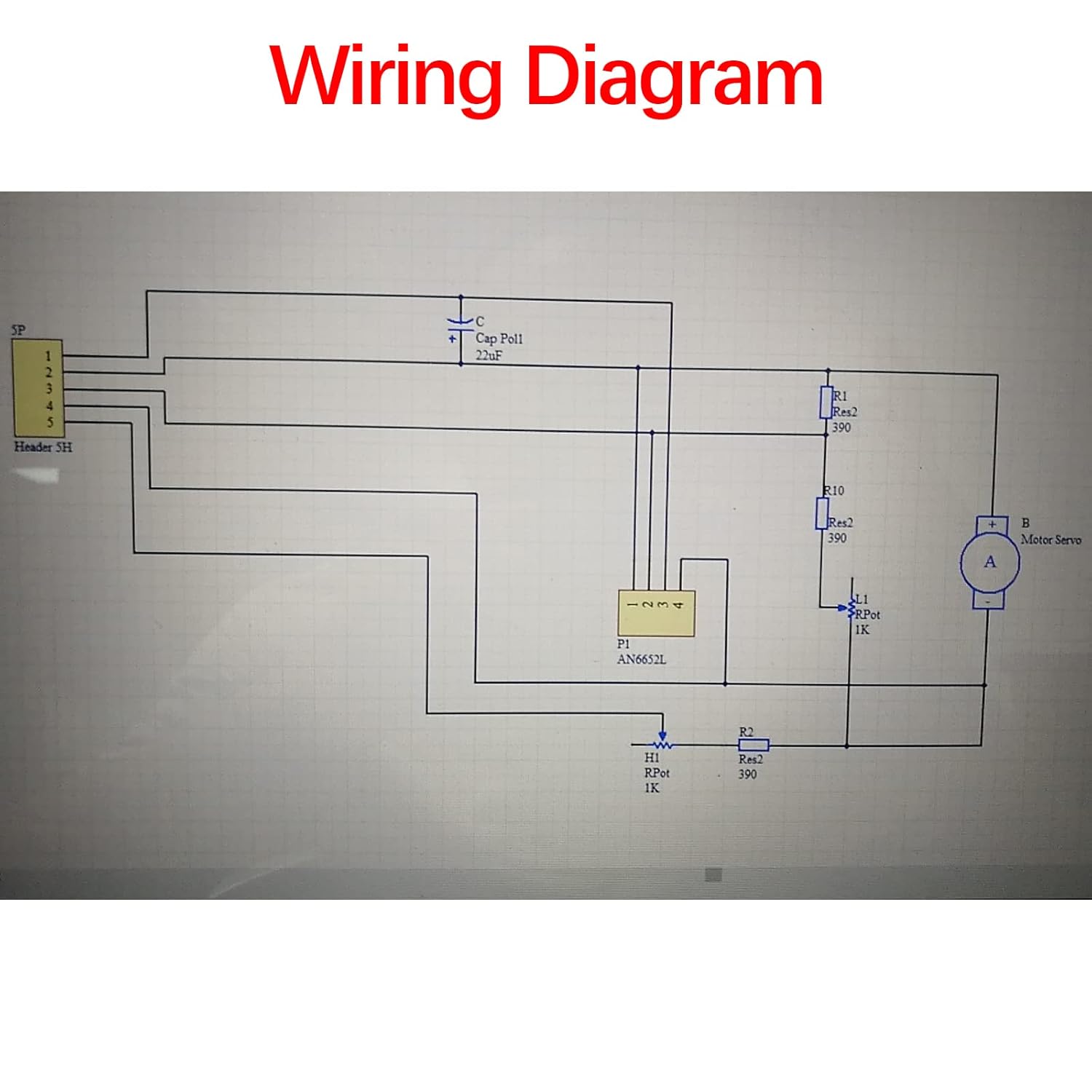

Image 6.2: Detailed wiring diagram for connecting the turntable motor to a control circuit. This diagram shows connections for a 5-pin header, capacitor, potentiometers, and the motor servo.

4. Testing: After installation, carefully reconnect the turntable to power and test its functionality. Ensure the platter rotates smoothly and at the correct speed.

7. Operation

Once installed, the turntable motor operates as part of the turntable system. Its primary function is to provide consistent rotational speed to the platter. The motor is designed for 78 RPM operation, suitable for playing records that require this speed. For multi-speed turntables, the motor's speed is typically regulated by the turntable's internal control circuitry.

8. Maintenance

• Cleaning: Keep the motor free from dust and debris. Use a soft, dry cloth for cleaning. Do not use liquid cleaners directly on the motor.
• Inspection: Periodically inspect the motor and its connections for any signs of wear, damage, or loose wiring.
• Lubrication: The motor is generally maintenance-free regarding lubrication. If unusual noises occur, consult a qualified technician.

9. Troubleshooting

• Motor Not Spinning:
  • Check all power connections and ensure the power supply is active.
  • Verify that the wiring is correct according to the diagram.
  • Ensure the operating voltage is within the specified range (DC 8.4V - 12V).
• Inconsistent Speed:
  • Check for any obstructions preventing smooth rotation.
  • Ensure the motor is securely mounted and not vibrating excessively.
  • Verify the power supply is stable and providing consistent voltage.
• Unusual Noise:
  • Inspect for any loose components or foreign objects.
  • Ensure the motor is not rubbing against any part of the turntable chassis.

10. Warranty and Support

For warranty information or technical support, please refer to the VBESTLIFE official website or contact your retailer. Keep your purchase receipt as proof of purchase.
