AirXHeat 1193023 Motor Blower Instruction Manual

1. Introduction

This manual provides comprehensive instructions for the safe installation, operation, and maintenance of the AirXHeat 1193023 Motor Blower. This component is a 3/4 horsepower (HP), 1/115 volt (V) motor equipped with an Electronically Commutated Motor (ECM) for efficient performance. It is designed as a replacement part for specific HVAC systems, ensuring proper air circulation within your furnace or air handler unit.

Please read this manual thoroughly before attempting any installation or service to ensure correct procedures and personal safety.

2. Safety Information

WARNING: Improper installation, adjustment, alteration, service, or maintenance can cause property damage, injury, or death. Consult a qualified installer, service agency, or the manufacturer for information or assistance.

• Always disconnect electrical power to the HVAC unit before installing, servicing, or removing the motor blower. Failure to do so can result in electrical shock or personal injury.
• Ensure all wiring connections comply with local and national electrical codes.
• Wear appropriate personal protective equipment (PPE), such as safety glasses and gloves, during installation and maintenance.
• Do not operate the motor if it is damaged or if any components are missing.
• This motor blower should only be installed by a qualified HVAC technician.

3. Package Contents

Verify that all items are present and undamaged upon opening the package:

• 1 x AirXHeat 1193023 Motor Blower 3/4HP 1/115v c/w ECM
• No additional accessories are typically included with this replacement part.

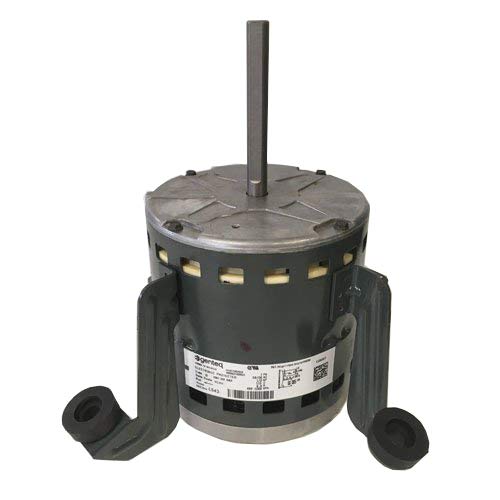

Image of the AirXHeat 1193023 Motor Blower, showing its general appearance and connection points.

4. Setup and Installation

Installation of the AirXHeat 1193023 Motor Blower requires specialized knowledge and tools. It is strongly recommended that installation be performed by a certified HVAC technician.

4.1 Compatibility

This motor blower is a direct substitute for the following models: 1184511, 1186850, and 1186828. It is commonly used in the following furnace/air handler models:

• F8MVL0701716B1
• F8MVL0902116B1
• F9MVE0601714A2
• F9MVE0801716A2
• G8MVL0701716B1
• G8MVL0902116B1
• G9MVE0601714A2
• G9MVE0801716A2

4.2 Installation Steps (Technician Recommended)

1. Disconnect Power: Turn off all electrical power to the HVAC unit at the main breaker or disconnect switch. Verify power is off using a voltage tester.
2. Access Blower Compartment: Open the access panel to the blower compartment of the furnace or air handler.
3. Remove Old Motor: Disconnect wiring from the old motor. Unmount and carefully remove the old motor and blower wheel assembly. Note the orientation and connections for reassembly.
4. Install New Motor: Mount the new AirXHeat 1193023 motor blower into the blower housing. Ensure it is securely fastened and properly aligned with the blower wheel.
5. Connect Wiring: Reconnect all electrical wiring according to the HVAC unit's wiring diagram and the motor's specifications. Ensure all connections are tight and secure.
6. Secure Compartment: Close and secure the blower compartment access panel.
7. Restore Power: Restore electrical power to the HVAC unit.
8. Test Operation: Initiate a test cycle to ensure the motor operates correctly, quietly, and without vibration.

5. Operating Instructions

The AirXHeat 1193023 Motor Blower is an integral component of your HVAC system. Once properly installed, it operates automatically in conjunction with the system's thermostat and control board. There are no direct user controls for the motor itself.

• The ECM technology allows the motor to adjust its speed to meet the system's airflow demands, providing efficient and consistent air delivery.
• Refer to your specific furnace or air handler manual for instructions on operating your HVAC system.

6. Maintenance

The AirXHeat 1193023 Motor Blower is designed for minimal maintenance. However, periodic inspection of the overall HVAC system is recommended.

• Annual Inspection: It is advisable to have a qualified HVAC technician inspect your entire system annually, which includes checking the blower motor for proper operation, cleanliness, and any signs of wear.
• Cleanliness: Ensure the blower compartment and the motor itself are free from excessive dust and debris, which can impede airflow and motor cooling.
• Air Filter: Regularly replace or clean your HVAC system's air filter as per the manufacturer's recommendations. A dirty filter can restrict airflow, causing the blower motor to work harder and potentially shorten its lifespan.
• No User-Serviceable Parts: The motor housing contains no user-serviceable parts. Do not attempt to disassemble the motor.

7. Troubleshooting

If you experience issues with your HVAC system that you suspect are related to the blower motor, consult a qualified HVAC technician. Attempting to diagnose or repair motor issues without proper training can be dangerous and may void your warranty.

Common Symptoms and Potential Causes:

• Motor Not Running:
  • No power to the HVAC unit.
  • Faulty thermostat or control board.
  • Wiring issue.
  • Motor failure.
• Unusual Noises (e.g., grinding, squealing):
  • Loose blower wheel.
  • Debris in the blower housing.
  • Motor bearing wear.
• Weak Airflow:
  • Dirty air filter.
  • Blocked return or supply vents.
  • Blower wheel obstruction.
  • Motor operating at reduced speed due to system fault.

For any of these issues, it is recommended to contact a professional HVAC technician for diagnosis and repair.

8. Specifications

9. Warranty and Support

Specific warranty terms for the AirXHeat 1193023 Motor Blower are provided by the manufacturer or the seller at the time of purchase. Please refer to your purchase documentation or contact your point of sale for detailed warranty information.

For technical support or assistance with warranty claims, please contact the authorized AirXHeat dealer or the seller from whom you purchased this product. Ensure you have your model number (1193023) and proof of purchase readily available.
