Introduction
This user manual provides essential information for the safe and effective use of your NA F130 DC 3V 18000RPM Mini Electric Motor with Blue Propeller. This compact motor and propeller combination is designed for various small-scale RC models, DIY projects, and educational applications requiring a high-speed, low-voltage power source.
Please read this manual thoroughly before installation and operation to ensure proper functionality and to prevent damage to the product or injury.
Safety Instructions
Always observe the following safety precautions:
- Voltage: Only connect the motor to a 3V DC power source. Exceeding this voltage may cause overheating and permanent damage.
- Polarity: Ensure correct polarity when connecting the motor to the power supply. Incorrect polarity will cause the motor to spin in reverse.
- Rotating Parts: Keep fingers, hair, loose clothing, and other objects clear of the rotating propeller and motor shaft during operation to prevent injury.
- Heat: The motor may become warm during extended operation. Avoid touching the motor directly after use.
- Environment: Do not operate the motor in wet or dusty environments.
- Children: This product is not a toy. Adult supervision is recommended when used by children.
Package Contents
Verify that all items are present in your package:
- 1 x F130 DC Mini Electric Motor
- 1 x Blue Propeller (4-blade)

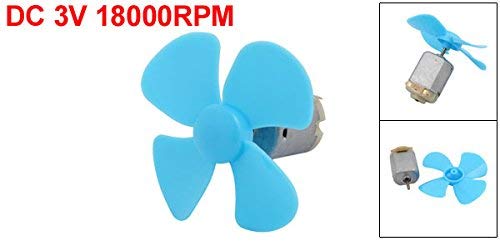

Image showing the NA F130 DC Mini Electric Motor with the blue propeller attached.
Setup
Follow these steps to assemble and prepare your motor and propeller for use:
- Identify Components: Separate the mini electric motor from the blue propeller. The motor has two terminals for power connection, and a small shaft for the propeller. The propeller has a central hole designed to fit onto the motor shaft.
- Attach Propeller: Carefully align the central hole of the blue propeller with the motor shaft. Gently push the propeller onto the shaft until it is securely seated. Ensure it is not loose but also not forced excessively, which could damage the motor or propeller.
- Connect Power: Connect the two terminals of the motor to a 3V DC power source. The motor will spin in one direction; reverse the polarity if you need it to spin in the opposite direction.
- Mounting (Optional): For stable operation, consider mounting the motor securely within your RC model or project using appropriate brackets or adhesive (not included).
Image illustrating the separate motor and propeller components, and the assembled unit.
Operating Instructions
Once the motor and propeller are assembled and connected to a 3V DC power source, the motor will begin to rotate. The direction of rotation depends on the polarity of the power connection. Ensure the propeller is clear of any obstructions before applying power.
This motor is designed for continuous operation within its specified voltage range. Avoid prolonged operation at voltages significantly below 3V, as this may reduce efficiency, or above 3V, as this can lead to overheating and damage.
Maintenance
The NA F130 Mini Electric Motor is designed to be low-maintenance. However, following these guidelines can extend its lifespan:
- Cleaning: Keep the motor and propeller free from dust, dirt, and debris. Use a soft, dry cloth or a small brush to gently clean the surfaces. Do not use liquids or solvents.
- Inspection: Periodically inspect the motor shaft and propeller for any signs of wear, damage, or looseness. Ensure the propeller remains securely attached.
- Storage: When not in use, store the motor and propeller in a cool, dry place, away from direct sunlight and extreme temperatures.
Troubleshooting
If you encounter issues with your motor, refer to the following table for common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Motor does not spin | No power, incorrect wiring, or motor damage. | Check power source (ensure 3V DC). Verify wiring connections. If still not working, motor may be faulty. |
| Motor spins slowly or weakly | Insufficient voltage, high friction, or motor wear. | Ensure power source provides stable 3V. Check for obstructions or excessive friction. |
| Propeller is loose or falls off | Propeller not fully seated or shaft/hole worn. | Push propeller firmly onto the shaft. If it continues to be loose, the propeller or shaft may need replacement. |
| Motor overheats quickly | Overvoltage, excessive load, or prolonged operation. | Verify power source is exactly 3V. Reduce load on the motor. Allow motor to cool down between uses. |
Specifications
| Feature | Detail |
|---|---|
| Model | F130 |
| Operating Voltage | 3V DC |
| Speed | 18000 RPM (Revolutions Per Minute) |
| Material | Metal (Motor), Plastic (Propeller) |
| Manufacturer Reference | ZRCAN-B076CGY3RP |
| ASIN | B0848D81RM |
Warranty and Support
This product is typically covered by a standard manufacturer's warranty against defects in materials and workmanship. Please refer to the retailer's return policy or contact the seller directly for specific warranty terms and conditions, as warranty periods may vary.
For technical support or inquiries regarding this product, please contact your point of purchase or the manufacturer (if known) through their official support channels. Keep your purchase receipt as proof of purchase.
