1. Important Safety Instructions
Please read all instructions carefully before using this appliance and retain for future reference. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Ensure the voltage indicated on the rating label matches your mains voltage before connecting the appliance.
- Do not immerse the fan, plug, or cord in water or other liquids.
- Always unplug the fan from the power outlet before cleaning, assembling, or disassembling parts, and when not in use.
- Keep the fan out of reach of children and pets. Close supervision is necessary when the appliance is used near children.
- Do not operate the fan with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
- Avoid placing the fan in direct sunlight or near heat sources.
- Ensure the fan is placed on a stable, flat surface to prevent it from tipping over.
- Do not insert fingers or any objects through the grilles when the fan is operating.
- This appliance is for indoor use only. Do not use outdoors.
2. Product Overview
The EuropAce EQQ 7931S Trio Turbo Oscillating Fan is designed to provide powerful and efficient air circulation for your home or office. It features three independent fan units, a sensor touch control panel, and a compact base for space-saving placement.
2.1 Components
- Three Turbo Fan Units with detachable blades
- Main Body Frame
- Compact Base
- Sensor Touch Control Panel
- Remote Control
- Power Cord
2.2 Product Diagram

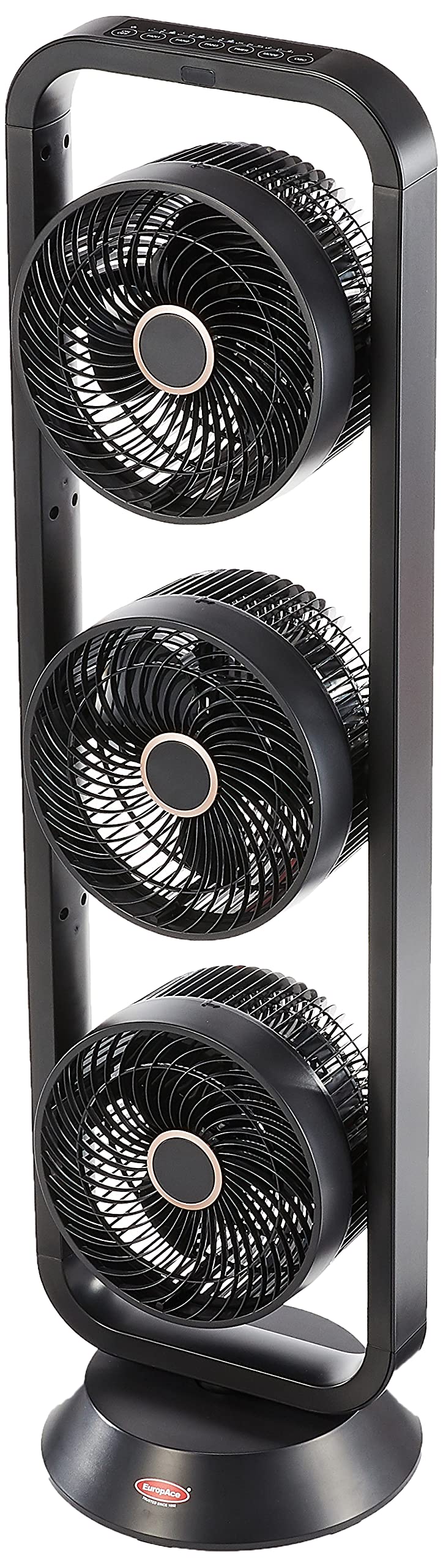

Figure 1: Front view of the EuropAce EQQ 7931S Trio Turbo Oscillating Fan, highlighting its three fan units and sleek black design.
Figure 2: Rear view of the EuropAce EQQ 7931S fan, showing the back grilles of the three fan units and the power cord extending from the base.
2.3 Control Panel and Remote Control

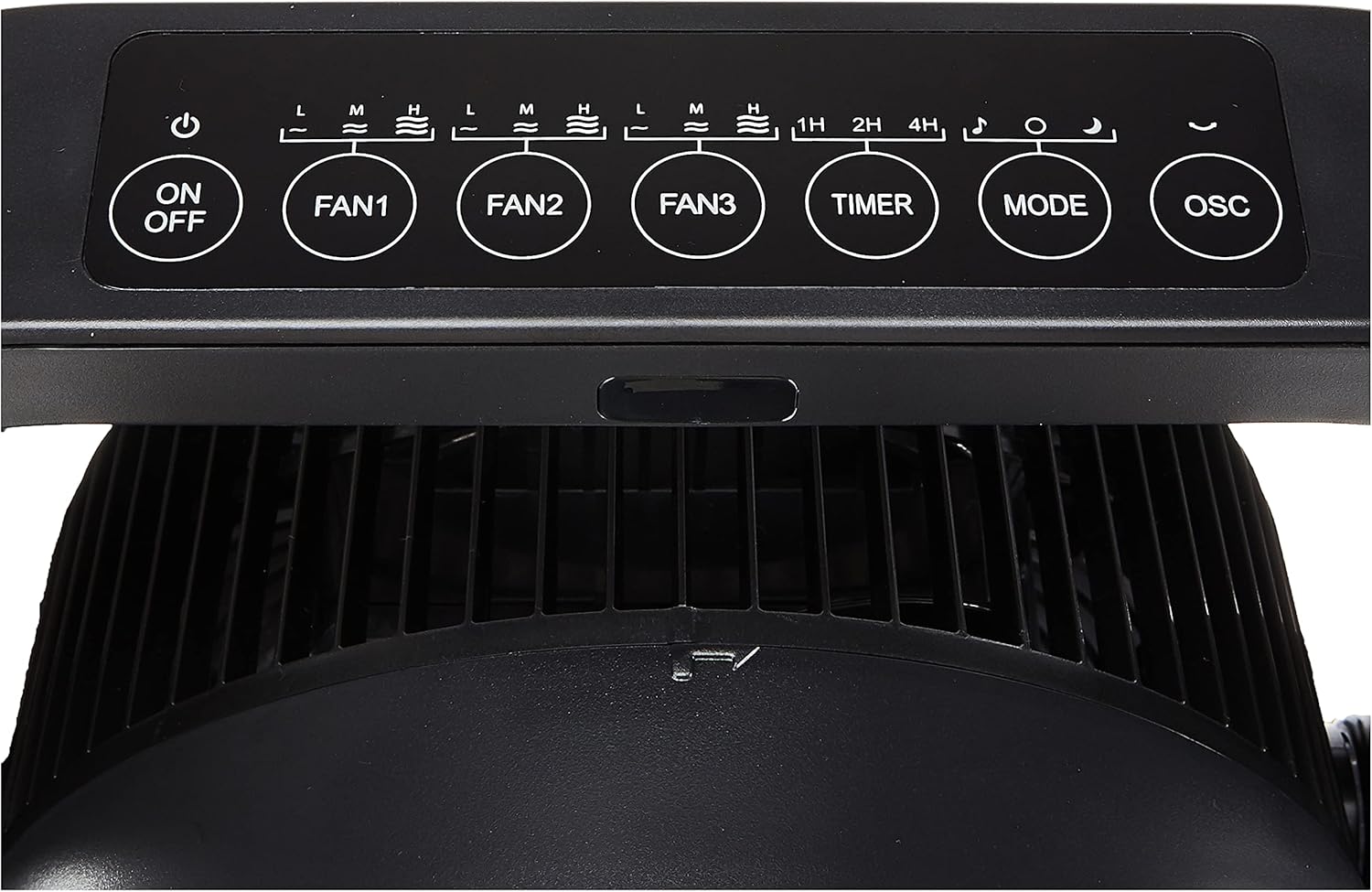

Figure 3: Close-up view of the fan's top-mounted sensor touch control panel, displaying buttons for ON/OFF, Fan 1, Fan 2, Fan 3, Timer, Mode, and Oscillation.
Figure 4: The remote control for the EuropAce EQQ 7931S fan, featuring buttons for power, mode, fan speed selection (1, 2, 3), timer, and oscillation.
3. Setup
The EuropAce EQQ 7931S fan comes largely pre-assembled. Follow these steps for initial setup:
- Unpack: Carefully remove the fan and all packaging materials from the box.
- Placement: Place the fan on a firm, level surface. Ensure there is adequate space around the fan for optimal airflow and oscillation.
- Power Connection: Insert the power plug into a standard electrical outlet (AC 220-240V, 50/60Hz).
- Remote Control Battery: If using the remote control, ensure batteries are correctly inserted. Remove any plastic tab protecting the battery compartment if present.
4. Operating Instructions
The fan can be operated using either the sensor touch control panel on the unit or the provided remote control.
4.1 Control Panel Functions
- ON/OFF (Power Button): Press to turn the fan on or off.
- FAN 1 / FAN 2 / FAN 3: Each button controls a specific fan unit. Press repeatedly to cycle through Low (L), Medium (M), and High (H) speeds for that individual fan unit.
- MODE: Press to cycle through different fan modes (e.g., Normal, Natural, Sleep). The active mode will be indicated on the display.
- TIMER: Press to set the operating timer. Each press increases the timer setting (e.g., 1H, 2H, 4H, 8H). The fan will automatically turn off after the set time.
- OSC (Oscillation): Press to activate or deactivate the oscillation function, allowing the fan to sweep air across a wider area.
4.2 Remote Control Functions
The remote control duplicates all functions available on the main control panel for convenient operation from a distance. Point the remote control towards the fan's receiver when operating.
5. Maintenance
Regular cleaning and maintenance will ensure the longevity and optimal performance of your fan.
5.1 Cleaning the Fan
- Unplug: Always ensure the fan is unplugged from the power outlet before cleaning.
- Exterior Cleaning: Wipe the exterior surfaces of the fan with a soft, damp cloth. Do not use abrasive cleaners or solvents, as these may damage the finish.
- Detachable Fan Blades: The fan blades are detachable for easy cleaning. Carefully follow the instructions in the assembly guide (if provided separately) or consult the manufacturer's website for specific blade removal procedures. Once removed, clean the blades with a soft cloth and mild detergent, then dry thoroughly before reattaching.
- Grille Cleaning: Use a vacuum cleaner with a brush attachment to remove dust from the grilles.
- Storage: If storing the fan for an extended period, cover it to protect it from dust and store in a cool, dry place.
6. Troubleshooting
If you encounter issues with your fan, please refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Fan does not turn on. | No power supply. Power button not pressed. | Check if the power cord is securely plugged into a working outlet. Press the ON/OFF button on the control panel or remote. |
| Weak or no airflow. | Fan speed set too low. Air inlets/outlets blocked. Fan blades are dirty. | Increase the fan speed using the FAN 1/2/3 buttons. Ensure nothing is obstructing the grilles. Clean the fan blades and grilles as per maintenance instructions. |
| Fan makes unusual noise. | Fan not on a level surface. Loose parts or debris inside. | Place the fan on a stable, flat surface. Unplug the fan and inspect for any foreign objects. If noise persists, contact customer service. |
| Remote control not working. | Batteries are dead or incorrectly inserted. Obstruction between remote and fan. | Replace batteries or ensure correct polarity. Remove any objects blocking the signal path. |
If the problem persists after attempting these solutions, please contact EuropAce customer service for assistance.
7. Specifications
Product specifications for the EuropAce EQQ 7931S Trio Turbo Oscillating Fan:
| Feature | Detail |
|---|---|
| Model Number | EQQ 7931S |
| Brand | EuropAce |
| Electric Fan Design | Floor Fan |
| Power Source | Corded Electric |
| Product Dimensions (D x W x H) | 12.7D x 41.3W x 12.3H centimetres |
| Special Features | Oscillating, Detachable Fan Blades |
| Controller Type | Touchpad Control |
| Number of Speeds | 3 (per fan unit) |
| Number of Blades | 5 (per fan unit) |
| Material | Plastic |
| Indoor/Outdoor Usage | Indoor |
| Included Components | 1 x Circulation Fan |

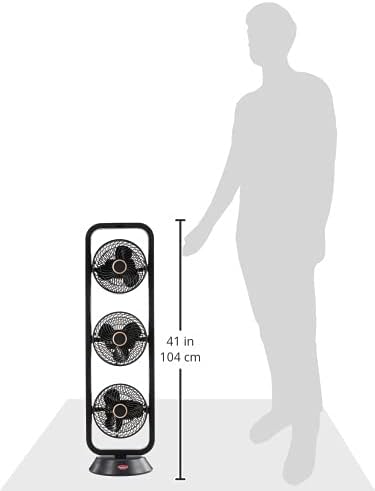

Figure 5: An illustration showing the EuropAce EQQ 7931S fan next to a human figure, indicating its height of 41 inches (104 cm) for scale.
8. Warranty and Support
The EuropAce EQQ 7931S Trio Turbo Oscillating Fan comes with a Limited Warranty. Please refer to the warranty card included with your purchase or visit the official EuropAce website for detailed terms and conditions.
For technical support, service, or warranty claims, please contact EuropAce customer service through their official channels. Keep your purchase receipt as proof of purchase for warranty purposes.
