Introduction
This manual provides detailed instructions for the proper installation, operation, and maintenance of your Kohler Graze Tall Commercial Kitchen Faucet, model 22060-CP. Please read this manual thoroughly before beginning installation or use to ensure safe and efficient operation.

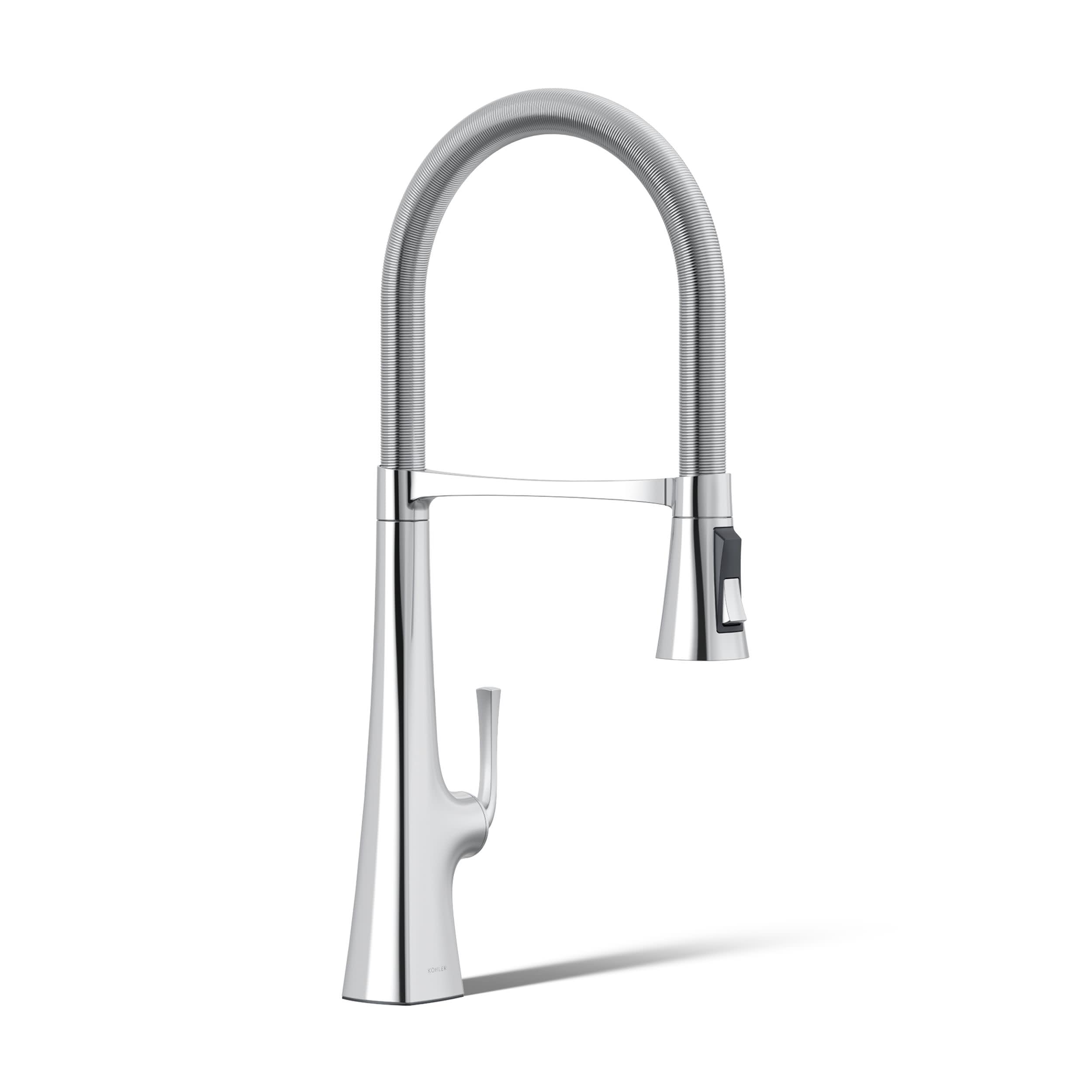

Image: Kohler Graze Tall Commercial Kitchen Faucet in Polished Chrome finish, installed in a modern kitchen setting.
Setup and Installation
The Kohler Graze faucet is designed for single-hole deck-mount installation. It comes preassembled with flexible supply lines for simplified setup. Ensure your countertop has adequate space for the faucet's height before installation.
Pre-Installation Considerations
- Verify that your sink or countertop has a single mounting hole. An escutcheon is not included.
- Confirm the faucet's height (approximately 24 5/16 inches or 618 mm) will fit under any overhead cabinets or fixtures.
- Gather necessary tools as specified in the included installation guide.

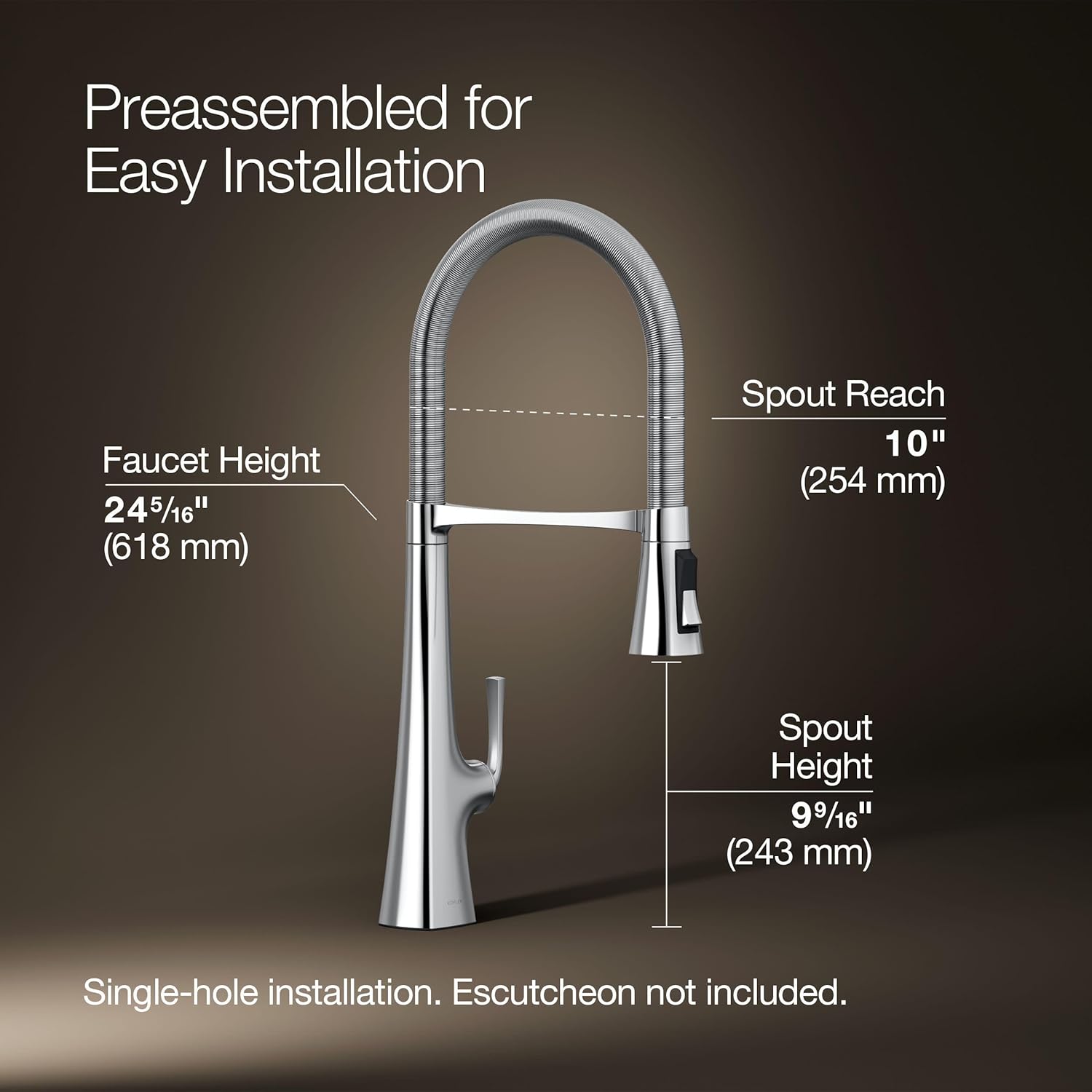

Image: Diagram illustrating the faucet's dimensions, including a faucet height of 24 5/16" (618 mm), spout reach of 10" (254 mm), and spout height of 9 9/16" (243 mm). It also notes single-hole installation and that an escutcheon is not included.
Installation Steps
- Turn off the water supply to your kitchen sink.
- Remove any existing faucet.
- Insert the new Kohler Graze faucet into the single mounting hole on your sink or countertop.
- Secure the faucet from underneath the sink using the provided mounting hardware.
- Connect the preassembled flexible supply lines to your hot and cold water supply valves. Ensure connections are tight to prevent leaks.
- Connect the sprayhead hose to the main water line.
- Turn on the water supply and check for leaks.
- Test the faucet's operation and spray functions.
Operating Instructions
The Kohler Graze faucet features a single lever handle for water temperature and flow control, and a pull-down sprayhead with three distinct spray functions.
Water Flow and Temperature Control
- To turn the water on or off, move the single lever handle up or down.
- To adjust water temperature, move the lever handle left for hot water and right for cold water.
Sprayhead Functions
The pull-down sprayhead offers three spray modes, easily switchable with touch-control buttons:
- Stream: Provides an aerated flow for everyday tasks like filling pots.
- Sweep Spray: Features specially angled nozzles that form a wide, powerful blade of water, ideal for sweeping food debris off dishes and cleaning the sink.
- BerrySoft Spray: A light, gentle spray designed for rinsing delicate produce.
The Switch-Grip sprayhead can rotate in 90-degree increments, allowing you to orient the control buttons as preferred. The sprayhead utilizes DockNetik® Technology to securely lock it into place when not in use.
Image: Visual demonstration of the three spray functions: Aerated Stream for general use, Sweep Spray for powerful cleaning, and BerrySoft Spray for gentle rinsing of produce.
Image: Close-up views highlighting the MasterClean™ Sprayface, designed to resist mineral buildup for easy cleaning, and DockNetik® Technology, which securely locks the sprayhead into place.
Care and Maintenance
Proper care and maintenance will ensure the longevity and performance of your Kohler Graze faucet.
- Cleaning the Finish: The Vibrant® finish features ScratchShield® Technology, designed to resist tarnish, corrosion, and scratches. Clean the faucet regularly with a soft, damp cloth and mild soap. Avoid abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the finish.
- Cleaning the Sprayface: The MasterClean™ sprayface is engineered to withstand mineral buildup. If mineral deposits accumulate, gently rub the rubber nozzles to dislodge them.
- Ceramic Disc Valves: The faucet is equipped with ceramic disc valves for durable, leak-free performance. If you experience persistent drips or leaks, contact Kohler customer service or a qualified plumber.
Image: Diagram showing the three layers of metal coating (Watts Nickel, Brightened Nickel, Chrome) that comprise the PVD finish with ScratchShield® Technology, designed to resist tarnish, corrosion, and scratches.
Image: Close-up of ceramic disc valves, highlighting their role in preventing leaks for durable performance.
Troubleshooting
This section provides basic troubleshooting steps for common issues. For more complex problems, please refer to the official Kohler website or contact customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Low Water Flow | Clogged aerator or mineral buildup in sprayface. | Unscrew the aerator and clean any debris. For sprayface, rub the rubber nozzles to clear mineral deposits. |
| Leaking from Spout | Worn ceramic disc valve or loose connections. | Ensure supply line connections are tight. If leaking persists, the ceramic disc valve may need replacement by a qualified professional. |
| Sprayhead Does Not Dock Properly | Obstruction or issue with DockNetik® Technology. | Check for any obstructions preventing the sprayhead from seating correctly. Ensure the weight on the hose under the sink is positioned correctly. |
Specifications
| Feature | Detail |
|---|---|
| Brand | Kohler |
| Model Number | 22060-CP |
| Product Type | Tall Commercial Kitchen Faucet with Pull-Down Sprayer |
| Finish | Polished Chrome |
| Material | Alloy Steel (faucet body), Zinc (handle) |
| Mounting Type | Deck Mount (Single-hole) |
| Number of Handles | 1 (Lever Handle) |
| Spray Functions | Stream, Sweep Spray, BerrySoft Spray |
| Faucet Height | 24 5/16 inches (618 mm) |
| Spout Reach | 10 inches (254 mm) |
| Spout Height | 9 9/16 inches (243 mm) |
| Item Weight | 7.4 Pounds |
| UPC | 885612818287 |
Warranty Information
The Kohler Graze Tall Commercial Kitchen Faucet is covered by a KOHLER Faucet Lifetime Limited Warranty. This warranty applies for as long as the original consumer/purchaser owns his or her home.
For complete warranty details, including terms, conditions, and how to make a claim, please visit the official Kohler website:
Image: Kohler Lifetime Limited Warranty badge, emphasizing superior performance and finishes.
Customer Support
If you require further assistance with your Kohler Graze faucet, including installation questions, troubleshooting, or warranty claims, please contact Kohler customer support through their official website or by phone. Refer to your product packaging or the Kohler website for the most current contact information.
