1. Introduction
This manual provides essential information for the proper installation, operation, and maintenance of the Maxline M8032 1" Maxline Piping x 1" Male NPT Union Fitting. Please read this manual thoroughly before use to ensure safe and efficient operation.
The Maxline M8032 is a straight adaptor fitting designed for use with 1" Maxline tubing. It facilitates the connection of regulators, filters, and other equipment requiring a 1" male NPT hook-up within an airline system.
2. Product Overview
The M8032 fitting is constructed from solid brass with a nickel-plated finish for enhanced corrosion resistance. It features a double O-ring seal for a leak-free connection and split ring connections for easy disassembly when required.
Key Features:
- Nickel plated brass construction for corrosion resistance.
- Maximum working pressure of 175 PSI.
- Double O-ring compression style fitting ensures a secure, leak-free seal.
- Tubing can be removed from the fitting for maintenance or system modification.
- Specifically designed for use with the Maxline 1" system.

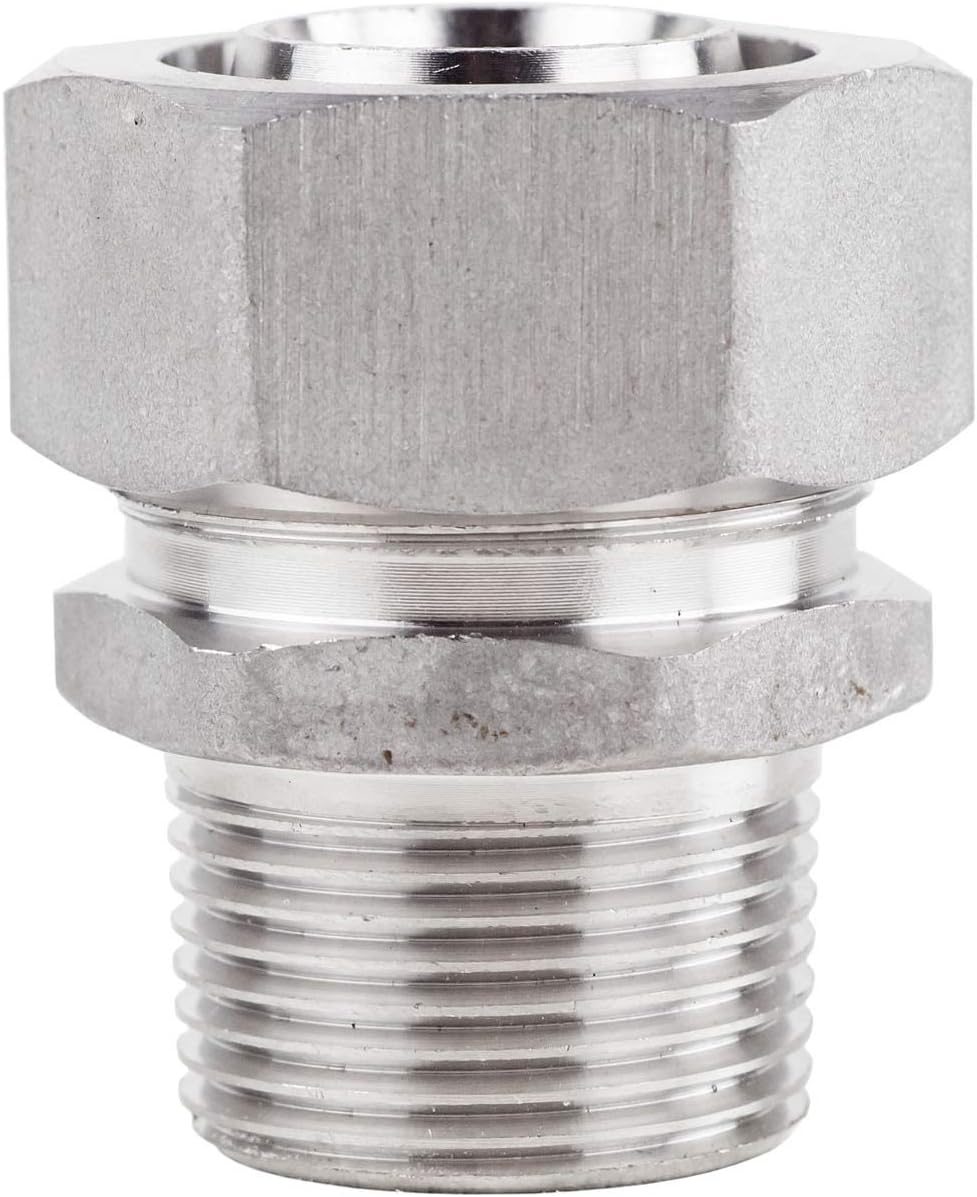

Figure 2.1: Maxline M8032 1" NPT Adaptor Fitting. This image shows the metallic fitting with a hexagonal body and threaded end, designed for connecting air lines.
3. Setup and Installation
The M8032 fitting is designed for straightforward installation within a Maxline 1" air piping system. Ensure all components are clean and free of debris before assembly.
- Prepare Tubing: Cut the Maxline 1" tubing squarely and deburr the edges to ensure a smooth insertion.
- Insert Tubing: Push the prepared 1" Maxline tubing firmly into the compression end of the M8032 fitting until it bottoms out. The double O-ring seal will create a secure connection.
- Thread Connection: Thread the 1" Male NPT end of the M8032 fitting into the desired component (e.g., regulator, filter, manifold) that has a corresponding 1" Female NPT port. Use appropriate thread sealant (e.g., PTFE tape or pipe dope) on the NPT threads to ensure a leak-tight connection.
- Tighten: Hand-tighten the NPT connection, then use a wrench to tighten an additional 1 to 2 turns past hand-tight, or as recommended by the sealant manufacturer. Do not overtighten.
- Verify Connection: Once installed, visually inspect all connections.
Note: This fitting is exclusively for use with Maxline 1" tubing. Do not attempt to use it with other tubing sizes or types.
4. Operating Considerations
Once installed, the M8032 fitting operates passively as a connection point within your compressed air system. Adhere to the following guidelines for optimal performance:
- Pressure Limits: Do not exceed the maximum working pressure of 175 PSI. Operating above this limit can lead to system failure and potential injury.
- Temperature Range: Ensure the operating environment temperature is within acceptable limits for compressed air systems to prevent material degradation.
- System Integrity: Regularly check the entire air system for leaks, especially at connection points. Leaks can reduce system efficiency and increase energy consumption.
5. Maintenance
The Maxline M8032 fitting requires minimal maintenance. Regular inspection is key to ensuring long-term reliability.
- Leak Detection: Periodically check all connections for air leaks using a soapy water solution. Bubbles indicate a leak.
- Cleaning: If necessary, clean the exterior of the fitting with a damp cloth. Do not use harsh chemicals or abrasive materials that could damage the nickel plating.
- O-Ring Inspection: If disassembling the fitting, inspect the double O-rings for signs of wear, cracking, or damage. Replace O-rings if they appear compromised to maintain a proper seal.
- Reassembly: When reassembling, ensure the tubing is fully inserted and NPT threads are properly sealed and tightened.
6. Troubleshooting
Most issues related to the M8032 fitting involve air leaks. Follow these steps to troubleshoot common problems:
| Problem | Possible Cause | Solution |
|---|---|---|
| Air Leak at Tubing Connection | Tubing not fully inserted; damaged O-rings; improperly cut tubing. | Ensure tubing is pushed completely into the fitting. Disassemble, inspect, and replace O-rings if damaged. Re-cut tubing squarely if necessary. |
| Air Leak at NPT Threaded Connection | Insufficient thread sealant; improper tightening; damaged threads. | Disassemble, clean threads, reapply thread sealant (PTFE tape or pipe dope), and re-tighten properly. If threads are damaged, replace the component. |
| Fitting Does Not Hold Pressure | Severe leak; fitting damage; system pressure exceeds rating. | Identify and seal all leaks. Inspect fitting for visible damage; replace if damaged. Verify system pressure does not exceed 175 PSI. |
7. Specifications
Detailed technical specifications for the Maxline M8032 Adaptor Fitting:
- Part Number: M8032
- Compatible Tubing: 1" Maxline Tubing
- NPT Size: 1" Male NPT
- Material: Solid Brass, Nickel Plated
- Seal Type: Double O-Ring Compression
- Maximum Working Pressure: 175 PSI
- Item Weight: Approximately 249 g (0.55 lbs)
- Dimensions (Package): Approximately 18.3 x 16.6 x 4.4 cm
- UPC: 684659129727
8. Warranty and Support
For information regarding product warranty, returns, or technical support, please refer to the official Maxline or Rapid Air website, or contact your authorized dealer. Ensure you have your product model number (M8032) and purchase details available when seeking support.
This product is designed for professional installation and use within specified parameters. Improper installation or use outside of the stated specifications may void any applicable warranty.
