Introduction
This instruction manual provides essential information for the safe and correct installation, operation, and maintenance of your Schulte Sliding Bathtub Screen. Please read this manual thoroughly before beginning installation or use, and retain it for future reference. This product is designed to transform your bathtub into a functional shower area, offering a practical and hygienic alternative to shower curtains.
The Schulte Sliding Bathtub Screen features a white profile and two transparent 6mm safety glass panels, suitable for niche installations with an adjustment range of 157-161 cm. Its design ensures maximum watertightness and ease of use.
Setup and Installation
Installation of the bathtub screen requires assembly. A detailed assembly instruction guide and a mounting kit are included with your product. Follow these instructions carefully for a secure and watertight installation.
Key Installation Points:
- Ensure the installation surface is clean, dry, and level.
- Verify all components listed in the included assembly instructions are present before starting.
- The screen is designed for niche installation and offers an adjustment range of 157-161 cm to accommodate varying wall dimensions.
- Pay close attention to sealing procedures to ensure maximum watertightness and prevent leaks.

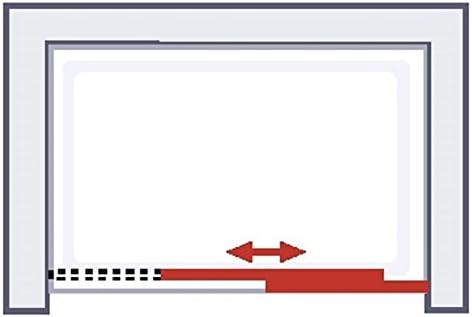

Figure 1: Diagram showing the adjustable range for proper niche installation. The red section indicates the sliding panel, and the arrows show its movement.
Figure 2: The Schulte sliding bathtub screen installed, showcasing its two transparent glass panels and white profile.
Figure 3: Detail of the sealing components, crucial for achieving maximum watertightness and preventing water leakage.
Operating Instructions
The Schulte Sliding Bathtub Screen features two panels, one fixed and one sliding. To open or close the screen, gently slide the movable panel along its track. Ensure the panel moves smoothly without excessive force. When closed, the panels form a complete enclosure to prevent water splashes during showering.
- Always operate the sliding panel with care to avoid damage to the glass or mechanism.
- Ensure the screen is fully closed during showering to maintain watertightness.
Maintenance
Regular cleaning and maintenance will ensure the longevity and optimal performance of your bathtub screen. The transparent safety glass is designed for easy cleaning.
Cleaning Instructions:
- Clean glass panels regularly with a soft cloth and a non-abrasive glass cleaner.
- Avoid using harsh chemicals, abrasive sponges, or scouring powders, as these can damage the glass surface or the profile finish.
- Wipe down the aluminum profiles with a damp cloth and mild detergent.
- Periodically clean the sliding tracks to remove any soap residue or debris that could hinder smooth operation.
Figure 4: The 'Easy to Clean' emblem highlights the product's design for simple and effective maintenance.
Troubleshooting
If you encounter any issues with your Schulte Bathtub Screen, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Water leakage | Improper sealing during installation; worn seals; debris in seals. | Check all seals and silicone joints for proper application and integrity. Reapply silicone if necessary. Clean seals and replace if worn. |
| Sliding panel is stiff or difficult to move | Accumulation of dirt or soap residue in the tracks; damaged rollers. | Clean the sliding tracks thoroughly. Inspect rollers for damage and replace if necessary. |
| Glass panel appears scratched or cloudy | Use of abrasive cleaners; hard water stains. | Use only non-abrasive glass cleaners. For hard water stains, use a specialized descaling product designed for glass. |
If the problem persists after attempting these solutions, please contact customer support.
Specifications
| Feature | Detail |
|---|---|
| Model Number | 4060991050831 |
| Dimensions (L x W x H) | 160 x 5 x 150 cm |
| Weight | 43 Kilograms |
| Glass Thickness | 6 Millimeters |
| Number of Panels | 2 |
| Profile Color | White |
| Glass Type | Transparent Safety Glass |
| Installation Type | Screw-in (Niche installation) |
| Adjustment Range | 157-161 cm (for 160 cm bathtub) |
| Material | Glass |
| Assembly Required | Yes |
| Components Included | Bathtub screen, mounting kit, assembly instructions |
Warranty Information
Schulte provides a manufacturer's warranty for this product. The product warranty is 10 years. Additionally, a 10-year guarantee is provided on the availability of spare parts (excluding wear parts).
Please retain your proof of purchase for any warranty claims.
Customer Support
For further assistance, technical questions, or to order spare parts, please refer to the contact information provided in your product packaging or visit the official Schulte website. When contacting support, please have your model number (4060991050831) and purchase details readily available.
