BMotorParts Carburetor Instruction Manual

Introduction

This manual provides essential information for the installation, operation, and maintenance of your BMotorParts replacement carburetor, designed for the Champion 75531i 3100 Watt RV Inverter Generator. Proper installation and maintenance are crucial for optimal performance and longevity of your generator.

Safety Information

WARNING: Always exercise extreme caution when working with fuel systems and internal combustion engines. Failure to follow safety instructions can result in serious injury or property damage.

• Ensure the generator is turned off, cooled down, and disconnected from any power source before beginning any work.
• Work in a well-ventilated area to avoid inhaling fuel fumes.
• Wear appropriate personal protective equipment (PPE), including gloves and eye protection.
• Keep open flames, sparks, and other ignition sources away from fuel and fuel system components.
• Dispose of fuel and used parts according to local regulations.
• If you are unsure about any step, consult a qualified technician.

Package Contents

Verify that all items are present and undamaged upon opening the package.

• BMotorParts Carburetor (1 unit)
• Power Cords (if included with the specific carburetor model)

Image 1: The BMotorParts carburetor as it appears in its packaging, showing the product label and protective bubble wrap.

Setup and Installation

This section outlines the general procedure for replacing the carburetor. For detailed, model-specific instructions, always refer to the original Champion 75531i generator owner's manual.

Required Tools (Not Included):

• Socket wrench set
• Screwdriver set
• Pliers
• Fuel line clamps
• Clean rags
• Container for draining fuel

Installation Steps:

1. Preparation: Ensure the generator is off, cool, and the fuel valve is closed. Disconnect the spark plug wire to prevent accidental starting.
2. Drain Fuel: Carefully drain all fuel from the fuel tank and carburetor float bowl into an approved container.
3. Remove Air Filter Assembly: Disassemble and remove the air filter housing and any associated ducting to access the carburetor.
4. Disconnect Linkages and Hoses: Carefully disconnect the fuel line, choke linkage, throttle linkage, and any other hoses or wires attached to the old carburetor. Note their positions for reassembly.
5. Remove Old Carburetor: Unbolt the old carburetor from the engine intake manifold. Be mindful of gaskets.
6. Install New Carburetor: Install the new BMotorParts carburetor, ensuring new gaskets (if provided or required) are properly seated. Tighten mounting bolts securely but do not overtighten.
7. Reconnect Components: Reattach all fuel lines, linkages, hoses, and wires to their correct positions on the new carburetor. Double-check all connections for security.
8. Reassemble Air Filter: Reinstall the air filter assembly.
9. Reconnect Spark Plug: Reconnect the spark plug wire.

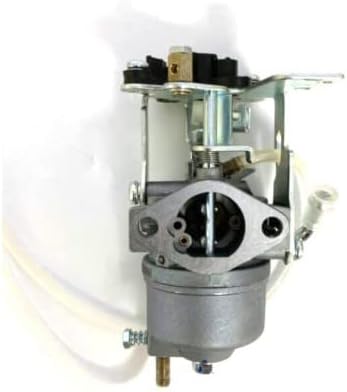

Image 2: A close-up view of the BMotorParts carburetor, highlighting its various components and connections.

Operating (Post-Installation)

After installing the new carburetor, perform the following checks before operating the generator:

• Fuel Check: Refill the fuel tank with fresh, clean fuel appropriate for your generator. Open the fuel valve.
• Leak Check: Inspect all fuel lines and connections for any signs of leaks. Address any leaks immediately.
• Initial Start: Follow the generator's original starting procedure. The engine may require a few extra pulls or longer cranking to prime the new carburetor with fuel.
• Idle Adjustment: Once started, allow the engine to warm up. If the idle is rough or inconsistent, minor adjustments to the idle screw on the carburetor may be necessary. Refer to your generator's manual for specific adjustment procedures.
• Performance Test: Run the generator under a light load to ensure stable operation and proper power output.

Maintenance

Regular maintenance of your carburetor and fuel system will ensure reliable performance of your generator.

• Fuel Quality: Always use fresh, clean, unleaded gasoline. Stale or contaminated fuel is a primary cause of carburetor issues. Consider using a fuel stabilizer if the generator will be stored for extended periods.
• Fuel Filter: Regularly inspect and replace the fuel filter as recommended by your generator's manufacturer.
• Carburetor Cleaning: If the generator experiences rough running, hard starting, or loss of power, the carburetor may require cleaning. This typically involves disassembling the carburetor, cleaning jets and passages with carburetor cleaner, and replacing gaskets. This procedure should only be performed by individuals with mechanical experience.
• Storage: Before long-term storage, drain the fuel tank and run the engine until it stops from lack of fuel, or use a fuel stabilizer to prevent gum and varnish buildup in the carburetor.

Troubleshooting

This section addresses common issues that may arise after carburetor installation. Always refer to your generator's original manual for comprehensive troubleshooting.

Specifications

This carburetor is a replacement part designed to meet the specifications of the Champion 75531i 3100 Watt RV Inverter Generator.

• Brand: BMotorParts
• Compatible Generator Model: Champion 75531i
• Compatible Generator Wattage: 3100 watts (Running)
• Material: Steel, Aluminum, Plastic, Rubber
• Engine Type (Compatible): 4 Stroke
• Engine Displacement (Compatible): 418 Cubic Centimeters

Warranty and Support

Specific warranty details for this BMotorParts carburetor may vary. Please refer to the product listing or contact BMotorParts directly for warranty information.

For technical support or inquiries regarding this product, please contact BMotorParts customer service through the retailer where the item was purchased or visit the official BMotorParts website if available.

For support related to your Champion 75531i generator, please consult the original manufacturer's documentation or contact Champion Power Equipment directly.
