1. Introduction
This manual provides essential information for the proper use, installation, and maintenance of your FUSHIBEARING 24377 Hybrid Ceramic Bearings. Please read this manual thoroughly before using the product to ensure optimal performance and longevity.
What is a Hybrid Ceramic Bearing?
A ceramic hybrid bearing is a combination of ceramic balls and bearing quality steel rings. These bearings combine hardened steel rings with rolling elements made of high-performance ceramic materials, offering an increasingly popular option for demanding applications due to their unique properties.
2. Product Overview
The FUSHIBEARING 24377 Hybrid Ceramic Bearing is designed for applications requiring high performance and durability, such as bicycle hubs. Each package includes two (2) bearings.

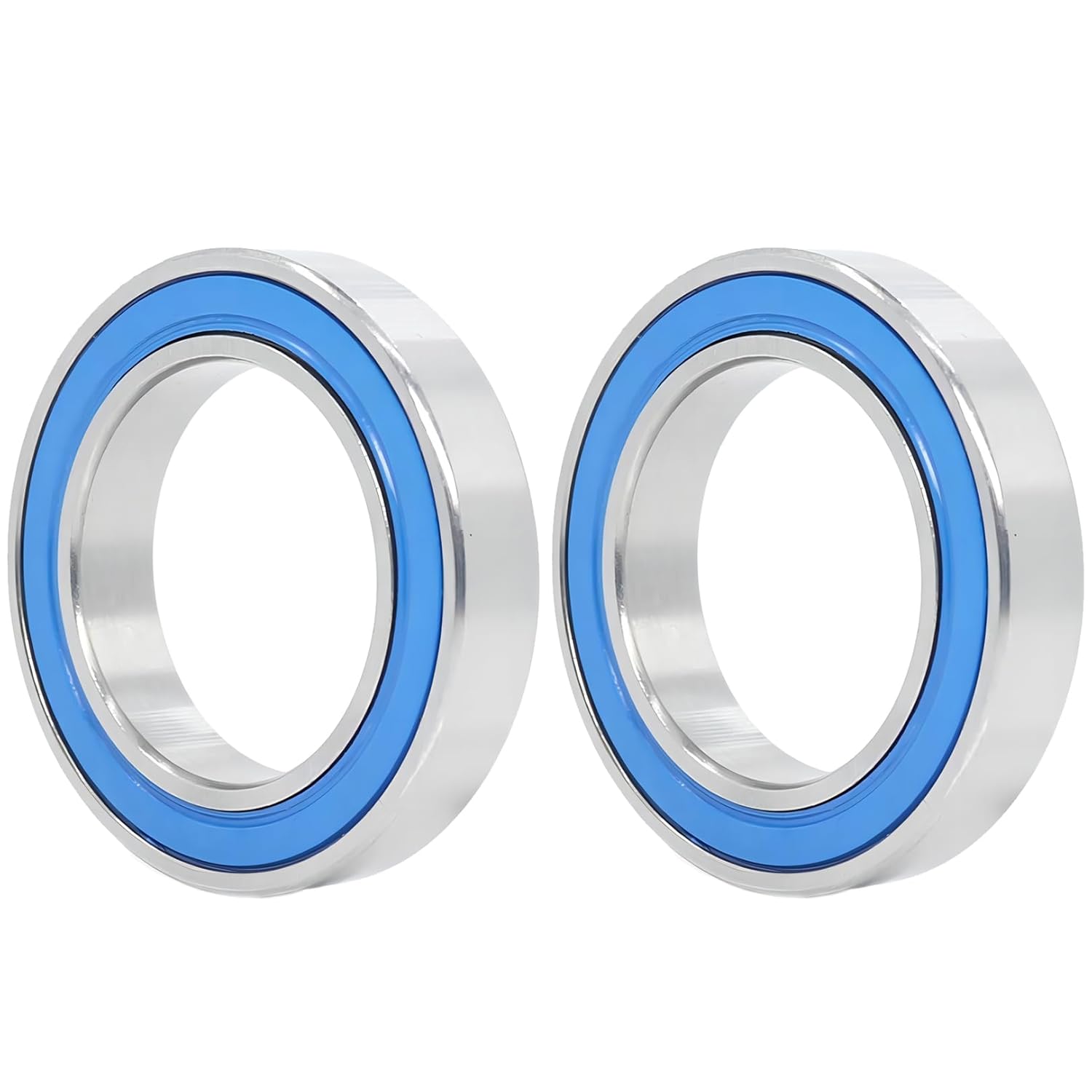

Figure 2.1: Two FUSHIBEARING 24377 Hybrid Ceramic Bearings.
Bearing Structure
The 24377 Hybrid Ceramic Bearing features a robust construction:
- Outer Ring & Inner Ring: Constructed from 52100 Chrome Steel for durability.
- Balls: G5 grade Si3N4 Silicon Nitride Ceramic Balls, known for their hardness and low friction.
- Cage: Nylon-PA66 high-speed ball retainer for smooth operation.
- Seals: Two rubber seals (2RS) for enhanced protection against contaminants and longer service life.
- Lubrication: Pre-greased with high-quality Mobil grease.
Figure 2.2: Close-up of a single FUSHIBEARING 24377 Hybrid Ceramic Bearing.
3. Setup and Installation
Proper installation is crucial for the performance and lifespan of your bearings. Always ensure a clean working environment and use appropriate tools.
General Installation Guidelines:
- Cleanliness: Ensure the bearing housing and shaft are clean and free from debris, dust, or old grease.
- Tools: Use a bearing press or a soft-faced hammer with a suitable drift to install the bearing. Never strike the inner ring directly when pressing onto a shaft, or the outer ring when pressing into a housing, unless specifically designed for that purpose.
- Alignment: Ensure the bearing is aligned correctly before applying pressure. Uneven force can damage the bearing.
- Lubrication: These bearings are pre-greased and sealed. Do not attempt to open or add additional grease unless specified for a particular application.
- Fit: Bearings typically require an interference fit. Ensure the shaft and housing dimensions match the bearing specifications.
4. Operating Considerations
Once installed, these bearings are designed for high-speed rotation and demanding conditions. To ensure optimal operation:
- Load Capacity: Do not exceed the specified dynamic and static load ratings to prevent premature wear or failure.
- Environmental Factors: While sealed, extreme temperatures, excessive moisture, or highly corrosive environments can impact bearing life.
- Vibration and Noise: Monitor for unusual vibrations or noise, which could indicate improper installation or impending failure.
5. Maintenance
FUSHIBEARING 24377 Hybrid Ceramic Bearings are designed to be low-maintenance due to their sealed and pre-greased nature. However, regular inspection is recommended.
Inspection:
- Visual Check: Periodically inspect the outer surfaces of the bearings for any signs of damage, corrosion, or seal degradation.
- Rotation Check: If accessible, gently rotate the component the bearing is installed in to feel for any roughness or excessive play.
- Cleaning: If the exterior of the bearing becomes dirty, wipe it clean with a soft cloth. Avoid using harsh solvents that could damage the rubber seals.
These bearings are sealed for life and generally do not require re-lubrication under normal operating conditions.
6. Troubleshooting
If you experience issues with your bearings, consider the following common problems and solutions:
| Symptom | Possible Cause | Solution |
|---|---|---|
| Excessive Noise / Grinding | Contamination, improper installation, worn out bearing, excessive load. | Inspect for debris. Re-install correctly. Replace if worn. Reduce load if possible. |
| Excessive Play / Looseness | Improper fit, worn out bearing, damaged housing/shaft. | Check fit tolerances. Replace bearing. Inspect and repair housing/shaft. |
| Overheating | Excessive speed, improper lubrication (unlikely for sealed), misalignment, excessive preload. | Ensure operating within speed limits. Check alignment. Reduce preload if applicable. |
| Short Lifespan | Overloading, contamination, improper installation, material fatigue. | Review application requirements. Ensure proper installation and maintenance. |
7. Specifications
Detailed technical specifications for the FUSHIBEARING 24377 Hybrid Ceramic Bearing:
| Attribute | Value |
|---|---|
| Model | 24377 RS |
| Structure | Deep Groove Ball |
| Material | Hybrid Ceramic (52100 Chrome Steel Rings + Si3N4 Ceramic Balls) |
| Bore Diameter (d) | 24 mm |
| Outer Diameter (D) | 37 mm |
| Width (B) | 7 mm |
| Closures | Rubber Sealed (2RS) |
| Lubrication | Grease |
| Clearance | C0 |
| Dynamic Load Rating (Cr) | 2764 Newtons |
| Static Load Rating (Cor) | 1872 Newtons |
| Weight (per PC) | 40 Grams (approx. 0.040 kg) |
| Quantity per Lot | 2 PC |
| Bearing Number | 24377RS |
| Manufacturer | FUSHI |
Dimensional Measurements:
Figure 7.1: Inner Diameter (24mm).
Figure 7.2: Outer Diameter (37mm).
Figure 7.3: Width (7mm).
Figure 7.4: Approximate Weight (19.26g shown for a single bearing).
8. Warranty Information
FUSHIBEARING products are manufactured to high-quality standards. For specific warranty terms and conditions, please refer to the product packaging or contact FUSHIBEARING customer support. Warranty typically covers manufacturing defects under normal use conditions.
9. Customer Support
If you have any questions, require technical assistance, or need to report an issue with your FUSHIBEARING product, please contact our customer support team. Refer to the FUSHIBEARING official website or your purchase documentation for the most current contact information.
For more information, visit the FUSHIBEARING Store on Amazon.
