MEBLE FURNITURE & RUGS 40" Electric Fireplace Recessed Wall Mounted Heater Instruction Manual

1. Important Safety Information

Please read and understand this entire owner's manual, including all safety information, before plugging in or using this product. Failure to do so could result in fire, electric shock, or serious personal injury.

• Always disconnect the fireplace from the power supply before cleaning or performing any maintenance.
• Do not operate any fireplace with a damaged cord or plug, or if the heater has malfunctioned or been dropped or damaged in any manner.
• Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9m) from the front of the heater and keep them away from the sides and rear.
• Extreme caution is necessary when any heater is used by or near children or invalids and whenever the fireplace is left operating and unattended.
• Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the heater.
• This fireplace is hot when in use. To avoid burns, do not let bare skin touch hot surfaces.
• Do not use outdoors.

2. Product Overview

The MEBLE FURNITURE & RUGS 40" Electric Fireplace is a versatile heating and decorative appliance designed for both wall-mounted and recessed installations. It features a sleek glass front panel and a crystal glass bed, offering a modern aesthetic with functional heating capabilities.

Key Features:

• Installation: Wall Mounted or Wall Recessed.
• Heating: 1500W/5100BTU, capable of heating rooms up to 400 square feet.
• Flame Effects: Realistic flame effect with 3 changeable flame colors. Can be operated with or without heat.
• Control: Remote control and integrated touch panel for on/off, flame color selection, temperature control, timer setting, and dimmer.
• Safety: cETLus certified.
• Dimensions: 18.38 inches (H) x 40 inches (W) x 4.74 inches (D).

Image: The 40-inch electric fireplace in a white finish, displaying blue flame effects.

Image: Diagram illustrating key features such as crystal stones, tempered glass front screen, remote control, temperature control, dimmer, timer setting, 1500 Watts / 5100 BTU, and heating coverage up to 400 sq ft.

3. Setup and Installation

This electric fireplace can be installed as a wall-mounted unit or recessed into a wall. Ensure you have the necessary tools and follow all local electrical codes.

Installation Options:

• Wall-Mounted: The unit is secured directly to the wall surface.
• Recessed: The unit is inserted into a prepared opening in the wall, providing a flush finish.

Installation Video Guide:

4. Operating Instructions

The fireplace can be operated using the included remote control or the touch panel located on the unit.

Remote Control Functions:

• Power On/Off: Activates or deactivates the unit.
• Flame Color: Cycles through 3 changeable flame colors (e.g., red, blue, purple).
• Temperature Control: Adjusts the heat output.
• Timer Setting: Sets an automatic shut-off time.
• Dimmer: Adjusts the brightness of the flame effect.

Touch Panel Controls:

The touch panel provides direct access to most functions available on the remote control.

Flame Color Examples:

Image: Fireplace with red flame effect.

Image: Fireplace with blue flame effect.

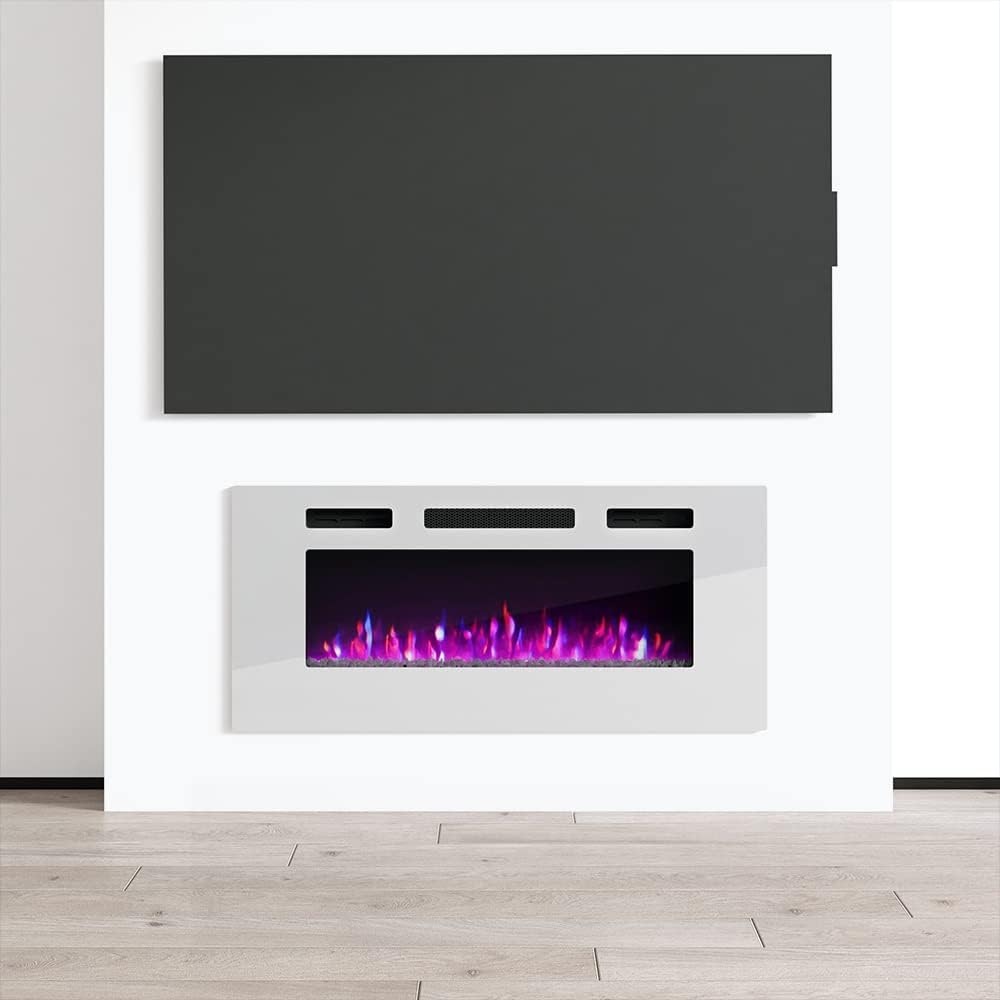

Image: Fireplace with purple flame effect.

Image: Fireplace with a mix of flame colors.

Operation Video Guides:

5. Maintenance

Regular maintenance ensures the longevity and optimal performance of your electric fireplace.

• Cleaning: Dust the unit regularly with a soft, dry cloth. For the glass front, use a soft cloth and a non-abrasive glass cleaner. Do not use harsh chemicals or abrasive materials.
• Ventilation: Ensure that the air inlet and outlet vents are clear of any obstructions to maintain proper airflow and prevent overheating.
• Storage: If storing the fireplace for an extended period, unplug it and store it in a dry, dust-free location.

6. Troubleshooting

If you experience issues with your fireplace, refer to the following common troubleshooting steps:

• No Power:
  • Ensure the power cord is securely plugged into a grounded outlet.
  • Check the circuit breaker for your home to ensure power is supplied to the outlet.
  • Verify the power switch on the fireplace is in the 'ON' position.
• No Heat Output:
  • Confirm that the heat function is activated via the remote or touch panel.
  • Check for any obstructions in the air inlet or outlet vents.
  • Ensure the room temperature setting is higher than the current room temperature.
• Remote Control Not Working:
  • Replace the batteries in the remote control.
  • Ensure there is a clear line of sight between the remote control and the fireplace's receiver.
• Flame Effect Not Working:
  • Ensure the flame effect function is activated.
  • Check if the dimmer setting is too low.

If problems persist, contact customer support.

7. Specifications

Image: Detailed dimensions of the electric fireplace.

8. Warranty and Support

This MEBLE FURNITURE & RUGS electric fireplace comes with a Limited Warranty.

For warranty claims, technical assistance, or any product-related inquiries, please contact the manufacturer:

• Manufacturer: Meble Furniture & Rugs
• Customer Service Phone: 909-206-6608
• Customer Service Email: service2@fireandfireplaceservice.com
