Beaquicy SEN01114 Furnace Flame Sensor Instruction Manual

1. Introduction

This manual provides essential information for the installation, operation, and maintenance of the Beaquicy SEN01114 Furnace Flame Sensor. This component is designed to detect the presence of a flame in your furnace, ensuring safe and efficient operation by preventing uncombusted gas from accumulating.

2. Safety Information

WARNING: Before performing any installation or maintenance, always disconnect power to the furnace and shut off the gas supply. Failure to do so can result in serious injury, fire, or explosion. If you are unsure about any step, consult a qualified HVAC technician.

Wear appropriate personal protective equipment, such as work gloves, during installation.

3. Product Overview

The SEN01114 Furnace Flame Sensor is a critical safety device for gas furnaces. It is constructed from high-quality, wear-resistant stainless steel and ceramics to ensure durability and prevent cracking or breaking during operation or assembly. Its primary function is to monitor the burner for flame presence.

Image 1: Beaquicy SEN01114 Furnace Flame Sensor. This image shows the overall design of the flame sensor, highlighting its L-shape and connection point.

Image 2: Detailed view of the SEN01114 Flame Sensor, showing its premium quality material, safe flame detection design, and white and silver color.

4. Specifications

Image 3: Detailed dimensions of the SEN01114 Furnace Flame Sensor, showing length, width, and specific measurements for accurate replacement.

5. Compatibility

The SEN01114 Flame Sensor is a direct replacement for the following part numbers:

• SEN00491
• SEN1114
• SEN01114
• PSE-T19
• B340888-2SEN337
• SEN441
• SEN0441
• SEN491

It is compatible with various Trane and American Standard furnace models, including but not limited to:

• ADC1B040A9241AA, ADC1B040A9241AB, ADC1B040A9241AC, ADC1B040A9241AD
• ADC1B060A9361AA, ADC1B060A9361AB, ADC1B060A9361AC, ADC1B060A9361AD
• ADC1B080A9421AA, ADC1B080A9421AB, ADC1B080A9421AC, ADC1B080A9421AD, ADC1B080A9421AE
• ADC1C100A9481AA, ADC1C100A9481AB, ADC1C100A9481AC
• AUD1B080A9H31BB, AUD1B100A9361AA, AUD1B100A9361AB, AUD1B100A9451AA, AUD1B100A9451AB, AUD1B100A9H31AA, AUD1B100A9H31BA, AUD1B100A9H31BB, AUD1C080A9601AA, AUD1C100A9481AB, AUD1C100A9601AA, AUD1C100A9601AB, AUD1C100A9H51AA, AUD1C100A9H51BA, AUD1C100A9H51BB, AUD1C120A9541AA

Image 4: The SEN01114 Flame Sensor shown as a replacement part, emphasizing its compatibility with various furnace models.

6. Operating Principles

The flame sensor operates by sending a direct current (DC) through the flame itself. When a flame is present, it completes an electrical circuit, signaling to the furnace's control board that the burners are lit and it is safe to continue the gas flow. If the sensor does not detect a flame, or if the signal is too weak, the control board will shut off the gas valve to prevent uncombusted gas from entering your home, acting as a crucial safety mechanism.

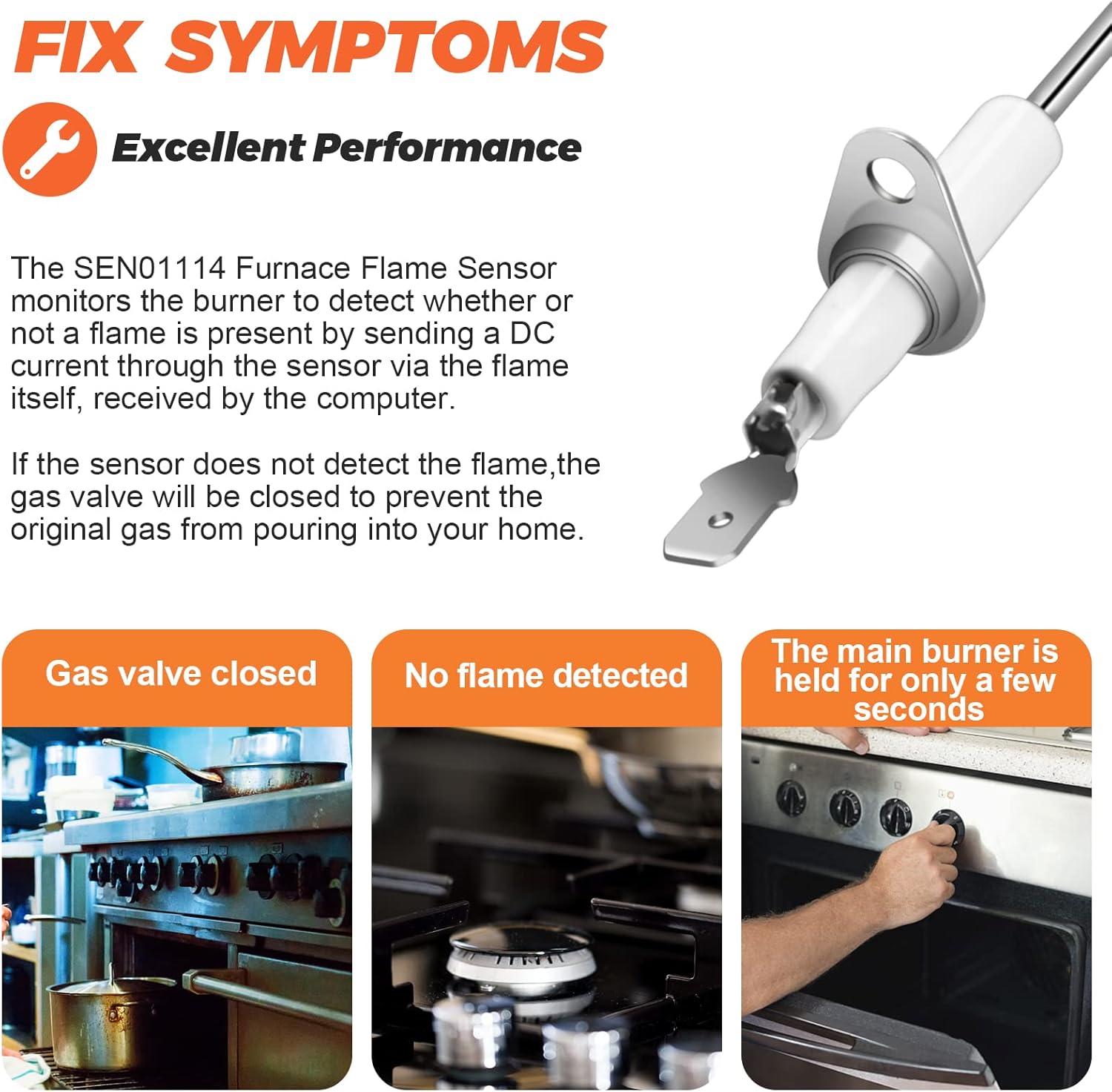

Image 5: Illustration of how the flame sensor detects the flame and its role in furnace operation, preventing gas leaks.

7. Installation Instructions

Replacing the SEN01114 flame sensor is a straightforward process. Follow these steps carefully:

1. Prepare for Installation: Ensure the furnace's power supply is disconnected and the gas valve is shut off. Locate the existing flame sensor, typically positioned on the last burner in the furnace.
2. Remove the Old Sensor: The flame sensor is usually held in place by a single screw or bolt. Unscrew it and carefully pull the old sensor out. Disconnect the wire that is crimped onto the sensor.
3. Install the New Sensor: Connect the wire to the new SEN01114 flame sensor. Insert the new sensor into its position and secure it with the screw or bolt. Ensure it is firmly in place.
4. Restore Power and Test: Once the new sensor is installed, reconnect the furnace's power supply and turn on the gas valve. Initiate a heating cycle to verify proper operation. The furnace should light and maintain the flame without shutting off prematurely.

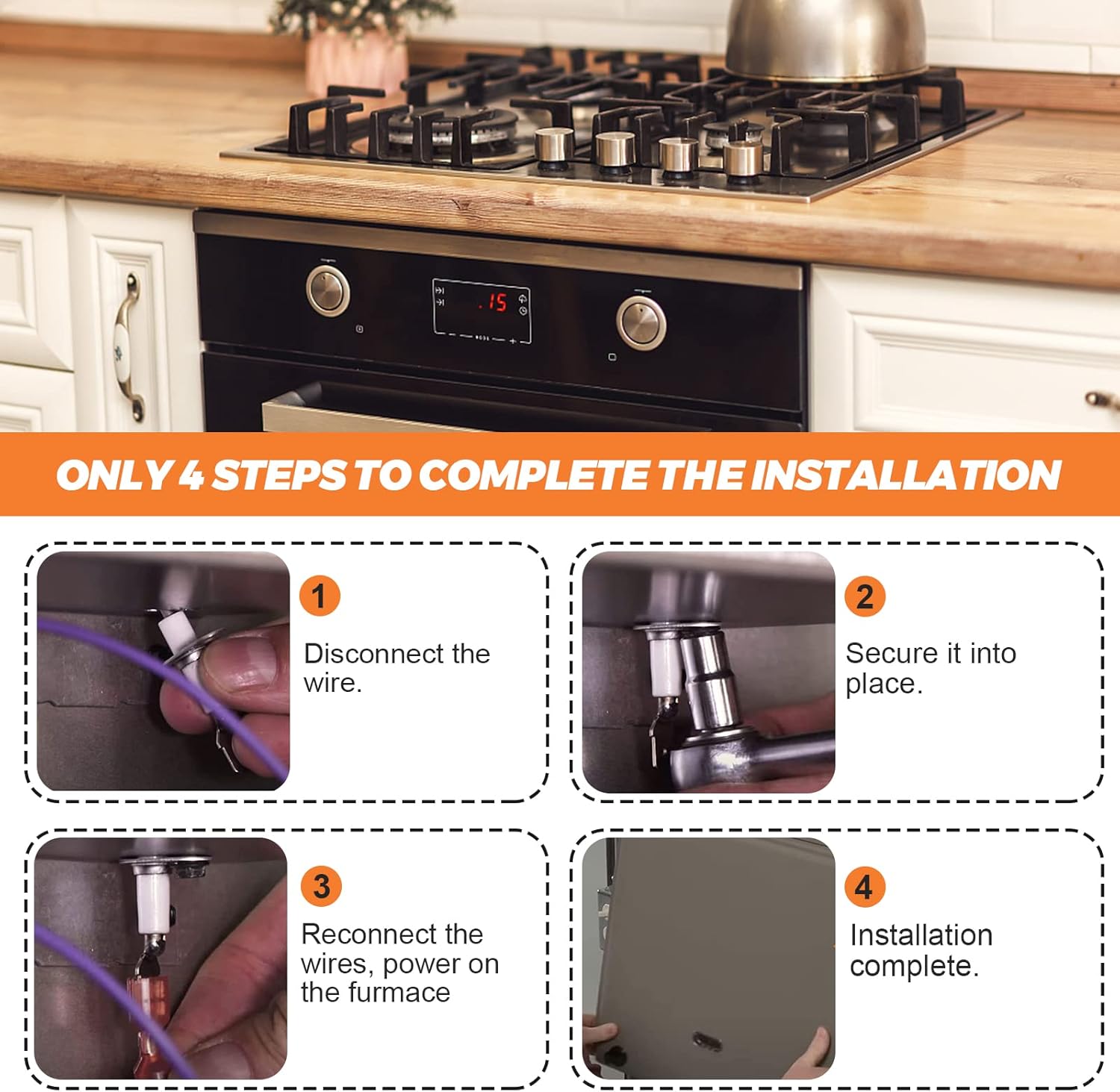

Image 6: Visual guide showing the four steps for installing the flame sensor: disconnect wire, secure in place, reconnect wires/power, and installation complete.

8. Maintenance

Regular maintenance of your furnace, including checking the flame sensor, can extend its lifespan and ensure reliable operation. While the SEN01114 is designed for durability, accumulation of carbon deposits on the sensor rod can interfere with its ability to detect flame. If your furnace is experiencing intermittent issues, you may temporarily clean the sensor rod with fine-grit sandpaper or steel wool to remove deposits. However, for optimal performance and safety, replacement is recommended if the sensor is showing signs of wear or frequent failure.

It is also advisable to periodically clean the area around the burners to prevent dust and debris buildup, which can affect furnace efficiency and sensor performance.

9. Troubleshooting

If your furnace exhibits any of the following symptoms, the SEN01114 flame sensor may need replacement:

• The furnace lights for a few seconds, then turns off.
• The main gas burners stay on for only 8 to 10 seconds, then shut off.
• The burner is not detecting the flame.
• The gas valve closes prematurely.

These symptoms indicate that the flame sensor is failing to properly signal the presence of a flame to the control board, triggering the furnace's safety shutdown mechanism.

10. Warranty and Support

The Beaquicy SEN01114 Furnace Flame Sensor comes with a 365-day return and exchange warranty. If you encounter any quality problems during the warranty period, please contact Beaquicy customer service for assistance. Customer satisfaction is a priority, and the company is committed to resolving any issues.

For further support or inquiries, please refer to the contact information provided with your purchase or visit the official Beaquicy store online.
