Emjoi Power Stand Mixer with Meat Grinder UESM-120MG Instruction Manual

1. Introduction

This manual provides essential instructions for the safe and efficient operation, maintenance, and troubleshooting of your Emjoi Power Stand Mixer with Meat Grinder UESM-120MG. Please read this manual thoroughly before first use and keep it for future reference. This appliance is designed for household use only.

The Emjoi Power Stand Mixer is a versatile kitchen appliance featuring a powerful motor, planetary mixing action, and a durable metal gear system. It includes a large capacity mixing bowl and a meat grinder attachment, making it suitable for various food preparation tasks.

2. Important Safety Instructions

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

• Read all instructions before operating the appliance.
• To protect against electrical shock, do not immerse the appliance body, cord, or plug in water or other liquids.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use, before assembling or disassembling parts, and before cleaning.
• Avoid contact with moving parts. Keep hands, hair, and clothing, as well as spatulas and other utensils, away from beaters during operation to reduce the risk of injury to persons and/or damage to the mixer.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner. Contact customer service for examination, repair, or electrical or mechanical adjustment.
• The use of attachments not recommended or sold by the manufacturer may cause fire, electric shock, or injury.
• Do not use outdoors.
• Do not let the cord hang over the edge of a table or counter.
• Do not let the cord contact hot surfaces, including the stove.
• Always operate the appliance on a dry, stable, and level surface.
• Ensure the appliance is switched off before plugging into the power outlet.
• Do not attempt to repair the appliance yourself. All repairs should be performed by qualified service personnel.

3. Product Components

Familiarize yourself with the various parts of your Emjoi Power Stand Mixer with Meat Grinder:

• Main Unit: Houses the motor and control knob.
• Mixing Head: Tilts up for easy access to the bowl and attachments.
• Stainless Steel Mixing Bowl: 6-liter capacity with handles.
• Whisk Attachment: For whipping cream, egg whites, and light batters.
• Dough Hook Attachment: For kneading heavy doughs like bread and pizza.
• Beater Attachment: For mixing cakes, cookies, and general batters.
• Transparent Splash Guard: Prevents splattering during mixing, with an easy-fill window.
• Meat Grinder Attachment: Includes grinder housing, screw, blade, 3 grinding discs (fine, medium, coarse), and sausage filler attachments.
• Feeding Tray: For holding meat pieces before grinding.
• Pusher: For safely guiding meat into the grinder.

Figure 3.1: Overview of the Emjoi Power Stand Mixer with Meat Grinder.

4. Setup and Assembly

4.1 Before First Use

1. Unpack the appliance and all accessories carefully.
2. Wash the mixing bowl, splash guard, whisk, dough hook, beater, and all meat grinder components (except the main unit) in warm, soapy water. Rinse thoroughly and dry completely. These parts are dishwasher safe.
3. Wipe the main unit with a damp cloth. Do not immerse the main unit in water.
4. Ensure all parts are dry before assembly.

4.2 Assembling the Stand Mixer

1. Place the main unit on a stable, flat, and dry surface.
2. Press the head-lift button to release and lift the mixing head.
3. Place the stainless steel mixing bowl onto the base, twisting it clockwise until it locks securely.
4. Select the desired attachment (whisk, dough hook, or beater). Align the attachment with the shaft and push upwards, then twist to lock it into place.
5. Lower the mixing head until it locks into position. You should hear a click.
6. Attach the transparent splash guard by aligning it with the mixing head and twisting it into place.

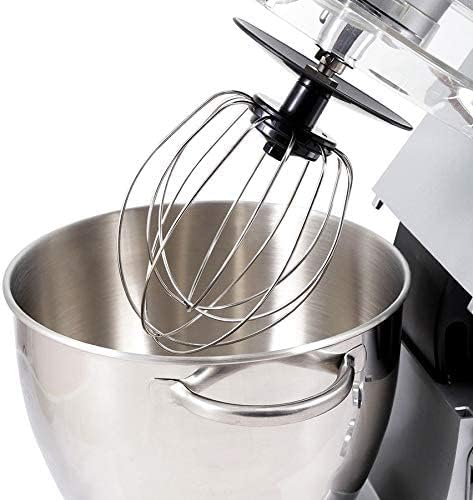

Figure 4.1: Attaching the whisk and bowl.

4.3 Assembling the Meat Grinder

1. Ensure the main unit is unplugged.
2. Remove the front cover from the accessory drive port on the front of the mixer head.
3. Insert the meat grinder housing into the drive port, aligning the tab on the housing with the slot on the mixer. Twist counter-clockwise to secure.
4. Insert the screw into the grinder housing.
5. Place the blade onto the screw, ensuring the sharp edges face outwards.
6. Select a grinding disc (fine, medium, or coarse) and place it over the blade.
7. Screw the locking ring onto the grinder housing until it is finger-tight.
8. Place the feeding tray on top of the grinder housing.

Figure 4.2: Assembled meat grinder attachment.

5. Operating Instructions

5.1 Using the Stand Mixer

1. Ensure the mixer is properly assembled with the desired attachment and mixing bowl.
2. Add ingredients to the mixing bowl.
3. Plug the appliance into a suitable power outlet.
4. Turn the control knob to the desired speed setting (1-6). The smart circuit ensures constant operating speed regardless of the load.
5. For short bursts of power, use the 'P' (Pulse) setting. Hold the knob at 'P' for as long as needed, then release.
6. Monitor the mixing process through the transparent splash guard. Use the easy-fill window to add ingredients during operation if necessary.
7. When finished, turn the control knob to '0' (Off) and unplug the appliance.
8. Press the head-lift button to raise the mixing head and remove the attachment and bowl.

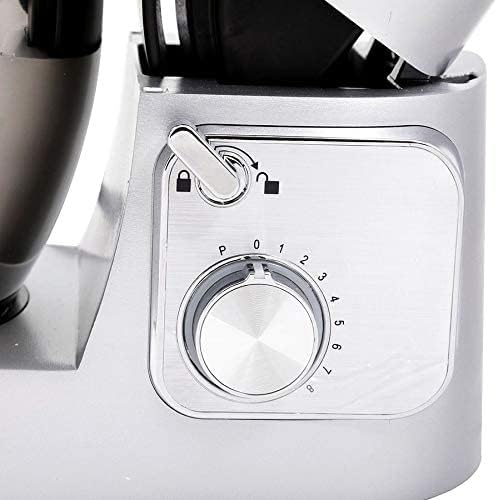

Figure 5.1: Speed control and head-lift mechanism.

5.2 Using the Meat Grinder

1. Ensure the meat grinder attachment is correctly assembled and secured to the main unit.
2. Prepare meat by cutting it into small pieces that fit into the feeding tray opening. Remove any bones, gristle, or tough tendons.
3. Place a bowl or container under the grinder outlet to collect the ground meat.
4. Plug the appliance into a suitable power outlet.
5. Turn the control knob to a medium speed setting (e.g., 3-4).
6. Place meat pieces onto the feeding tray and use the pusher to gently guide them into the grinder. Never use your fingers or other utensils to push meat into the grinder.
7. After grinding, turn the control knob to '0' (Off) and unplug the appliance.
8. To make sausages, replace the grinding disc and blade with the sausage filler attachment. Follow the same procedure for feeding meat.

6. Maintenance and Cleaning

Proper cleaning and maintenance will ensure the longevity and optimal performance of your appliance.

1. Always unplug the appliance from the power outlet before cleaning.
2. Main Unit: Wipe the exterior of the main unit with a soft, damp cloth. Do not use abrasive cleaners or immerse the main unit in water.
3. Mixing Bowl and Splash Guard: These parts are dishwasher safe. Alternatively, wash in warm, soapy water, rinse, and dry thoroughly.
4. Whisk, Dough Hook, Beater: These attachments are dishwasher safe. For stubborn residue, soak in warm, soapy water before washing. Rinse and dry completely.
5. Meat Grinder Components: Disassemble the meat grinder attachment immediately after use. Wash all parts (housing, screw, blade, grinding discs, feeding tray, pusher, sausage fillers) in warm, soapy water. Use a brush to remove any food residue. Rinse thoroughly and dry completely to prevent rust, especially for metal parts like the blade and discs. These parts are dishwasher safe.
6. Storage: Store the cleaned and dried appliance and its accessories in a dry place, away from direct sunlight and moisture.

7. Troubleshooting

If you encounter issues with your Emjoi Power Stand Mixer, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact customer support.

8. Specifications

The following are the technical specifications for the Emjoi Power Stand Mixer with Meat Grinder UESM-120MG:

• Brand: Emjoi
• Model: UESM-120MG
• Color: Silver
• Material: Aluminum (housing), Stainless Steel (blade), Aluminum (bowl)
• Special Feature: Removable bowl
• Capacity: 6 Liters
• Power: 3200 Watts
• Control Type: Knob Control
• Number of Speeds: 6
• Item Weight: Approximately 11.02 Pounds (5 kg)
• Dishwasher Safe Parts: Yes (bowl, splash guard, whisk, dough hook, beater, meat grinder components)

9. Warranty and Support

For warranty information, service, or technical support, please refer to the warranty card included with your product or contact Emjoi customer service directly. Keep your purchase receipt as proof of purchase for any warranty claims.

For further assistance, please visit the official Emjoi website or contact their authorized service centers.
