Labwork Carburetor Replacement Manual
For Stihl 050, 051, 075, 076 Chainsaws
Model: HS-60D 1111-120-0601
1. Introduction
This manual provides essential information for the proper installation, operation, and maintenance of your new Labwork Carburetor Replacement. Designed for specific Stihl chainsaw models, this carburetor ensures optimal fuel-air mixture for efficient engine performance. Please read this manual thoroughly before attempting any installation or operation to ensure safety and correct functionality.
2. Compatibility
This Labwork Carburetor Replacement is specifically designed for the following Stihl Chainsaw models:
- Stihl 050 Chainsaw
- Stihl 051 Chainsaw
- Stihl 075 Chainsaw
- Stihl 076 Chainsaw
It replaces original part numbers: HS-60D and 1111 120 0601. Verify your chainsaw's model and part number before installation.
3. Features
The Labwork Carburetor Replacement offers several key features designed to enhance your chainsaw's performance:
- Accurate Fuel-Air Ratio Adjustment: Ensures precise mixing of fuel and air for complete and efficient combustion, leading to consistent strong power output.
- Improved Starting: Facilitates a smoother and simpler starting process, reducing the effort required to initiate operation.
- Durable Construction: Manufactured from high-quality metal materials using advanced processes, ensuring stable performance under demanding conditions and extending the chainsaw's overall service life.
- Direct Replacement: Engineered to match original equipment specifications for straightforward installation.

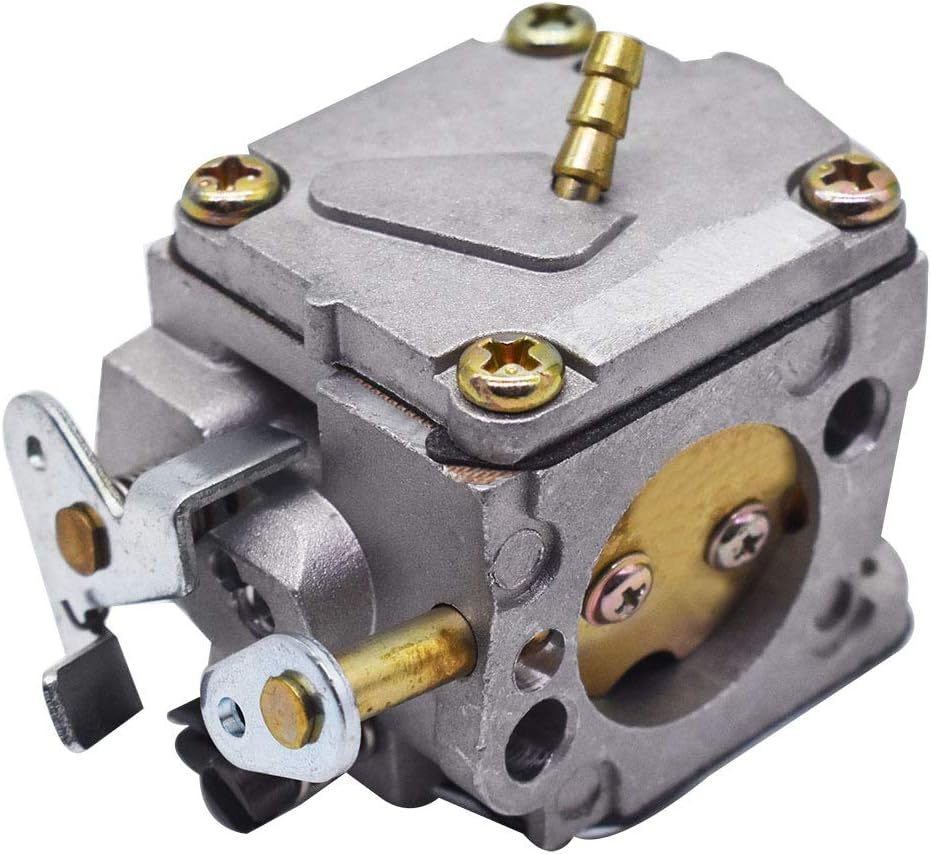

Figure 1: Front view of the Labwork Carburetor Replacement.
4. Setup and Installation
Safety First: Before beginning any installation, ensure the chainsaw is turned off, the spark plug wire is disconnected, and the engine is cool. Wear appropriate safety gear, including gloves and eye protection.
- Prepare the Chainsaw: Disconnect the spark plug wire to prevent accidental starting. Ensure the fuel tank is empty or the fuel line is clamped to prevent spills.
- Remove Air Filter and Housing: Carefully remove the air filter cover and the air filter element. Then, detach the air filter housing to gain access to the carburetor.
- Disconnect Fuel Lines and Linkages: Note the routing of the fuel lines (inlet and return) and throttle linkages. Disconnect them from the old carburetor. Take photos if necessary for reassembly reference.
- Remove Old Carburetor: Unbolt the old carburetor from the engine manifold. Be careful not to drop any small parts or debris into the engine intake.
- Inspect Gaskets and Manifold: Check the condition of the intake manifold and any gaskets. Replace worn or damaged gaskets to ensure a proper seal.
- Install New Carburetor: Position the new Labwork carburetor, ensuring all gaskets are correctly seated. Secure it with the mounting bolts, tightening them evenly.
- Reconnect Fuel Lines and Linkages: Reattach the fuel lines to their correct ports and connect the throttle and choke linkages. Ensure smooth operation of the throttle and choke.
- Reassemble Air Filter Housing: Reinstall the air filter housing, air filter element, and air filter cover.
- Reconnect Spark Plug: Reconnect the spark plug wire.
Figure 2: Side view of the carburetor, showing fuel line connections.
Figure 3: Detail of the throttle and choke levers on the carburetor.
5. Operating
After installation, the carburetor may require minor adjustments for optimal performance. Refer to your chainsaw's specific user manual for detailed carburetor tuning procedures. Generally, carburetors have two main adjustment screws: the High-speed (H) screw and the Low-speed (L) screw, and sometimes an idle speed (T) screw.
- Initial Start-up: Fill the fuel tank with the correct fuel mixture for your Stihl chainsaw. Engage the choke and prime the carburetor if your chainsaw has a primer bulb. Pull the starter cord until the engine attempts to start or fires once.
- Warm-up: Once the engine starts, disengage the choke and allow the engine to warm up for a few minutes.
- Adjustments: Adjust the L and H screws according to your chainsaw's manual or until the engine runs smoothly at idle and accelerates cleanly without bogging down or four-stroking at high RPMs. The idle speed (T) screw adjusts the engine's idle RPM.
Caution: Improper carburetor adjustment can lead to engine damage. If you are unsure, consult a qualified service technician.
6. Maintenance
Regular maintenance of your carburetor ensures consistent performance and extends its lifespan.
- Fuel Quality: Always use fresh, clean fuel mixed to the correct ratio as specified by Stihl. Stale or improperly mixed fuel can clog carburetor jets.
- Fuel Filter: Regularly inspect and replace the fuel filter in the fuel tank. A clogged fuel filter restricts fuel flow to the carburetor.
- Air Filter: Clean or replace the air filter frequently. A dirty air filter can cause the engine to run rich and affect carburetor performance.
- Carburetor Cleaning: If performance issues arise, the carburetor may need cleaning. This involves disassembling the carburetor and cleaning jets and passages with carburetor cleaner. This task is best performed by experienced individuals or a service professional.
- Storage: Before long-term storage, drain the fuel tank and run the engine until it stops to clear fuel from the carburetor, or use a fuel stabilizer.
7. Troubleshooting
This section addresses common issues related to carburetor function. For comprehensive chainsaw troubleshooting, refer to your chainsaw's specific manual.
| Problem | Possible Cause | Solution |
|---|---|---|
| Engine won't start | No fuel, clogged fuel filter, incorrect choke setting, fouled spark plug, carburetor jets clogged. | Check fuel level and quality, replace fuel filter, adjust choke, clean/replace spark plug, clean carburetor. |
| Engine runs rough/stalls at idle | Incorrect idle (L) screw adjustment, clogged low-speed jet, air leak. | Adjust L screw, clean low-speed jet, check for air leaks around manifold/carburetor. |
| Engine lacks power at high RPM | Incorrect high-speed (H) screw adjustment, clogged high-speed jet, dirty air filter. | Adjust H screw, clean high-speed jet, clean/replace air filter. |
| Fuel leaks from carburetor | Damaged gasket, loose screws, faulty needle valve. | Inspect and replace gaskets, tighten screws, inspect/replace needle valve. |
8. Specifications
- Brand: Labwork
- Model Number: HS-60D 1111-120-0601
- Item Weight: 5.6 ounces
- Package Dimensions: 3.66 x 2.95 x 1.73 inches
- Manufacturer Part Number: HS-60D 1111-120-0601
- ASIN: B0837P1F8W
- Date First Available: December 28, 2019
Figure 4: Top view of the carburetor, indicating a measurement of 0.868 inches.
9. Support
For further assistance, technical inquiries, or questions regarding this Labwork Carburetor Replacement, please contact Labwork customer support. Labwork is committed to providing quality products and professional service.
You may find additional information and contact options by visiting the official Labwork store or support channels.
