Fricgore Clutch Assembly User Manual for Poulan Pro Chainsaws

1. Introduction

This manual provides essential information for the proper installation, maintenance, and troubleshooting of the Fricgore Clutch Assembly. This replacement part is designed for specific Poulan Pro Gas Chainsaw models, ensuring optimal performance and safety when correctly installed. Please read this manual thoroughly before attempting any installation or maintenance procedures.

2. Safety Information

WARNING: Always prioritize safety when working with power tools and their components. Failure to follow safety instructions can result in serious injury or property damage.

• Always disconnect the spark plug wire or remove the battery (if applicable) before performing any maintenance or installation on the chainsaw to prevent accidental starting.
• Wear appropriate personal protective equipment (PPE), including safety glasses, gloves, and sturdy footwear.
• Ensure the chainsaw is cool before handling any components.
• If you are unsure about any step, consult a qualified service technician.
• Keep children and bystanders away from the work area.
• Use only genuine replacement parts or approved equivalents.

3. Package Contents

Verify that all components are present and undamaged upon opening the package.

• 1 x Fricgore Clutch Assembly

Figure 3.1: Top-down view of the Fricgore Clutch Assembly, showing the central hub, clutch shoes, and springs.

4. Setup and Installation

This section outlines the general procedure for replacing the clutch assembly. Specific steps may vary slightly depending on your chainsaw model. Refer to your chainsaw's original service manual for detailed instructions if necessary.

Tools Required:

• Spark plug wrench
• Clutch removal tool (if available, or piston stop tool)
• Torx or flat-head screwdriver (depending on cover screws)
• Clean cloth

Installation Steps:

1. Prepare the Chainsaw:

   Ensure the chainsaw is turned off and cool. Disconnect the spark plug wire to prevent accidental starting. Place the chainsaw on a stable, flat surface.
2. Remove the Chain Brake Cover:

   Unscrew and remove the chain brake cover (also known as the clutch cover) to expose the clutch assembly and sprocket. Carefully remove the chain and guide bar.

3. Secure the Piston:

   Remove the spark plug. Insert a piston stop tool into the spark plug hole. This will prevent the crankshaft from turning while you loosen the clutch. If a piston stop tool is not available, some models allow for a soft rope to be fed into the cylinder, but a piston stop tool is recommended.

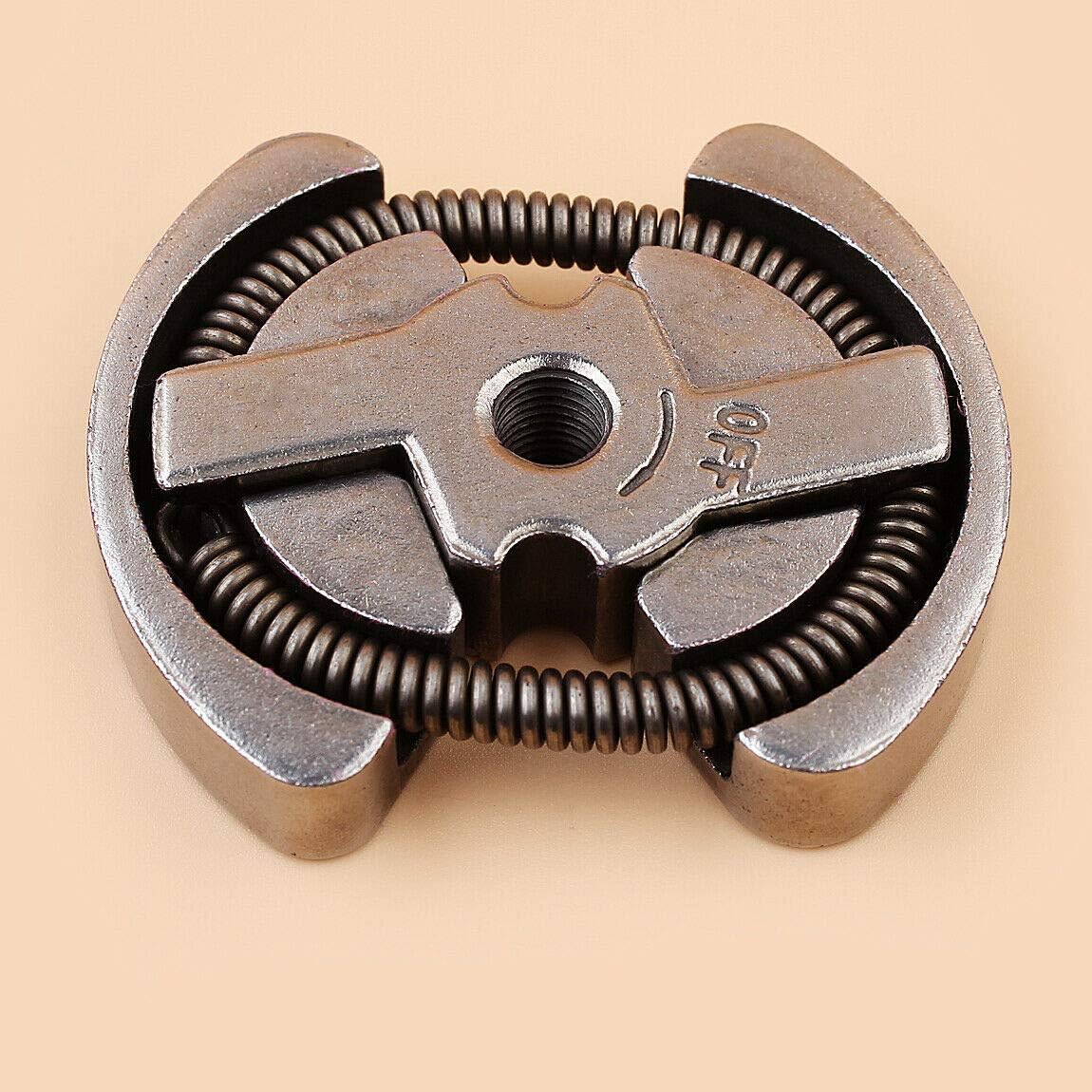

   Figure 4.1: Side view of the Fricgore Clutch Assembly, highlighting the spring mechanism and clutch shoes.
4. Remove the Old Clutch Assembly:

   The clutch assembly typically has left-hand threads. Use a clutch removal tool or a suitable wrench to turn the clutch counter-clockwise to loosen and remove it. Be careful not to damage the crankshaft threads.

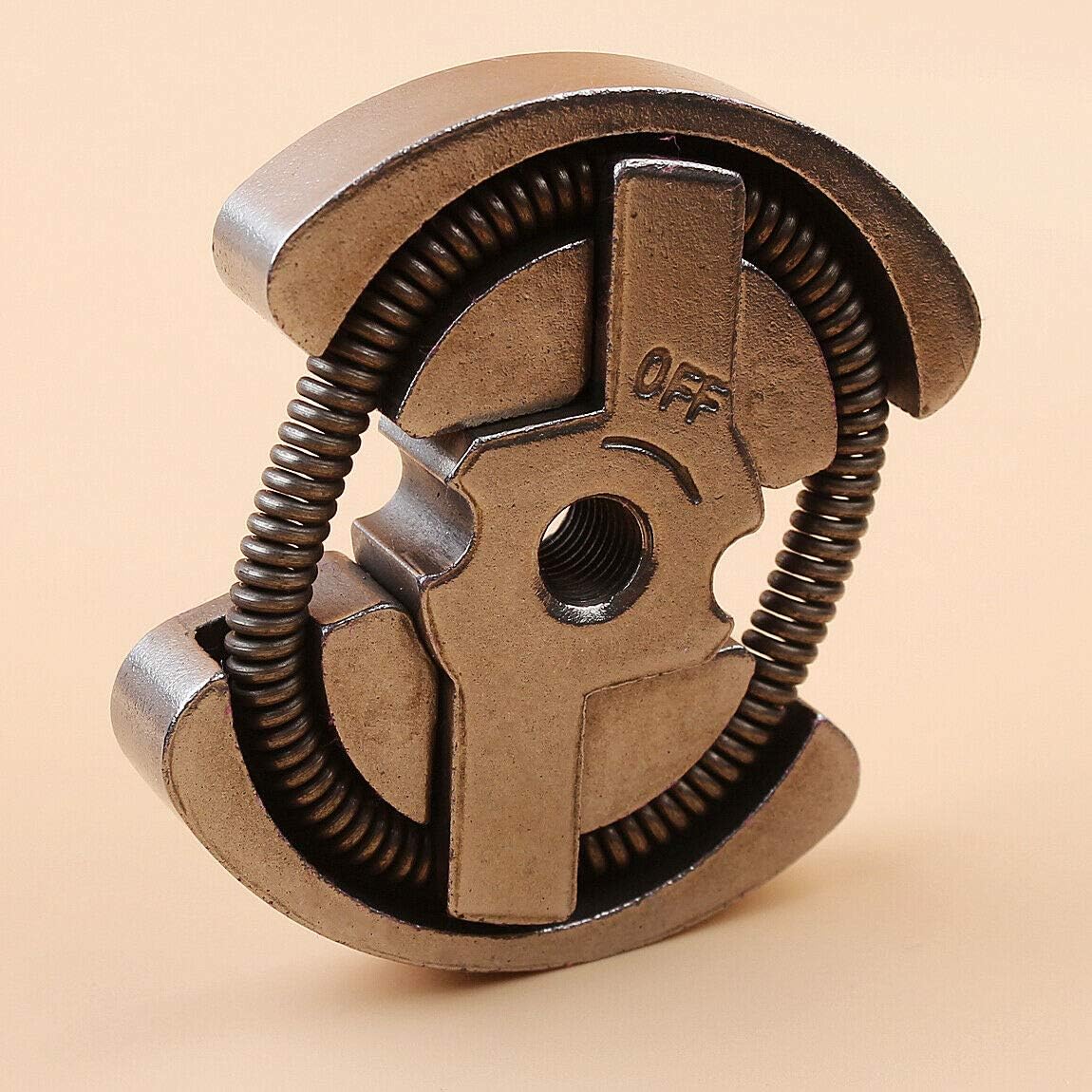

   Figure 4.2: Angled view of the Fricgore Clutch Assembly, showing the "OFF" marking on one of the clutch shoes.

5. Clean the Area:

   Thoroughly clean the crankshaft and the area around the clutch drum to remove any sawdust, oil, or debris. Inspect the clutch drum and needle bearing for wear or damage. Replace if necessary.
6. Install the New Clutch Assembly:

   Thread the new Fricgore Clutch Assembly onto the crankshaft by turning it clockwise. Tighten it securely using the clutch removal tool. Ensure it is fully seated and properly aligned.



   Figure 4.3: Another angled view of the Fricgore Clutch Assembly, emphasizing the robust construction of the clutch shoes and springs.

7. Reassemble the Chainsaw:

   Remove the piston stop tool and reinstall the spark plug. Reattach the guide bar and chain, ensuring proper tension. Reinstall the chain brake cover and tighten its screws.



   Figure 4.4: Bottom view of the Fricgore Clutch Assembly, showing the base plate and the attachment point.

8. Test Operation:

   Reconnect the spark plug wire. Start the chainsaw and allow it to idle. The chain should not move at idle. If the chain moves, the clutch may be faulty or incorrectly installed. If the chain does not engage when accelerating, the clutch may also be faulty or the springs are too weak.

5. Operating Instructions

The Fricgore Clutch Assembly is a component part of your chainsaw. Its function is to engage the chain when the engine speed increases and disengage it at idle. For detailed operating instructions of your chainsaw, refer to the original manufacturer's manual for your specific Poulan Pro model. Ensure the clutch operates smoothly, allowing the chain to stop completely at idle and engage effectively during acceleration.

6. Maintenance

Regular inspection and maintenance of the clutch assembly can extend its lifespan and ensure safe operation of your chainsaw.

• Inspection: Periodically remove the chain brake cover and inspect the clutch shoes for wear. If the friction material is significantly worn or damaged, the clutch assembly should be replaced.
• Cleaning: Keep the clutch area free of sawdust, oil, and debris. A build-up of foreign material can affect clutch performance. Use compressed air or a brush to clean the area.
• Springs: Check the clutch springs for signs of stretching or breakage. Damaged springs can lead to improper clutch engagement or disengagement.
• Clutch Drum and Bearing: Inspect the clutch drum for grooves or excessive wear. The needle bearing behind the clutch drum should be lubricated regularly according to your chainsaw's manual.

7. Troubleshooting

If you experience issues with your chainsaw's clutch, refer to the following common problems and solutions:

8. Specifications

• Product Type: Clutch Assembly
• Brand: Fricgore
• Compatible Chainsaw Models: Poulan Pro 220, 222, 260, 262, 295, PP3640, PP3435
• Power Source Compatibility: Gasoline-powered chainsaws
• Item Package Quantity: 1

9. Warranty and Support

For warranty information or technical support regarding your Fricgore Clutch Assembly, please contact the retailer or manufacturer directly. Keep your purchase receipt as proof of purchase. This manual does not supersede any warranty terms provided at the time of purchase.

For issues related to your Poulan Pro Chainsaw, refer to the original chainsaw manufacturer's documentation or authorized service centers.
