Dometic Ma Cave D17 Wine Cellar User Manual

1. Product Overview

The Dometic Ma Cave D17 Wine Cellar is designed for optimal wine storage, featuring a compressor-type cooling system and a sleek black finish. It offers precise temperature control and advanced features to protect your valuable wine collection.

Figure 1: Front view of the Dometic Ma Cave D17 Wine Cellar.

2. Key Features

• Indirect Airflow System: Prevents overcooling by circulating cold air evenly without direct contact with bottles.
• Dual Temperature Zones: The interior is divided into upper and lower sections, each with a digital display, allowing for independent temperature settings between 5℃ and 22℃.
• UV-Cut Triple Low-E Glass Door: Provides high insulation to prevent cold air from escaping and blocks harmful UV rays, protecting your wine.
• Alarm System: Notifies users of abnormal internal temperatures or if the door is left ajar.
• Heating Function: Equipped with a heating function for the lower compartment, ensuring stable temperatures even in colder environments.
• Automatic Defrost: Features an automatic defrost function for convenient maintenance.
• Security Lock: The glass door is equipped with a lock function to secure your wine collection.
• Flexible Storage: Accommodates various bottle shapes, with thicker bottles storable on the top shelf of the upper compartment.

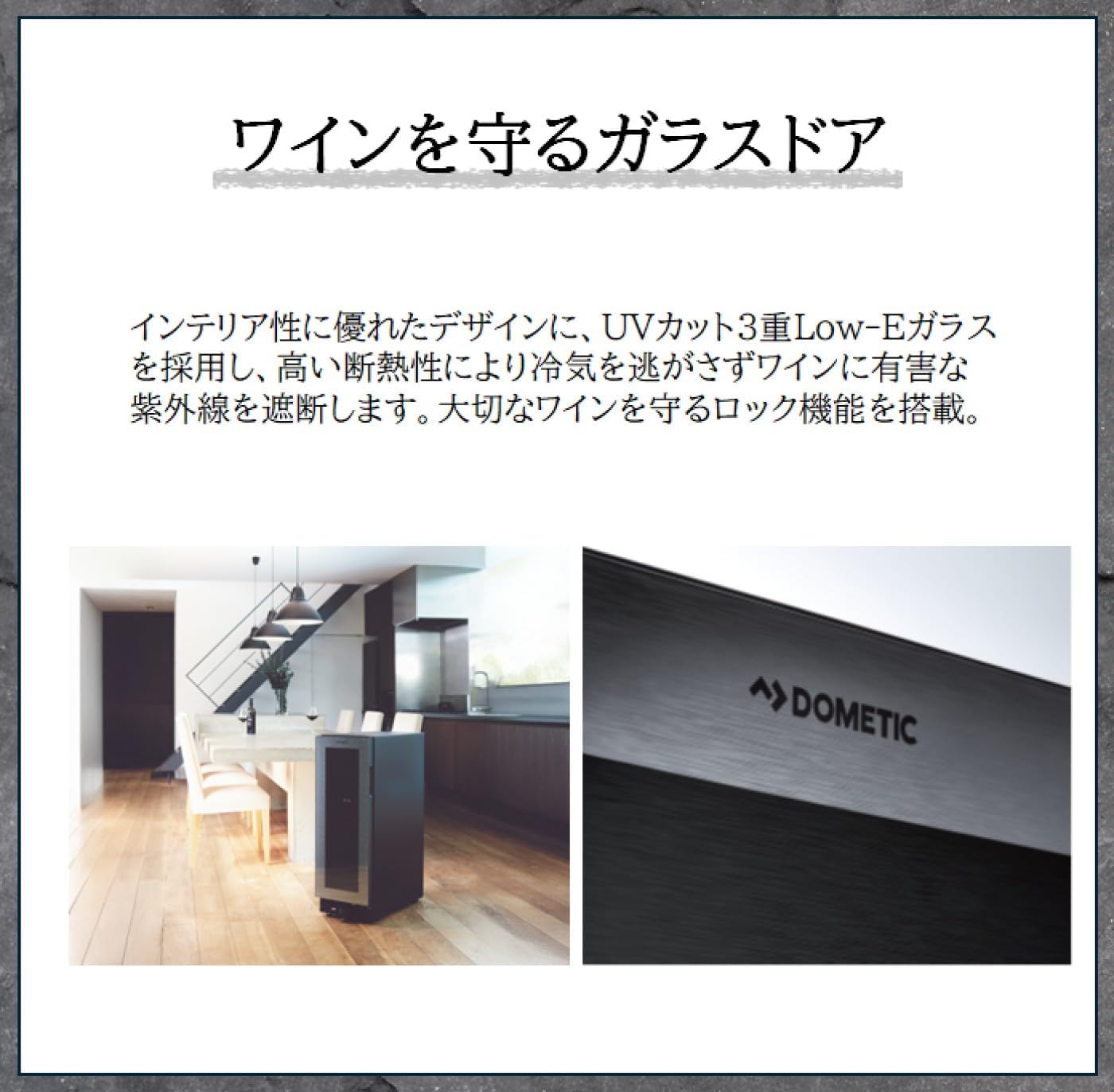

Figure 2: The elegant glass door design of the Dometic Ma Cave D17 wine cellar.

3. Safety Information

Please read all safety instructions carefully before operating the appliance. Keep this manual for future reference.

• Ensure the appliance is placed on a stable, level surface.
• Do not block ventilation openings.
• Do not store explosive substances in this appliance.
• Unplug the appliance before cleaning or maintenance.
• Keep children away from the appliance, especially when the door is open.

4. Setup and Installation

4.1 Unpacking

Carefully remove the wine cellar from its packaging. Inspect for any damage during transit. Retain packaging for future transport if needed.

4.2 Placement

Choose a location with adequate ventilation and away from direct sunlight or heat sources. Ensure sufficient clearance around the unit for proper airflow.

Figure 3: Recommended installation clearances. Ensure at least 50mm clearance above, and 30mm clearance at the back and sides for optimal ventilation.

4.3 Leveling

Adjust the leveling feet at the bottom of the unit to ensure it is stable and level. This is crucial for proper operation and door alignment.

4.4 Power Connection

Plug the power cord into a grounded electrical outlet. Allow the unit to stand for at least 2 hours before plugging it in to allow refrigerants to settle.

5. Operating Instructions

5.1 Temperature Control

The wine cellar features two independent temperature zones. Use the control panel located inside the unit to set the desired temperature for each zone. The adjustable temperature range is 5℃ to 22℃.

Figure 4: Digital temperature display and control buttons for setting the desired temperature in each zone.

5.2 Loading Bottles

The wine cellar can store up to 17 standard bottles. The shelves are designed to accommodate various bottle sizes. For larger bottles, the top shelf of the upper compartment offers more space.

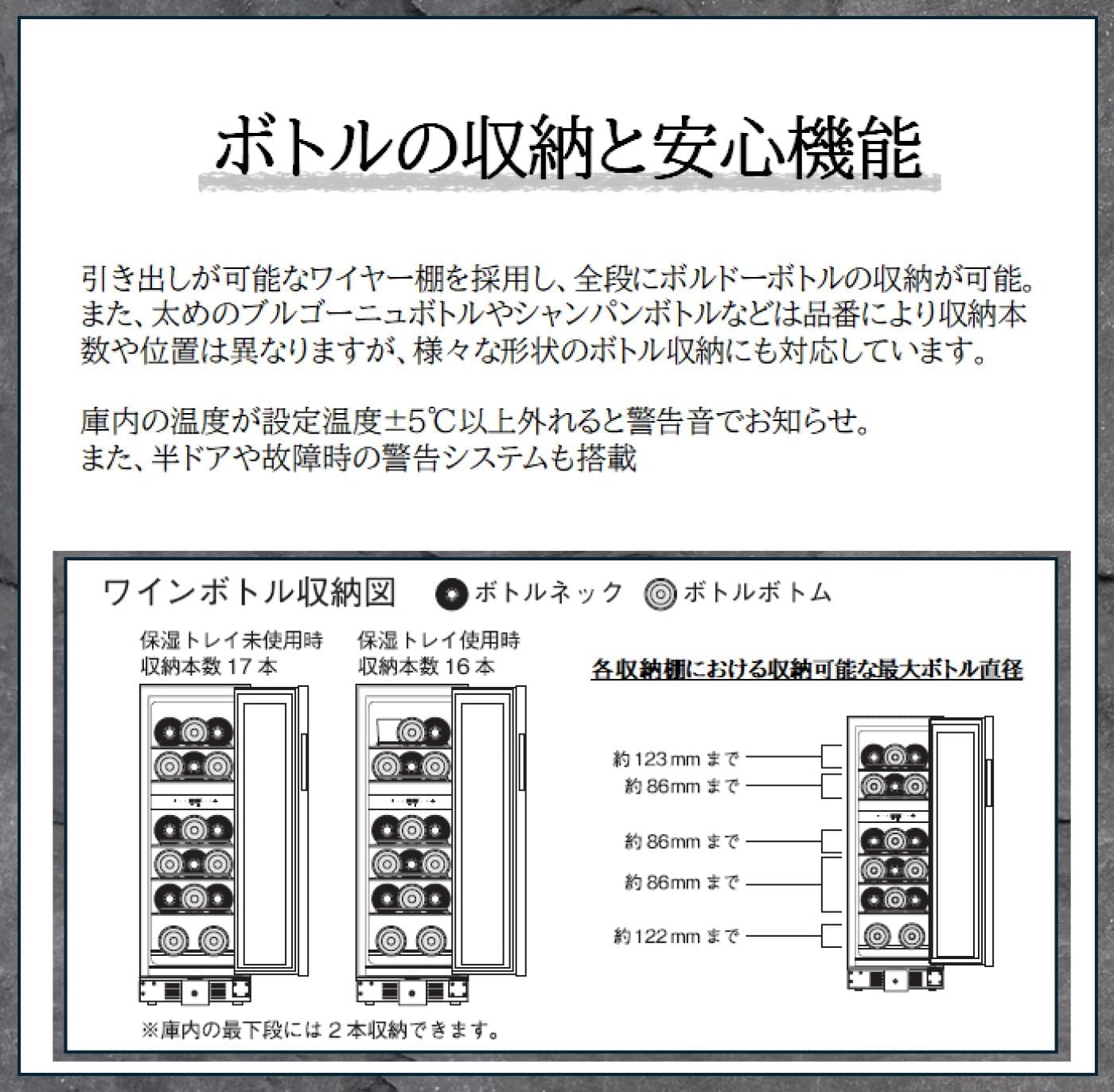

Figure 5: Bottle storage configurations. The diagram shows how bottles are stored on shelves, including maximum bottle diameters for different positions. Note that the bottom section can hold two bottles.

5.3 Humidity Control (Optional)

For optimal humidity, use the included humidity tray and sponge. Fill the tray with distilled water and place the sponge inside. Position the tray in the designated area within the cellar.

5.4 Door Lock

To lock the door, insert the key into the lock mechanism located on the glass door and turn it. Ensure the door is fully closed before locking.

6. Maintenance and Care

6.1 Cleaning the Interior

Unplug the unit before cleaning. Use a soft cloth dampened with a mild detergent solution to clean the interior surfaces. Do not use abrasive cleaners or solvents. Dry thoroughly.

6.2 Cleaning the Exterior

Wipe the exterior surfaces with a soft, damp cloth. For the glass door, use a glass cleaner. Avoid spraying cleaner directly onto the control panel.

6.3 Defrosting

The unit features an automatic defrost function. If excessive ice buildup occurs, manually defrost by unplugging the unit and leaving the door open until the ice melts. Collect melted water with a towel.

7. Troubleshooting

For issues not listed above, please contact Dometic customer support.

8. Specifications

Figure 6: Detailed dimensions of the Dometic Ma Cave D17 wine cellar (Height: 87cm, Depth: 57cm, Width: 29.5cm).

Figure 7: Comparison of Dometic wine cellar models, including D17, D28, and D92, showing their cooling methods, door types, power, capacity, temperature range, and bottle capacity.

9. Warranty and Support

For warranty information, please refer to the warranty card included with your product or visit the official Dometic website. For technical support, troubleshooting assistance beyond this manual, or to inquire about replacement parts, please contact Dometic customer service.

You can find contact details and further support resources on the official Dometic website: www.dometic.com
