1. Introduction
This manual provides detailed instructions for the assembly, operation, and maintenance of your DESINO Gaming Desk, Model VD606-B00. Please read this manual thoroughly before assembly and use to ensure proper function and safety.
Important Safety Information
- Always assemble the desk according to the provided instructions.
- This desk is designed for adults and can support a maximum weight of 250 pounds (approximately 113 kg).
- Ensure the desk is properly assembled and stable before placing any items on it or using it.
- Do not exceed the maximum weight capacity to prevent damage or injury.
- Keep small parts away from children during assembly.
2. Package Contents
Before beginning assembly, verify that all components are present and undamaged. If any parts are missing or damaged, please contact customer support.
- Desktop Panel (Carbon Fiber Texture)
- Desk Legs and Support Frame
- Monitor Stand Riser
- Cup Holder
- Headphone Hook
- Assembly Hardware (screws, bolts, Allen wrench)
- Instruction Manual
Image 2.1: Overview of the DESINO Gaming Desk with typical setup.
3. Setup and Assembly
Follow these steps carefully to assemble your DESINO Gaming Desk. It is recommended to have a second person assist with certain steps.
Step-by-Step Assembly
- Prepare the Desktop: Place the desktop panel upside down on a soft, clean surface (such as the foam board from the packaging) to prevent scratches.
- Attach the Main Frame: Secure the main metal support frame to the underside of the desktop using the provided screws. Ensure all screws are tightened securely.
- Install Desk Legs: Attach the desk legs to the main frame. Pay attention to the orientation of the legs as indicated in the diagrams.
- Secure Support Rods: Connect the diagonal support rods between the legs and the main frame. These rods enhance the desk's stability.
- Attach Accessories: Install the monitor stand riser, cup holder, and headphone hook to their designated positions on the desk.
- Final Check: Carefully flip the desk upright. Ensure all screws are tight and the desk is stable before use.
Assembly Video Guide
Video 3.1: Official installation guide for the DESINO Gaming Desk, demonstrating step-by-step assembly.
Image 3.2: Detailed view of the desk's underside, illustrating the frame and leg connections during assembly.
4. Operating Instructions
The DESINO Gaming Desk is designed for versatile use, accommodating various gaming and office setups.
Key Features
- Carbon Fiber Texture Desktop: The desktop features a durable carbon fiber texture, providing a smooth surface for mouse movement and resistance to minor spills.
- Monitor Stand Riser: Position your monitor on the elevated stand to achieve an ergonomic viewing height, reducing neck and eye strain.
- Cup Holder: Utilize the integrated cup holder to keep beverages secure and prevent spills on your equipment.
- Headphone Hook: Hang your headphones on the convenient hook to keep them organized and easily accessible.
- Cable Management: The desk design includes features to help manage cables, keeping your workspace tidy.

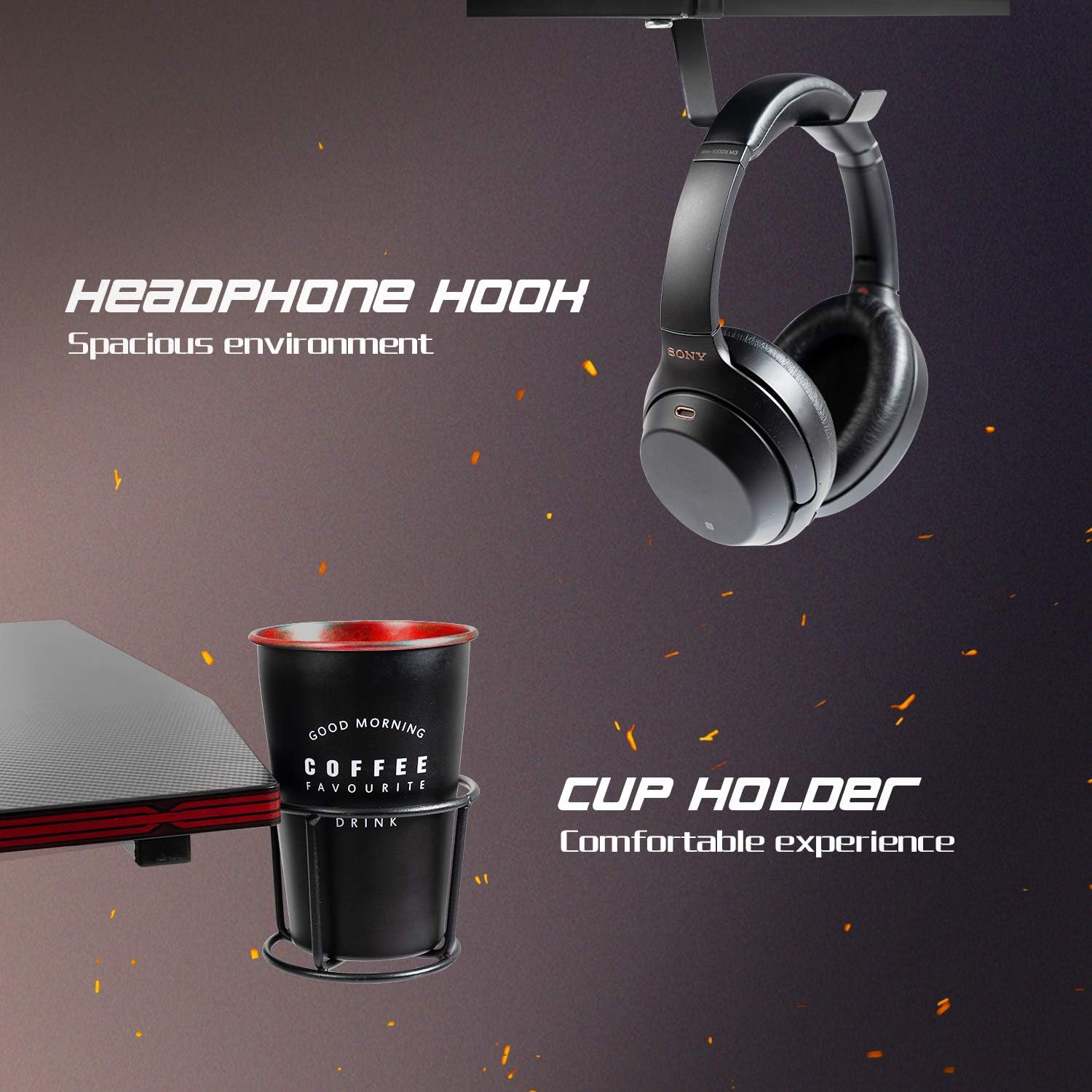

Image 4.1: Close-up view of the integrated headphone hook and cup holder, designed for convenience.
Image 4.2: The desk configured with a complete gaming setup, highlighting its functional design.
5. Maintenance
Proper care will extend the life and appearance of your DESINO Gaming Desk.
Cleaning
- Wipe the desktop surface with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals that could damage the carbon fiber finish.
- For the metal frame, use a mild soap solution and a soft cloth. Dry thoroughly to prevent rust.
General Care
- Regularly check all screws and bolts to ensure they remain tight. Re-tighten if necessary to maintain stability.
- Avoid placing extremely hot or cold items directly on the desktop without protective coasters.
- Do not drag the desk when moving it; lift it to prevent damage to the legs or floor.
Image 5.1: Detailed view of the carbon fiber surface, emphasizing its texture and finish.
6. Troubleshooting
If you encounter any issues with your DESINO Gaming Desk, refer to the following common problems and solutions.
Common Issues
- Desk is Wobbly:
Solution: Ensure all screws and bolts are securely tightened. Check that the desk is placed on a level surface. Adjust the leveling feet if present. - Parts Do Not Align During Assembly:
Solution: Double-check the instruction manual for correct part orientation. Loosen all screws slightly, align the parts, then re-tighten them evenly. - Missing Hardware:
Solution: Verify all packaging materials have been checked. If hardware is still missing, contact customer support for replacements.
For issues not covered here, please contact DESINO customer support.
7. Specifications
Detailed specifications for the DESINO Gaming Desk (Model VD606-B00).
| Feature | Detail |
|---|---|
| Brand | DESINO |
| Model Number | VD606-B00 |
| Model Name | Y-GD-W40B |
| Product Dimensions (D x W x H) | 23"D x 40"W x 28"H (approx. 58.4cm D x 101.6cm W x 71.1cm H) |
| Item Height | 75 centimeters |
| Color | Black |
| Top Material Type | Wood (Laminated with Carbon Fiber Texture) |
| Base Material | Metal (implied by frame structure) |
| Maximum Weight Recommendation | 250 Pounds (approx. 113 kg) |
| Assembly Required | Yes |
| Special Features | Ergonomic design, Cup Holder, Headphone Hook, Monitor Stand Riser |
Image 7.1: Dimensional diagram of the DESINO Gaming Desk, including the monitor stand.
8. Warranty and Support
For warranty information, product support, or to purchase replacement parts, please contact DESINO customer service through their official channels. Refer to your purchase documentation for specific warranty terms and contact details.
You can also visit the DESINO Store for additional product information and support resources.
