1. Introduction
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your EDGE INDUSTRIAL BALDOR 7.5HP Single Phase Compressor Duty Electric Motor. This motor is designed for industrial-grade air compressor pumps and is intended for use in dry, non-dusty indoor environments. Please read this manual thoroughly before installation or operation.
Figure 1: Overview of the EDGE INDUSTRIAL BALDOR 7.5HP Electric Motor.
2. Safety Information
WARNING: PROFESSIONAL INSTALLATION IS REQUIRED when installing this item. INSTALL AT YOUR OWN RISK if the purchaser or end user of a product we sell installs themselves without hiring a licensed professional. This seller will NOT be held responsible for damages, injuries or death caused by the installation of our products by the end user or purchaser. It is the purchaser's responsibility to determine the suitability of the product for the specific application. If it is deemed defective, the seller shall be held harmless of any and all damages including (but not limited to) physical injury, property damage, water damage or otherwise for any reason. WARNING: Use and misuse of products sold by this seller involves serious risks including injury, disability and death. Purchasers assume all risks.
Always disconnect power before performing any installation, maintenance, or inspection. Ensure proper grounding and wiring according to local electrical codes and the motor's specifications. Wear appropriate personal protective equipment (PPE) during installation and operation.
3. Specifications
The following table details the key specifications of the EDGE INDUSTRIAL BALDOR 7.5HP Electric Motor:
| Specification | Value |
|---|---|
| Horsepower (HP) | 7.5 HP |
| Phase | Single Phase |
| Voltage | 208-230V (Not designed for less than 208V) |
| Amperage | 34A @ 208V / 28.6A @ 230V |
| RPM | 1750 RPM |
| Frequency | 60Hz |
| Frame | 215T (Steel Frame) |
| Shaft Diameter | 1-3/8 inches (Keyed Shaft) |
| Shaft Length | 3.5 inches |
| Service Factor | 1.25 @ 230V / 1.0 @ 208V |
| Enclosure | ODP (Open Drip Proof) |
| Rotation | Reversible (CW or CCW) |
| Construction | Rolled Steel |
| Weight | 88 lbs |
| Direct Replacement For | BALDOR L1510T, LEESON 140155 |

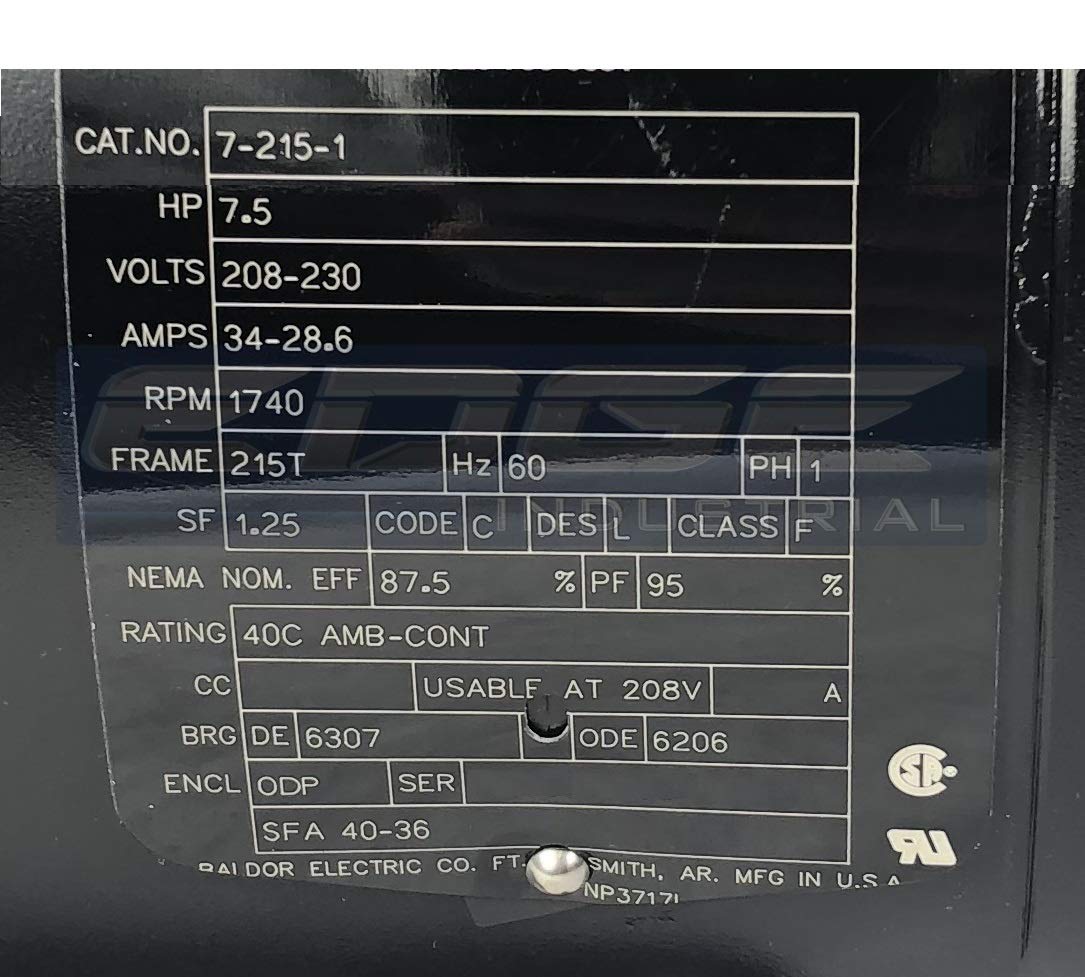

Figure 2: Motor Nameplate with detailed electrical and mechanical specifications.
4. Setup and Installation
4.1 Unpacking and Inspection
Upon receipt, carefully inspect the motor for any shipping damage. This motor ships via freight truck, so ensure your receiving address can accommodate freight deliveries. Report any damage to the carrier immediately.
Figure 3: Example of careful packaging to ensure safe delivery.
4.2 Mounting
The motor features a reinforced fixed base for secure mounting. Ensure the mounting surface is level, rigid, and capable of supporting the motor's 88 lbs weight and operational forces. Refer to the dimensional drawing for mounting hole patterns and overall dimensions.
Figure 4: Dimensional drawing for mounting and shaft alignment.
4.3 Electrical Connection
This motor operates on a single phase 208-230V power supply. It is crucial that the incoming voltage is not less than 208V. Consult the wiring diagram located on the motor's nameplate or inside the terminal box cover for correct connections. The motor is reversible and can be wired for either clockwise (CW) or counter-clockwise (CCW) rotation. Ensure all connections are tight and properly insulated.
4.4 Shaft Alignment
Proper alignment of the motor shaft with the driven equipment (e.g., compressor pump) is critical to prevent premature bearing failure and excessive vibration. Use appropriate alignment tools and methods to ensure precise alignment.
5. Operating Instructions
5.1 Pre-Operation Checks
- Verify all electrical connections are secure and correct.
- Ensure the motor is properly mounted and aligned with the driven load.
- Confirm the motor's ventilation openings are clear and unobstructed.
- Check that the power supply voltage matches the motor's requirements (208-230V).
5.2 Starting the Motor
With all pre-operation checks complete, apply power to the motor. Observe the motor during startup for any unusual noises, vibrations, or signs of overheating. The motor should reach its operating speed of 1750 RPM smoothly.
5.3 Normal Operation
During normal operation, the motor should run smoothly with minimal vibration and noise. Periodically monitor the motor's temperature. As an Open Drip Proof (ODP) motor, it is designed for indoor use where it is protected from falling liquids and airborne dust. Avoid operating in wet or excessively dusty environments.
6. Maintenance
Regular maintenance ensures the longevity and reliable performance of your electric motor.
6.1 Cleaning
Keep the motor's exterior and ventilation openings clean and free from dust, dirt, and debris. A clean motor dissipates heat more effectively, preventing overheating. Use compressed air or a soft brush for cleaning.
6.2 Bearing Lubrication
While specific lubrication intervals are not provided, industrial motors typically require periodic bearing lubrication. Consult a qualified technician or the motor manufacturer for specific lubrication requirements and schedules for the sealed bearings. Over-lubrication can be as detrimental as under-lubrication.
6.3 Electrical Connections
Periodically inspect all electrical connections for tightness and signs of corrosion or wear. Loose connections can lead to overheating and motor failure.
6.4 Environmental Considerations
As an ODP motor, it is crucial to maintain a dry, clean, and non-dusty indoor environment to prevent internal contamination and damage.
7. Troubleshooting
This section provides guidance for common issues. For complex problems, contact qualified service personnel.
| Problem | Possible Cause | Solution |
|---|---|---|
| Motor does not start | No power, incorrect wiring, low voltage, seized bearings, overload protection tripped. | Check power supply, verify wiring, ensure adequate voltage, inspect bearings, reset overload. |
| Motor overheats | Overload, insufficient ventilation, high ambient temperature, incorrect voltage, bearing issues. | Reduce load, clear ventilation, ensure proper environment, check voltage, inspect bearings. |
| Excessive vibration/noise | Misalignment, loose mounting, worn bearings, unbalanced load. | Check alignment, tighten mounting bolts, inspect/replace bearings, balance load. |
| Motor runs slowly | Low voltage, excessive load, incorrect wiring. | Verify voltage, reduce load, check wiring against diagram. |
8. Warranty
This EDGE INDUSTRIAL BALDOR electric motor is backed by a full 12-month manufacturer's warranty from the date of sale. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims. The warranty does not cover damage due to improper installation, misuse, neglect, or unauthorized modifications.
9. Support
For technical assistance, warranty claims, or further information regarding your EDGE INDUSTRIAL BALDOR electric motor, please contact your authorized dealer or the manufacturer's customer support. When contacting support, please have your motor's model number (215T) and serial number (if applicable) readily available.
You can find additional support information and contact details on the EDGE INDUSTRIAL website or through your purchase documentation.
