Introduction
This user manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Clean Garage Kranzle HD K1622TS Electric Pressure Washer. Please read this manual thoroughly before using the product to ensure proper function and longevity.
Safety Information
Always observe basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and personal injury. This pressure washer operates at high pressure and can cause serious injury if not used correctly.
- Ensure the power source matches the voltage and amperage requirements (110V, 15A).
- Always connect the pressure washer to a grounded outlet with a Ground Fault Circuit Interrupter (GFCI).
- Do not direct the water stream at people, pets, or electrical devices.
- Wear appropriate personal protective equipment, including eye protection, during operation.
- Keep children and bystanders away from the operating area.
- Never operate the pressure washer without a water supply.
Product Overview
The Kranzle HD K1622TS is a robust electric pressure washer designed for various cleaning tasks. It features a durable solid brass pump head and hardened steel pistons, ensuring extended service life. The Total Stop (TS) feature automatically shuts off the pump when the trigger is released, conserving energy and extending pump life.
Key Features:
- 1600 PSI, 1.7 GPM output with Total Stop (TS) functionality.
- Advanced Kränzle pump design for multi-hour bypass and run-dry capability.
- 33-feet wire braided hose with safety couplers for extended reach and durability.
- Built-in easy-start feature to prolong motor life.
- TEFC 1600 RPM electric 110V, 15A motor with GFI, suitable for standard outlets.
Setup
- Unpacking: Carefully remove all components from the packaging. Verify that all parts listed in the packing list are present.
- Placement: Position the pressure washer on a stable, level surface. Ensure adequate ventilation around the unit.
- Water Connection: Connect a standard garden hose to the water inlet of the pressure washer. Ensure the connection is secure to prevent leaks. The unit requires a continuous water supply.
- High-Pressure Hose Connection: Attach the 33-foot wire braided high-pressure hose to the high-pressure outlet on the pump. Securely fasten the safety couplers.
- Wand and Nozzle Assembly: Connect the wand to the high-pressure gun. Attach the desired Vario-Jet nozzle to the end of the wand.
- Electrical Connection: Plug the pressure washer's power cord into a grounded 110V, 15A outlet equipped with a GFCI.
Operating Instructions
- Prepare Water Supply: Turn on the water supply to the pressure washer. Allow water to flow through the pump and hose until all air is purged and a steady stream emerges from the nozzle. This prevents air pockets from damaging the pump.
- Power On: Turn the power switch on the pressure washer to the 'ON' position. The motor will start, and the pump will build pressure.
- Begin Cleaning: Aim the nozzle at the surface to be cleaned, maintaining a safe distance. Squeeze the trigger on the high-pressure gun to begin spraying. The Total Stop feature will activate when the trigger is released, stopping the pump.
- Adjust Pressure: The Kranzle HD K1622TS allows for adjustable pressure. Refer to the pressure gauge on the unit and adjust the pressure regulator knob to achieve the desired PSI for your cleaning task (450-1600 PSI).
- Shut Down: When finished, release the trigger, turn the power switch to 'OFF', and then turn off the water supply. Squeeze the trigger again to release any remaining pressure in the system before disconnecting hoses.
Maintenance
Regular maintenance ensures optimal performance and extends the life of your pressure washer.
- After Each Use:
- Flush the system with clean water to remove any detergent or chemical residues.
- Disconnect all hoses and accessories.
- Drain any remaining water from the pump and hoses, especially before storing in freezing temperatures.
- Clean the exterior of the unit with a damp cloth.
- Regular Checks:
- Inspect hoses and connections for wear, cracks, or leaks. Replace damaged components immediately.
- Check the water inlet filter for debris and clean if necessary.
- Periodically check the oil level in the pump (if applicable, refer to specific pump instructions for location and type of oil).
- Storage: Store the pressure washer in a dry, frost-free environment.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| No pressure or low pressure |
|
|
| Motor stops frequently (Total Stop feature) |
|
|
| Unit does not start |
|
|
Specifications
| Feature | Detail |
|---|---|
| Brand | Clean Garage |
| Model Number | K1622TS (K1622) |
| Power Source | Corded Electric |
| Maximum Pressure | 1600 PSI (adjustable 450-1600 PSI) |
| Maximum Flow Rate | 1.7 GPM |
| Voltage / Amperage | 110V, 15A |
| Hose Length | 33 Feet (wire braided) |

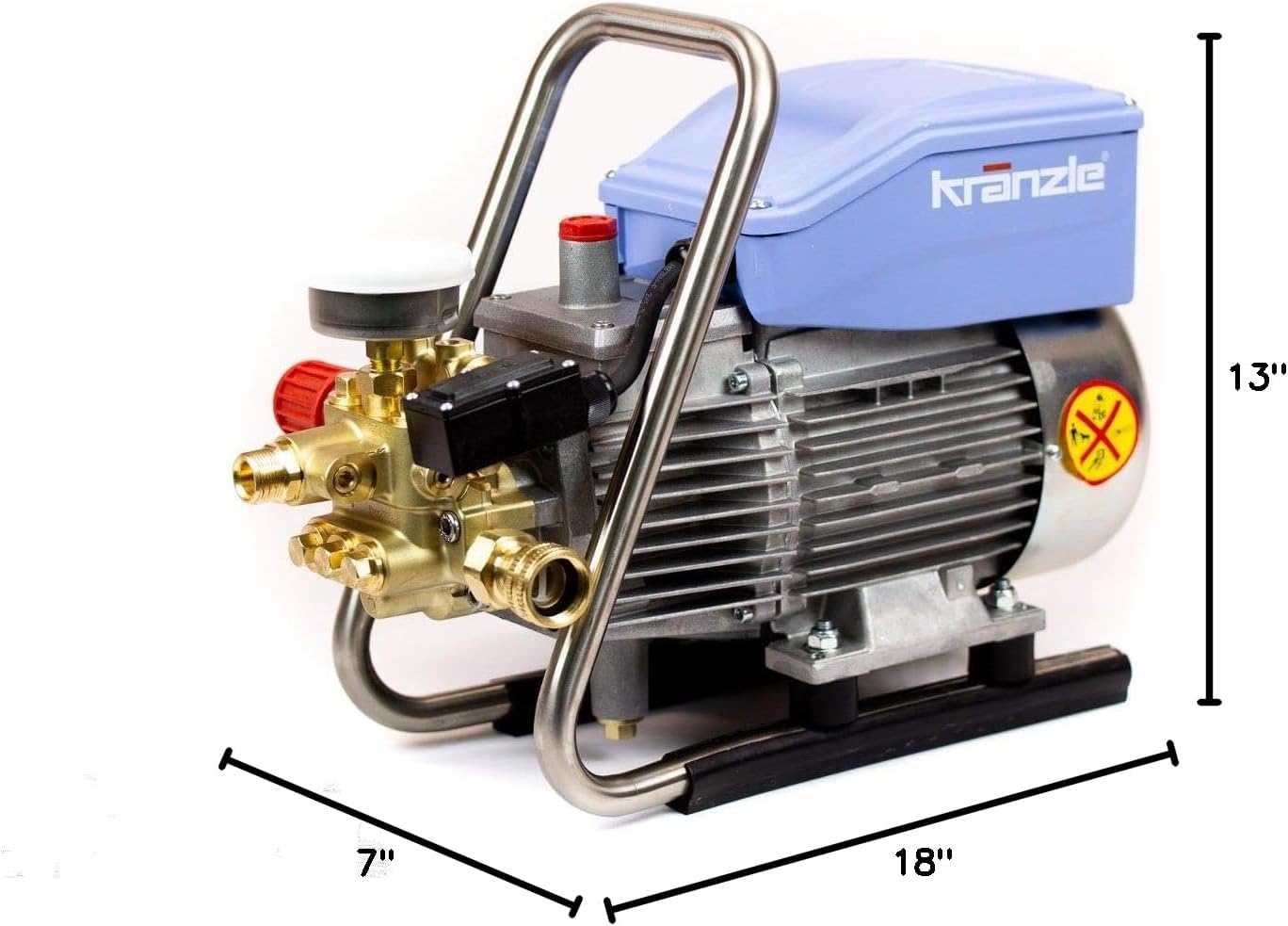

| Product Dimensions (L x W x H) | 18" x 7" x 13" |
| Item Weight | 67.9 pounds |
| Pump Type | Solid Brass Head, Hardened Steel Piston |
| Motor Speed | 1600 RPM (TEFC Electric) |
| Special Features | Total Stop (TS), Easy-Start |
Warranty Information
The Clean Garage Kranzle HD K1622TS Electric Pressure Washer comes with the following warranty coverage:
- Residential Use: 2-year warranty
- Commercial Use: 1-year warranty
Please retain your proof of purchase for warranty claims. For detailed warranty terms and conditions, refer to the official Clean Garage website or contact customer support.
Customer Support
For any questions, technical assistance, or warranty inquiries, please contact The Clean Garage customer support team. You can find contact information on their official website or through your purchase platform.
Online Resources: Visit The Clean Garage website for FAQs, additional product information, and support resources.
